Knock Sensor: Components

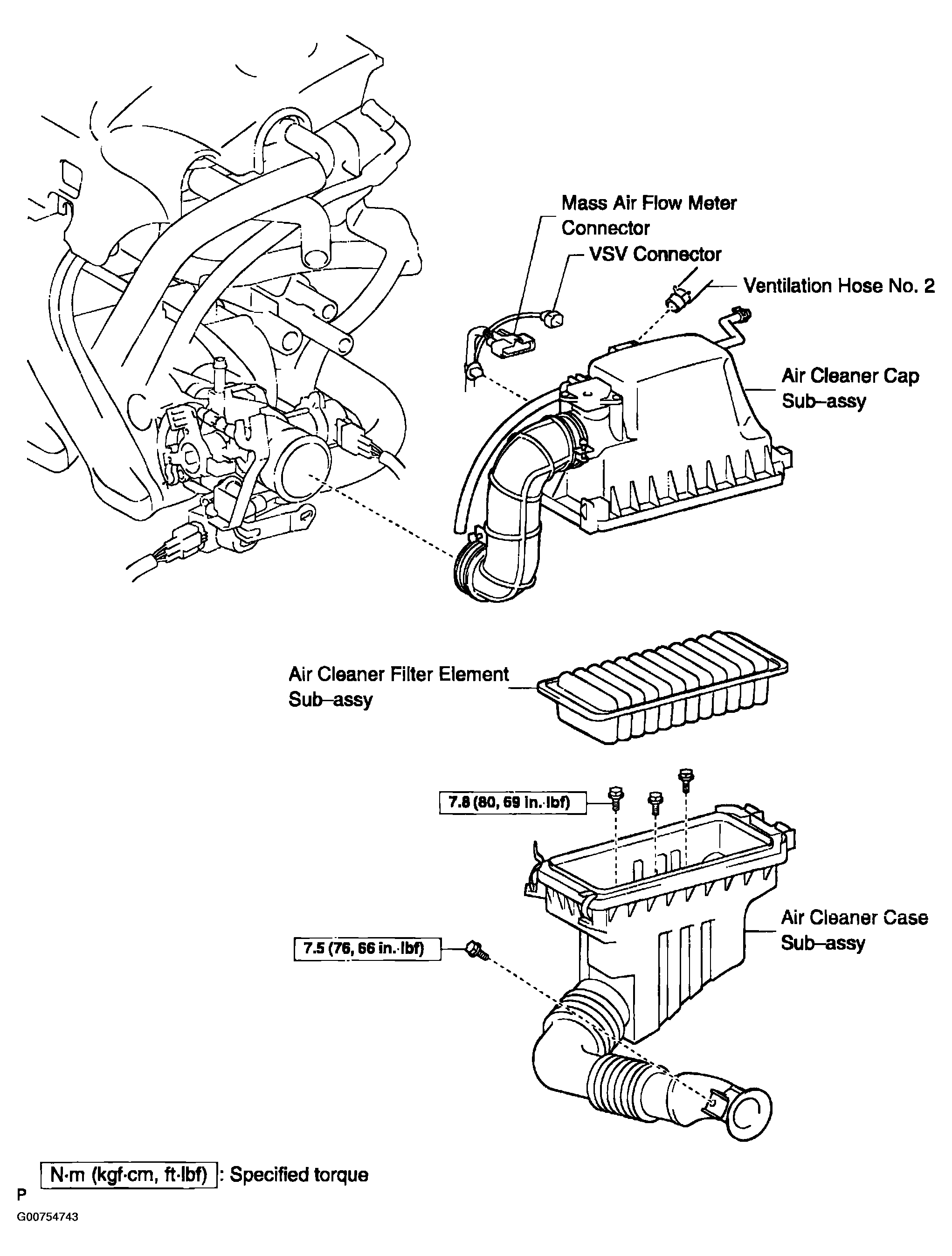

Fig 1: Locating Knock Sensor Components (1 Of 3)
G00754743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

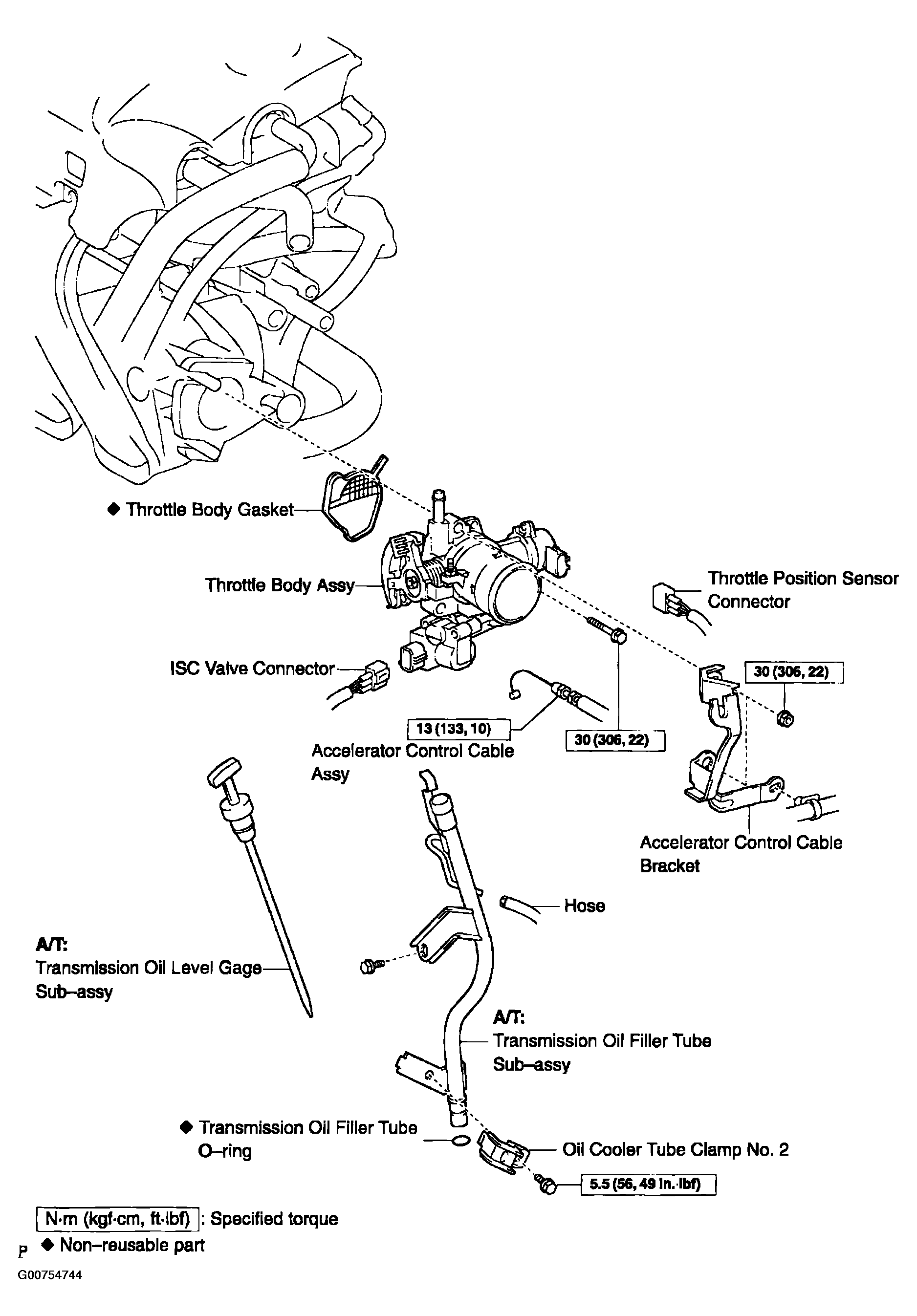

Fig 2: Locating Knock Sensor Components (2 Of 3)
G00754744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

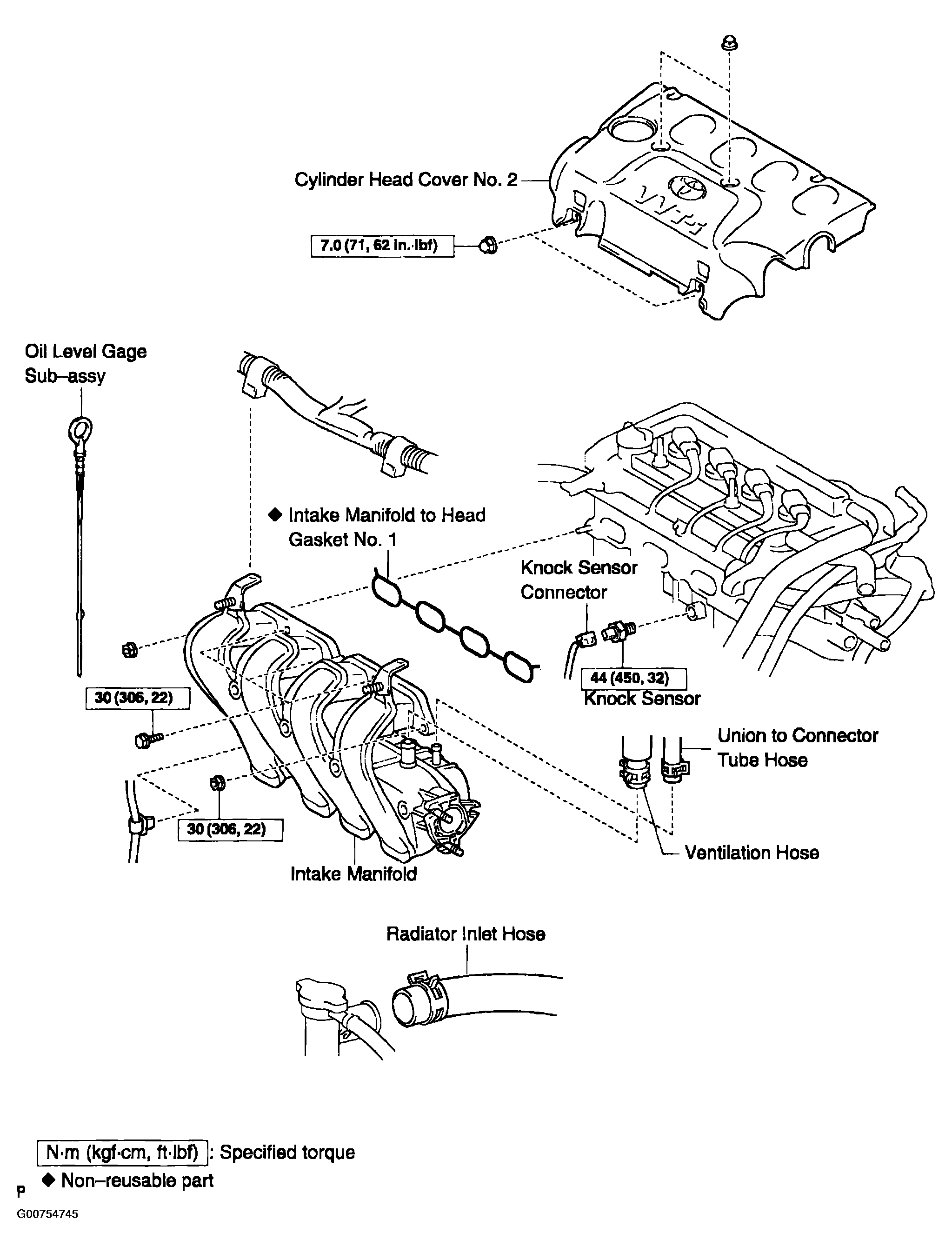

Fig 3: Locating Knock Sensor Components (3 Of 3)
G00754745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
