Fuel Tank ASSY: Components

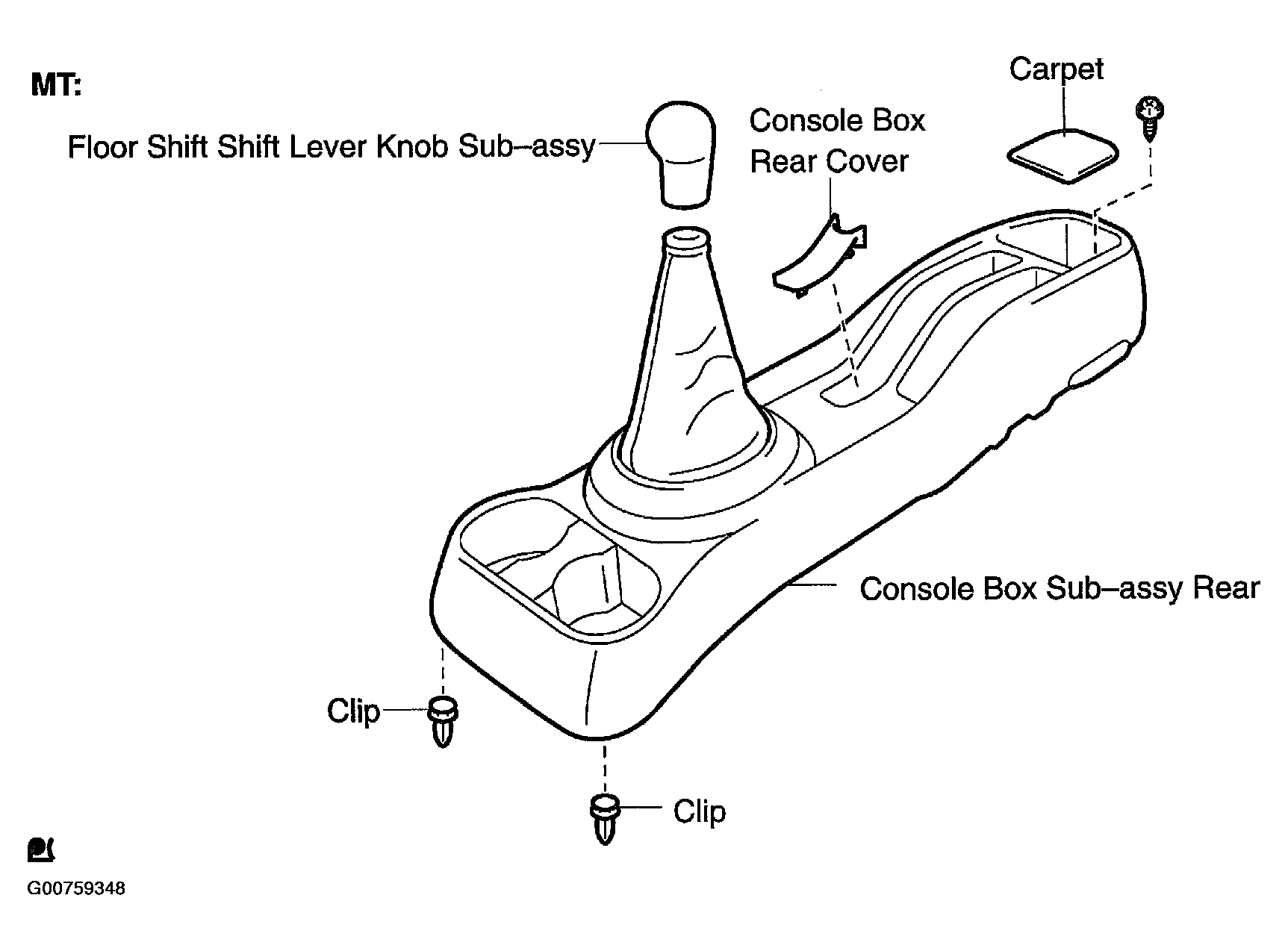

Fig 1: Identifying Consol Box Sub-Assy Rear Components (MT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

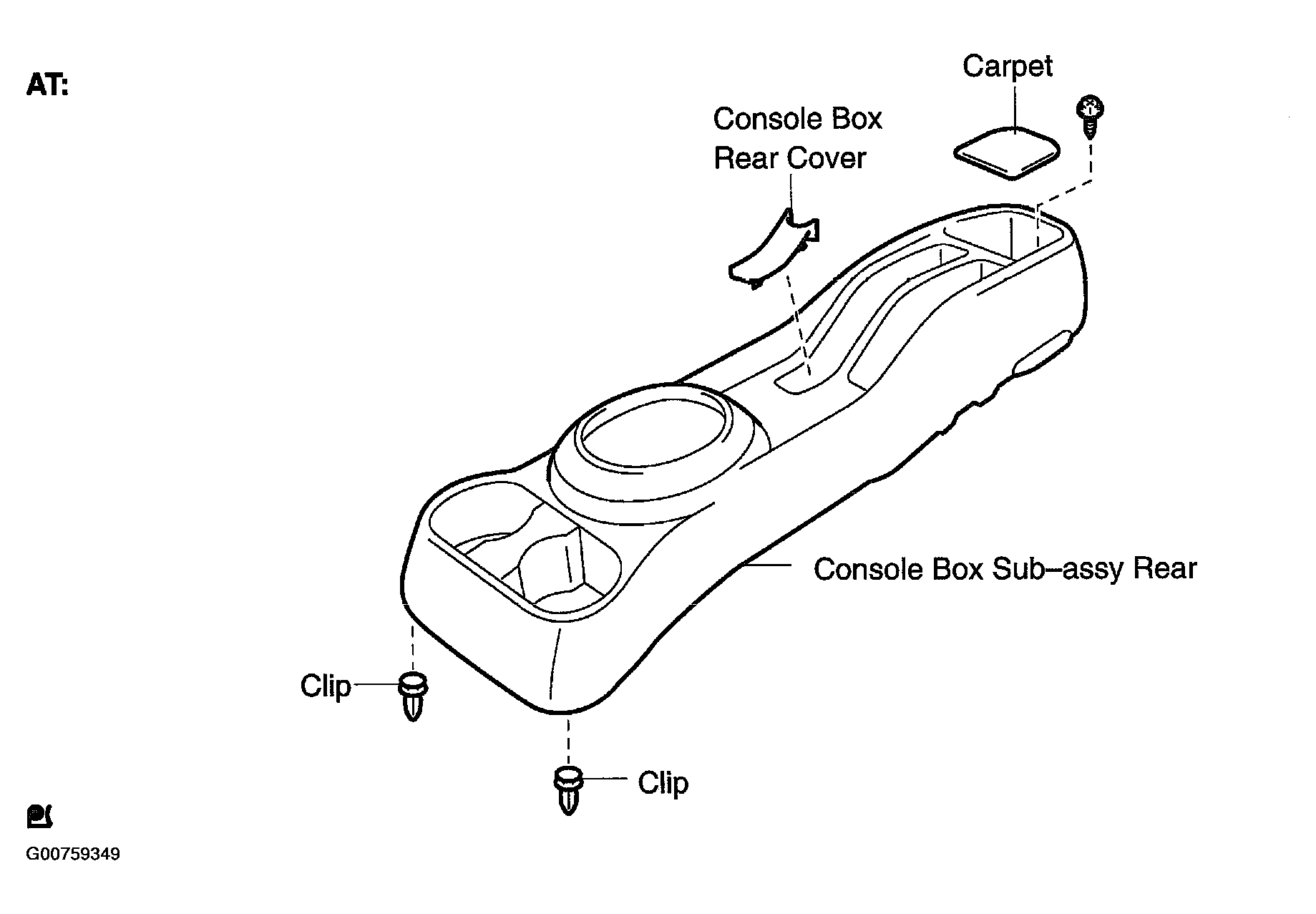

Fig 2: Identifying Consol Box Sub-Assy Rear Components (AT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

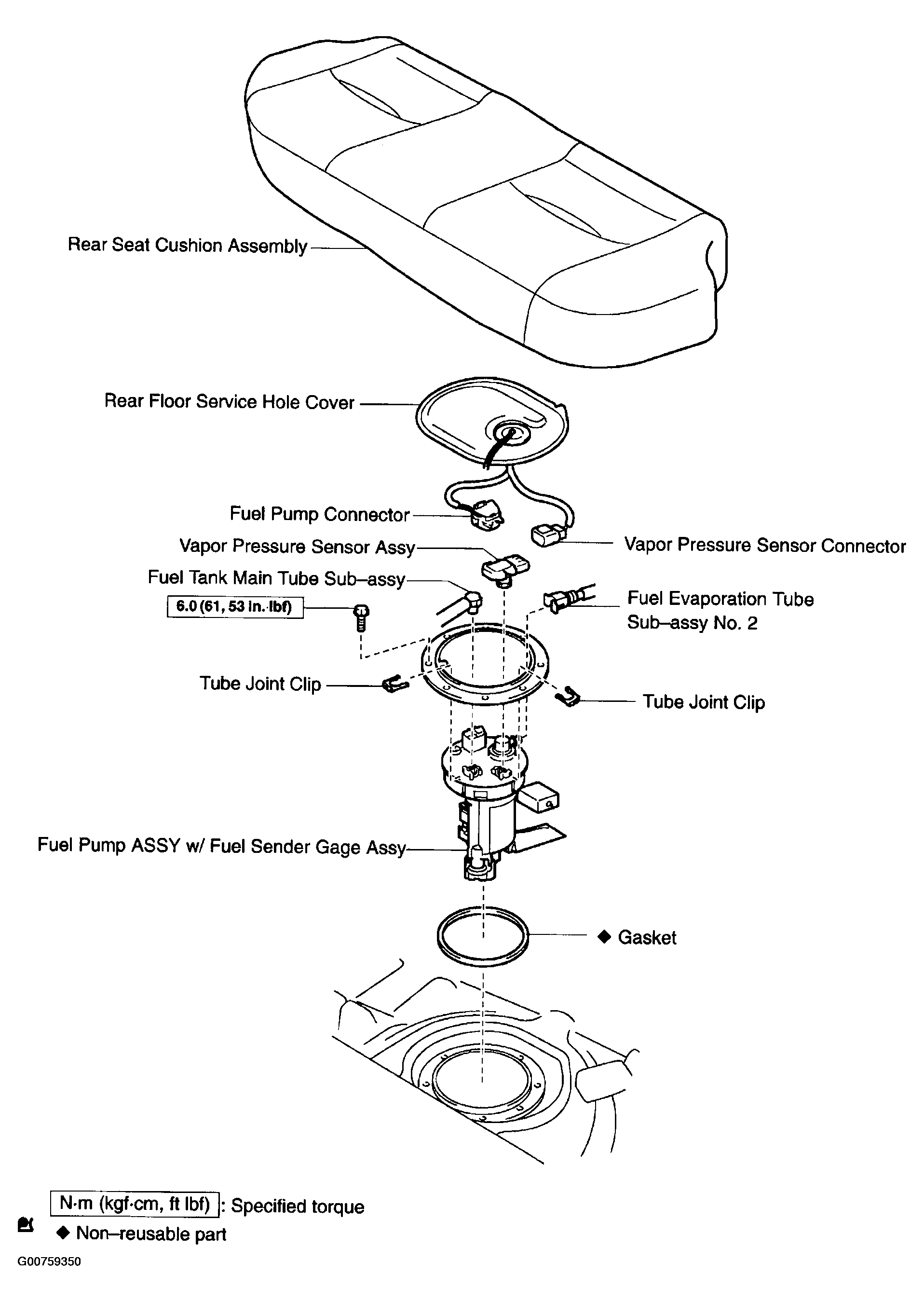

Fig 3: Identifying Fuel Pump Assy Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

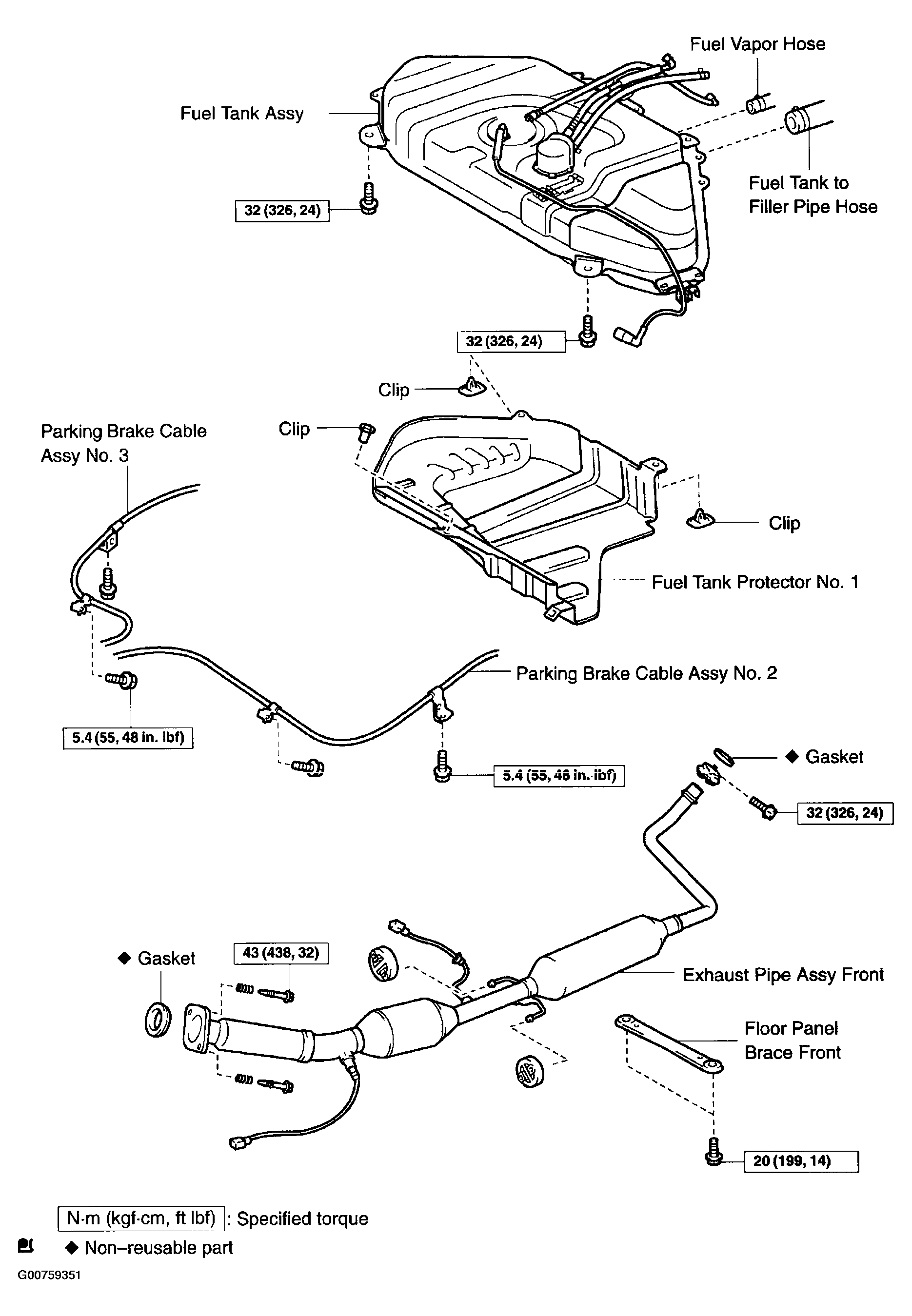

Fig 4: Identifying Fuel Tank Assy Components

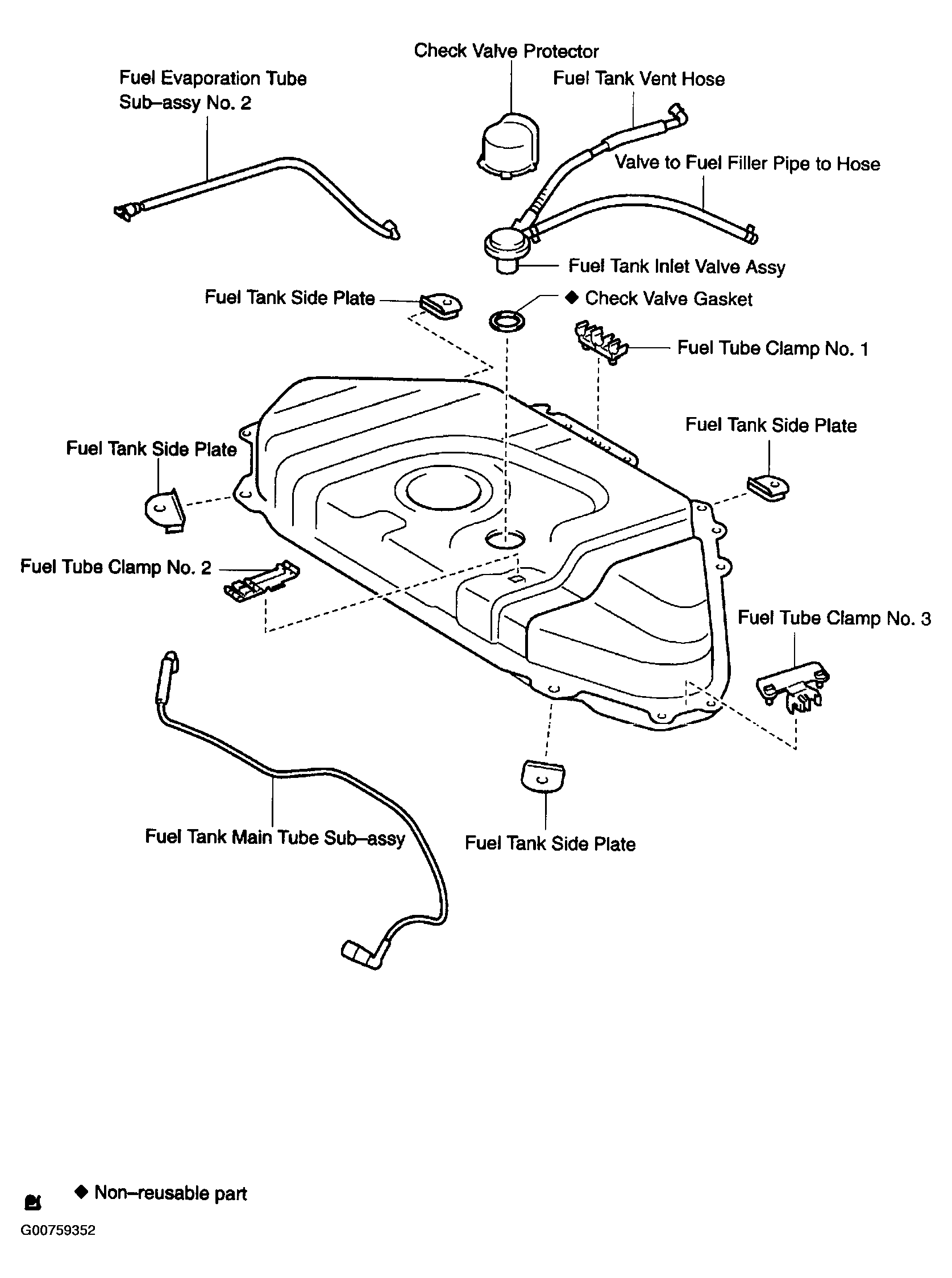

Fig 5: Exploded View Of Fuel Tank Assy Components
