Customer Problem Analysis

HINT:

In troubleshooting, the problem symptoms must be confirmed accurately. Preconceptions should be discarded in order to give an accurate judgement. To ascertain what the problem symptoms are, it is extremely important to ask the customer about the problem and the conditions at the time it occurred.
As much information as possible should be gathered for the reference, even past problems that seem unrelated may help in some cases. In the Diagnostic section, a customer problem analysis table is provided for each system.
5 items are important points in the problem analysis:

IMPORTANT POINTS WITH CUSTOMER PROBLEM ANALYSIS

What - Vehicle model, system name
When - Date, time, occurrence frequency
Where - Road conditions
Under what conditions? - Running conditions, driving conditions, weather conditions
How did it happen? - Problem symptoms

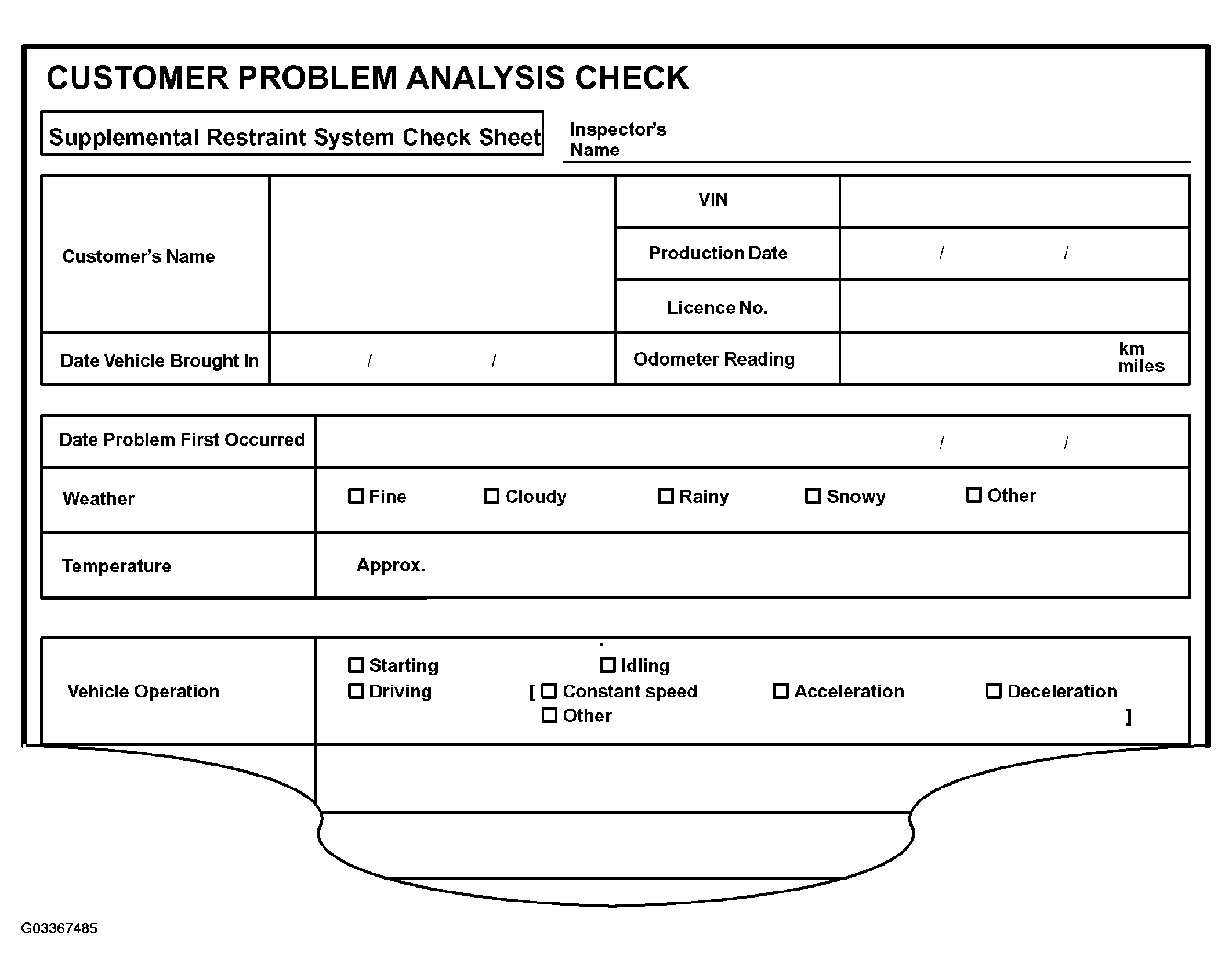

(Sample) Supplemental restraint system check sheet.

Fig 1: Check Sheet
