Auto Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

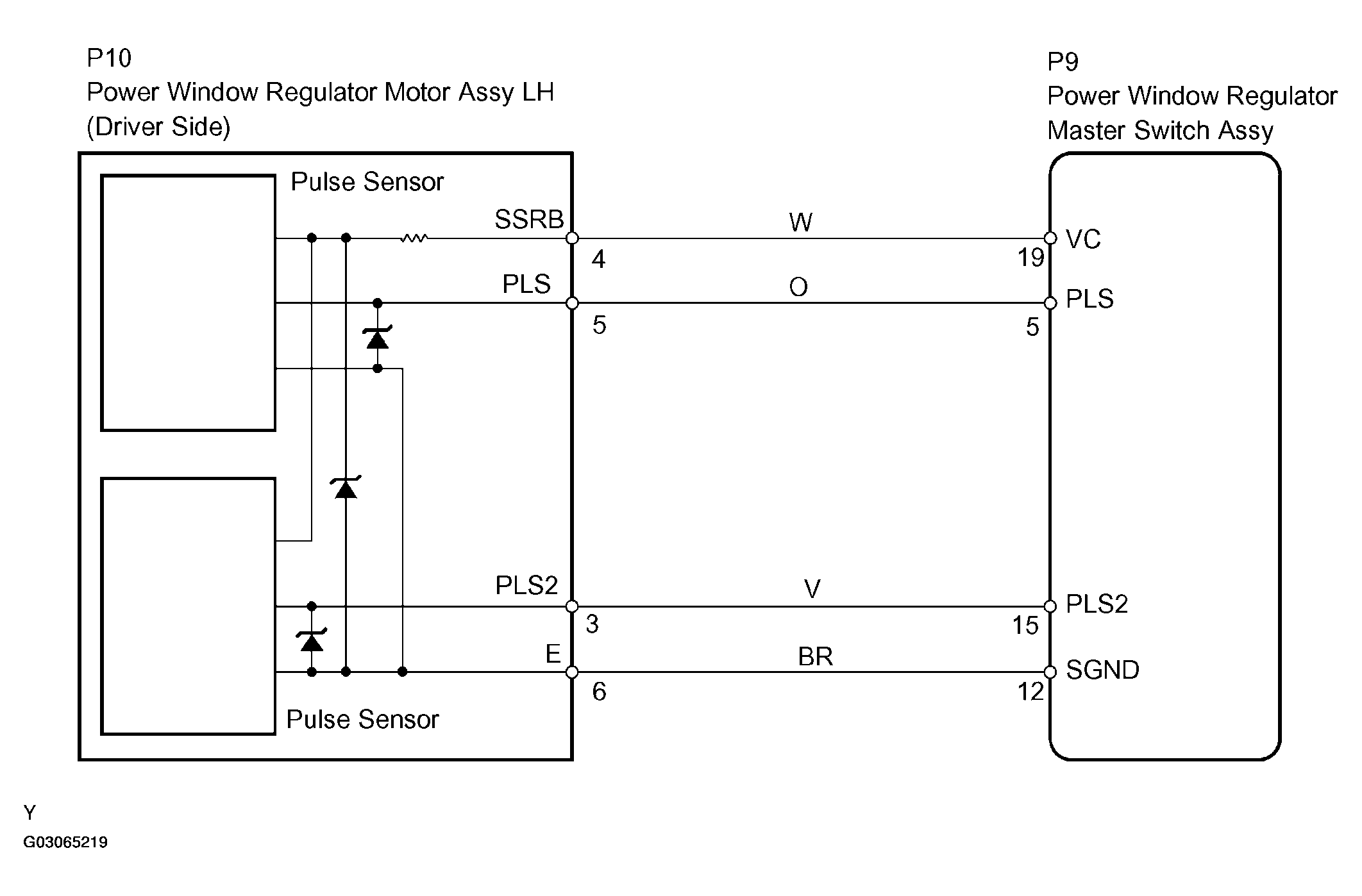

Fig 1: Wiring Diagram - Auto Up/Down (Driver Side)
G03065219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
