Inspection Procedure
- CHECK AUTO UP/DOWN FUNCTION (PASSENGER SIDE)
- Check that the power window AUTO UP/DOWN function operates normally.
NG: Go to step 2
OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
- INSPECT FUSE (FR DOOR)
- Remove the FR DOOR fuse from the instrument panel J/B.
- Measure the resistance of the fuse.
- Standard: Below 1 Ω
NG: REPLACE FUSE
OK: GO TO NEXT STEP

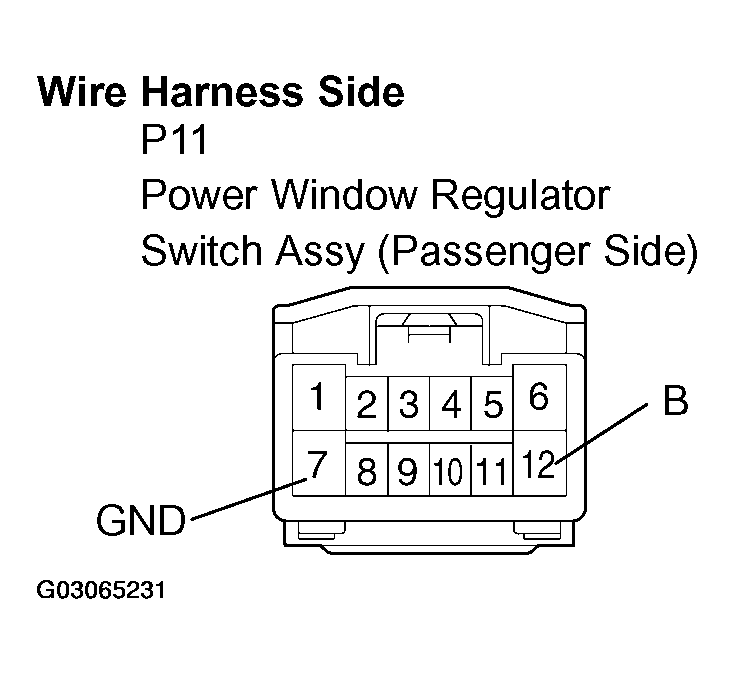

- CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE) - BATTERY AND BODY GROUND)
- Disconnect the P11 regulator switch connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard:
POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE) TERMINAL RESISTANCETester Connection Specified Condition P11-12 (B) - Body ground 10 to 14 V P11-7 (GND) - Body ground Below 1 Ω
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: GO TO NEXT STEP

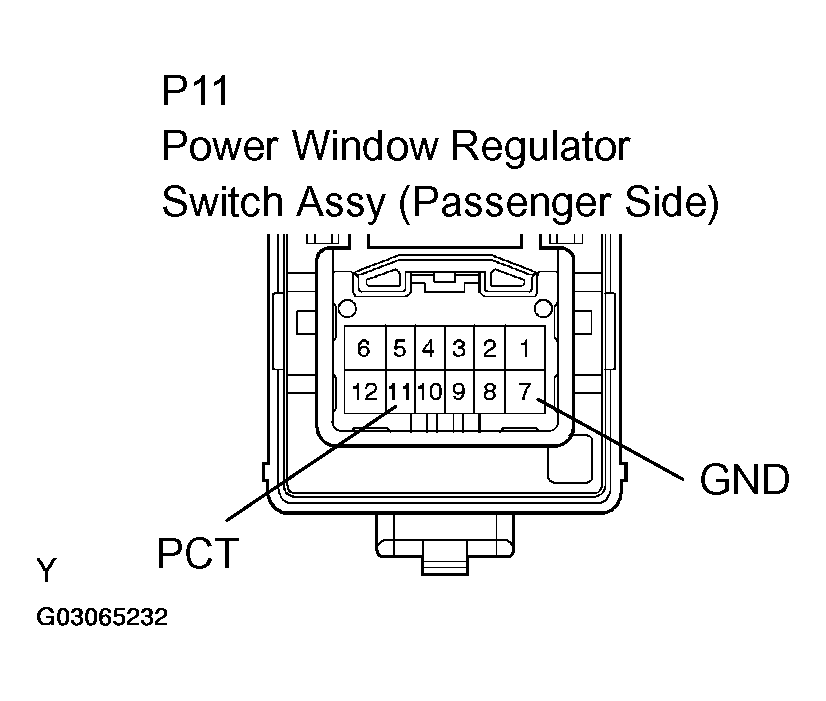

- CHECK POWER WINDOW REGULATOR SWITCH ASSY (WINDOW LOCK SWITCH SIGNAL)
- Remove the regulator switch but do not disconnect the connector.
- Turn the ignition switch ON.
- Measure the voltage of the connector.
Standard:
POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE) TERMINAL VOLTAGETester Connection Window Lock Switch Condition Specified Condition P11-11 (PCT) - P11-7 (GND) OFF (Normal) 10 to 14 V P11-11 (PCT) - P11-7 (GND) ON (Lock) Below 1 V
NG: Go to step 5
OK: Go to step 6

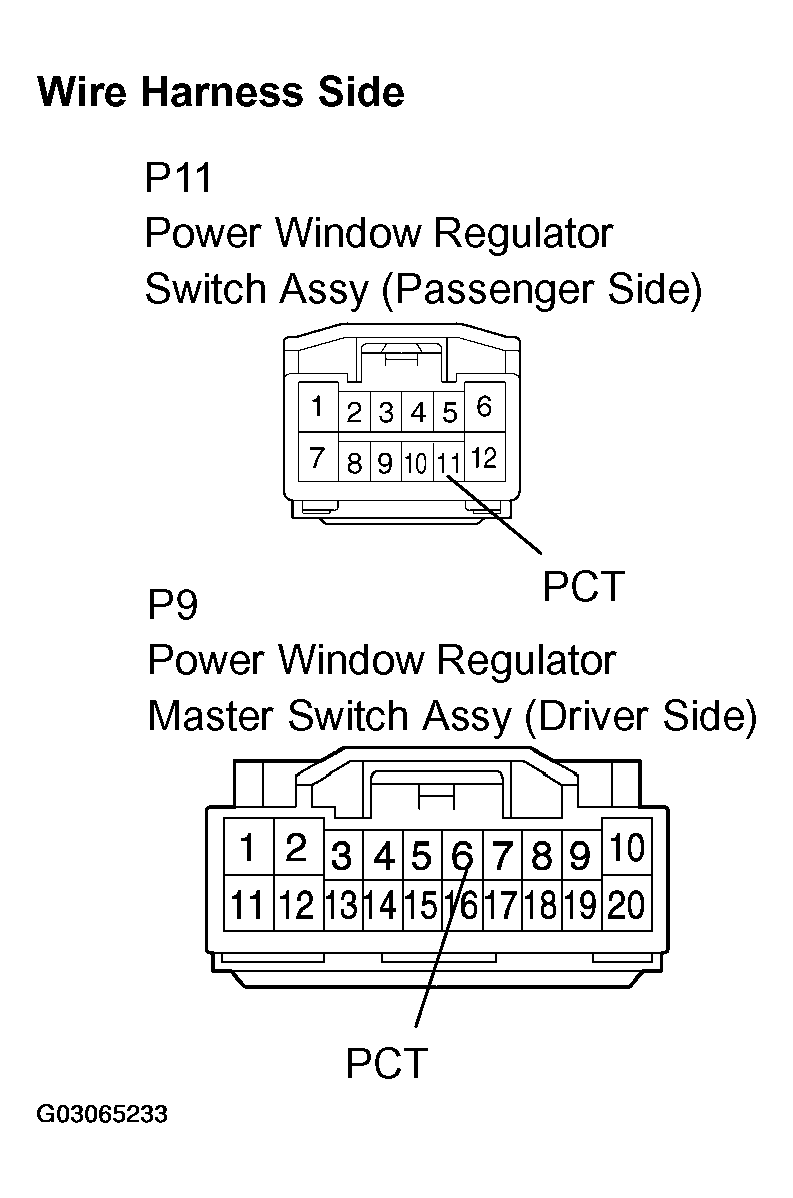

- CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY - POWER WINDOW REGULATOR MASTER SWITCH ASSY)
- Disconnect the P11 regulator switch connector.
- Disconnect the P9 master switch connector.
- Measure the resistance of the wire harness side connectors.POWER WINDOW REGULATOR SWITCH ASSY TERMINAL RESISTANCE
Tester Connection Specified Condition P11-11 (PCT) - P9-6 (PCT) Below 1 Ω P11-11 (PTC) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

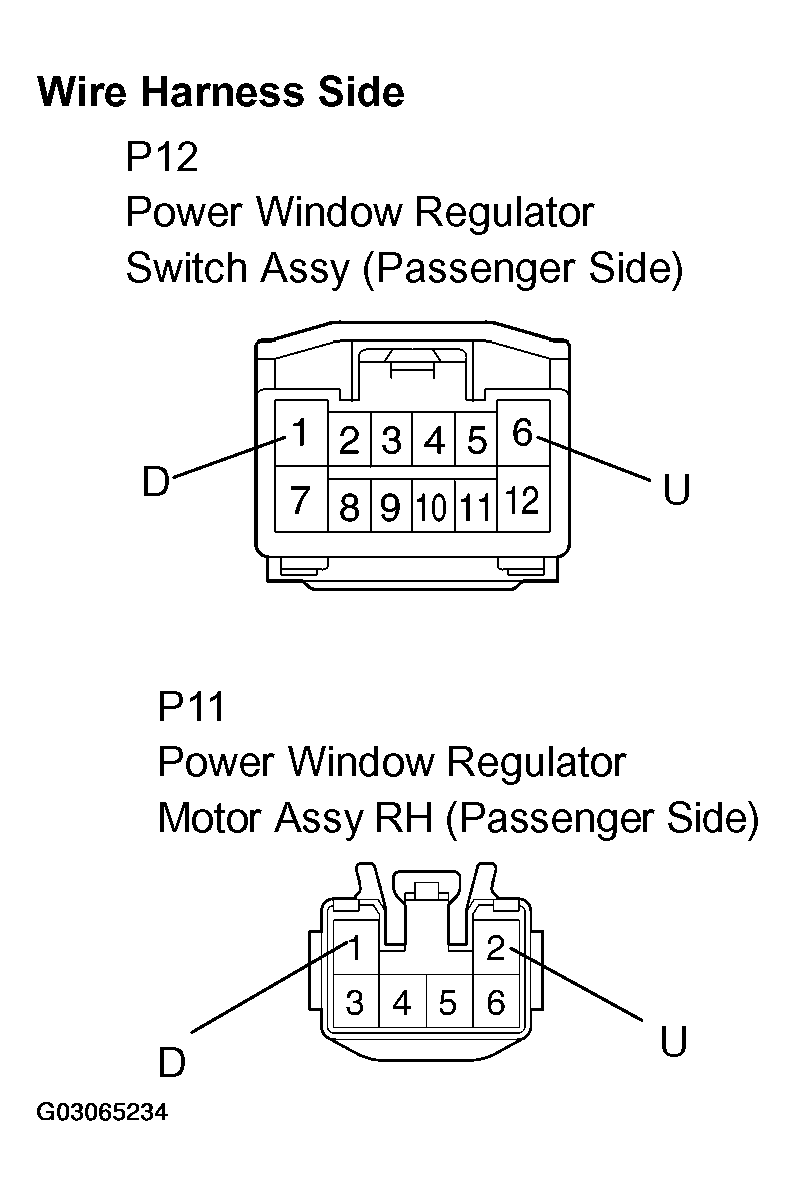

- CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY POWER WINDOW REGULATOR MOTOR ASSY RH)
- Disconnect the P12 regulator switch connector.
- Disconnect the P11 power window motor connector.
- Measure the resistance of the wire harness side connectors.
Standard:
POWER WINDOW REGULATOR SWITCH ASSY POWER WINDOW REGULATOR MOTOR ASSY RH TERMINAL RESISTANCETester Connection Specified Condition P12-1 (D) - P11-1 (D) Below 1 Ω P12-6 (U) - P11-2 (U) Below 1 Ω P12-1 (D) - Body ground 10 kΩ or higher P12-6 (U) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: GO TO NEXT STEP
- CHECK POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
- Remove the regulator switch but do not disconnect the connector.
- Turn the ignition switch ON.
- Measure the voltage of the connector.
Standard:
POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE) TERMINAL VOLTAGETester Connection Switch Condition Specified Condition P12-6 (U) - P12-7 (GND) UP 10 to 14 V P12-1 (D) - P12-7 (GND) DOWN 10 to 14 V
NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)
