Inspection Procedure

1. Remove the AM1, GAUGE and FL DOOR fuses from the instrument panel J/B.
2. Measure the resistance of the fuses.
   1. Standard: Below 1 Ω

NG: REPLACE FUSE

OK: GO TO NEXT STEP

1. Remove the IG1 relay from the instrument panel J/B.
2. Measure the resistance of the relay.

   Standard:

   IG1 RELAY TERMINAL RESISTANCE



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

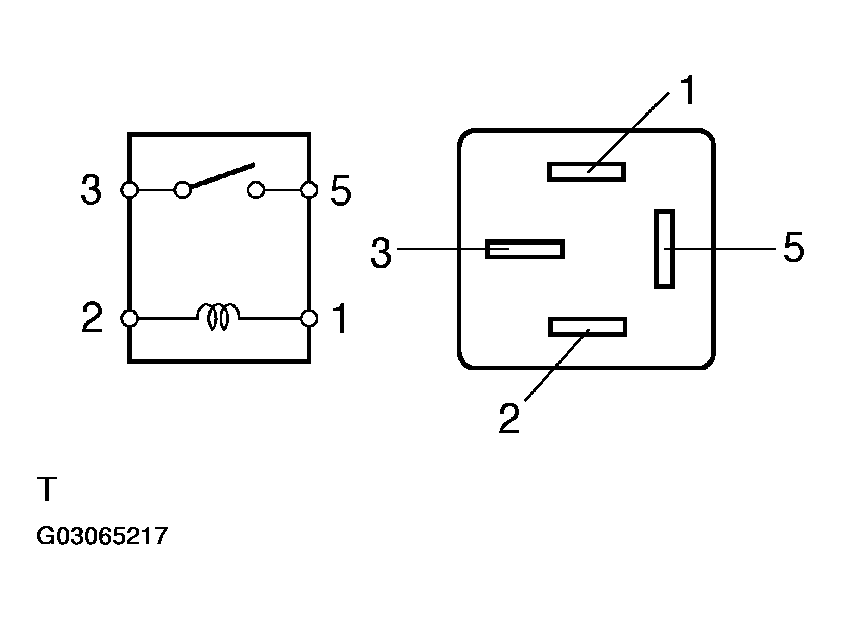

   Fig 1: Inspecting Relay (Marking: IG1)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RELAY (IG1)

OK: GO TO NEXT STEP

1. Disconnect the P9 master switch connector.
2. Measure the voltage and resistance of the wire harness side connector.

   Standard:

   POWER WINDOW REGULATOR MASTER SWITCH ASSY TERMINAL VOLTAGE



   Tester Connection	Condition	Specified Condition
   P9-10 (B) - Body ground	Always	10 to 14 V
   P9-20 (IG) - Body ground	Ignition switch OFF -> ON	0 V -> 10 to 14 V
   P9-2 (GND) Body ground	Always	Below 1 Ω

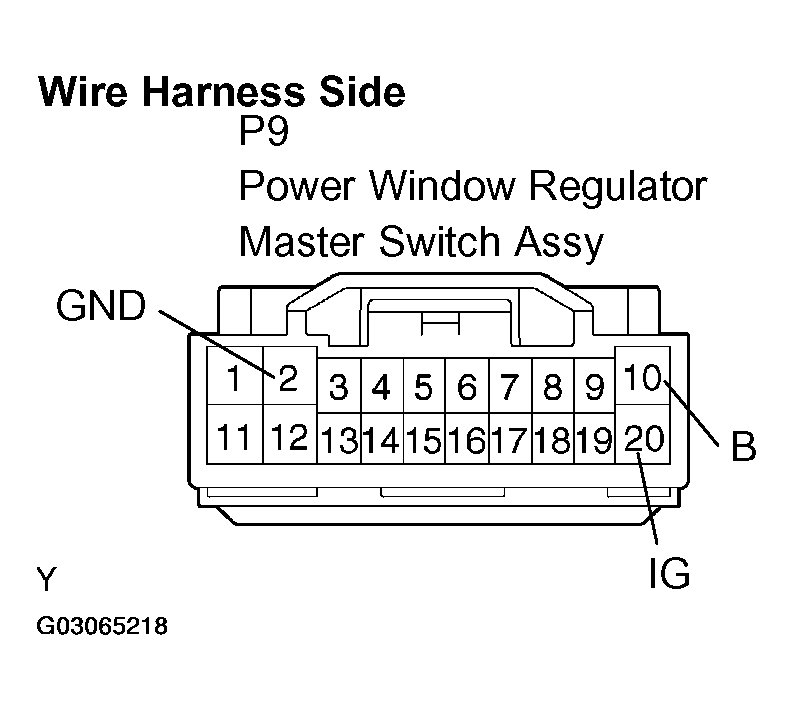

   Fig 2: Measuring Voltage & Resistance Of Wire Harness Side Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
