Power Windows Do Not Operate At All: Wiring Diagram

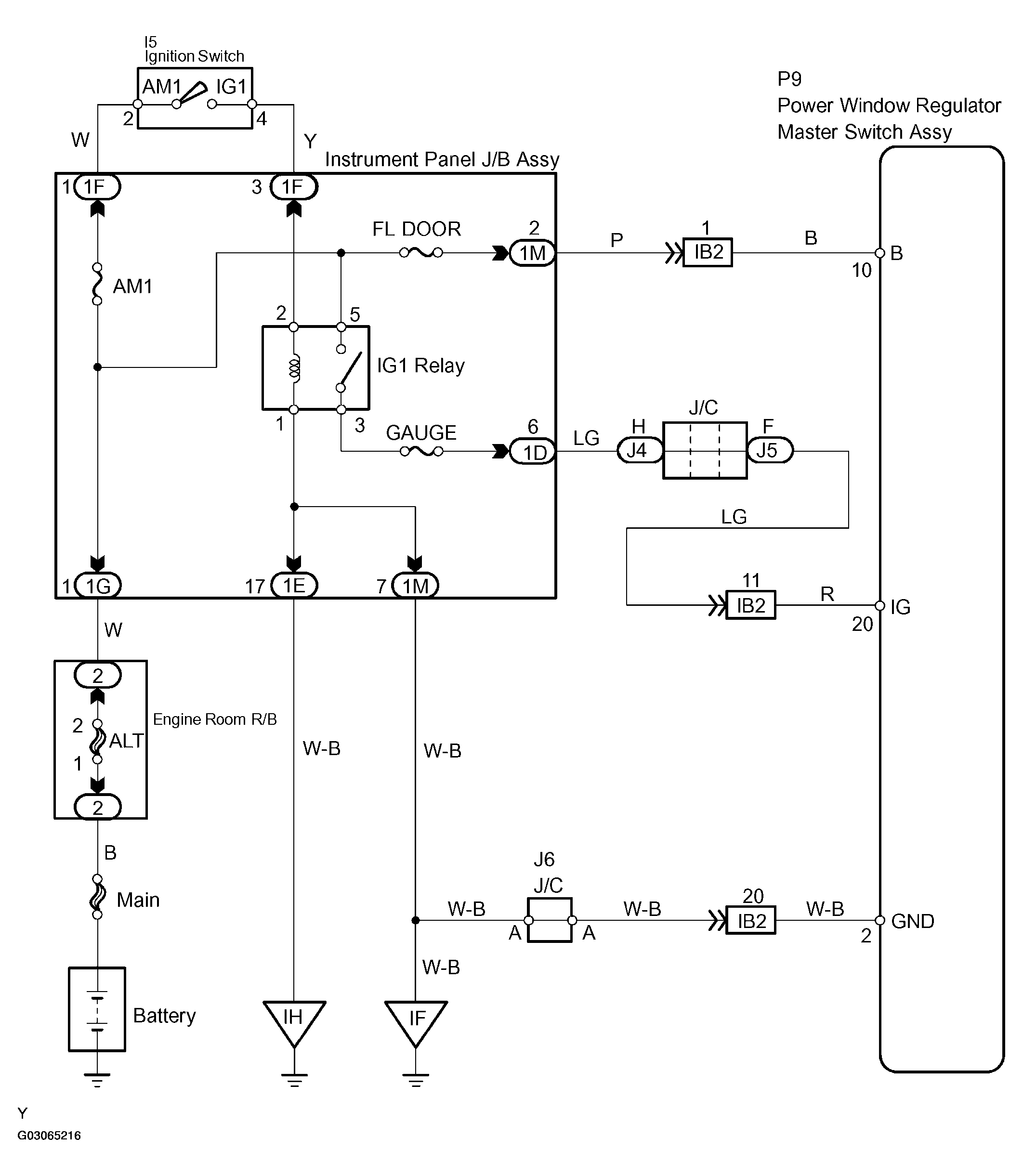

Fig 1: Wiring Diagram - Power Windows
G03065216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
