Back Door Glass: Components

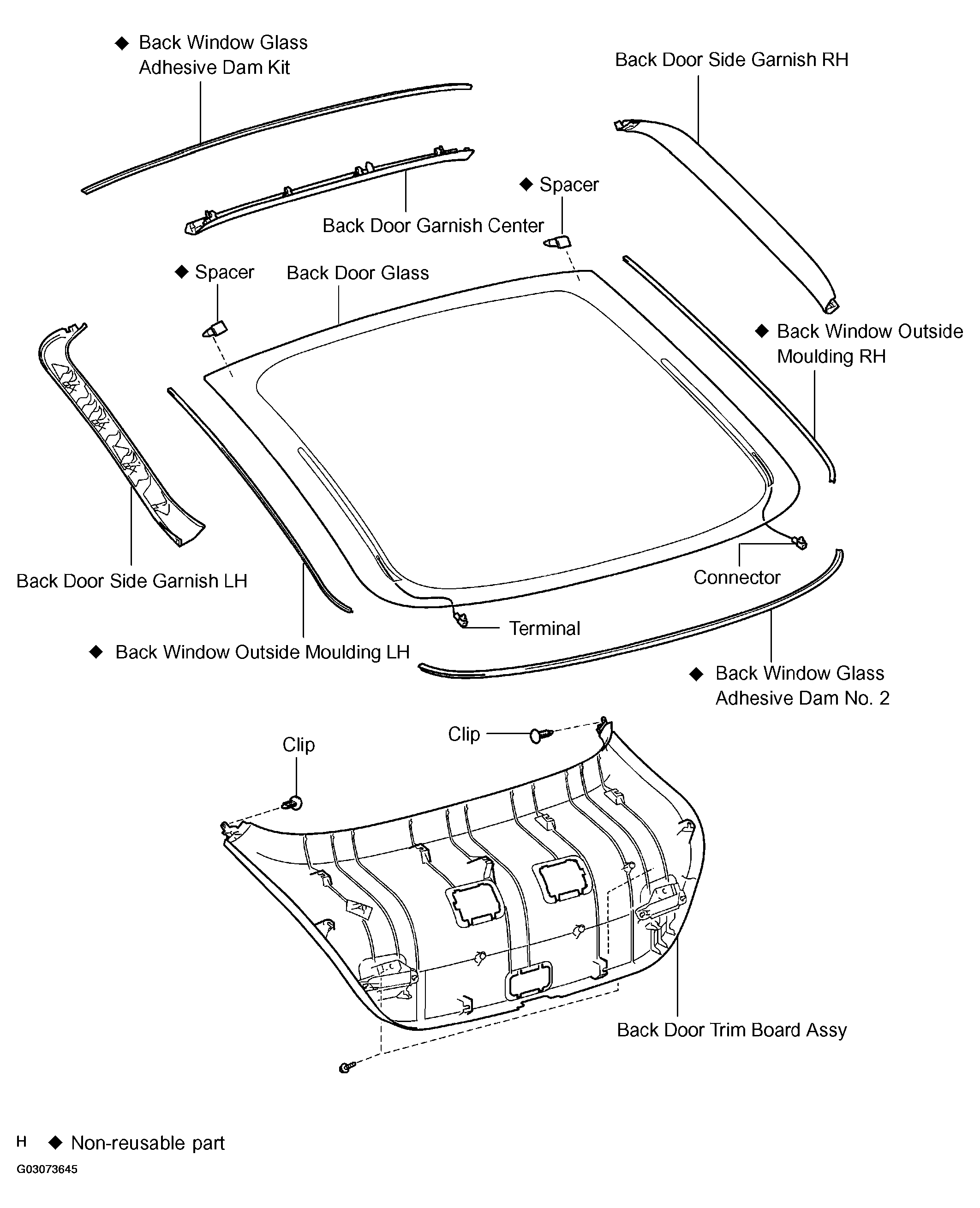

Fig 1: Identifying Back Door Glass Component
G03073645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
