Inner Rear View Mirror ASSY: Replacement

HINT:

The installation procedures are the removal procedures in reverse order.

1. REMOVE INNER REAR VIEW MIRROR ASSY
   1. Push the cover in the direction indicated by the arrows labeled (a) shown in Fig 1and remove it.
   2. While holding down the claw in the direction of the black arrow labeled (b), slide the mirror in the direction of the white arrow labeled (c) and remove it.

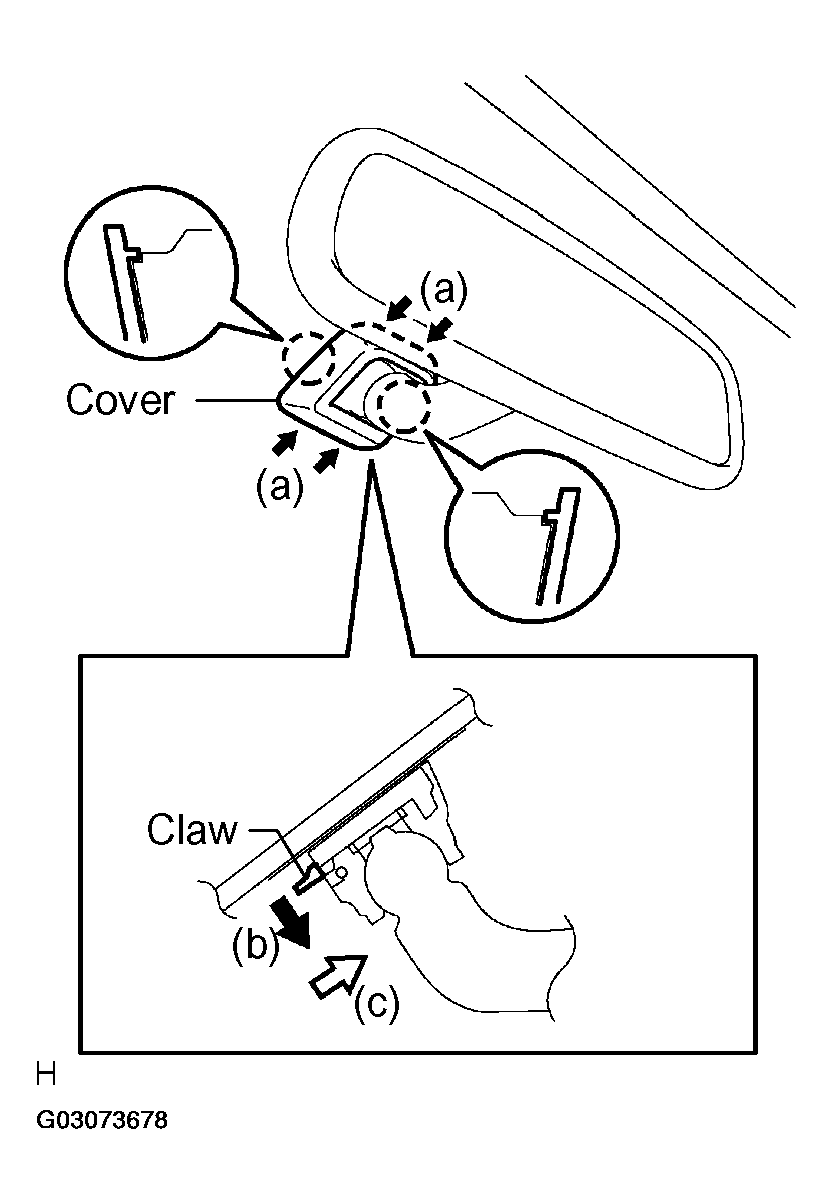

   Fig 1: Removing Inner Rear View Mirror Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
