On-Vehicle Inspection

CHECK WINDOW LOCK SWITCH
1. Check that the passenger side power window operation is disabled when the window lock switch of the power window regulator master switch is pressed.
2. Check that the passenger side power window can be operated when the window lock switch is pressed again.

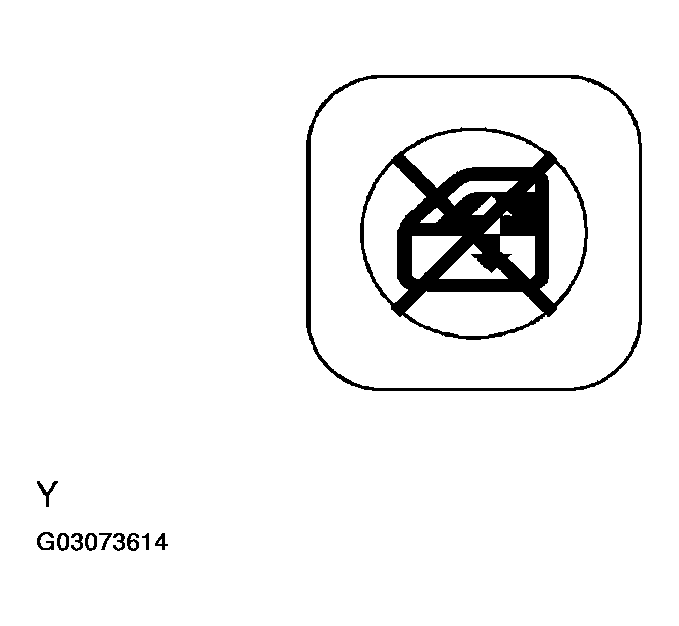

Fig 1: Checking Window Lock Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK MANUAL UP/DOWN FUNCTION

Check that the driver side power window operates as follows:

Standard:

MASTER SWITCH CONDITION SPECIFICATIONS

Condition	Master Switch	Switch Operation	Power Window
Ignition switch ON	Driver side	Pulled halfway up	UP (closes)
Ignition switch ON	Driver side	Pushed halfway down	DOWN (opens)

Check that the passenger side power window operates as follows:
Standard

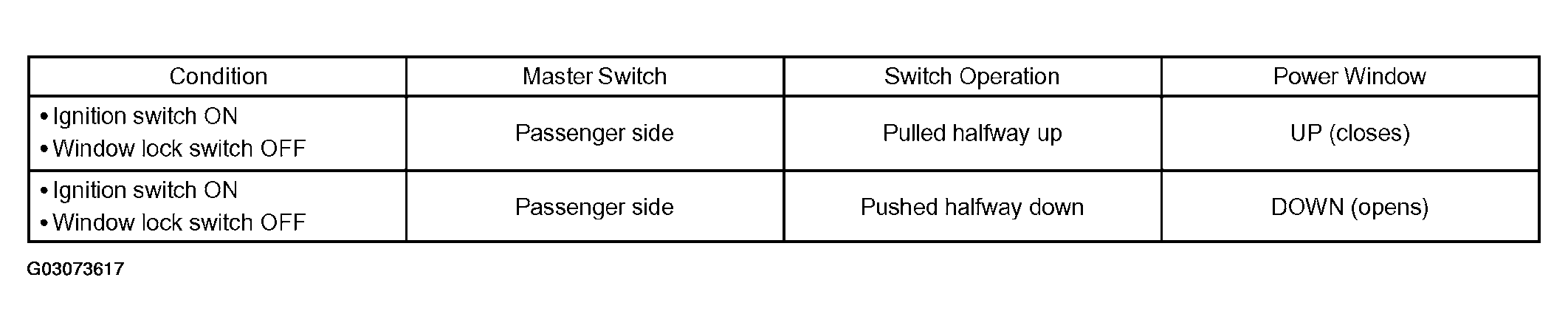

Fig 2: Manual Up/Down Function Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK AUTO UP/DOWN FUNCTION

Check that the driver side power window operates as follows:

Standard:

MASTER SWITCH CONDITION SPECIFICATIONS

Condition	Master Switch	Switch Operation	Power Window
Ignition switch ON	Driver side	Pulled fully up	AUTO UP (fully closes)
Ignition switch ON	Driver side	Pushed fully open	AUTO DOWN (fully opens)

Check that the passenger side power operates as follows:
Standard:

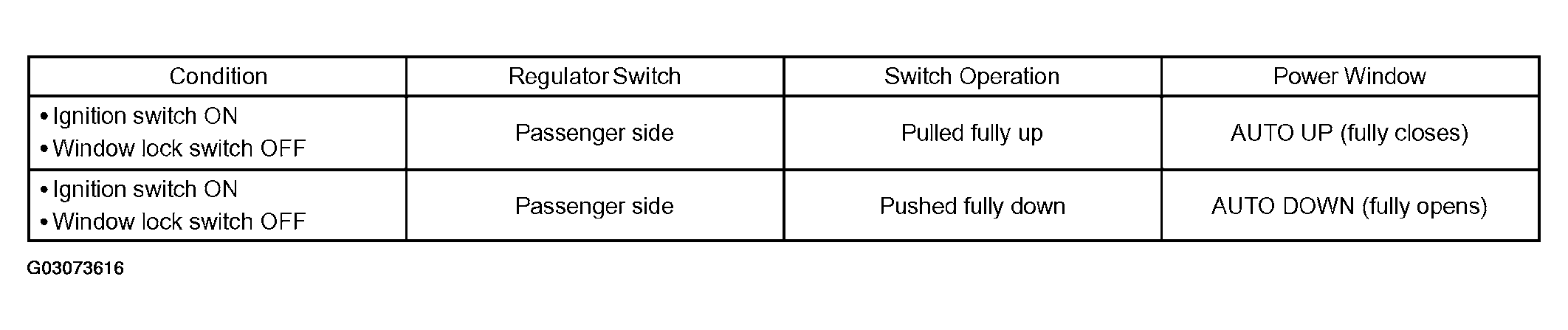

Fig 3: Auto Up/Down Function Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK REMOTE MANUAL UP/DOWN FUNCTION
1. Check that the passenger side power window operates as follows:
  Standard:

  Fig 4: Remote Manual Up/Down Function Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK REMOTE AUTO UP/DOWN FUNCTION
1. Check that the passenger driver side power window operates as follows:
  Standard:

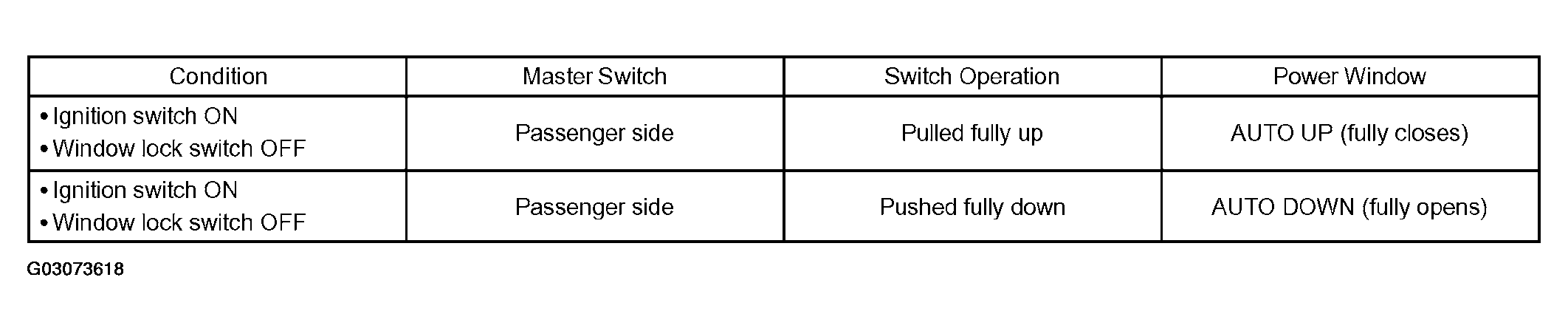

  Fig 5: Remote Auto Up/Down Function Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK JAM PROTECTION FUNCTION
HINT:

The jam protection function helps prevent power window operation related injuries.

NOTE: If the power window motor has just been reset, raise and lower the door glass several times through MANUAL operation before performing the check.
1. Check that the door glass moves down by approximately 50 mm (1.97 in.) when something is caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to move down and does not stop until an opening of 200 mm (7.87 in.) is achieved.
  Operative conditions:
  - AUTO UP

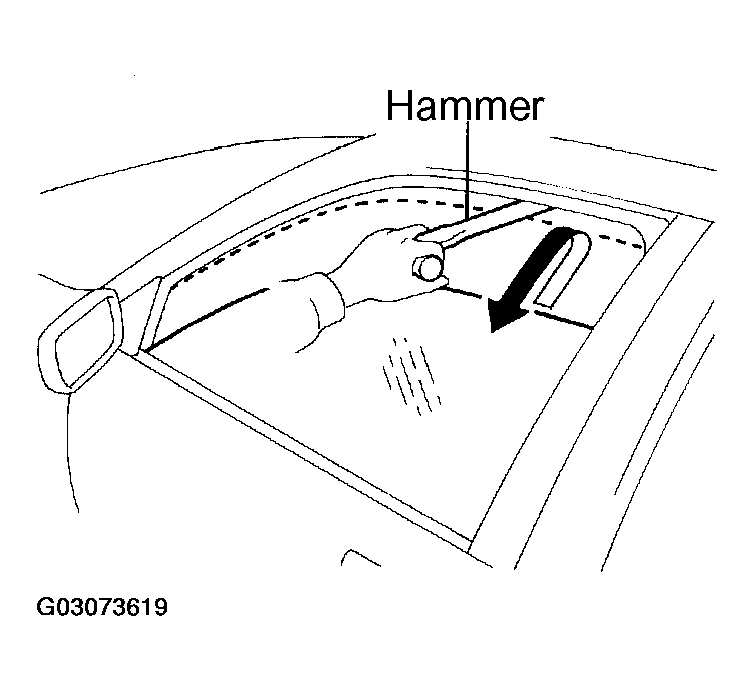

  Fig 6: Checking Jam Protection Function
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK POWER WINDOW FAIL-SAFE FUNCTION
HINT:

If there is a malfunction in the power window system, some of the power window functions will be disabled.

Driver side power window:

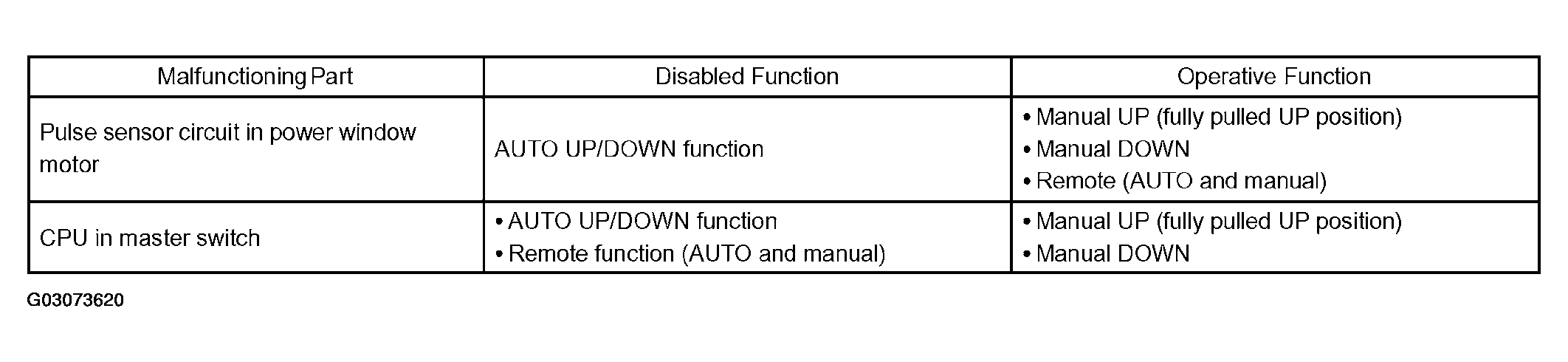

Fig 7: Driver Side Power Window Function Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Passenger side power window:

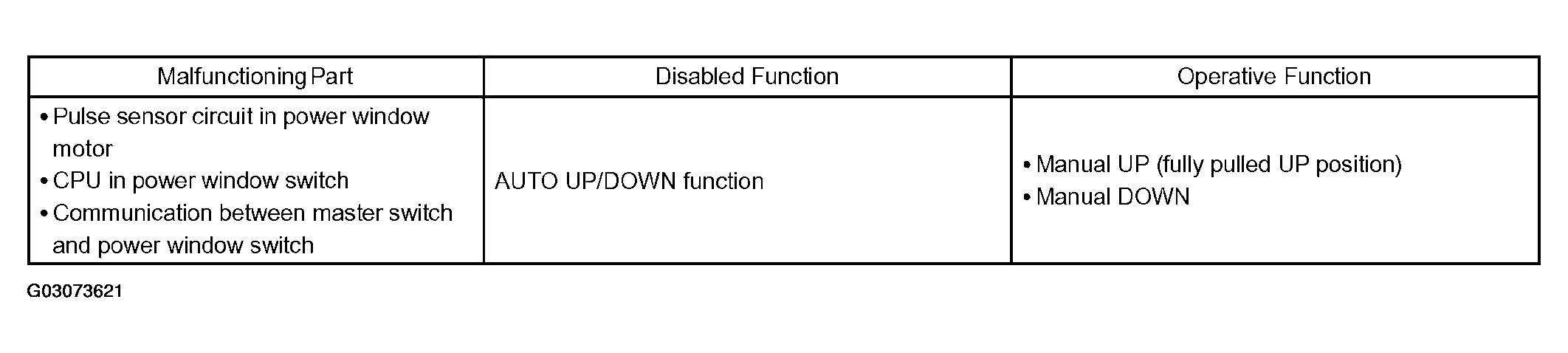

Fig 8: Passenger Side Power Window Function Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK POWER WINDOW SWITCH'S LED OPERATION
1. Make sure that the power window lock switch on the power window regulator master switch is not pressed.
2. Turn the ignition switch ON. Then, check that all the LEDs on the power window switches illuminate.
