Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

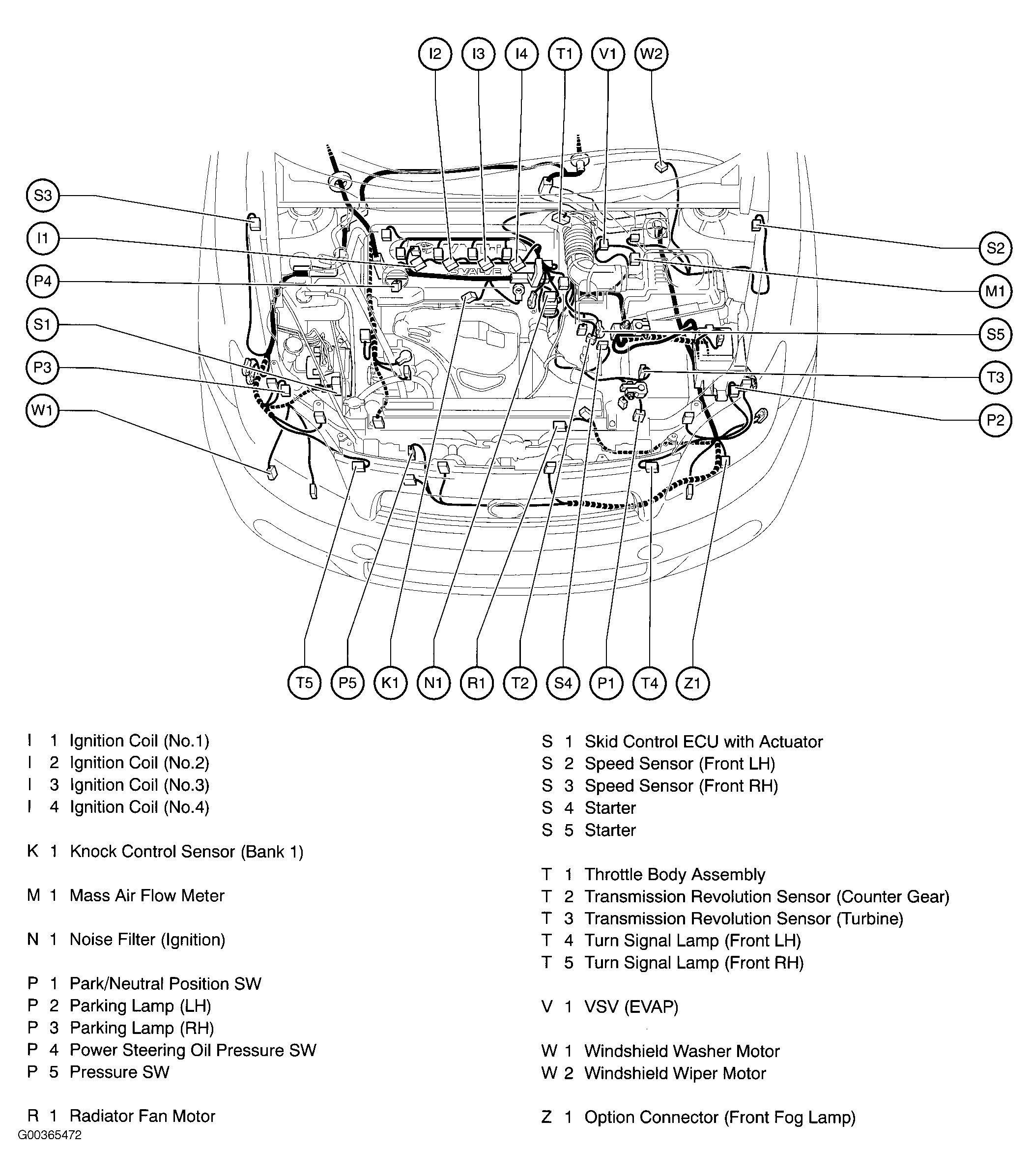

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

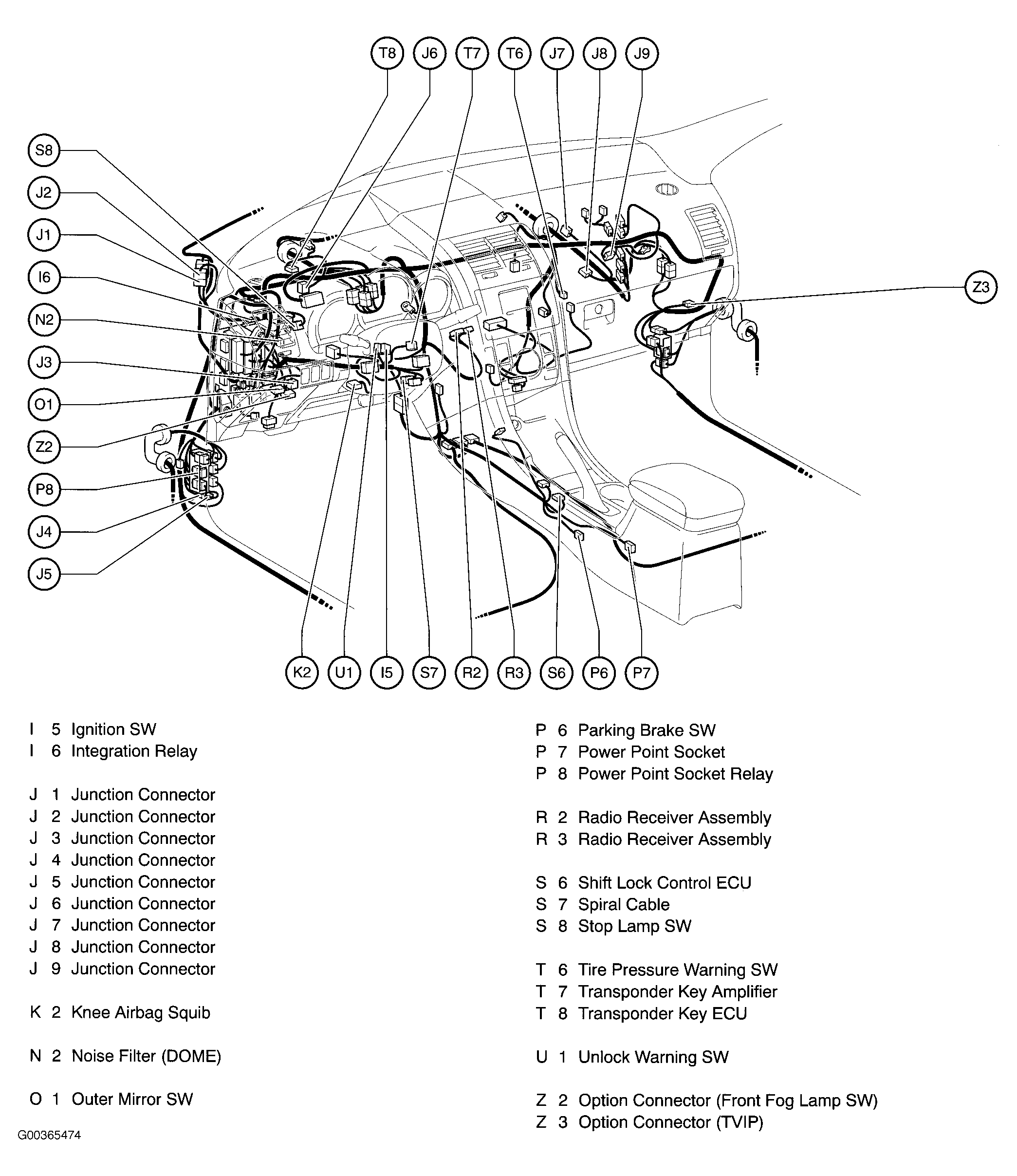

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Power Outlet Relay
Integration Relay

Fig 4: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION

Fig 5: Engine Room R/B No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
MG / C Relay

Fig 6: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY/JUNCTION BLOCK RELAY IDENTIFICATION

Fig 7: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dash & Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dash & Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

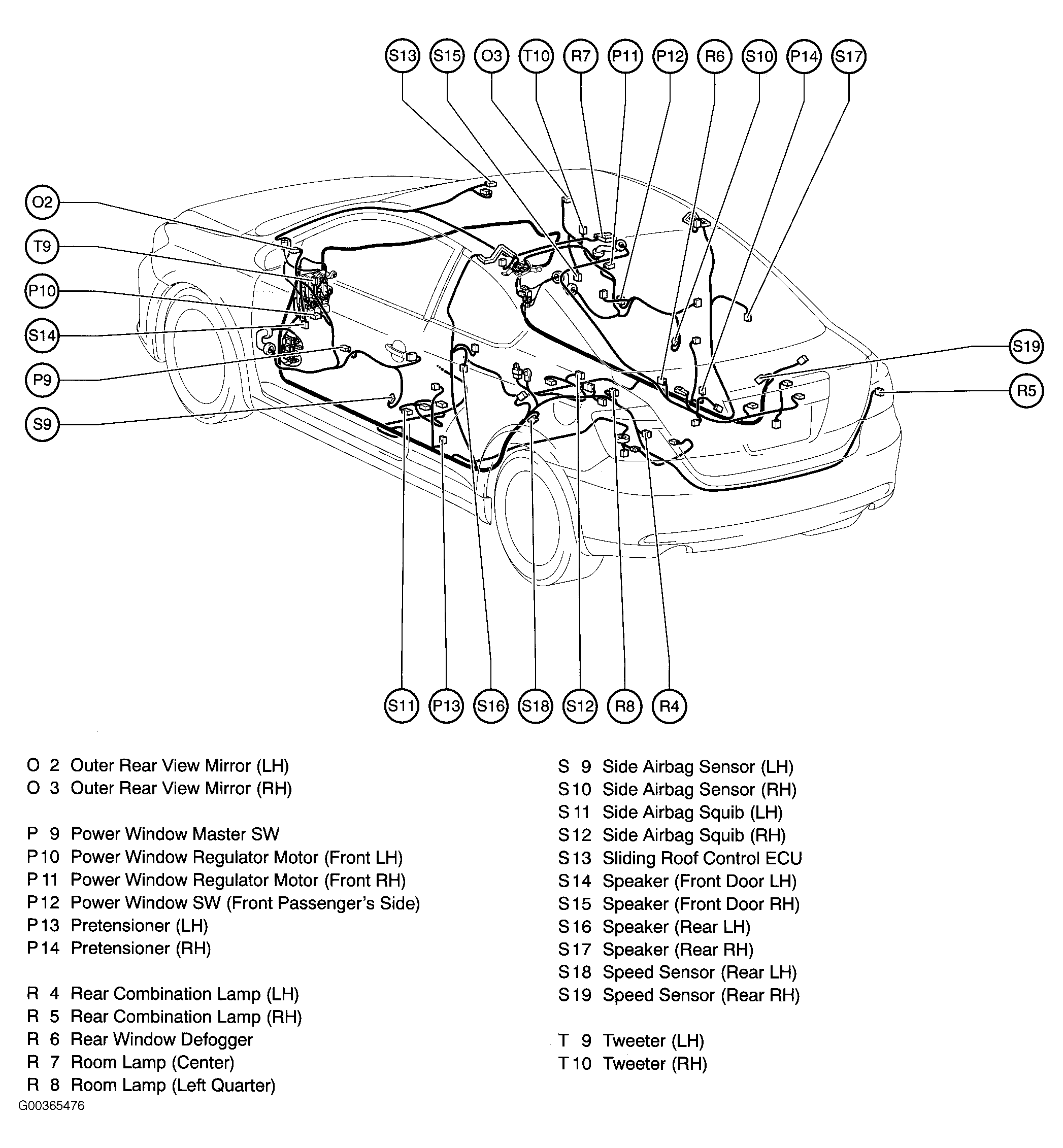

Fig 11: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

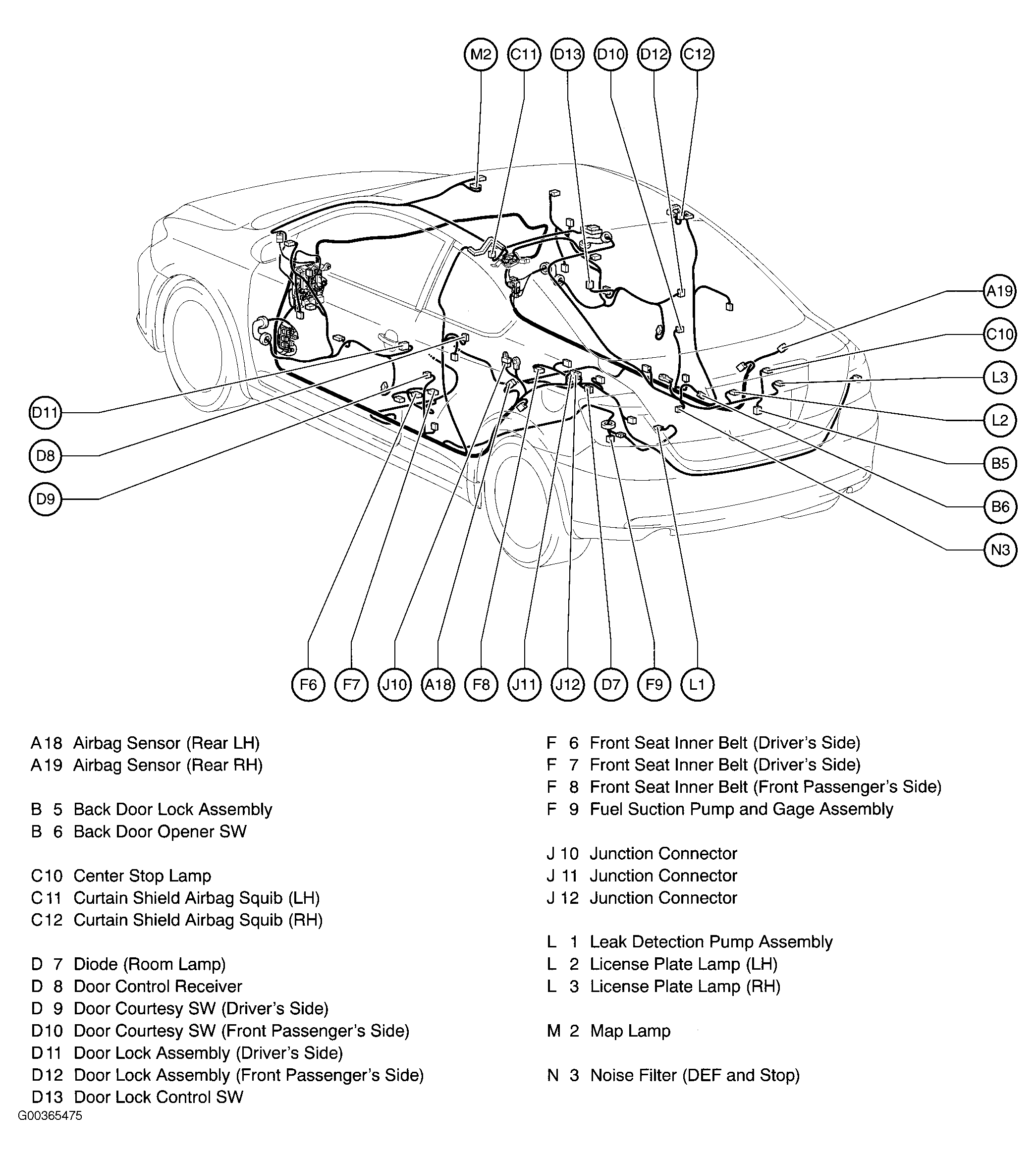

Fig 12: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

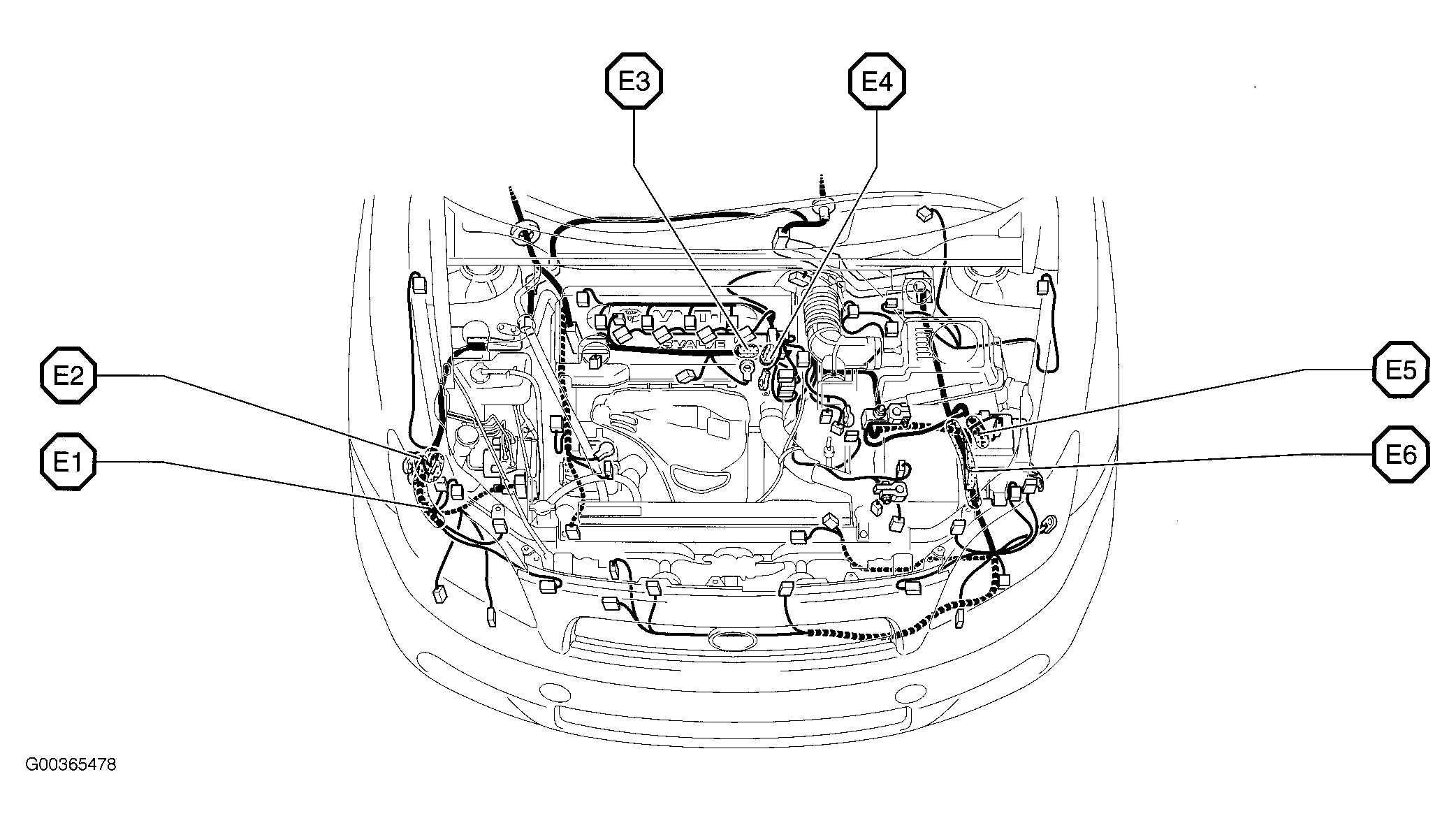

Fig 13: Engine Compartment

Fig 14: Engine Compartment

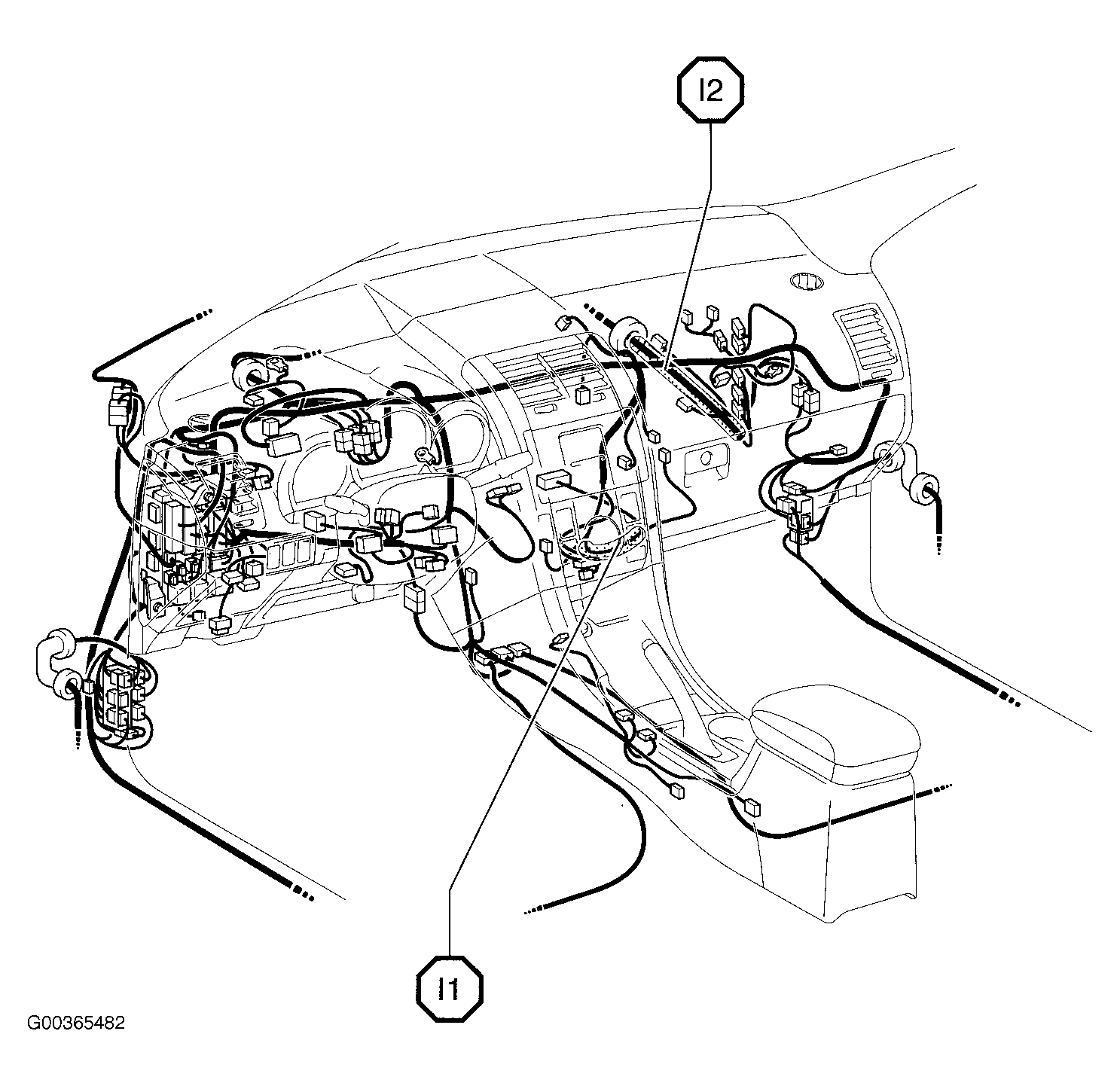

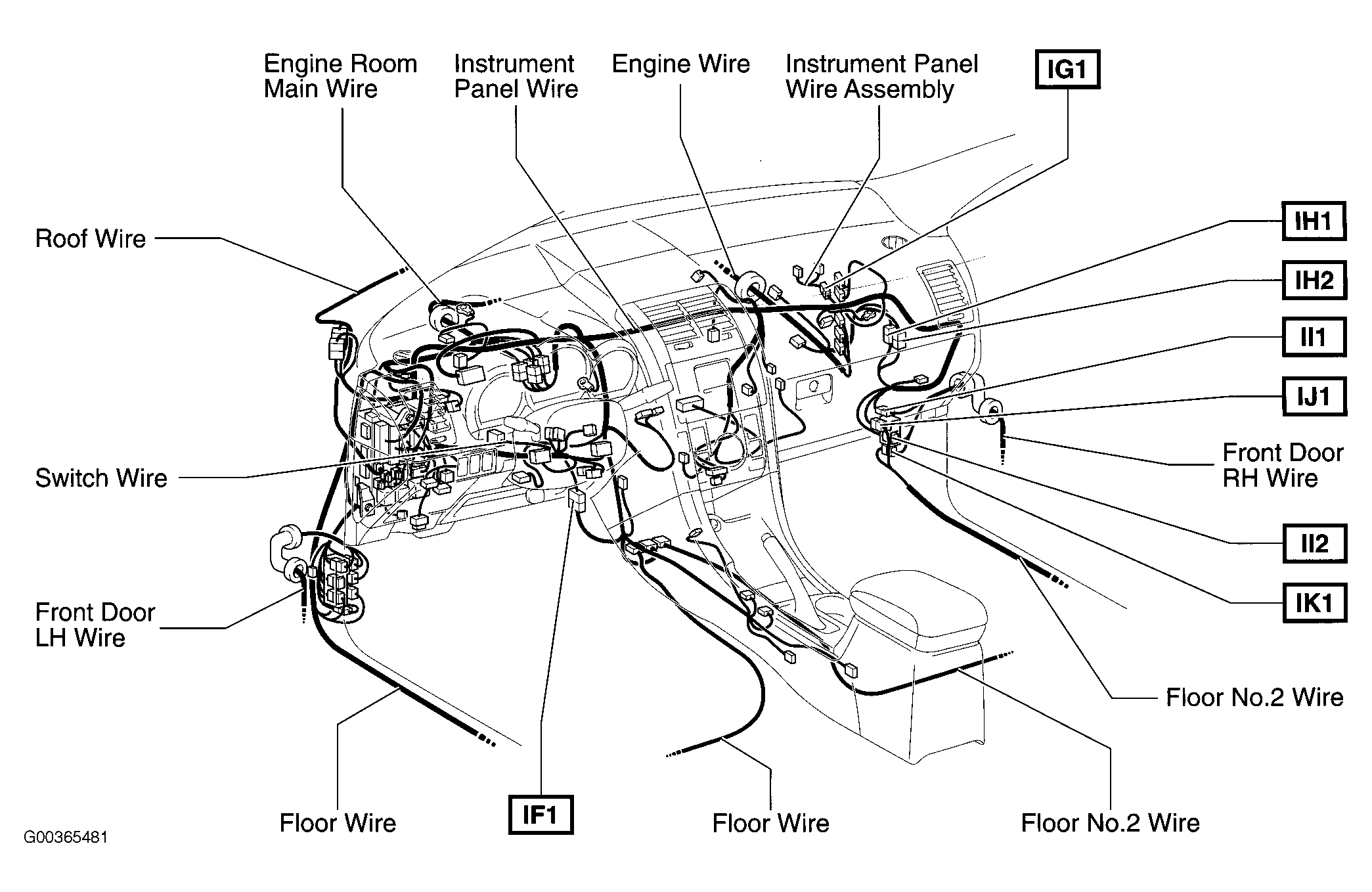

Fig 15: Dash Connectors

Fig 16: Dash Ground Points

Fig 17: Dash Connectors

Fig 18: Dash Splice Points

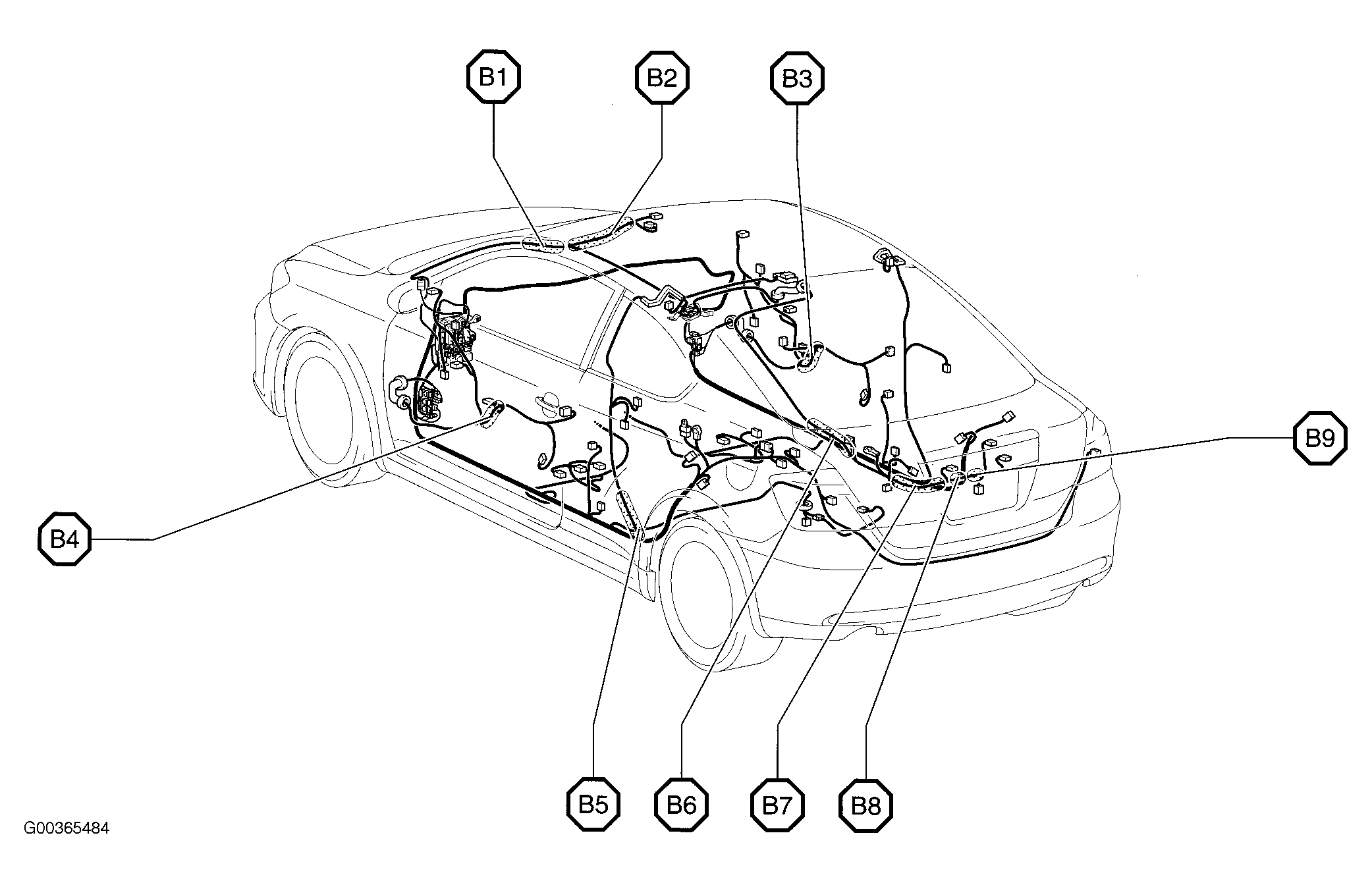

Fig 19: Vehicle Overview

Fig 20: Vehicle Overview
