Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

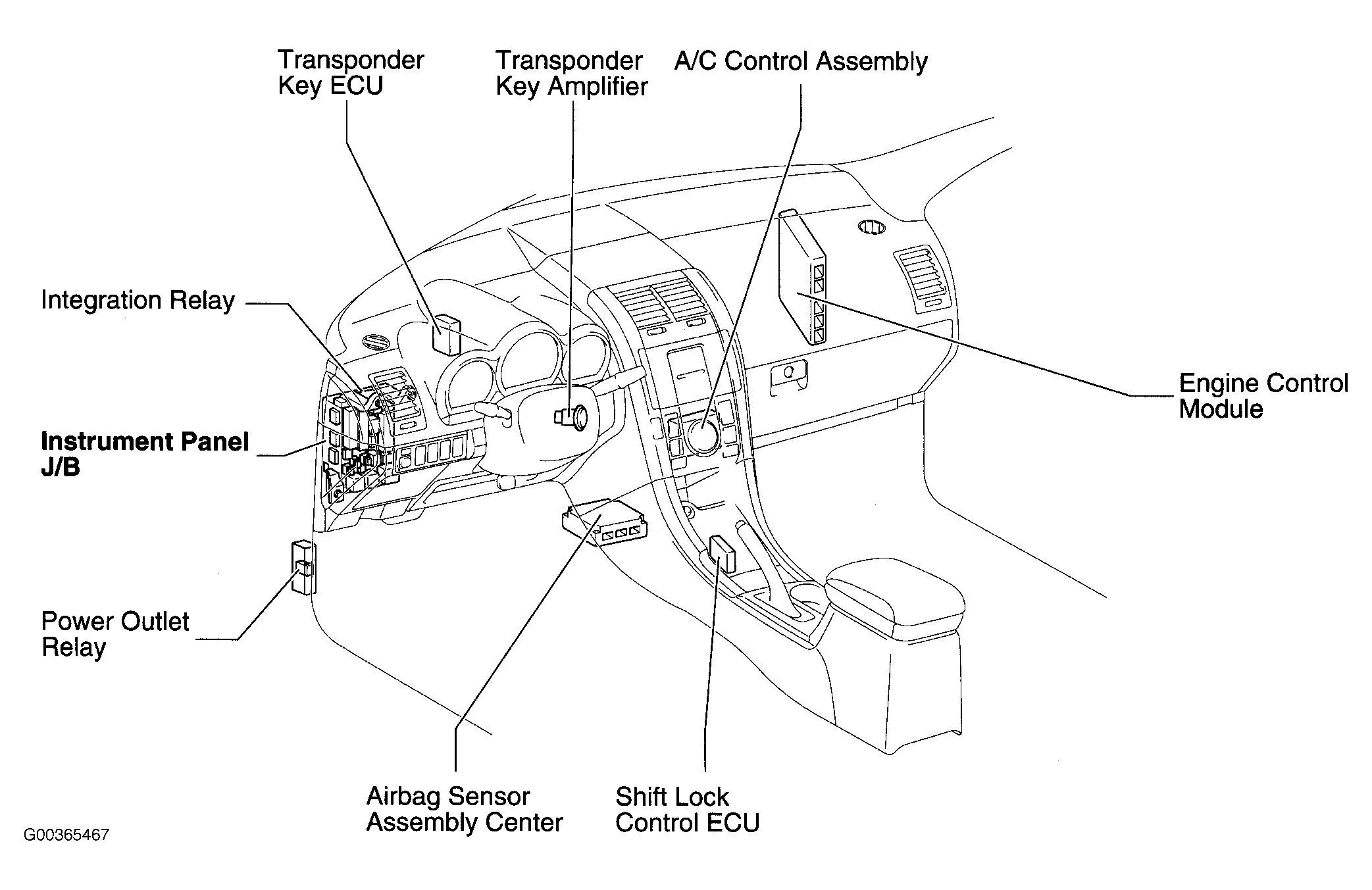

| Airbag Sensor Control Assembly | Below center console. See Figure. |
| Blower Motor Control | Behind center of dash. See Figure. |

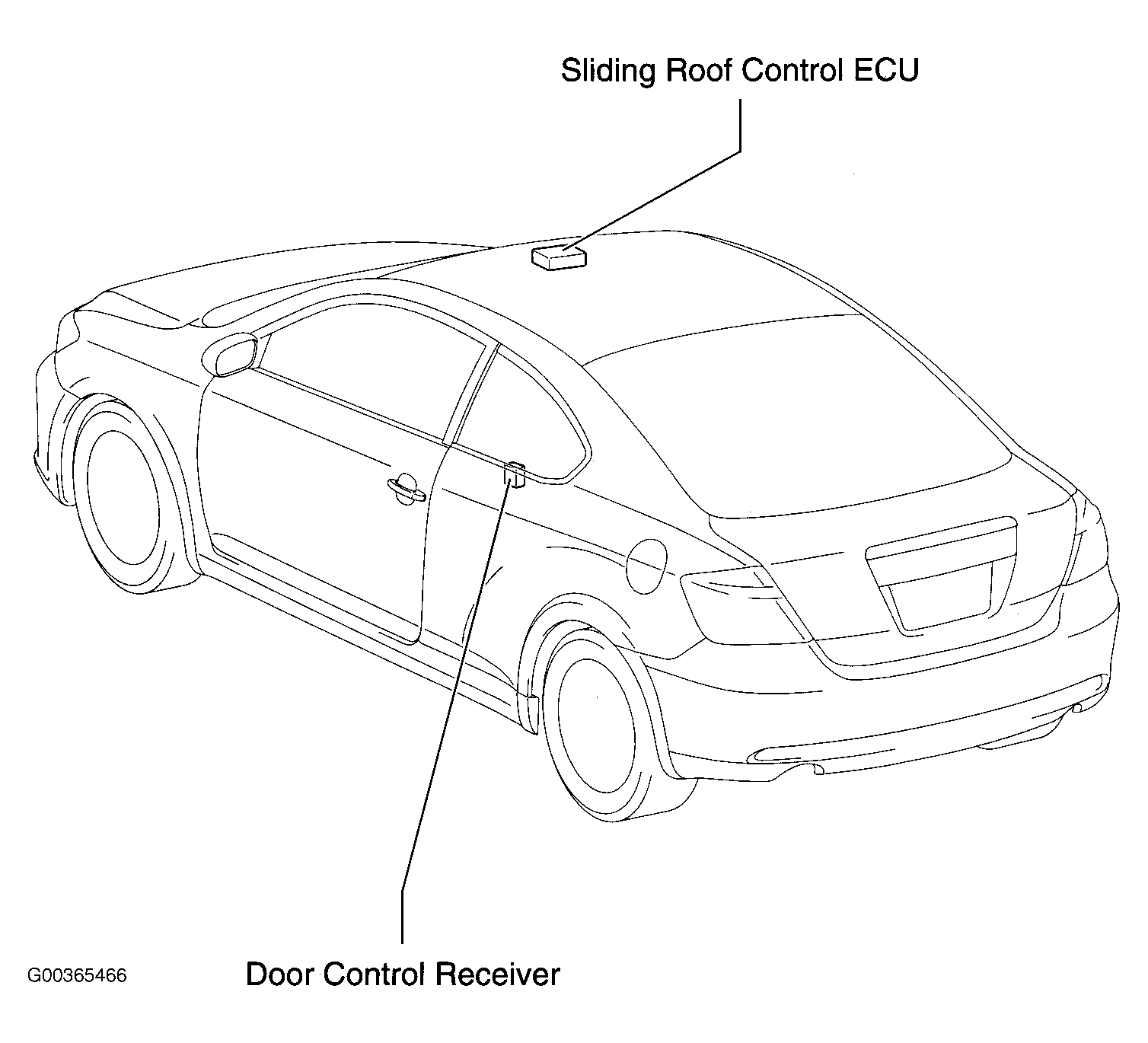

| Door Control Receiver | Left rear of passenger compartment. See Figure. |
| Engine Control Module | Behind lower right side of dash. See Figure. |
| Shift Lock Control ECU | Below center console. See Figure. |
| Skid Control ECU With Actuator | Right front of engine compartment. See Figure. |
| Sliding Roof Control ECU | Front center of roof. See Figure. |
| Transponder Key ECU | Behind left side of dash. See Figure. |
