Accelerator Pedal ASSY (2AZ-FE): Replacement

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.
SYSTEM SPECIFICATIONS

System Refer To
Power window control system INITIALIZATION
Sliding roof system INITIALIZATION
  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE ACCELERATOR PEDAL ASSY
    1. Disconnect the accelerator position sensor connector.
    2. Remove the 2 bolts, then remove the accelerator pedal.

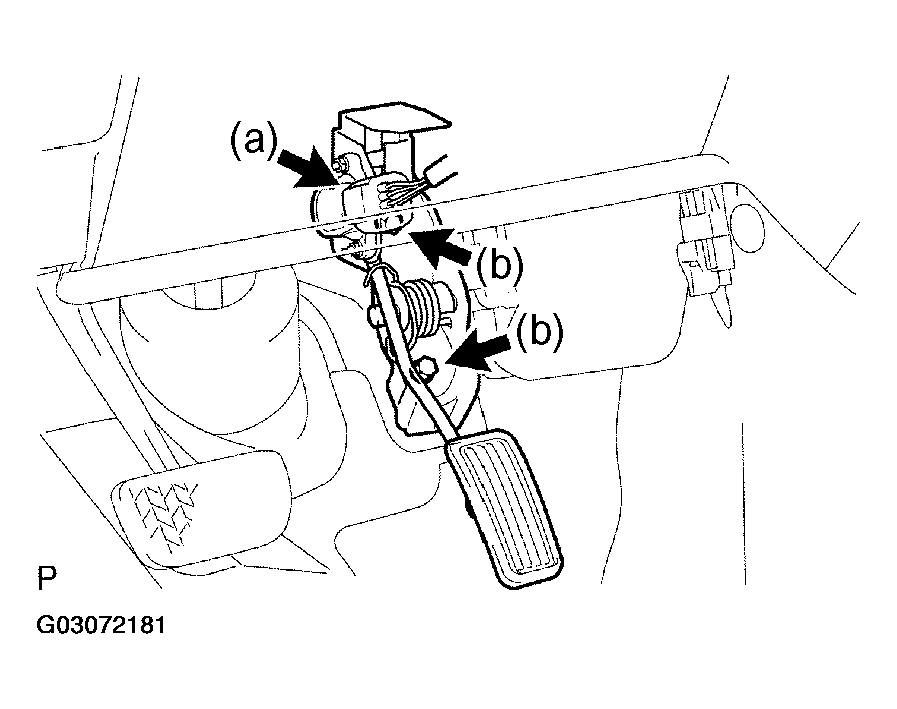

      Fig 1: Removing Accelerator Pedal Assy
      G03072181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ACCELERATOR PEDAL ASSY
    1. Install the accelerator pedal with the 2 bolts.
      1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
    2. Connect the accelerator position sensor connector.

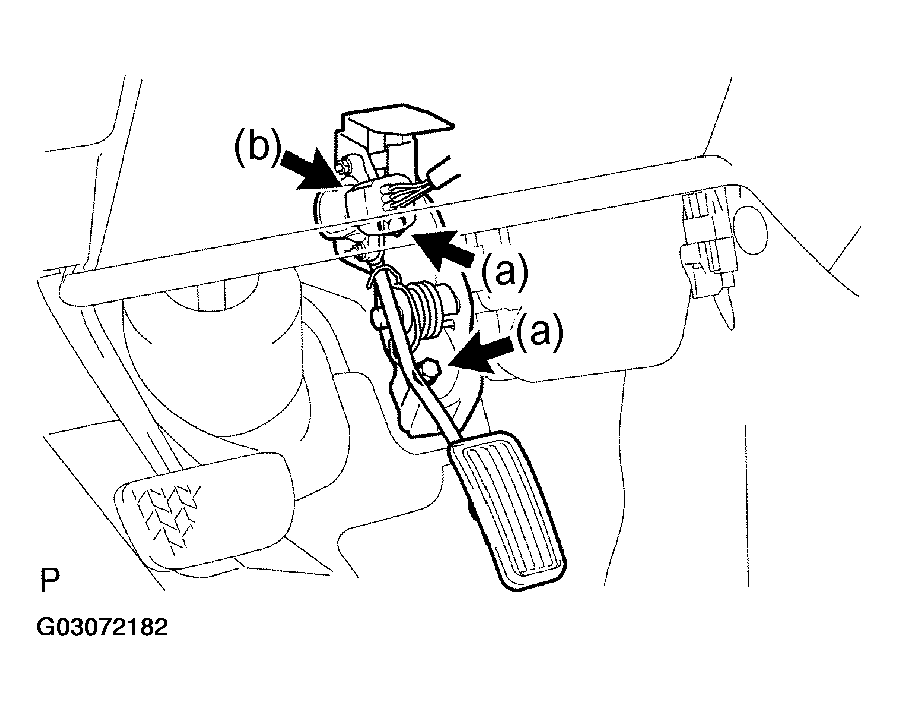

      Fig 2: Installing Accelerator Pedal Assy
      G03072182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT BATTERY NEGATIVE TERMINAL
    1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
