Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.

      A: Vehicle Identification Number Plate

      B: Certification Label

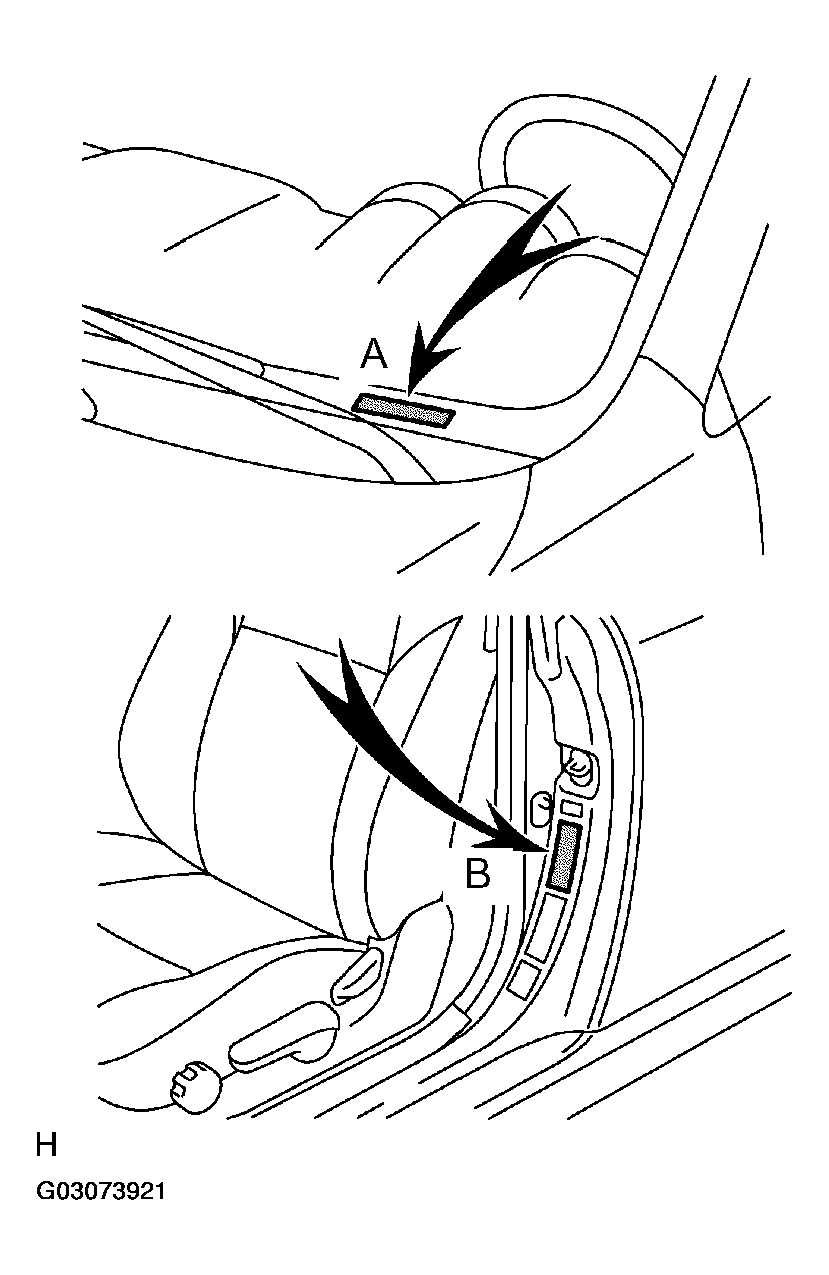

      Fig 1: Identifying Vehicle Identification Number
      G03073921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.
      1. A: 2AZ-FE
      2. B or C: U241E
      3. D: E350

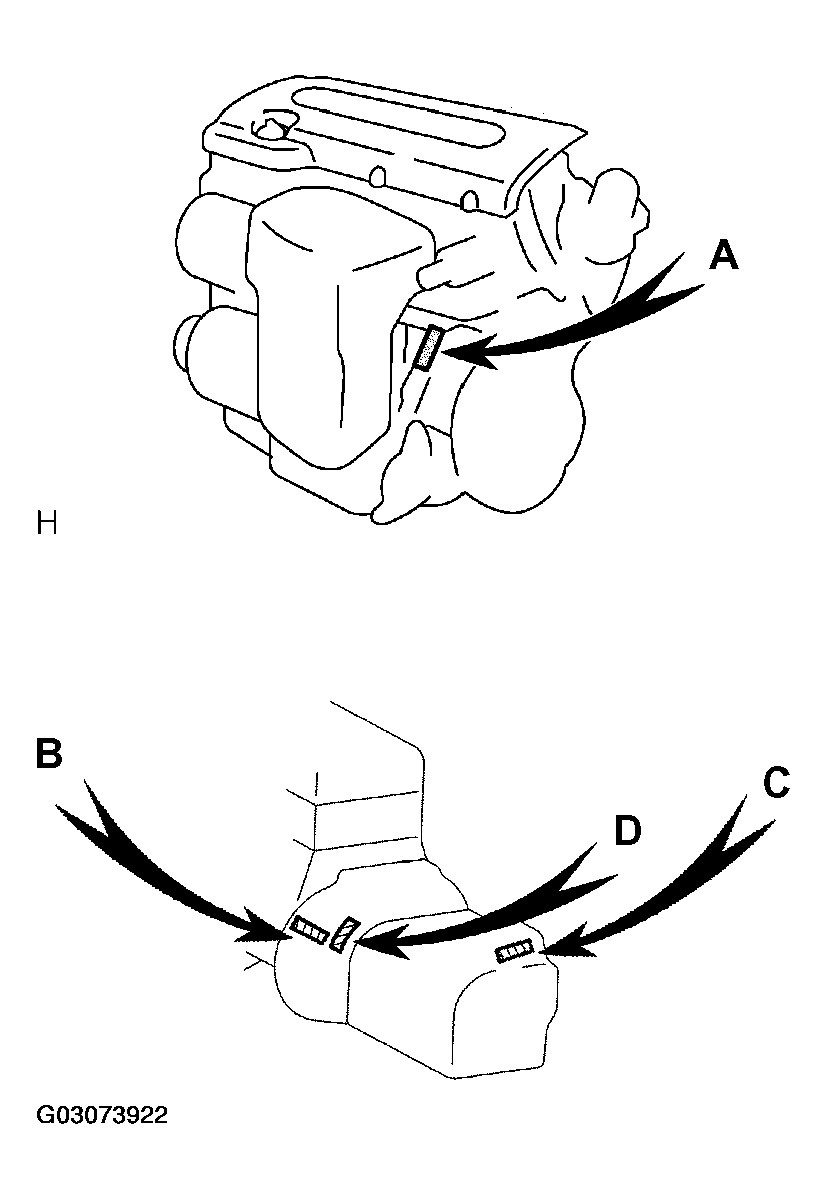

      Fig 2: Identifying Engine Serial Number And Transaxle Serial Number
      G03073922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
