Automatic Transaxle ASSY (ATM): Components

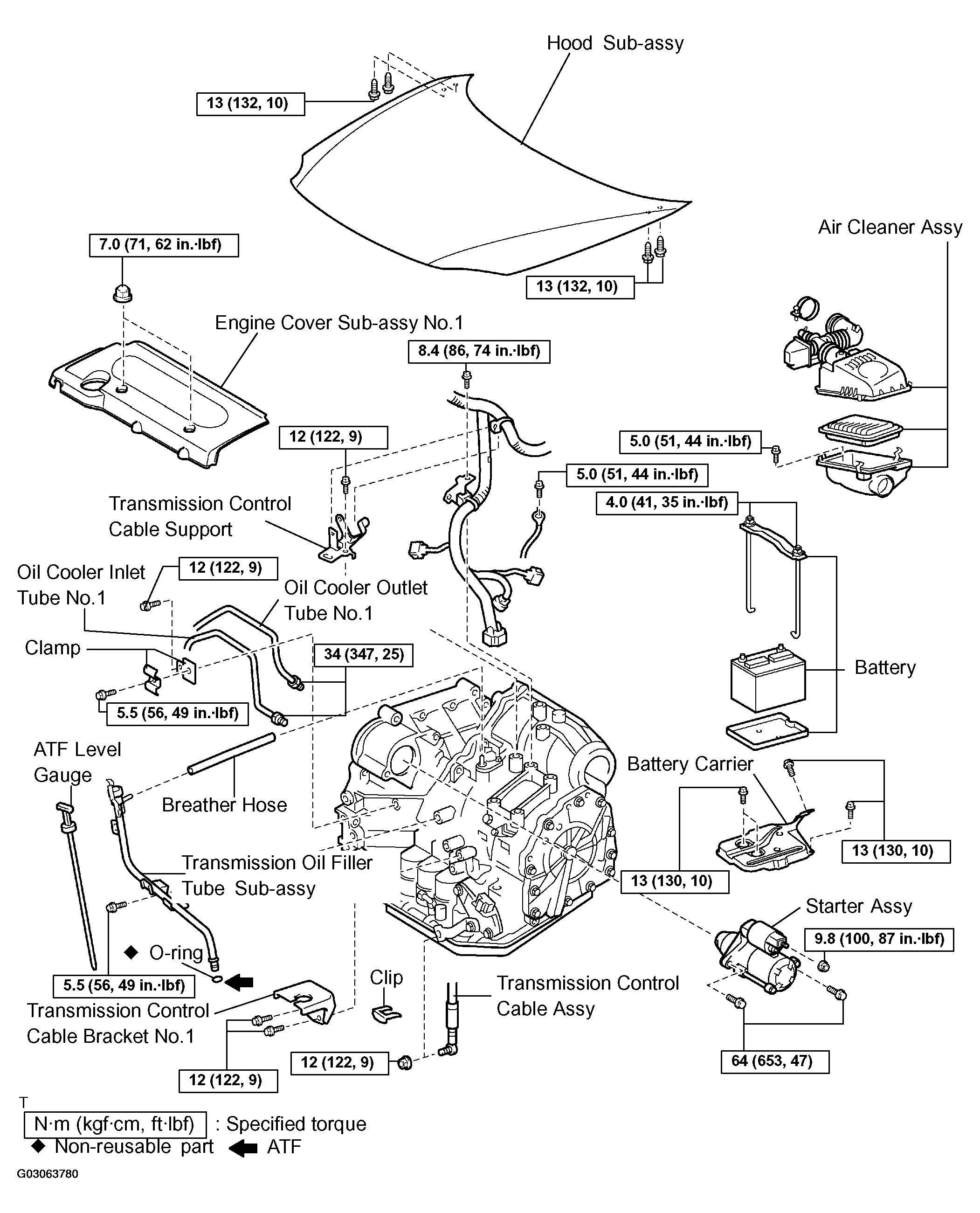

Fig 1: Identifying Automatic Transaxle Assy (ATM) Components (1 Of 2)
G03063780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

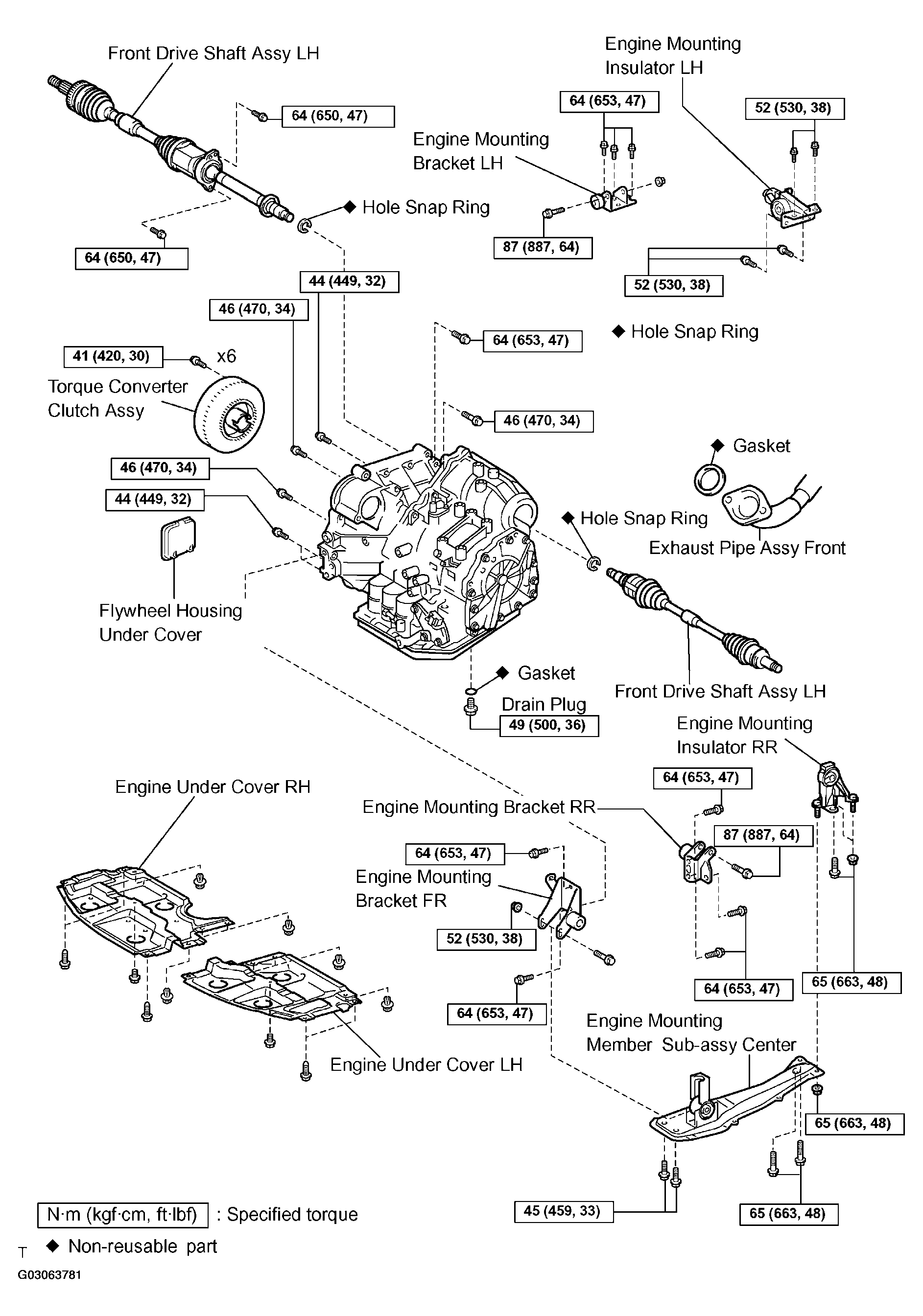

Fig 2: Identifying Automatic Transaxle Assy (ATM) Components (2 Of 2)
G03063781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
