Inspection Procedure

1. Check that the power window AUTO UP/DOWN function operates normally.

NG: Go to step 2

OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

1. Disconnect the P9 master switch connector.
2. Disconnect the P10 motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard:

   POWER WINDOW REGULATOR MOTOR ASSY LH TERMINAL RESISTANCE



   Tester Connection	Specified Condition
   P9-1 (U) - P10-2 (U)	Below 1 Ω
   P9-11 (D) - P10-1 (D)	Below 1 Ω
   P9-1 (U) - Body ground	10 kΩ or higher
   P9-11 (D) - Body ground	10 kΩ or higher

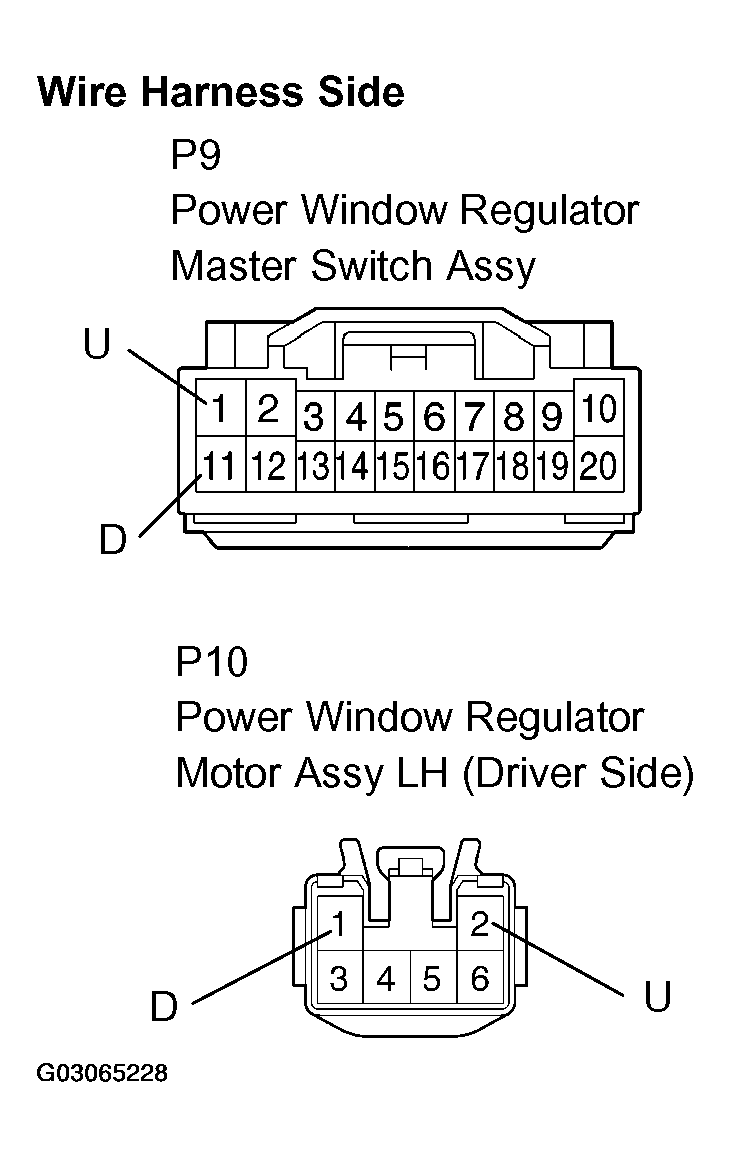

   Fig 1: Measuring Resistance Of Wire Harness Side Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

1. Remove the master switch but do not disconnect the connector.
2. Turn the ignition switch ON.
3. Measure the voltage of the connector.

   Standard:

   POWER WINDOW REGULATOR MOTOR ASSY LH TERMINAL VOLTAGE



   Tester Connection	Switch Condition	Specified Condition
   P9-1 (U) - P9-2 (GND)	UP	10 to 14 V
   P9-11 (D) - P9-2 (GND)	DOWN	10 to 14 V

   Fig 2: Measuring Voltage Of Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (DRIVER SIDE)
