Knock Sensor, Intake Manifold (2AZ-FE): Components

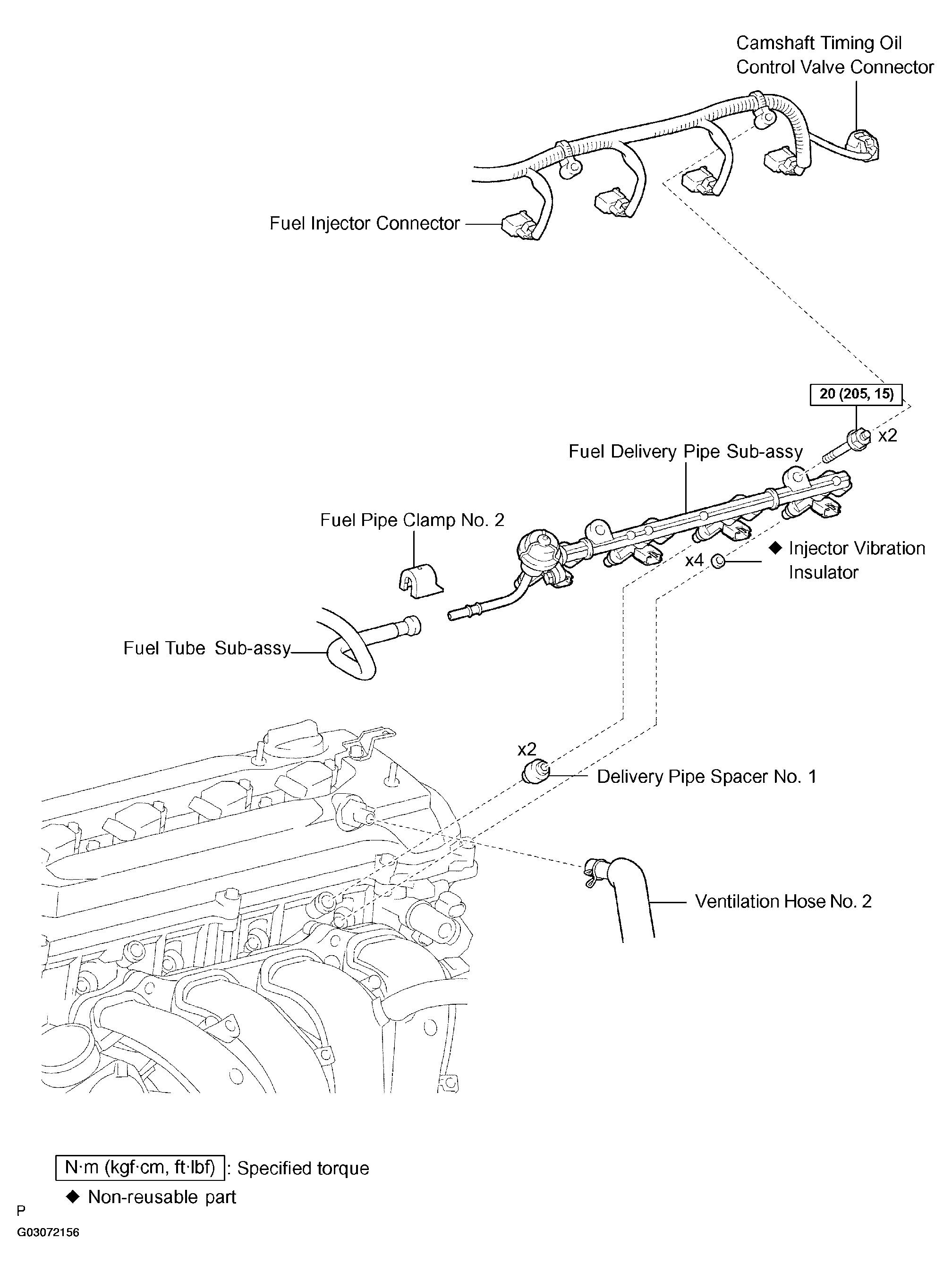

Fig 1: Identifying Knock Sensor (2AZ-FE) Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

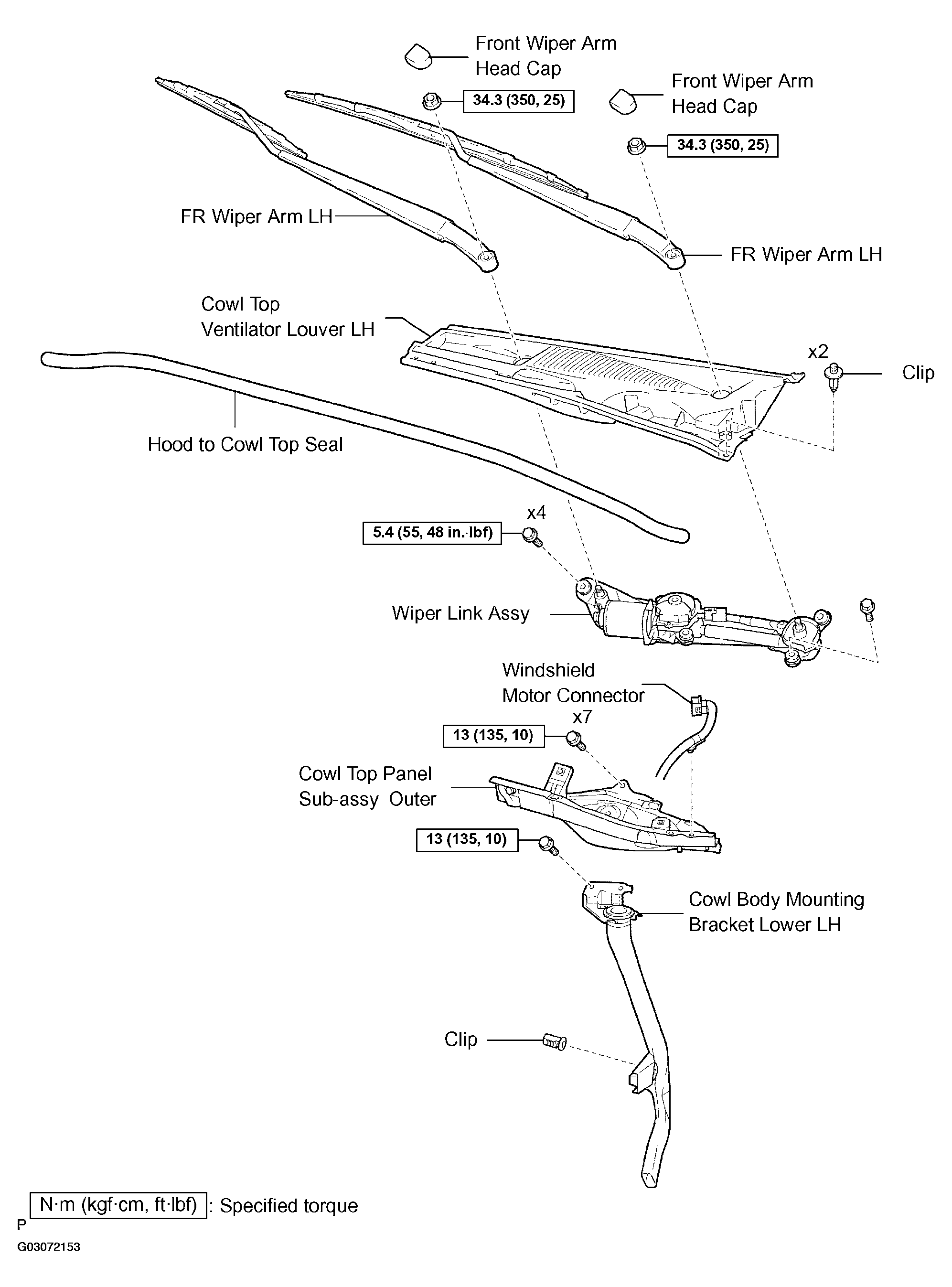

Fig 2: Identifying Knock Sensor (2AZ-FE) Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

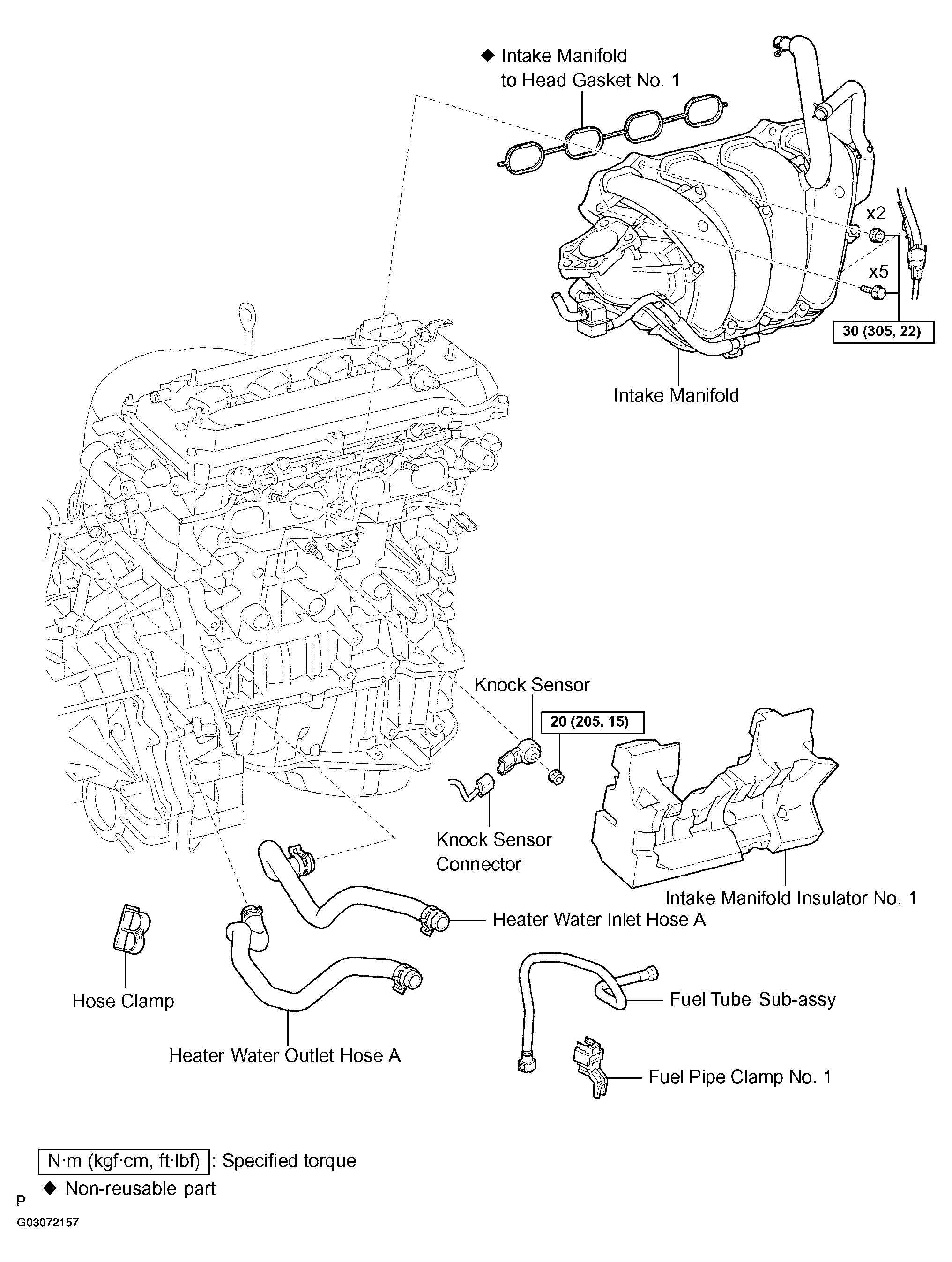

Fig 3: Identifying Knock Sensor (2AZ-FE) Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Knock Sensor (2AZ-FE) Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Knock Sensor (2AZ-FE) Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
