Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

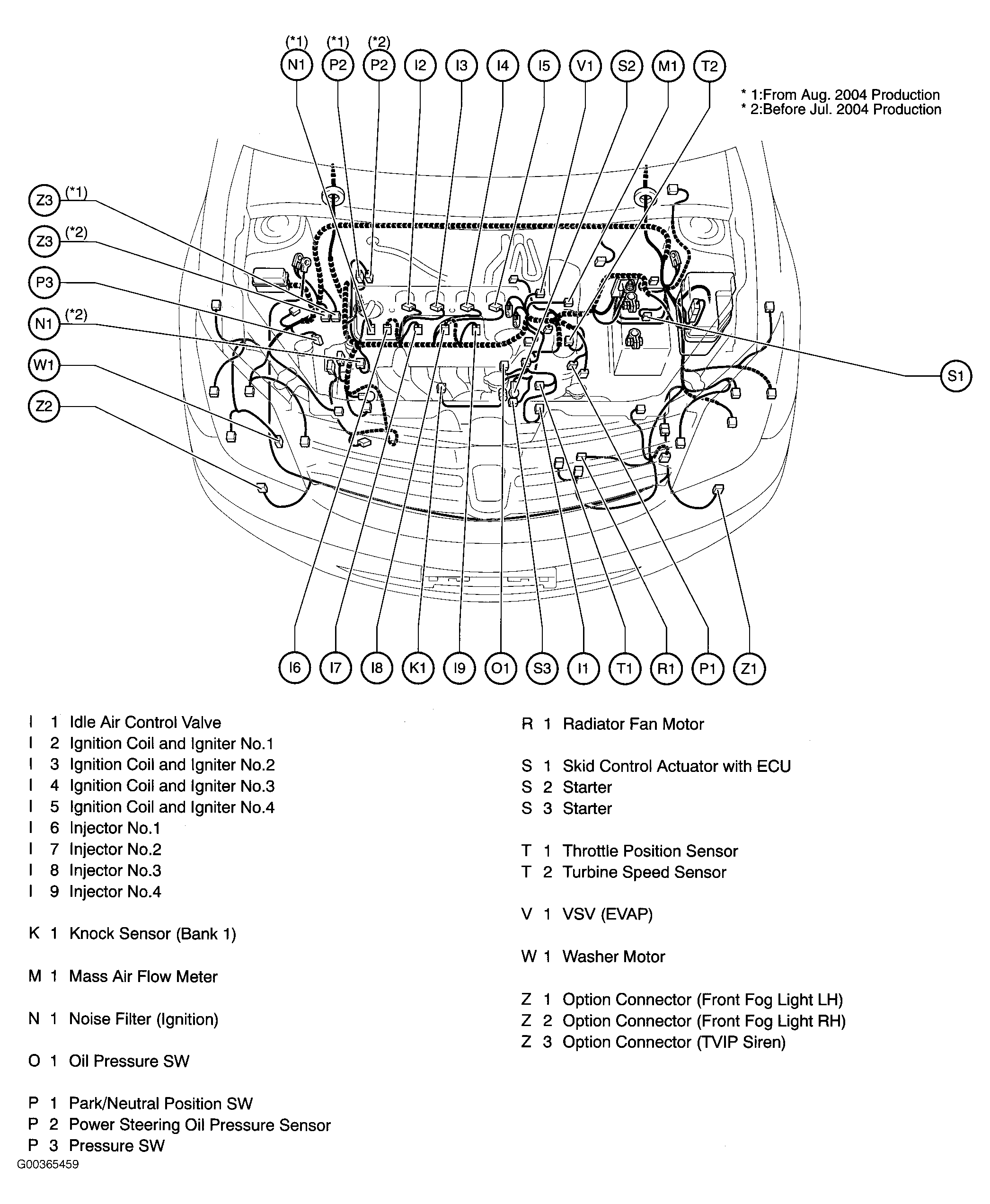

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

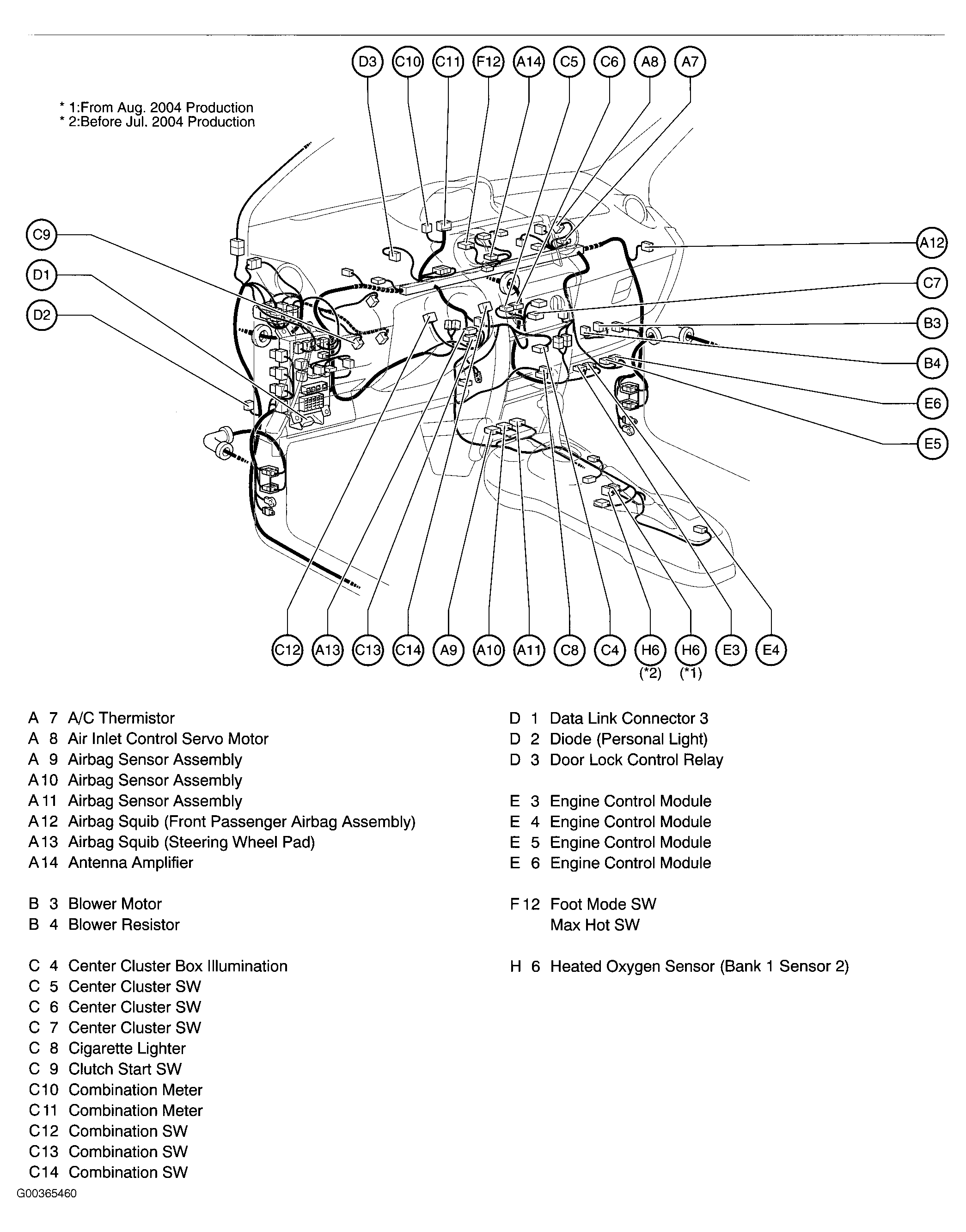

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

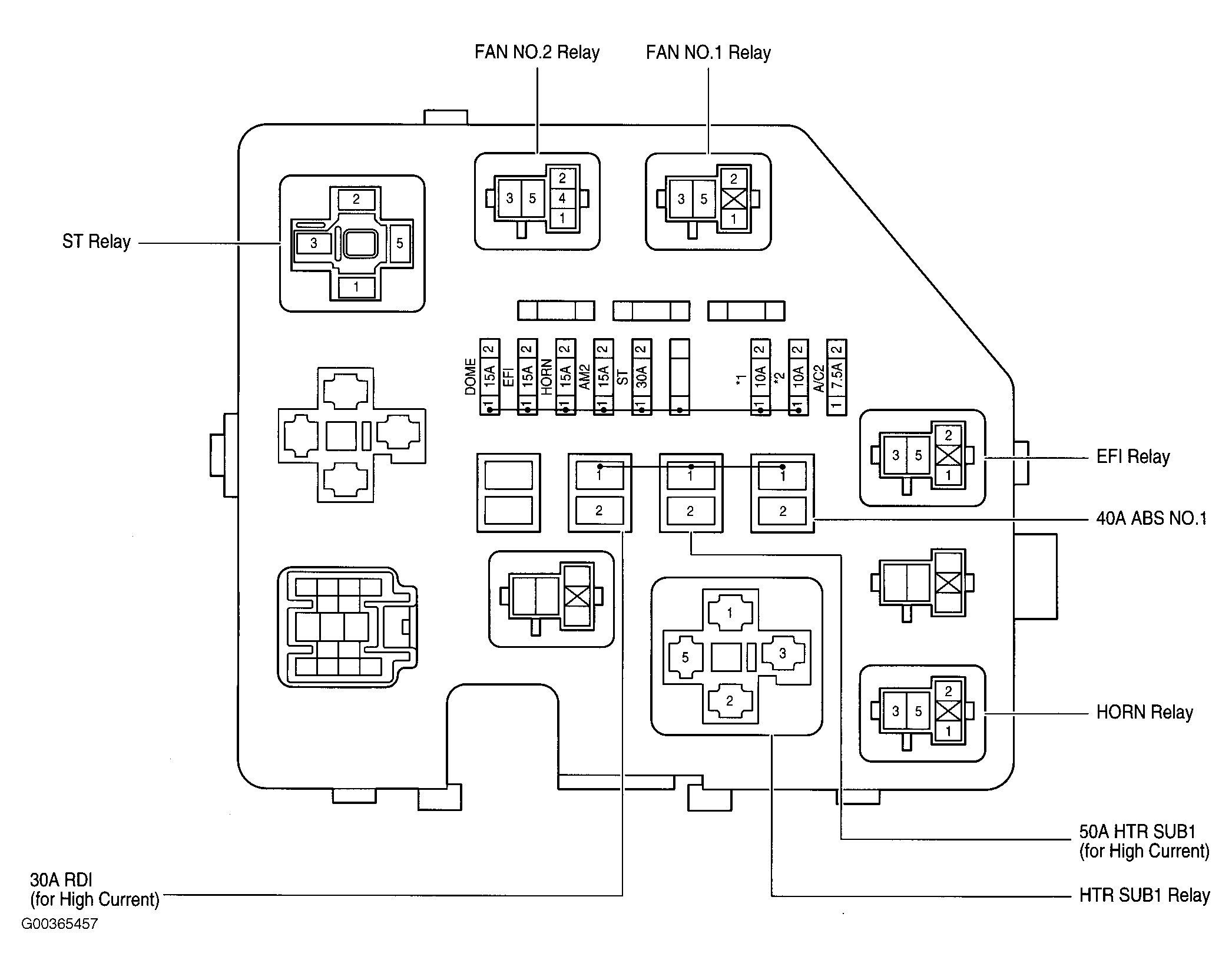

Fig 3: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION

Fig 4: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

Fig 5: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

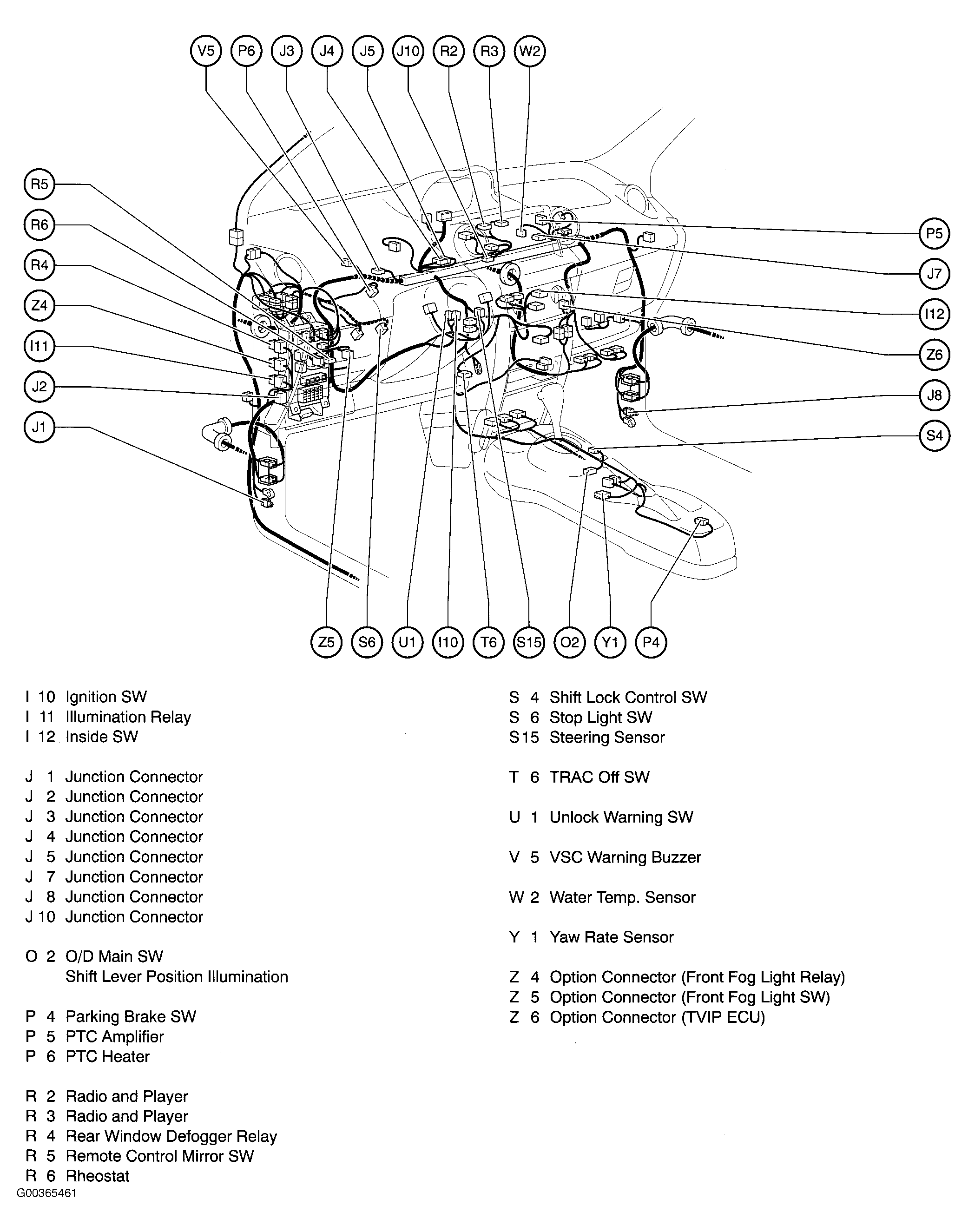

Fig 8: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

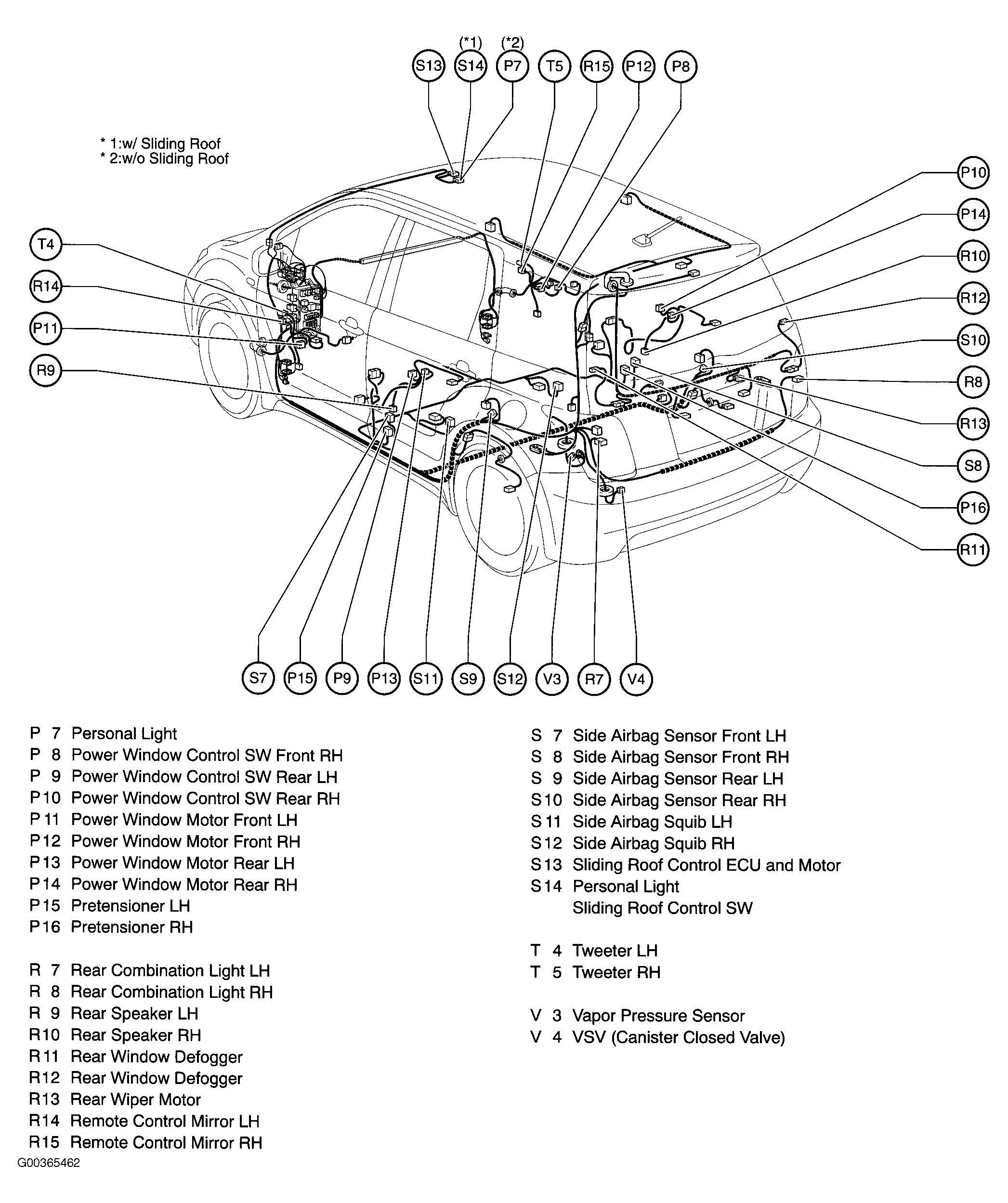

Fig 9: Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

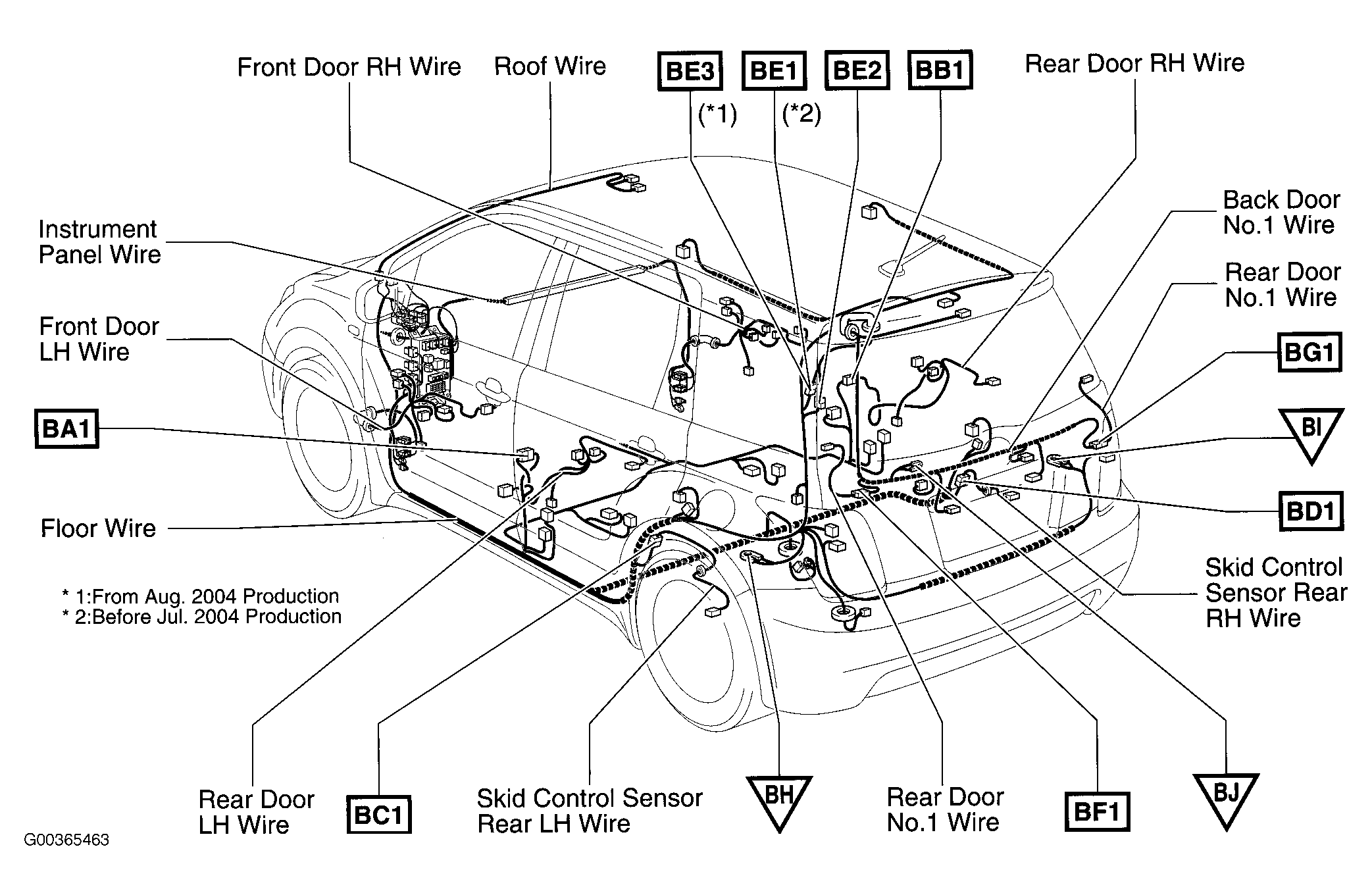

Fig 10: Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

Fig 15: Dash

Fig 16: Dash

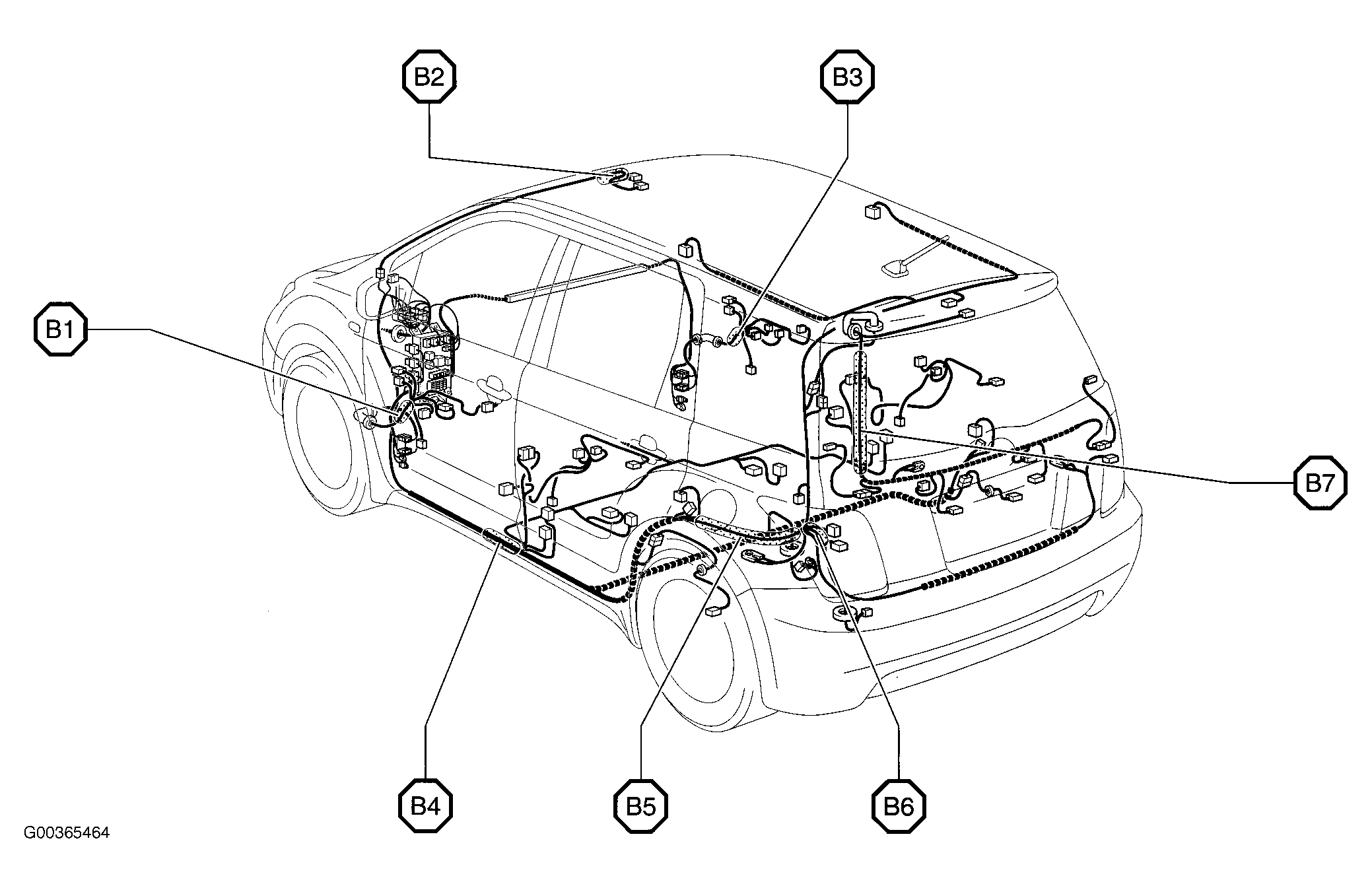

Fig 17: Body

Fig 18: Body

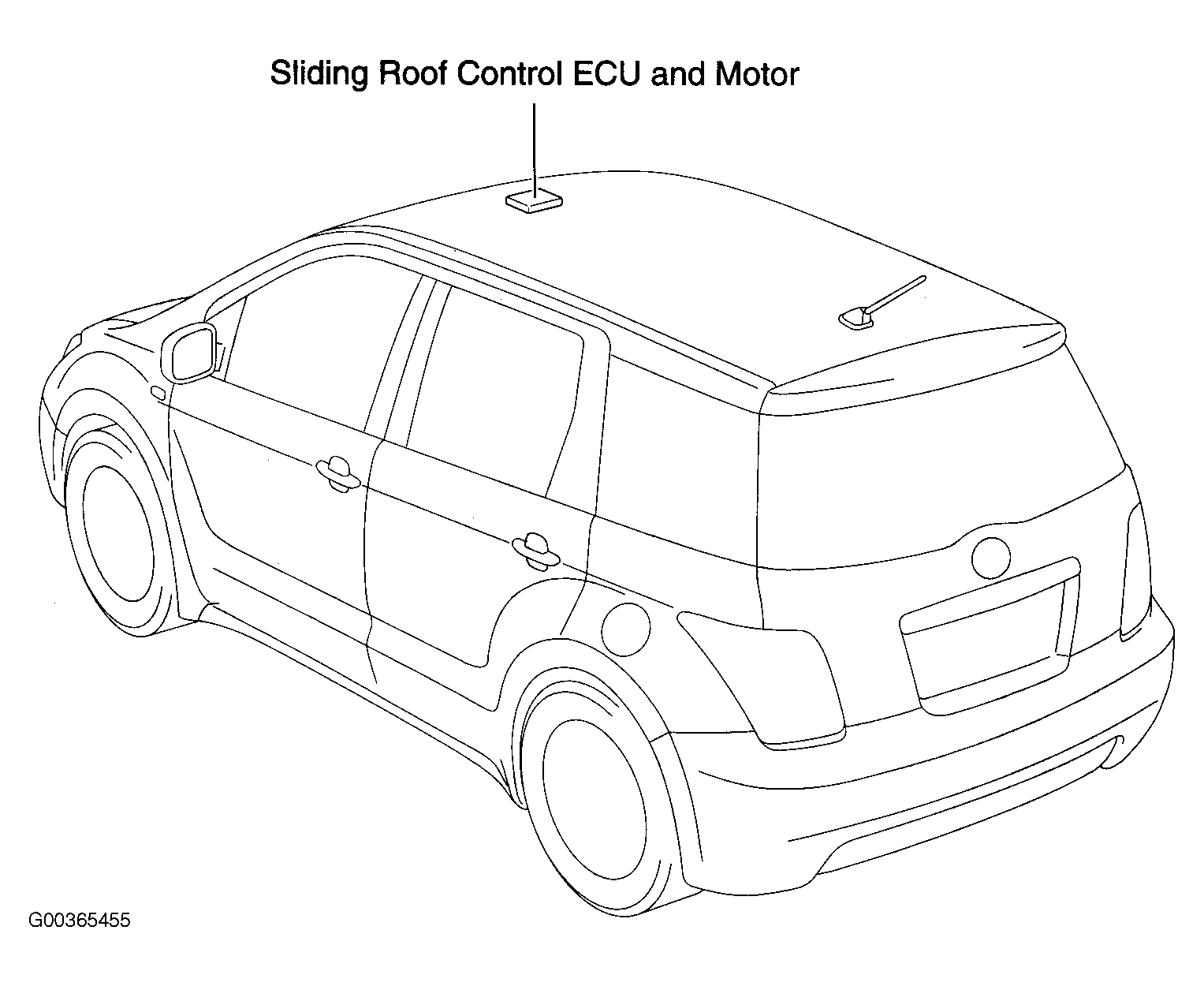

Fig 19: Roof

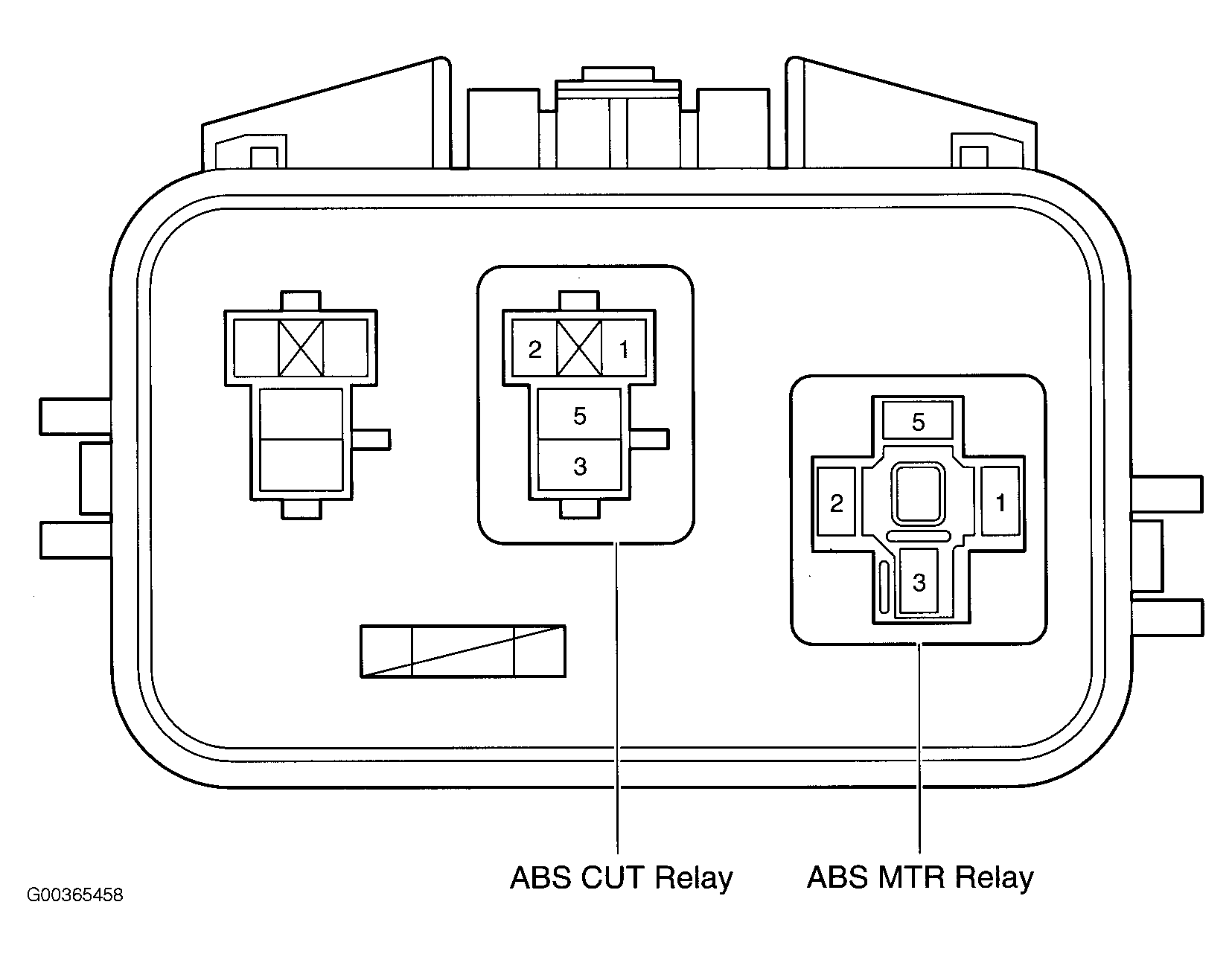

Fig 20: ABS R/B

ABS RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS CUT Relay
