Fuel Injector ASSY: Components

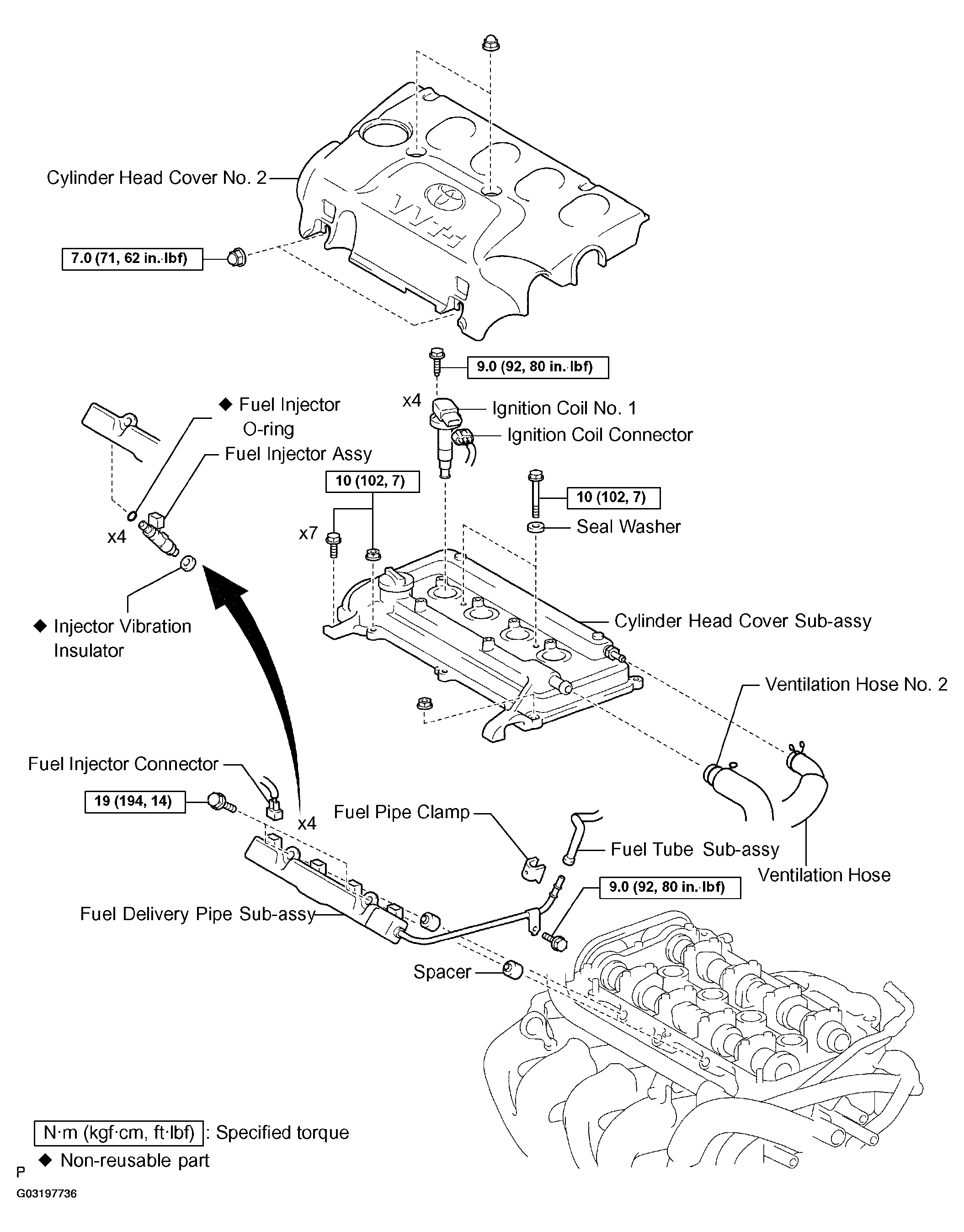

Fig 1: Exploded View Of Fuel Injector Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
