Fuel System: Inspection

INSPECT FUEL INJECTOR ASSY

Inspect the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
  Resistance: 13.4 to 14.2 Ω. at 20°C (68°F)

  If the resistance is not as specified, replace the injector.

Inspect the injector operation.

CAUTION:

Perform the test in a well-ventilated area and watch out for flames.
Carefully handle the fuel tube connector.

Pull out the connector from a new fuel tube.
HINT:

Part No. 23901-21060

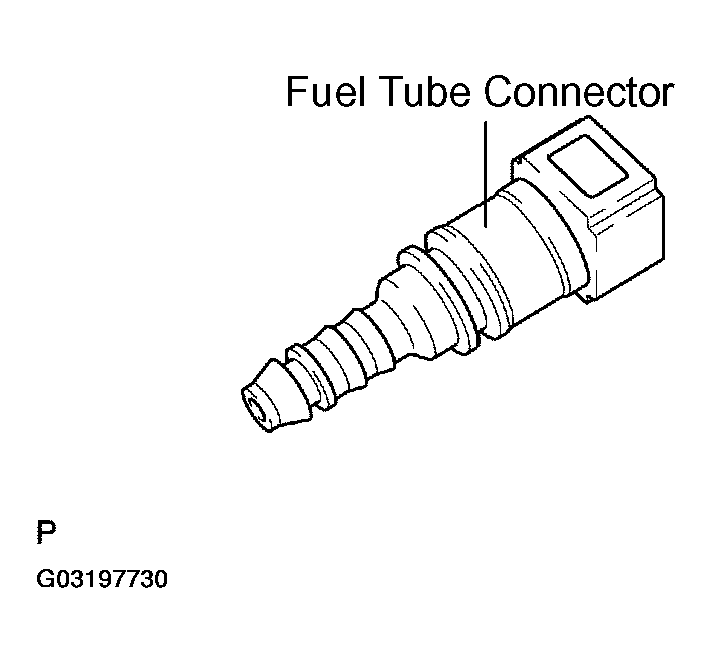

Fig 1: Identifying Fuel Tube Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Connect SST and the fuel tube connector to the fuel pipe.
SST 09268-41047 (95336-08070).

CAUTION: After taking the precaution, connect the fuel tube connected (quick type).

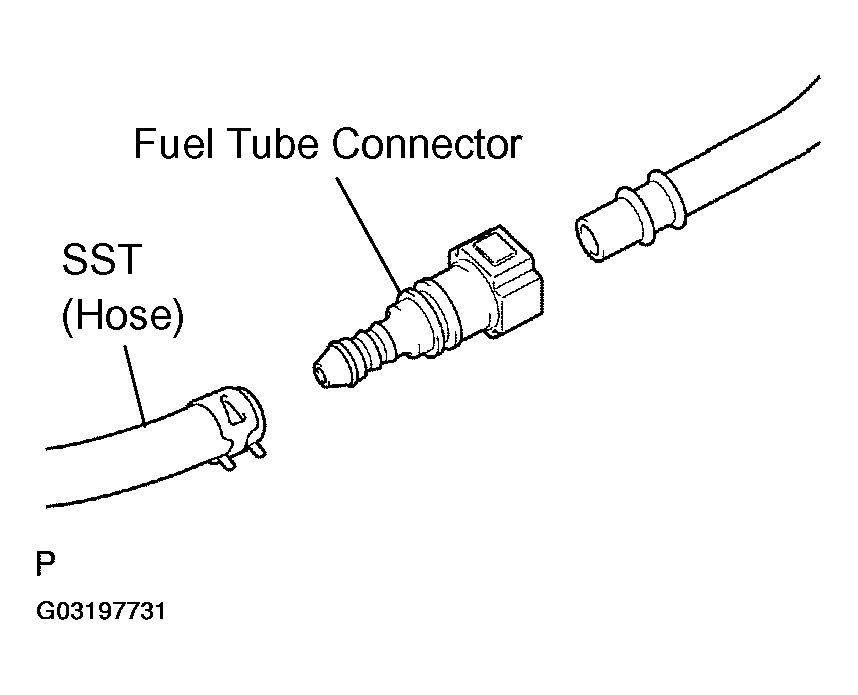

Fig 2: Connecting SST & Fuel Tube Connector To Fuel Pipe
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the grommet and O-ring onto the injector.
Connect SST (union and hose) to the injector, and hold the injector and union with SST (clamp).
SST 09268-41047 (95336-08070, 09268-41110, 09268-41300), 09842-30080
Put the injector into a graduated cylinder.
HINT:

Install a suitable vinyl tube onto the injector to prevent gasoline splashes.
Operate the fuel pump. (See ON-VEHICLE INSPECTION )

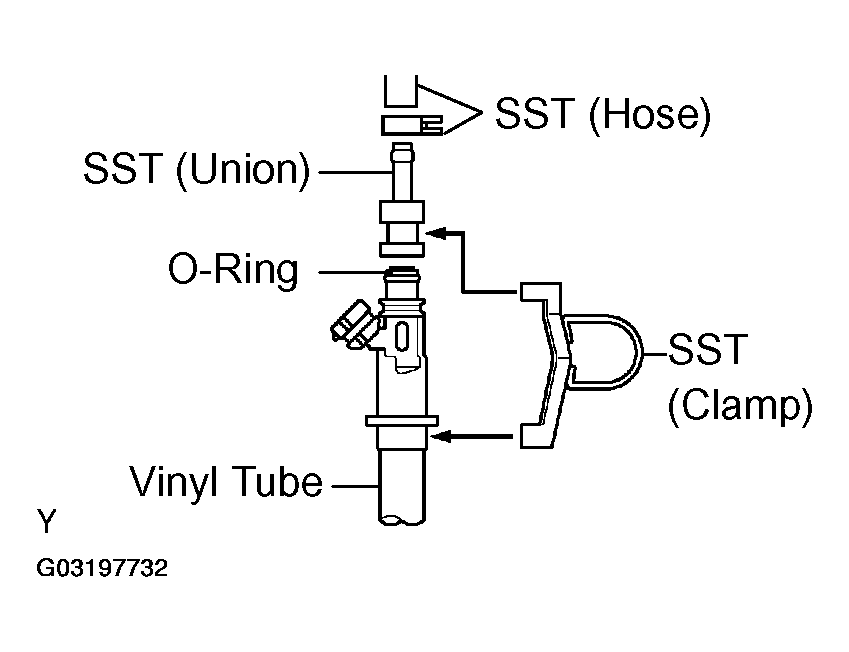

Fig 3: Installing Grommet & O-Ring Onto Injector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect SST (wire) to the injector and battery for 15 seconds, and measure the injection volume with the graduated cylinder. Test each injector 2 or 3 times.

SST 09842-30080

Injection volume:

INJECTION VOLUME

Injection volume	Difference between each injector
47 to 58 cm³ (2.9 to 3.5 cu in.) per 15 seconds	11 cm³ (0.6 cu in.) or less

NOTE: Always do the switching at the battery side.

If the injection volume is not as specified, replace the injector.

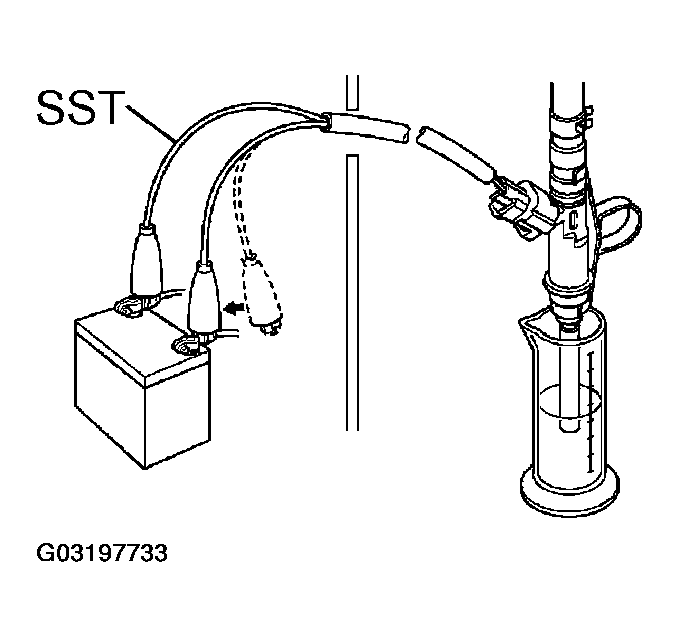

Fig 4: Connecting SST (Wire) To Injector & Battery

Inspect the leakage.
1. In the condition above, disconnect the test probes of SST (wire) from the battery and check the fuel leakage from the injector.
  Fuel drop: 1 drop or less in 12 minutes

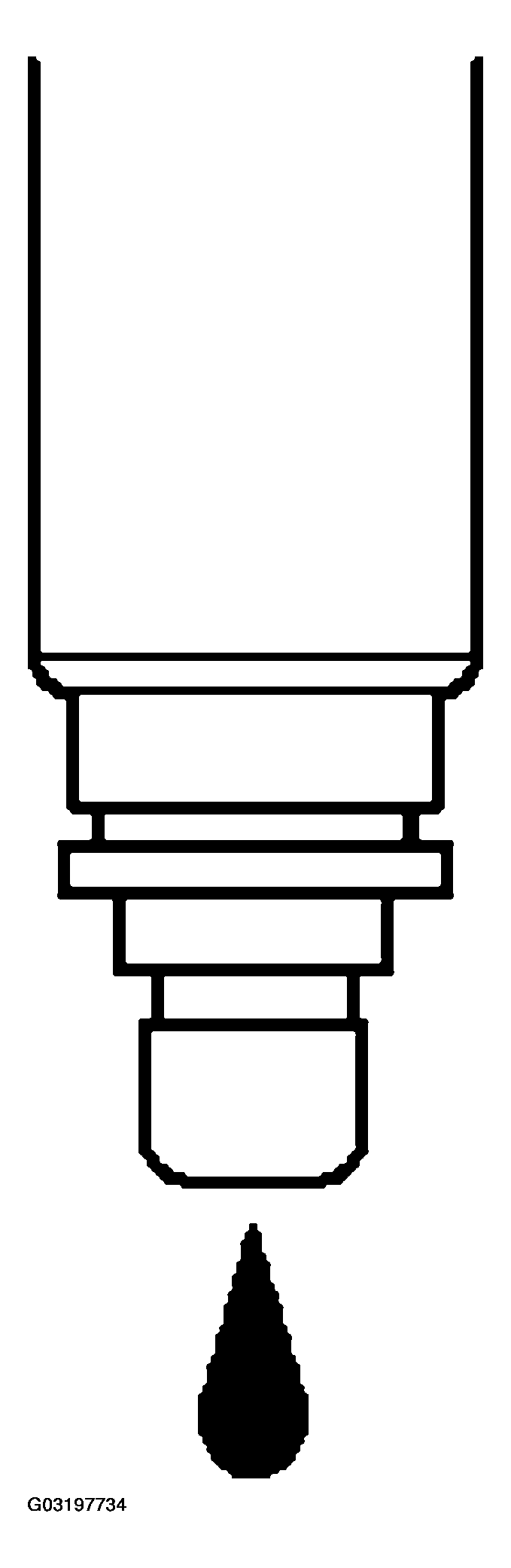

  Fig 5: Checking Fuel Leakage From Injector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FUEL PUMP
1. Inspect the fuel pump resistance.
  1. Using an ohmmeter, measure the resistance between terminals.
    Resistance: 0.2 to 3.0 Ω at 20°C (68°F)
2. Check the fuel pump operation.
  1. Apply battery voltage between terminals. Check that the pump operates.

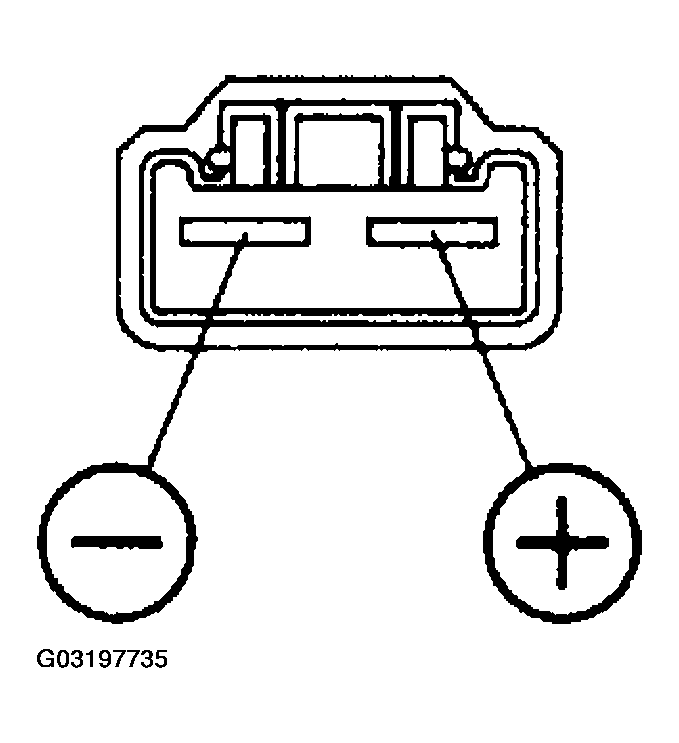

    Fig 6: Identifying Fuel Pump Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - These tests must be done quickly (within 10 seconds) to prevent coil burnout.
  - Keep fuel pump as far away from the battery as possible.
  - Away do the switching at the battery side.
  If the operation is not as specified, replace the fuel pump.
