Fuel Tank ASSY: Components

Fig 1: Exploded View Of Fuel Tank Assy (1 Of 5)
G03197775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Fuel Tank Assy (2 Of 5)
G03197776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

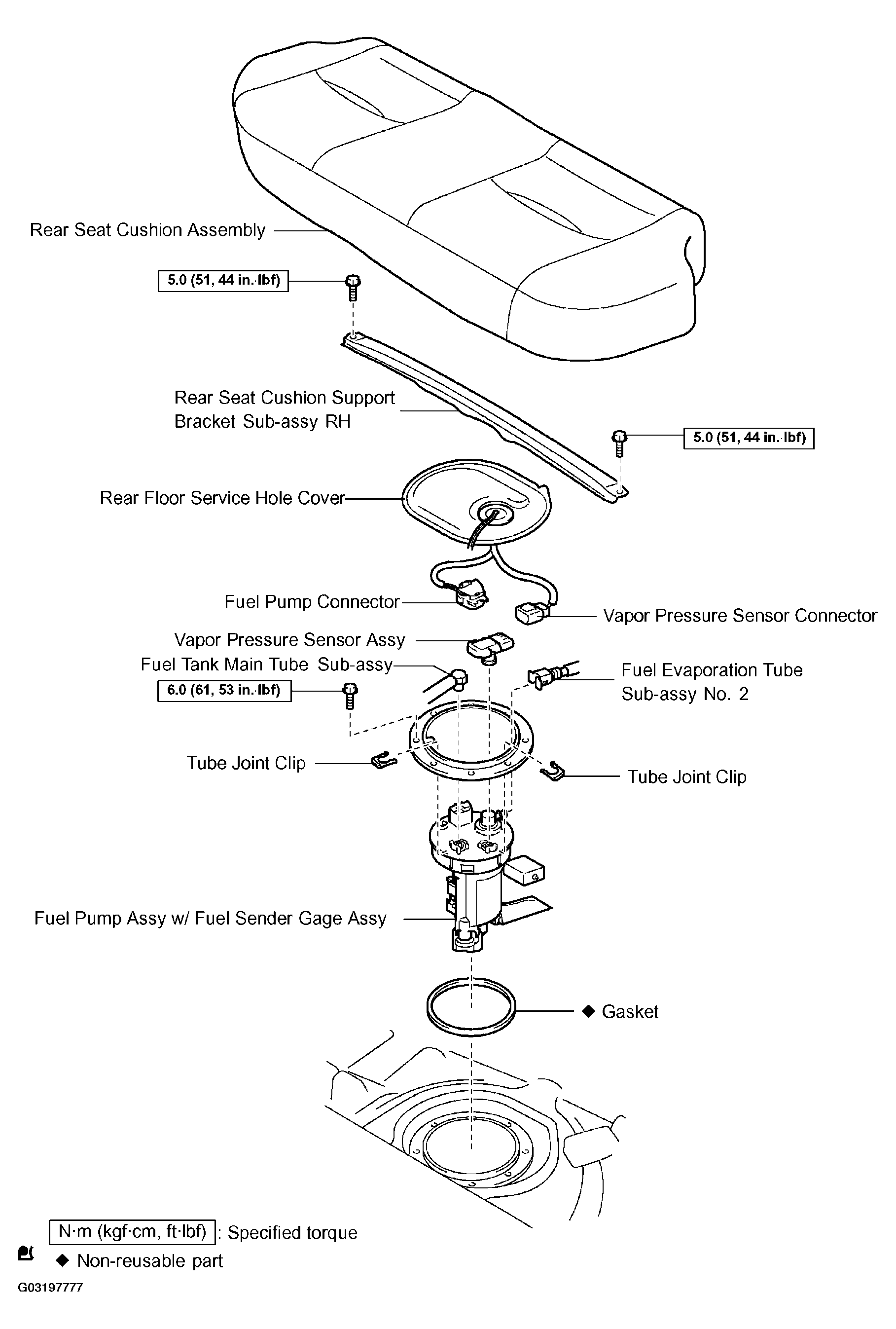

Fig 3: Exploded View Of Fuel Tank Assy (3 Of 5)
G03197777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

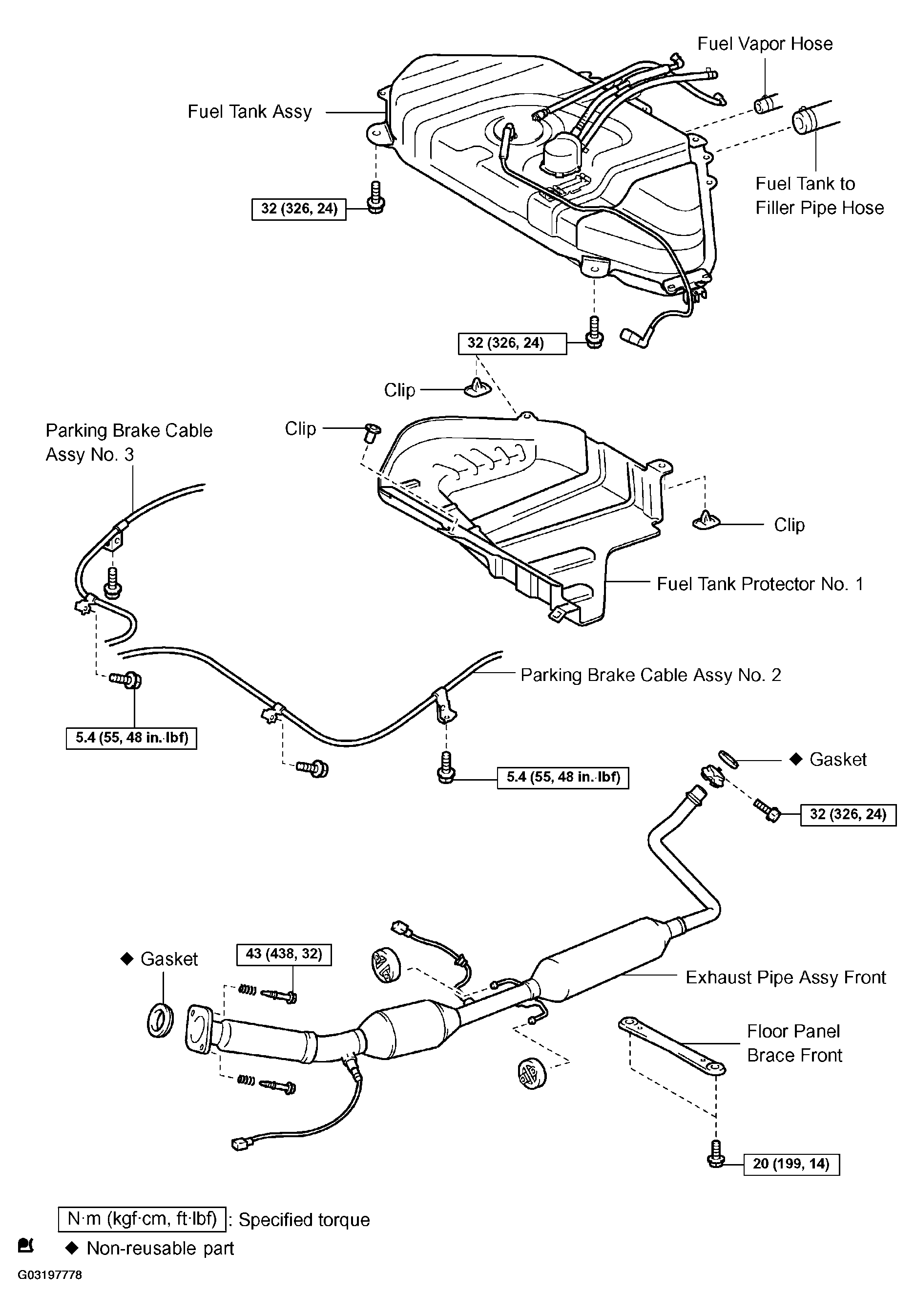

Fig 4: Exploded View Of Fuel Tank Assy (4 Of 5)
G03197778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Exploded View Of Fuel Tank Assy (5 Of 5)
G03197779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
