Crankshaft Position Sensor: Replacement

  1. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

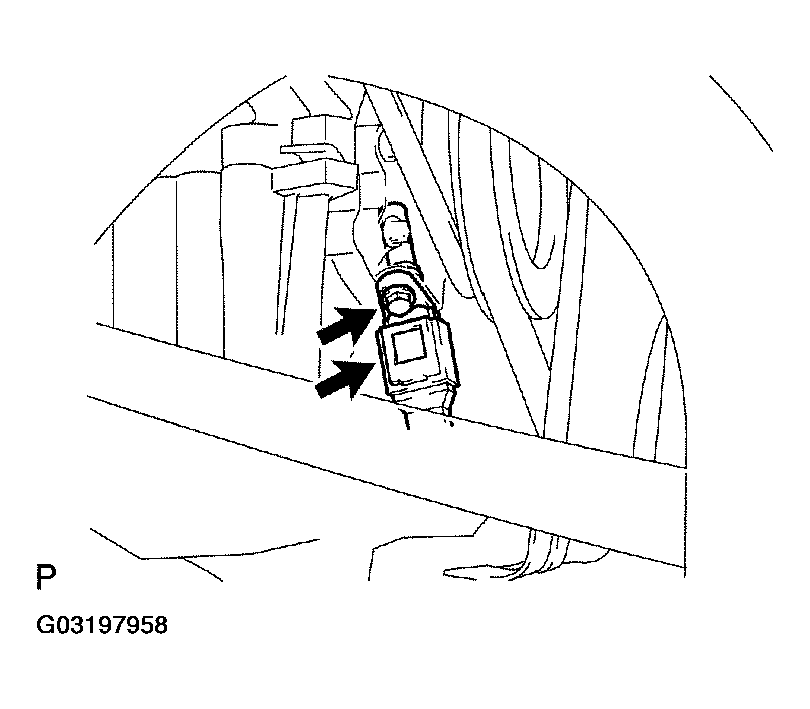

      Fig 1: Removing Bolt & Crankshaft Position Sensor
      G03197958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CRANKSHAFT POSITION SENSOR
    1. Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.
    2. Install the crankshaft position sensor with the bolt.

      Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

    3. Connect the crankshaft position sensor connector.
