Knock Sensor: Components

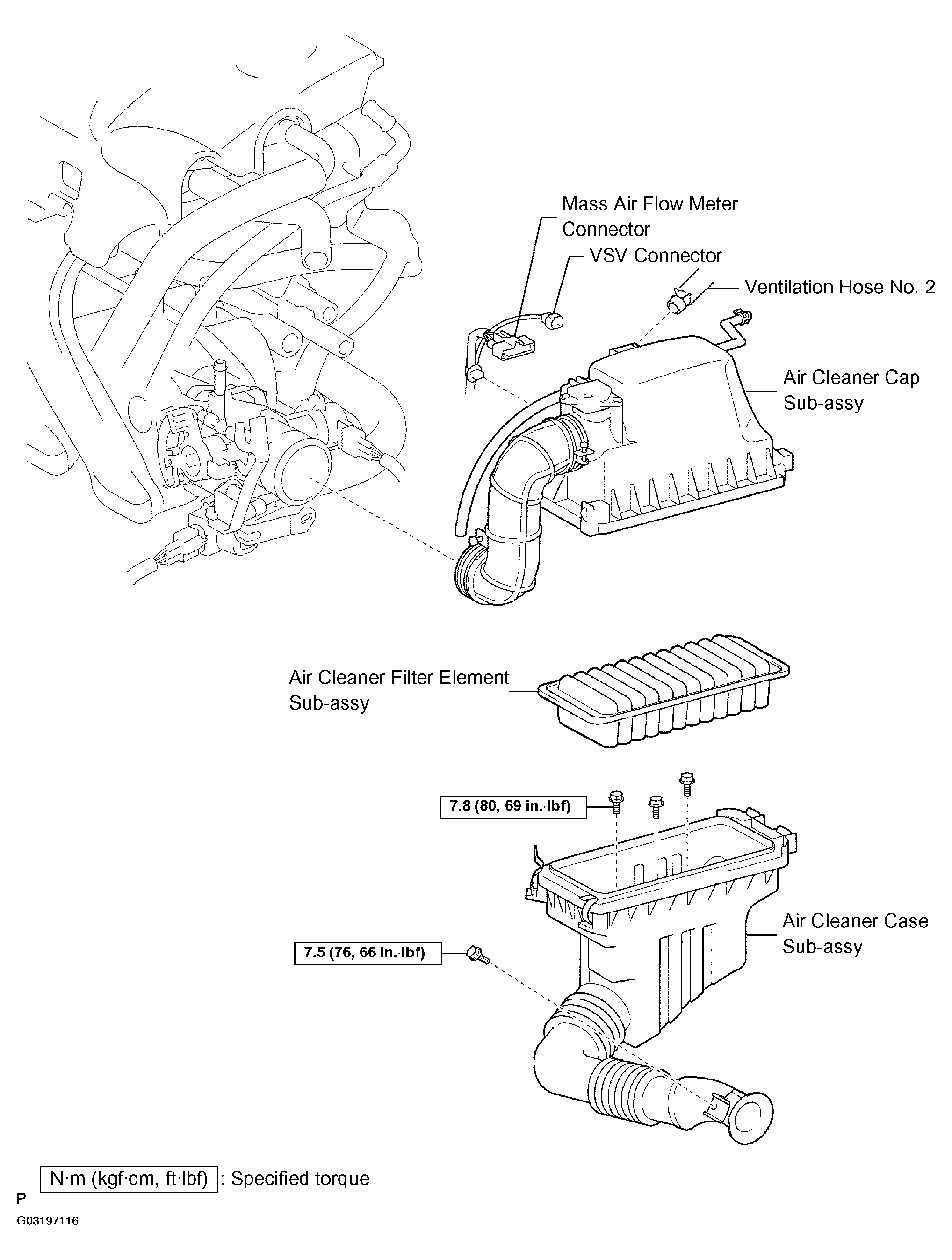

Fig 1: Exploded View Of Knock Sensor (1 Of 3)
G03197116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

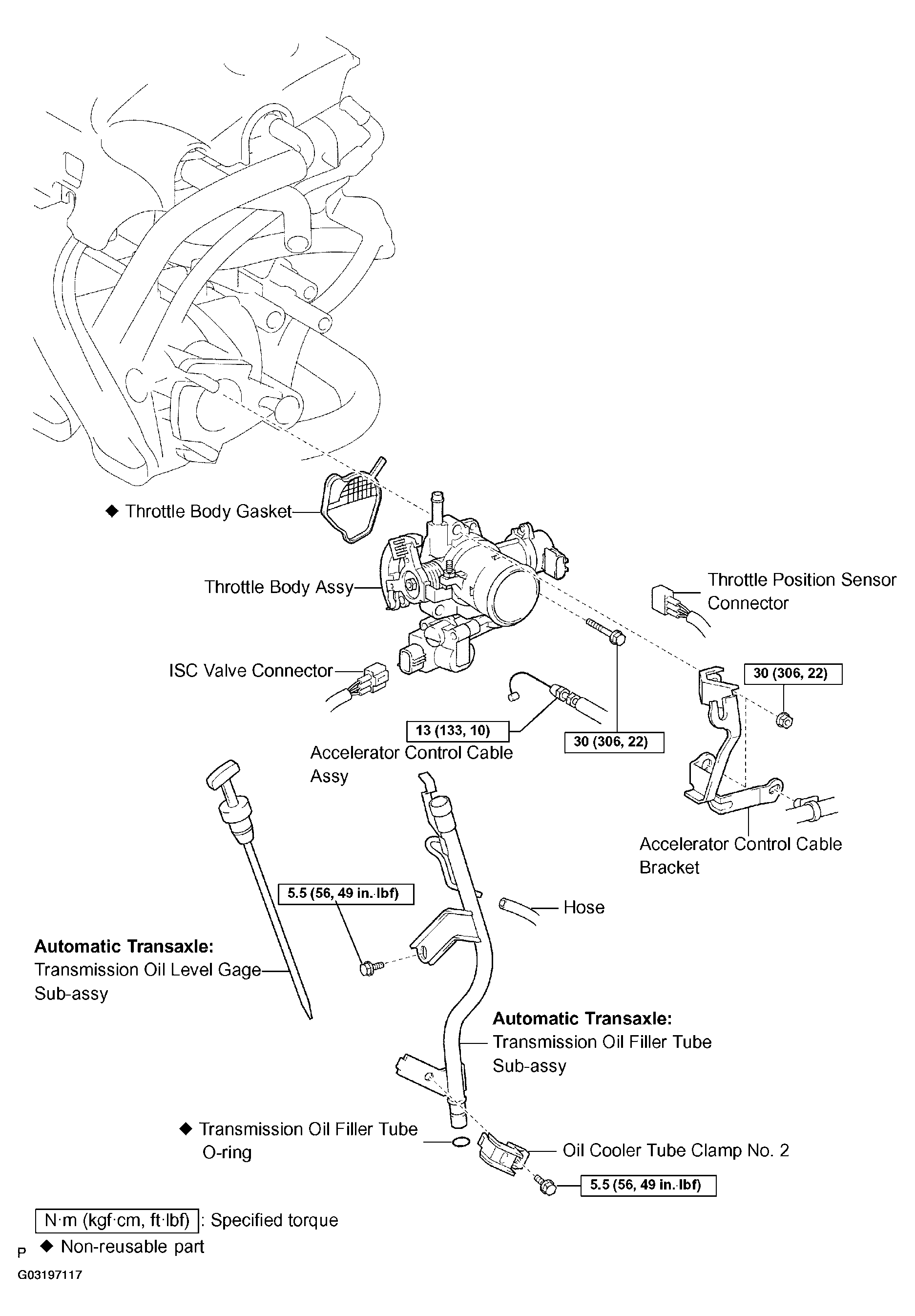

Fig 2: Exploded View Of Knock Sensor (2 Of 3)
G03197117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

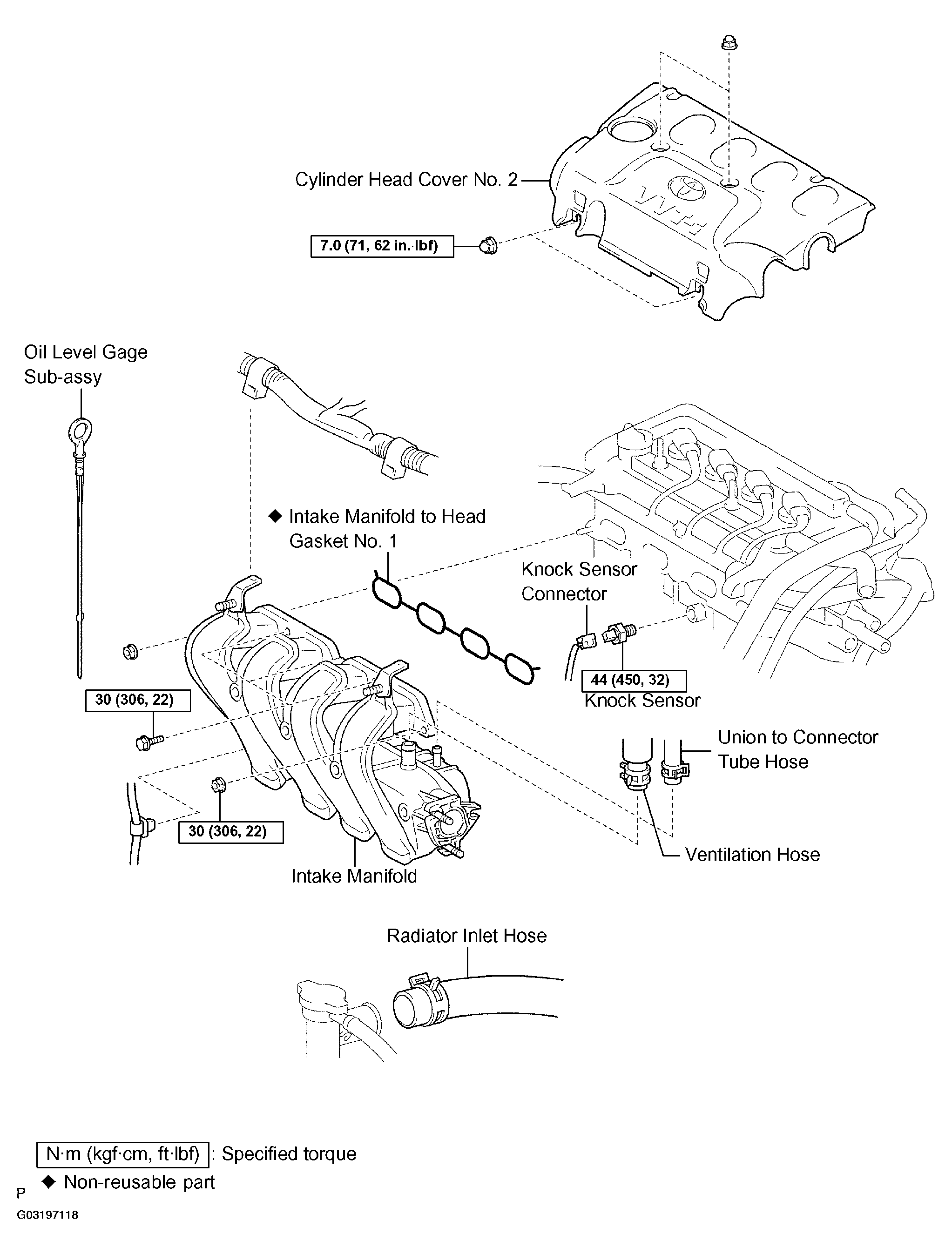

Fig 3: Exploded View Of Knock Sensor (3 Of 3)
G03197118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
