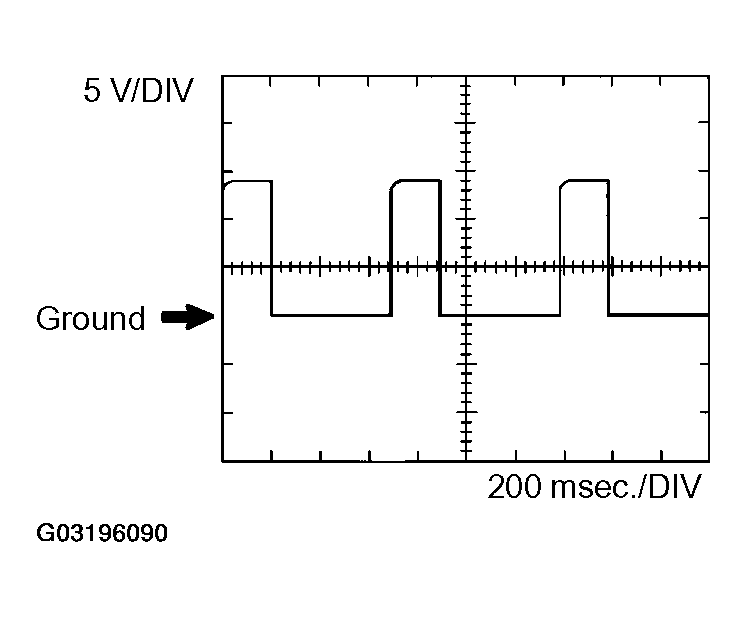

Waveform 10
Camshaft timing oil control valve (OCV)
TERMINAL SPECIFICATIONS
| ECM Terminal Names |
Between OCV+ and OCV- |
| Tester Ranges |
5 V/DIV, 200 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
