Waveform 12

Terminal SIL of DLC3

TERMINAL SPECIFICATIONS

ECM Terminal Names Between SIL and E1
Tester Ranges 5 V/DIV, 1 msec./DIV
Conditions Connect hand-held tester or OBD II scan tool to DLC3

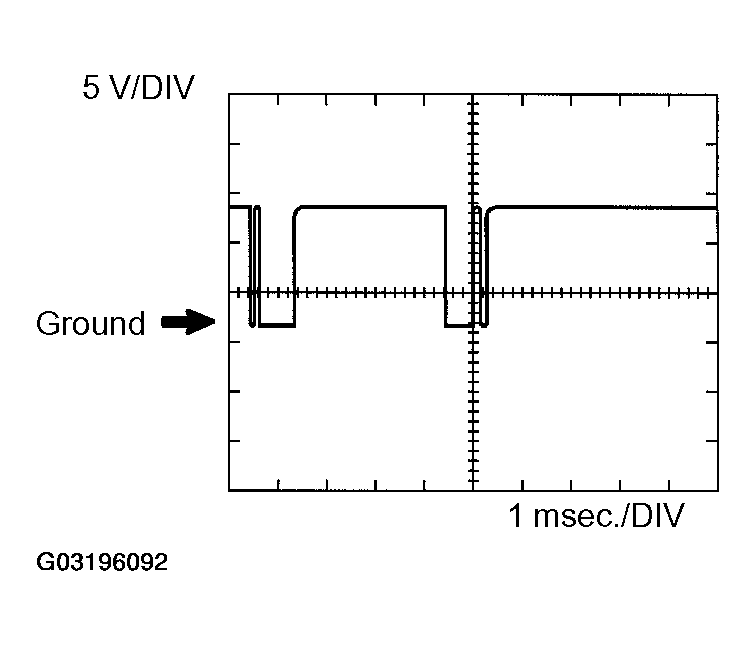

Fig 1: Identifying Waveform 12
G03196092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
