Waveform 2

Vehicle speed signal

TERMINAL SPECIFICATIONS

ECM Terminal Names	Between SPD and E1
Tester Ranges	5 V/DIV, 20 msec./DIV
Conditions	Driving at 25 mph (40 km/h)

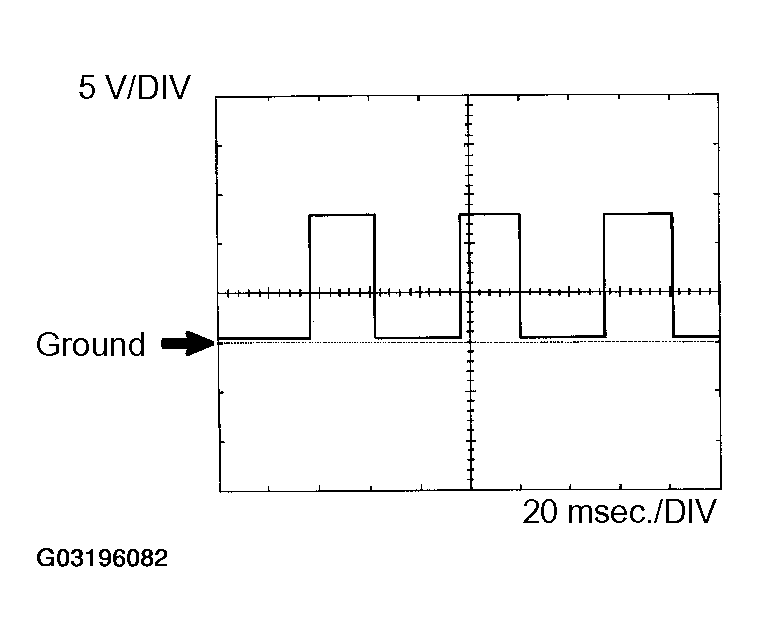

Fig 1: Identifying Waveform 2

G03196082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as the vehicle speed increases.
