Waveform 4

EVAP VSV

TERMINAL SPECIFICATIONS

ECM Terminal Names	Between PRG and E01
Tester Ranges	5 V/DIV, 50 msec./DIV
Conditions	Idling

HINT:

If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

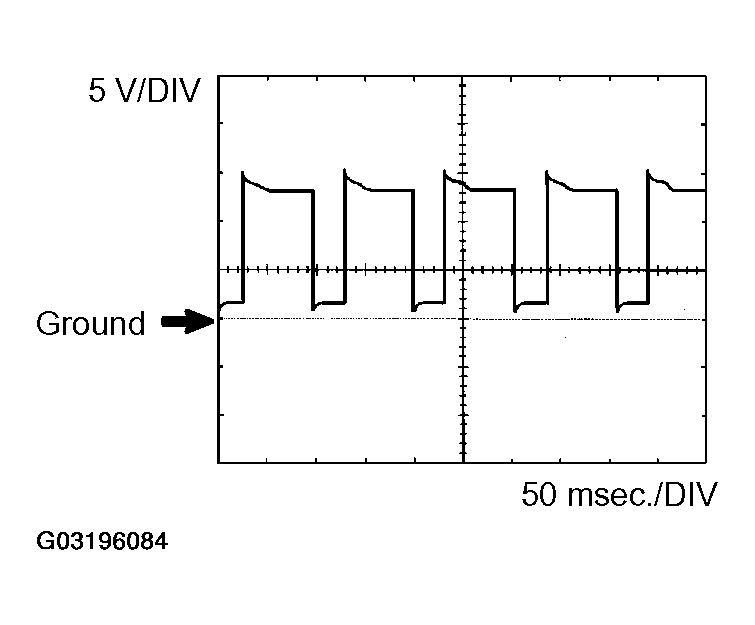

Fig 1: Identifying Waveform 4

G03196084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
