Waveform 5

Heated Oxygen (HO2) sensor (sensor 1)

TERMINAL SPECIFICATIONS

ECM Terminal Names	Between OXL1 and E2
Tester Ranges	0.2 V/DIV, 200 msec./DIV
Conditions	Engine maintained at 2,500 rpm when warm

HINT:

In the DATA LIST, item O2S B1S1 shows the ECM input values from the front HO2 sensor (sensor 1).

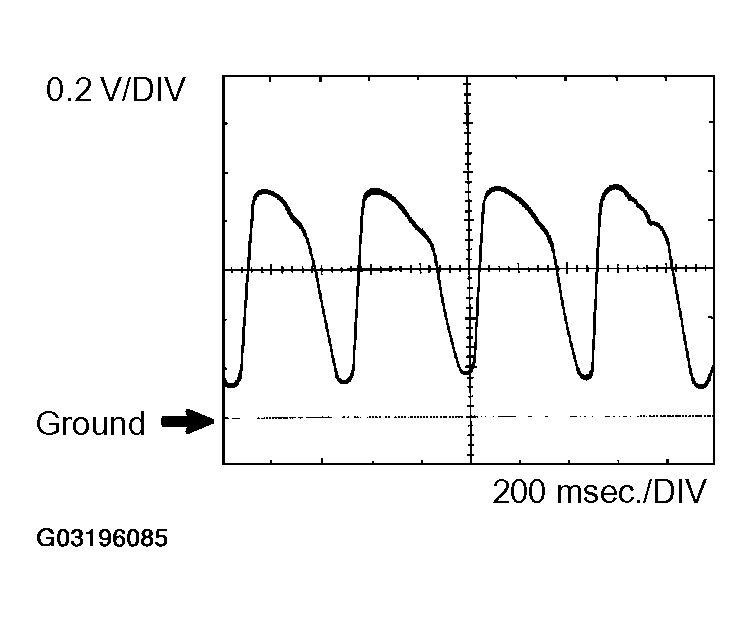

Fig 1: Identifying Waveform 5
