Waveform 7

  1. Camshaft position sensor
  2. Crankshaft position sensor
    TERMINAL SPECIFICATIONS

    ECM Terminal Names
    1. Between G2 and NE-
    2. Between NE and NE-
    Tester Ranges 5 V/DIV, 20 msec./DIV
    Conditions Idling

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

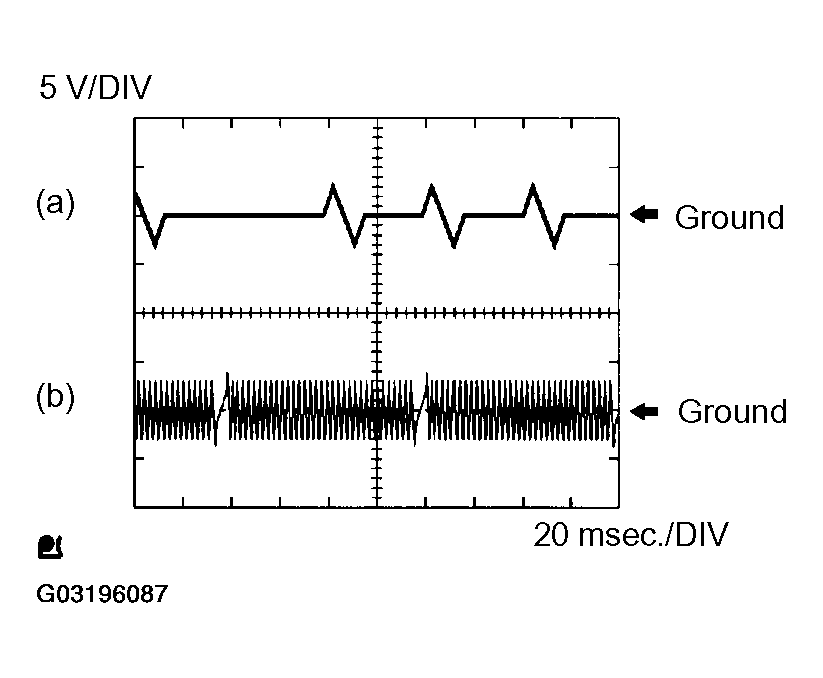

    Fig 1: Identifying Waveform 7
    G03196087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
