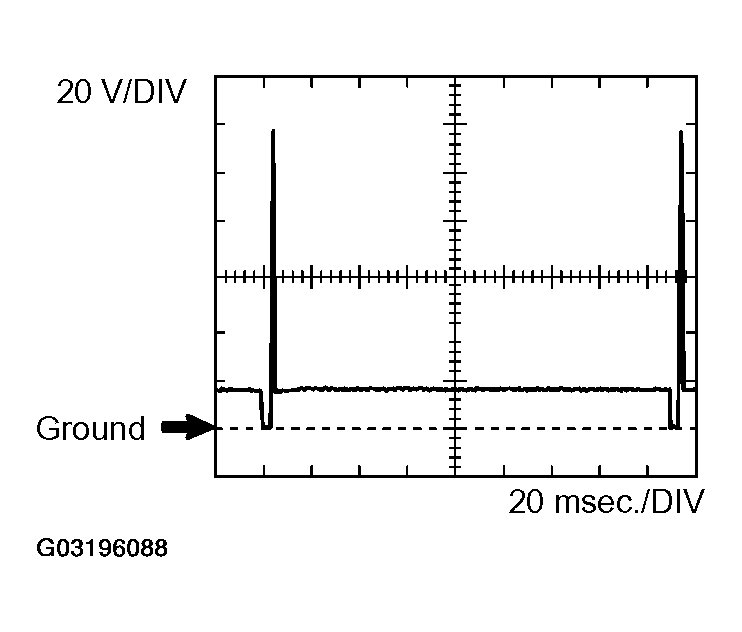

Waveform 8
Fuel injector
TERMINAL SPECIFICATIONS
| ECM Terminal Names |
Between (1 to 4) and E01 |
| Tester Ranges |
20 V/DIV, 20 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
