Vehicle Identification And Serial Numbers

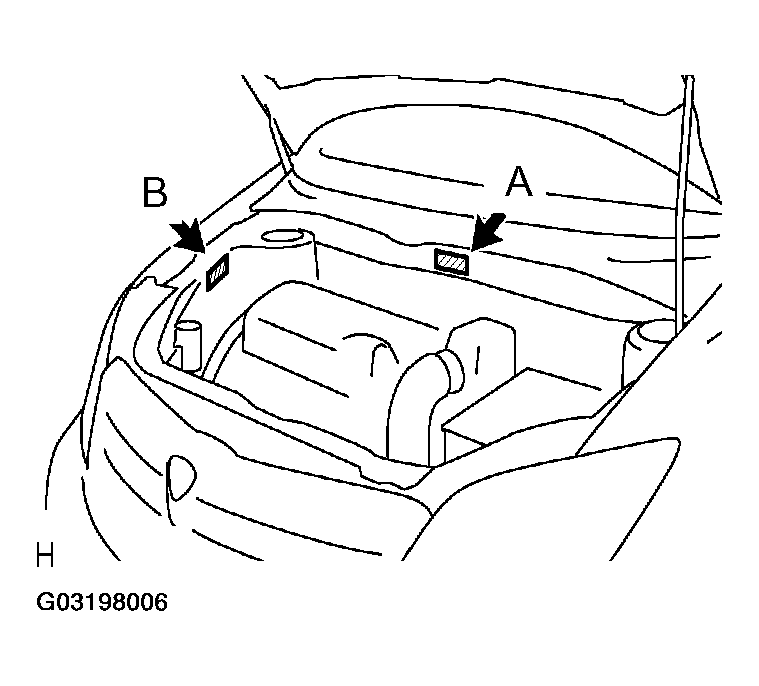

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.
  A : Vehicle Identification Number Plate

  B : Certification Label

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

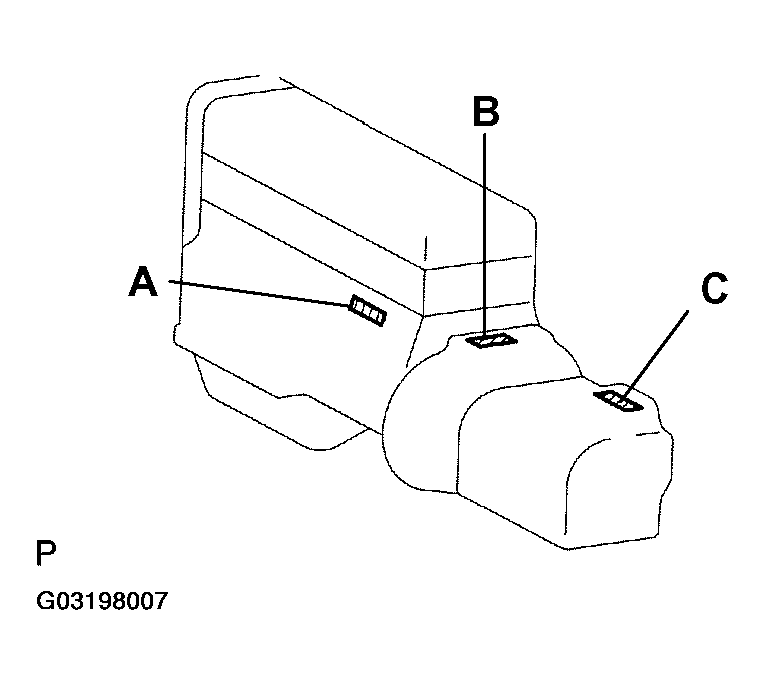

ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.
  A : 1NZ-FE

  B : C50

  C : U340E

  Fig 2: Identifying Engine Serial Number & Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
