Steering Column ASSY: Overhaul

1. Place the front wheels facing straight ahead.

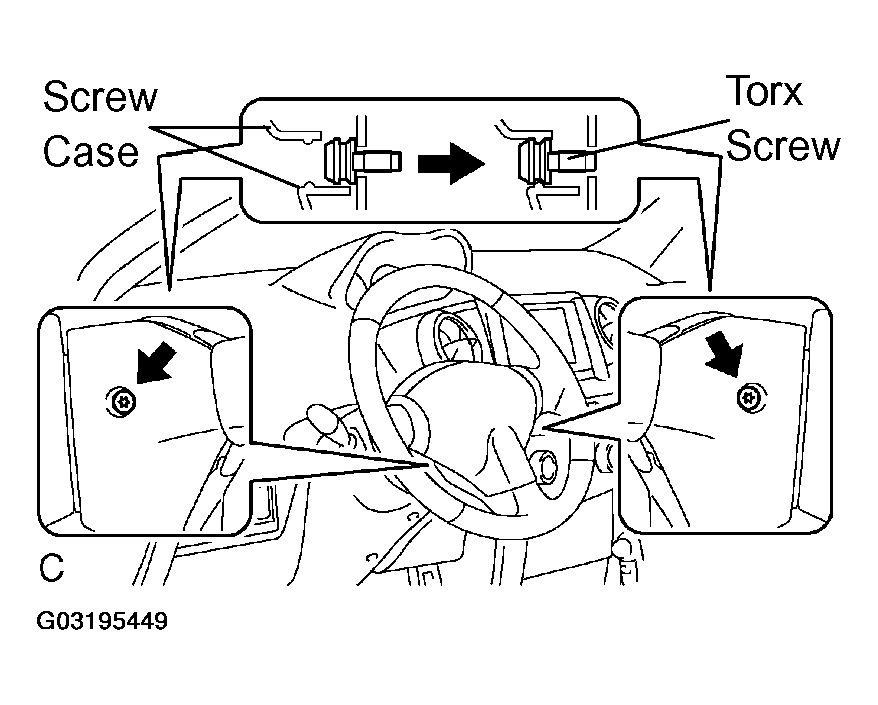

2. Using a Torx socket wrench (T30), loosen the 2 Torx screws until the groove along the screw circumference catches on the screw case.
   Fig 1: Removing Horn Button Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the horn connector.
   Fig 2: Disconnecting Horn Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the horn button assy from the steering wheel assy and support the horn button assy with one hand as shown in the illustration.
   NOTE: When removing the horn button assy, do not pull the airbag wire harness.

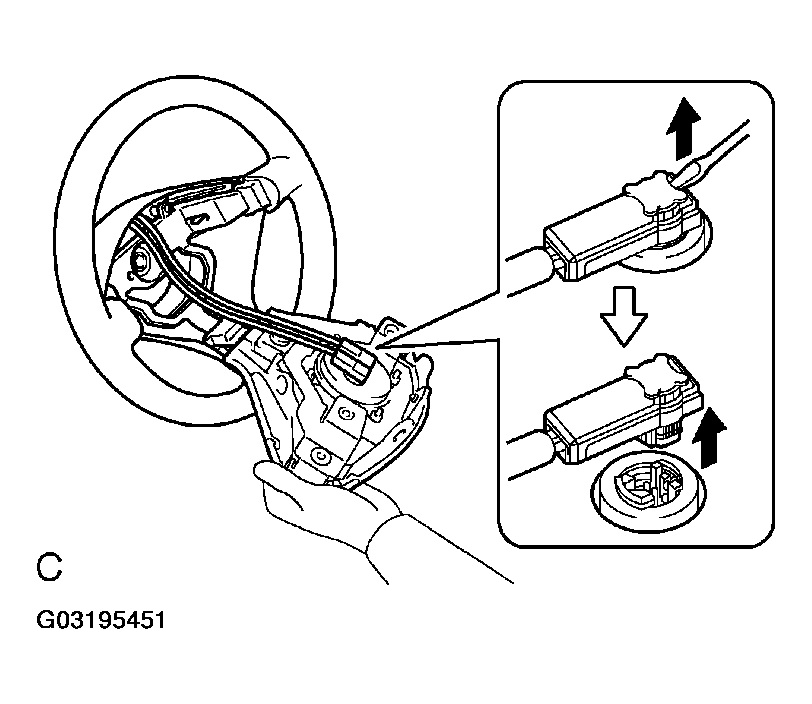

5. Using a screwdriver, disconnect the horn button assy connectors.
6. Remove the horn button assy.
   Fig 3: Removing Horn Button Assy From Steering Wheel Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

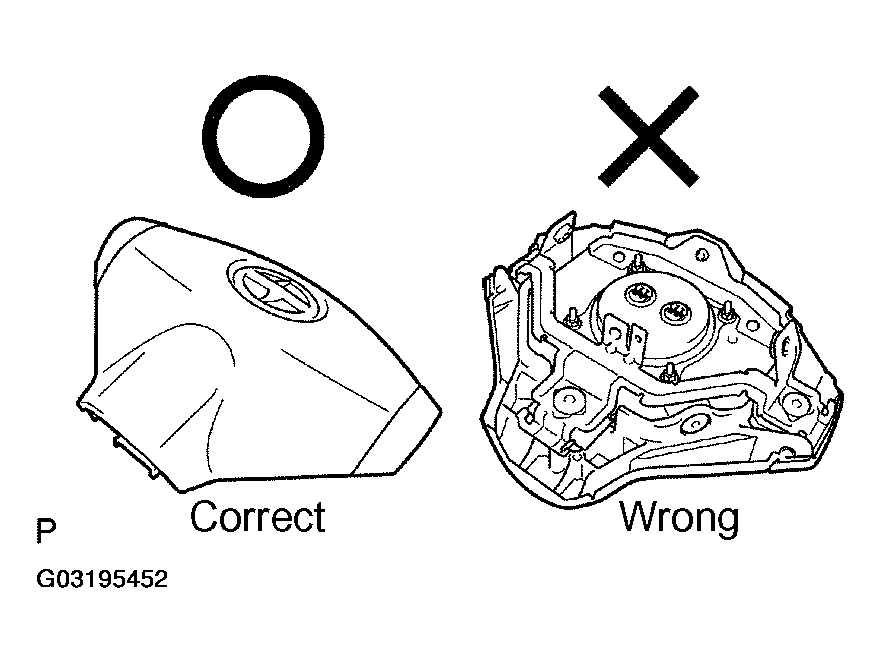

   CAUTION:

   • When storing the horn button assy, keep the upper surface of the pad facing upward.
   • Never disassemble the horn button assy.
     Fig 4: Identifying Horn Button Assy

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

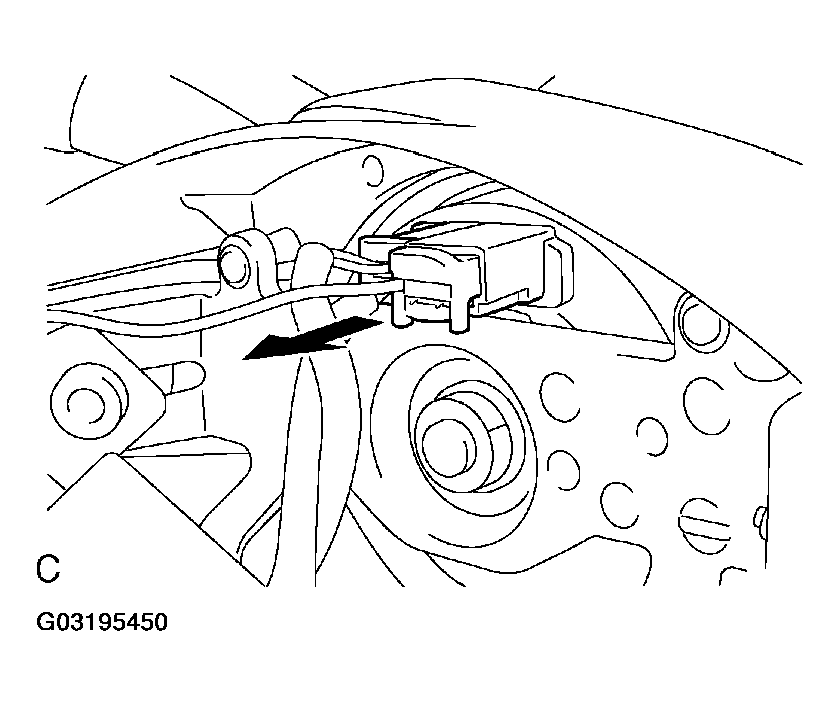

1. Disconnect the connector.
2. Remove the steering wheel assy set nut.

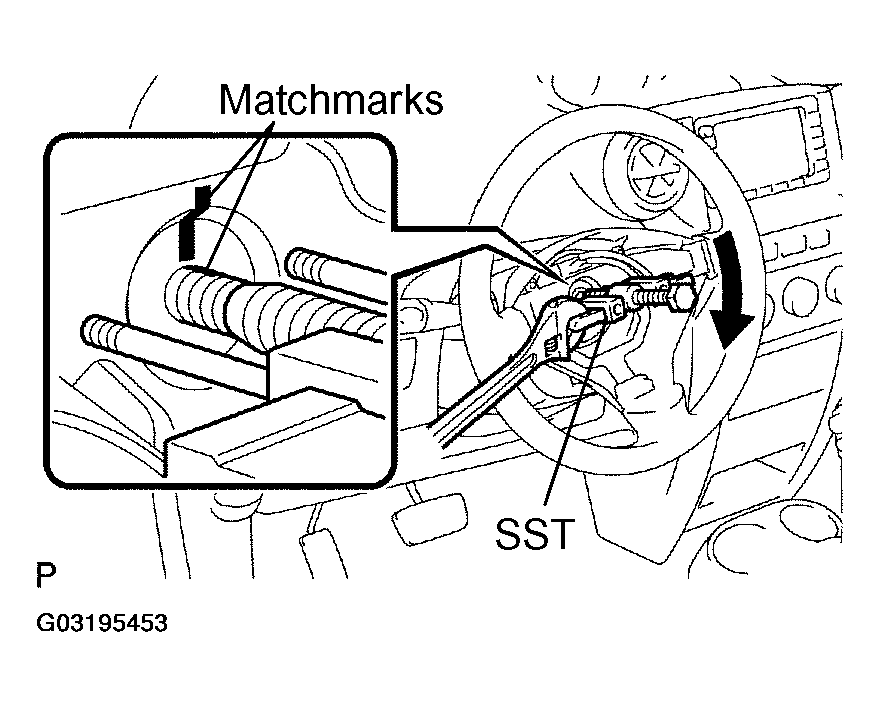

3. Put matchmarks on the steering wheel assy and main shaft assy.
4. Using SST, remove the steering wheel assy.

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

   Fig 5: Disconnecting Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 screws and the steering column cover LWR.
   Fig 6: Removing Screws & Steering Column Cover LWR

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and the steering column cover UPR.
   Fig 7: Removing Bolts & Steering Column Cover UPR

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

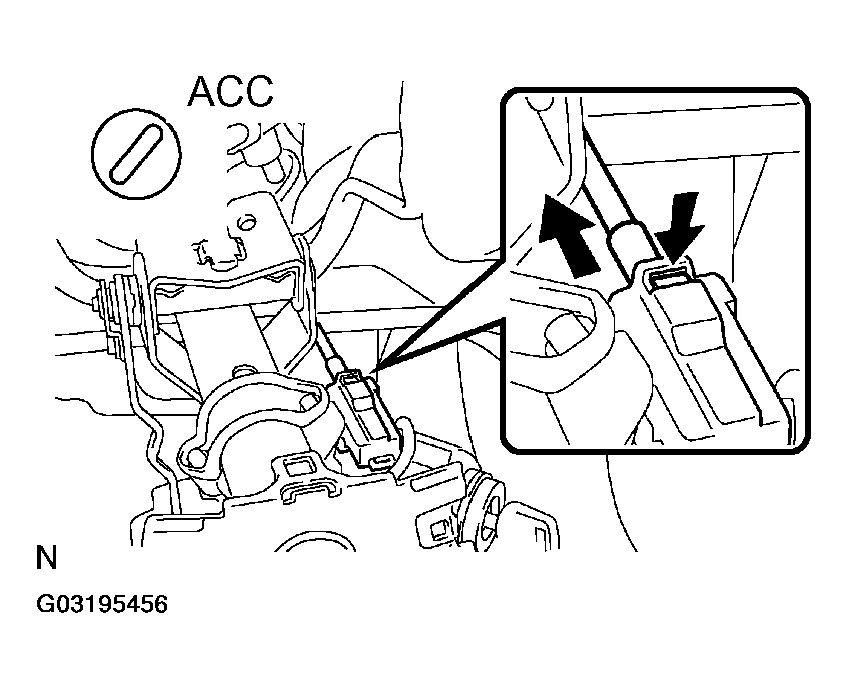

1. With the key in the ACC position, disengage the claw and pull out the floor shift parking lock cable.
   Fig 8: Disconnecting Floor Shift Parking Lock Cable Assy (A/T Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector and remove the headlamp dimmer switch assy.

1. Disconnect the connector and remove the windshield wiper switch assy.

1. Remove the clip and the steering column hole cover plate.

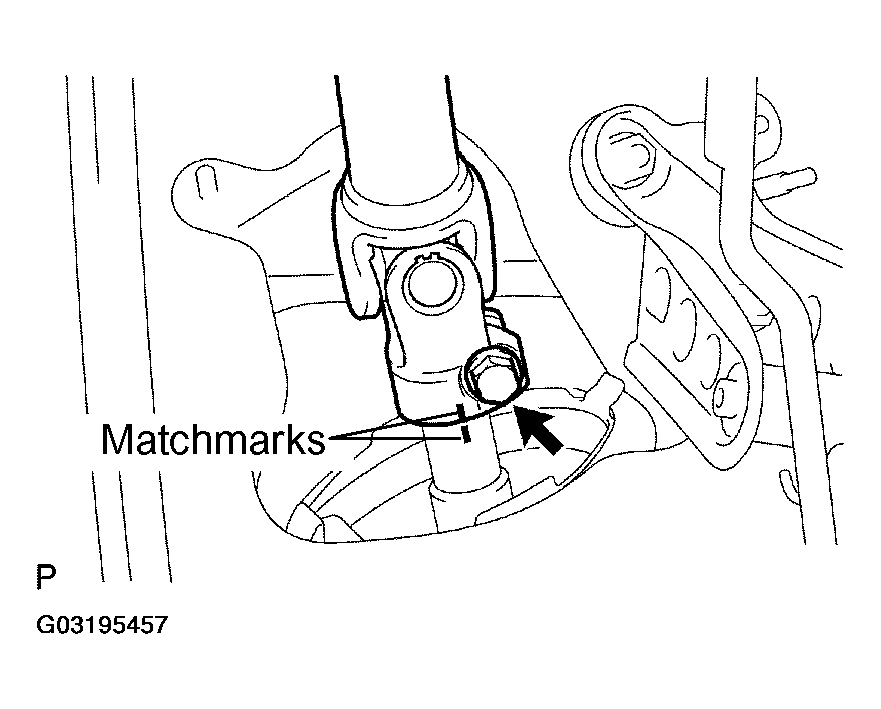

1. Put matchmarks on the intermediate shaft and steering intermediate shaft assy.
2. Remove the bolt, and then disconnect the steering intermediate shaft assy.
   Fig 9: Putting Matchmarks On Intermediate Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

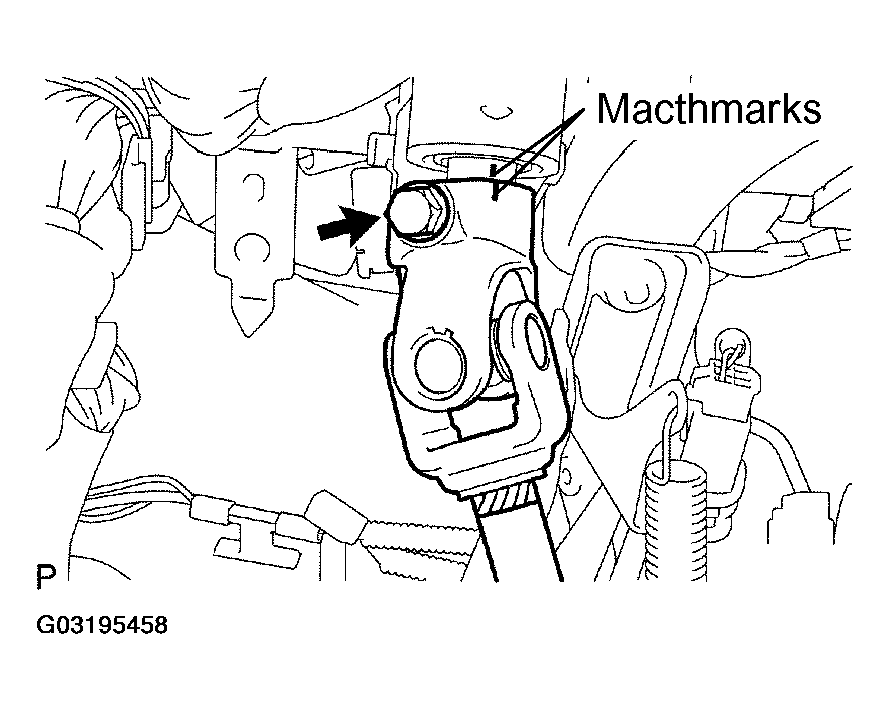

1. Put matchmarks on the main shaft assy and steering intermediate shaft assy.
2. Remove the bolt and the steering intermediate shaft assy.
   Fig 10: Putting Matchmarks On Main Shaft Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connectors and wire harness clamps from the steering column assy.
2. Remove the bolt and steering column assy.
   Fig 11: Disconnecting Connectors & Wire Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a centering punch, mark the center of the 2 tapered head bolts.
2. Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolt heads.

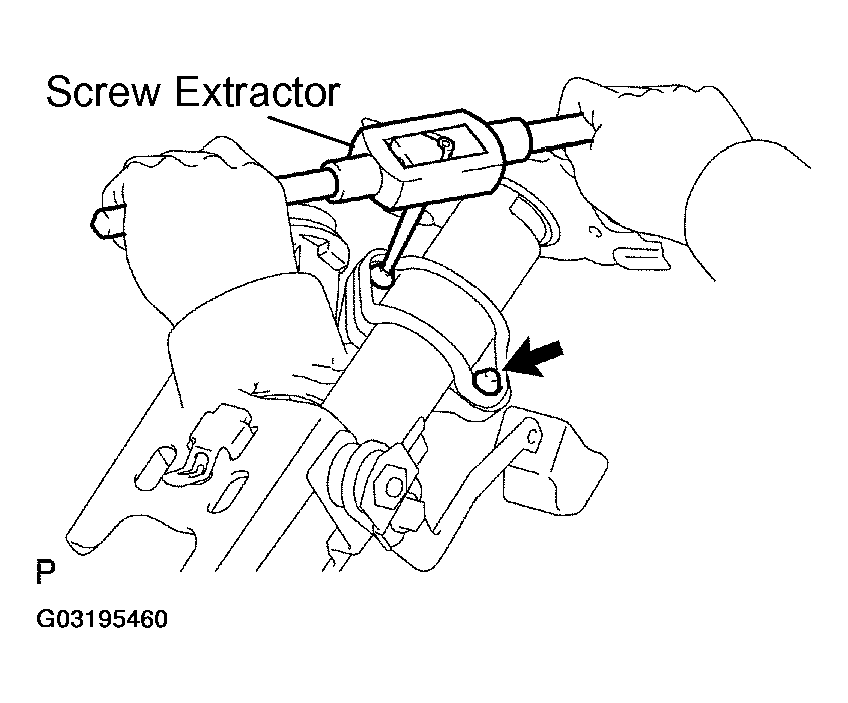

3. Using a screw extractor, remove the 2 bolts and steering column upper w/switch bracket assy.
   Fig 12: Removing Steering Column Upper W/Switch Bracket Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

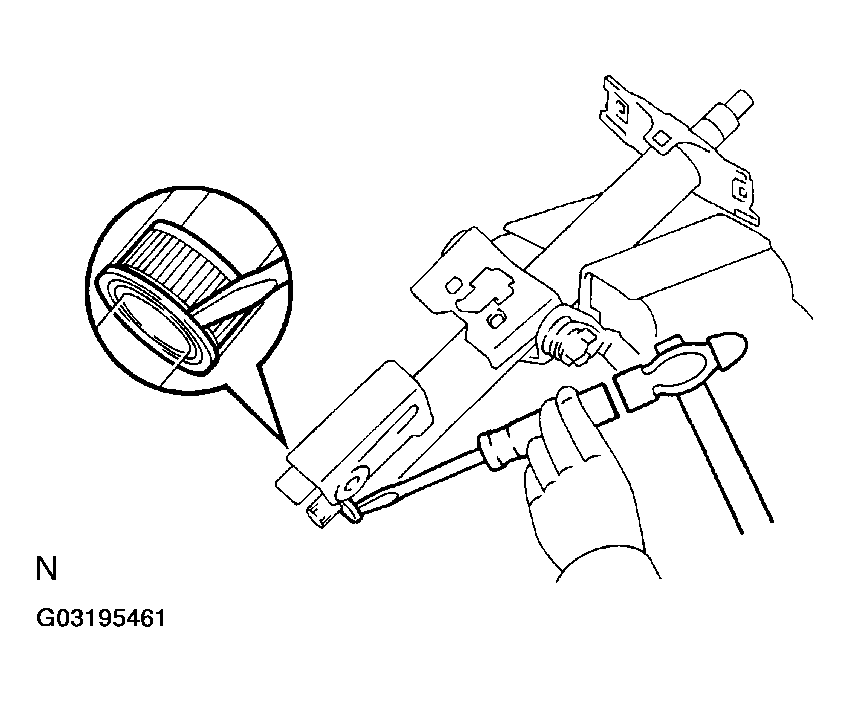

Using a screwdriver and hammer, tap out the steering main shaft bush.

Fig 13: Removing Steering Main Shaft Bush

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

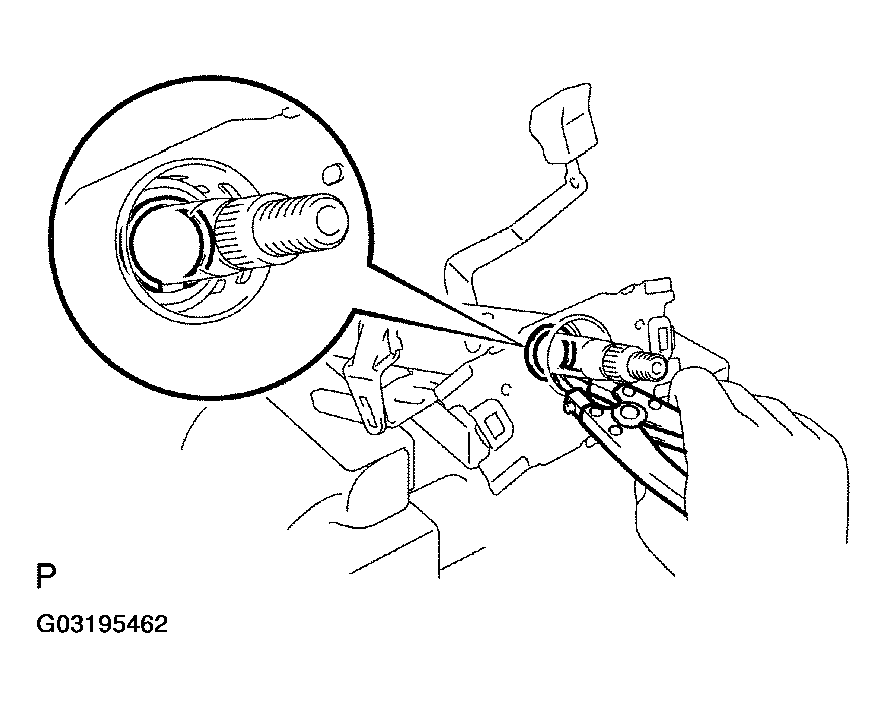

1. Using a snap ring expander, remove the snap ring on the upper side.
   Fig 14: Removing Snap Ring On Upper Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an extension bar and hammer, remove the steering main shaft assy.
   Fig 15: Removing Steering Main Shaft Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a snap ring expander, remove the snap ring on the lower side.
   Fig 16: Removing Snap Ring On Lower Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

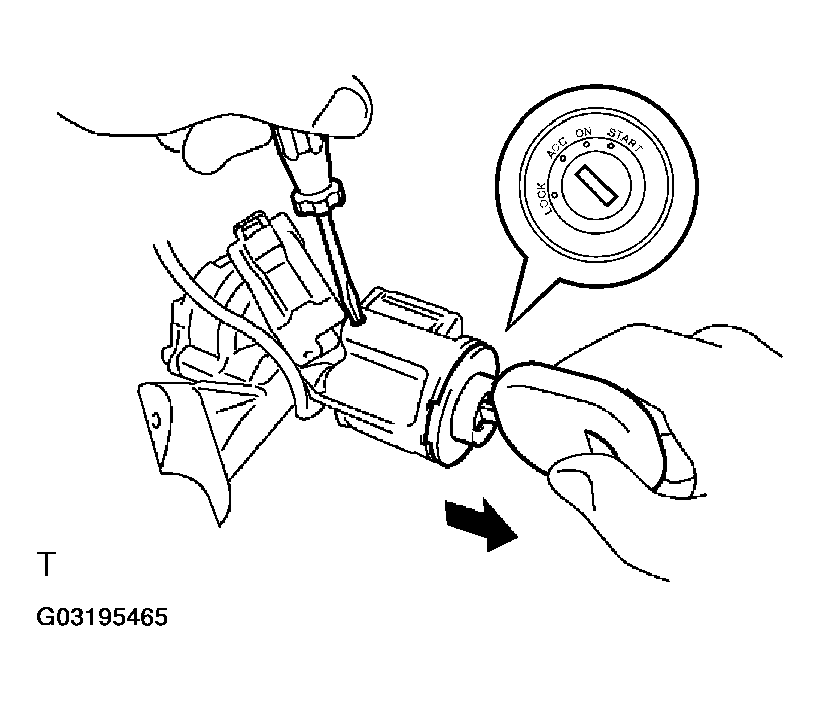

1. Place the ignition switch lock cylinder assy in the ACC position.
2. Push down the stop pin with a screwdriver, and pull out the cylinder assy.
   Fig 17: Placing Ignition Switch Lock Cylinder Assy In ACC Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

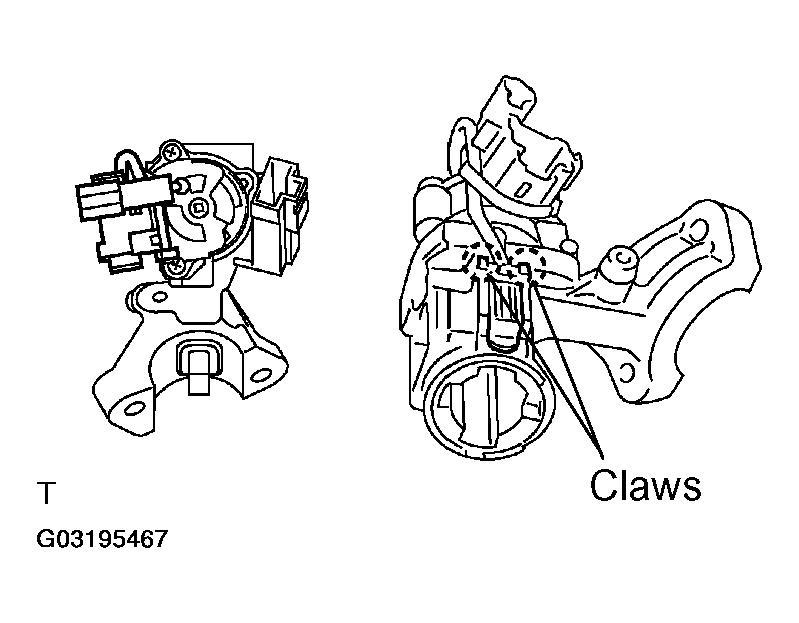

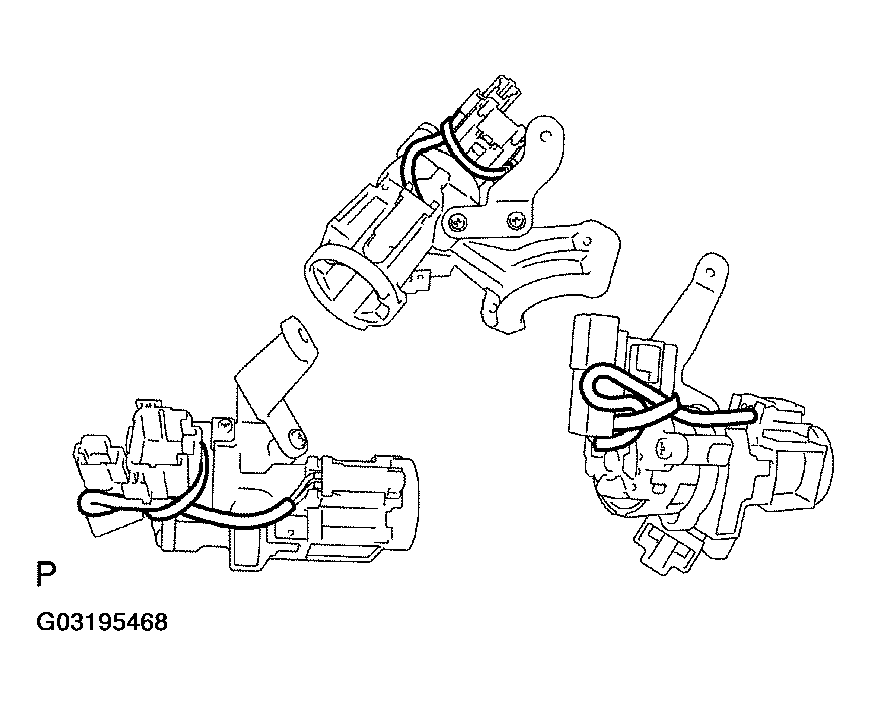

1. Disconnect the unlock warning switch assy connector from the ignition or starter switch assy.
2. Remove the unlock warning switch assy.
   Fig 18: Removing Unlock Warning Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and ignition or starter switch assy from the steering column bracket assy.

1. Install the ignition or starter switch assy to the steering column bracket assy with the 2 screws.

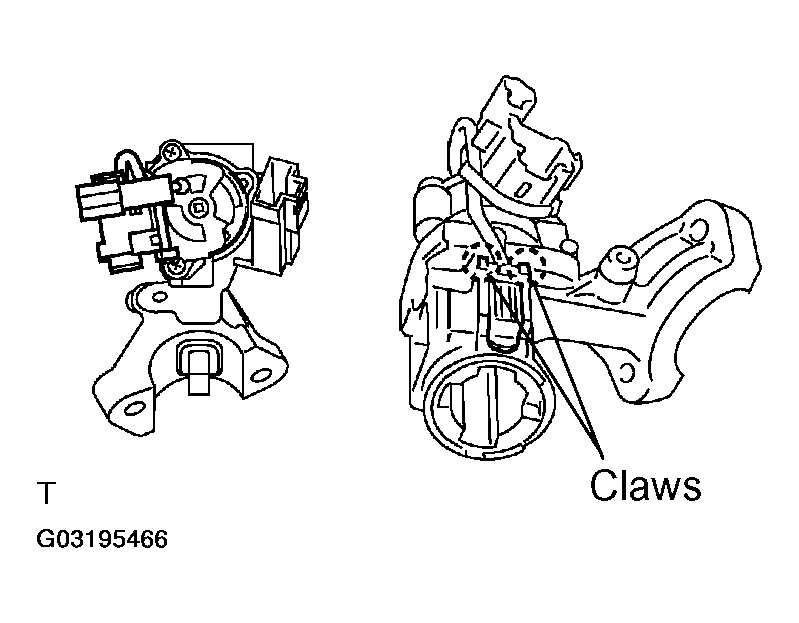

1. Install the unlock warning switch assy.
2. Connect the unlock warning switch assy connector to the ignition or starter switch assy.
   Fig 19: Installing Unlock Warning Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a new clamp, fix the wire harness of the unlock warning switch assy to the steering column bracket assy UPR as shown in the illustration.
   NOTE: When fixing the wire harness, do not tighten the camp too hard. It could damage the wire harness inside.
   Fig 20: Fixing Wire Harness Of Unlock Warning Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Make sure that the ignition switch lock cylinder assy is in the ACC position.
2. Install the ignition switch lock cylinder assy.

1. Check that the steering lock mechanism is activated when the key is removed.
2. Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.

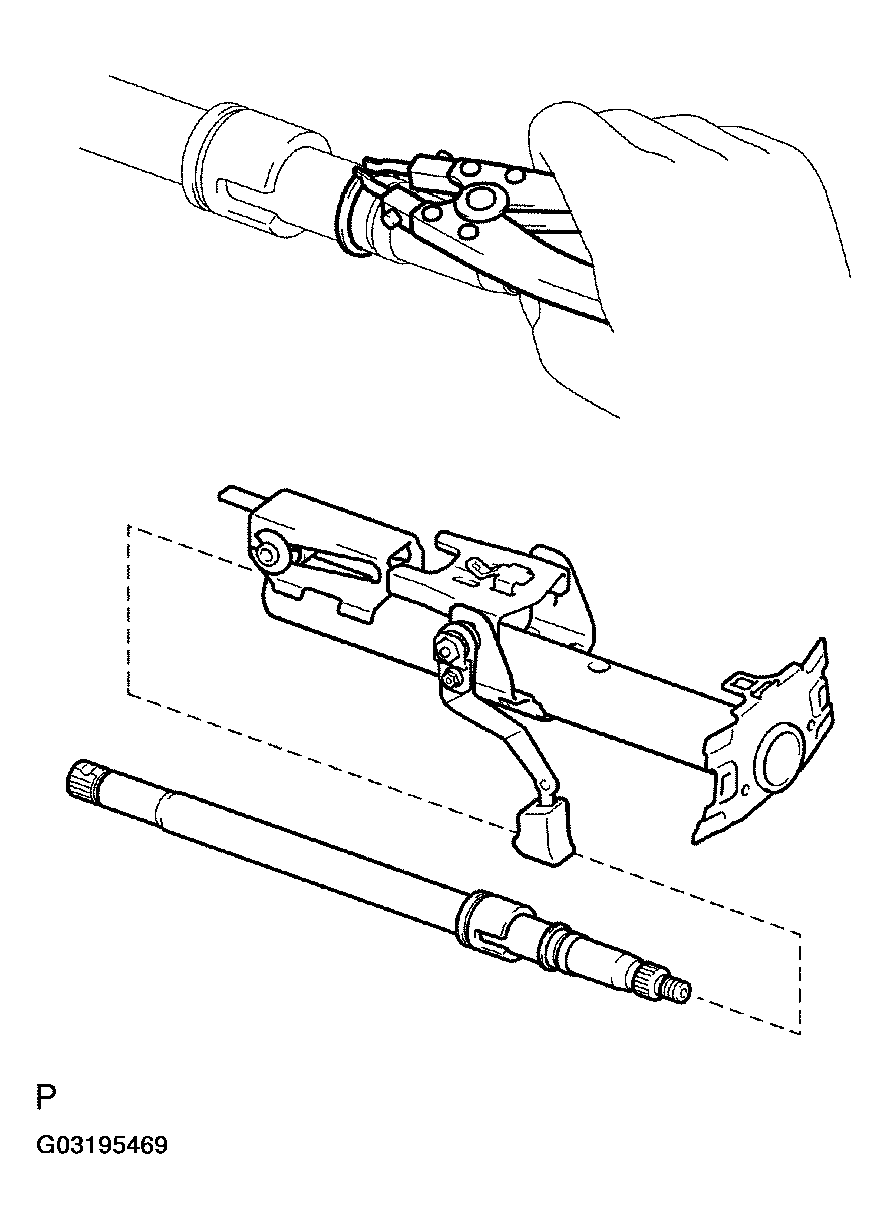

1. Using a snap ring expander, install a new snap ring to the lower side.
2. Install the steering main shaft assy.
   Fig 21: Installing New Snap Ring To Lower Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a snap ring expander, install a new snap ring to the upper side.
   Fig 22: Installing New Snap Ring To Upper Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat a new steering main shaft bush with molybdenum disulfide lithium base grease.
2. Using SST and a hammer, tap in the steering main shaft bush.

   SST 09612-2201 1

   Fig 23: Tapping In Steering Main Shaft Bush

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

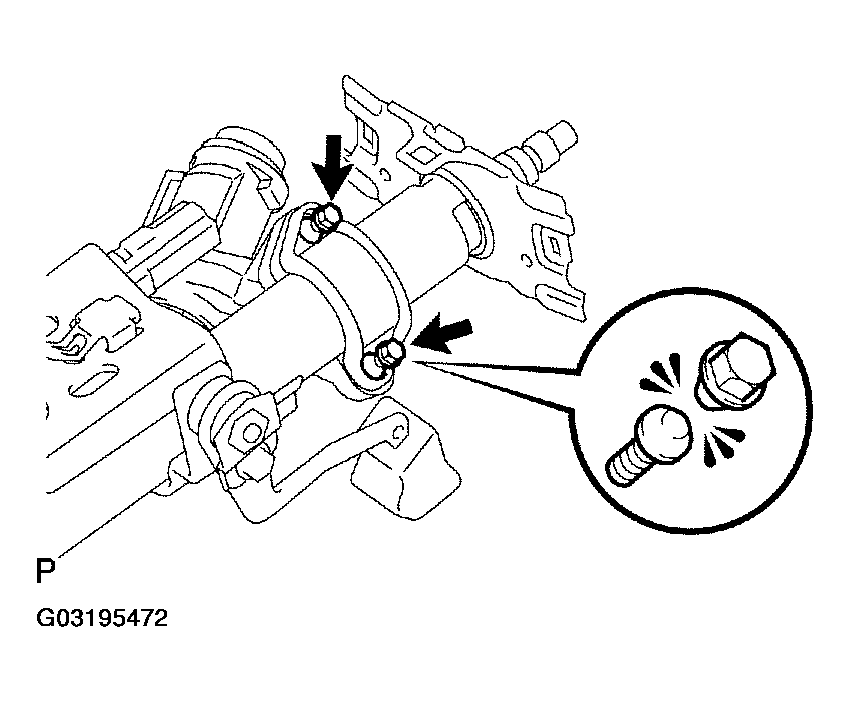

1. Temporarily install the steering column upper w/switch bracket assy and steering column clamp upper with 2 new steering lock set bolts.
2. Tighten the 2 steering lock set bolts until the bolt heads break off.
   Fig 24: Installing Steering Column Upper W/Switch Bracket Assy & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

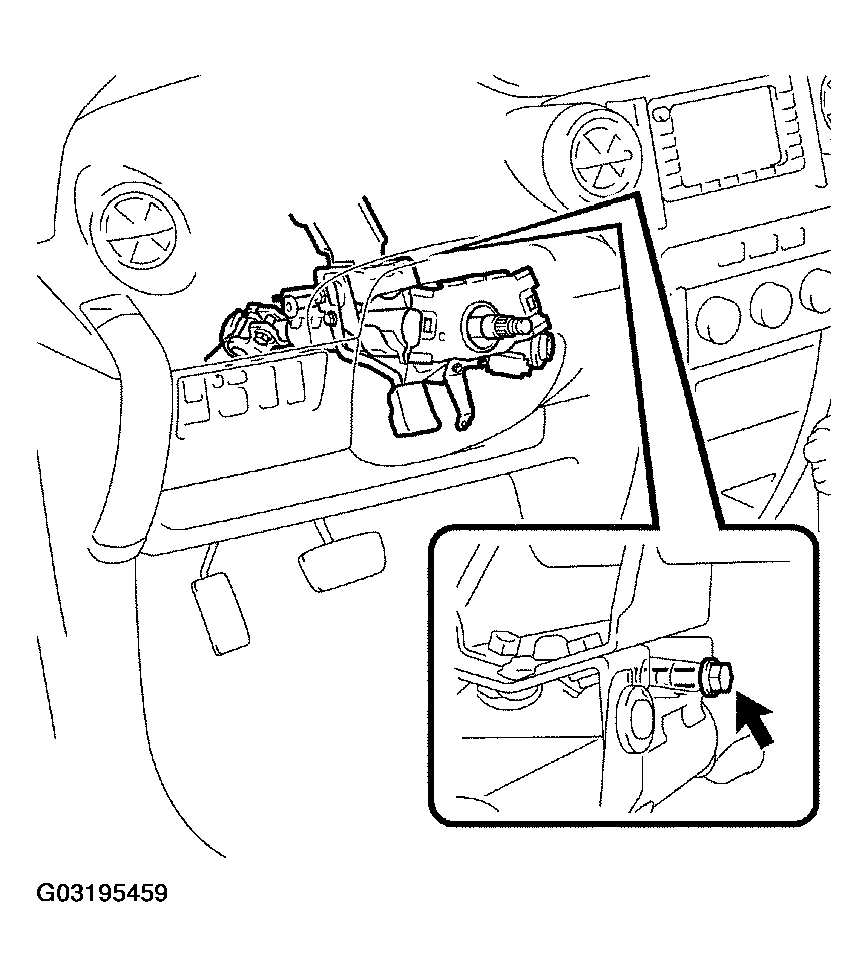

1. Install the steering column assy from the front side, and install the steering column clamp to the instrumental reinforcement assy.
2. Install the steering column assy with the bolt.

   Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

3. Connect the connectors and wire harness clamps.
   Fig 25: Installing Steering Column Assy From Front Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

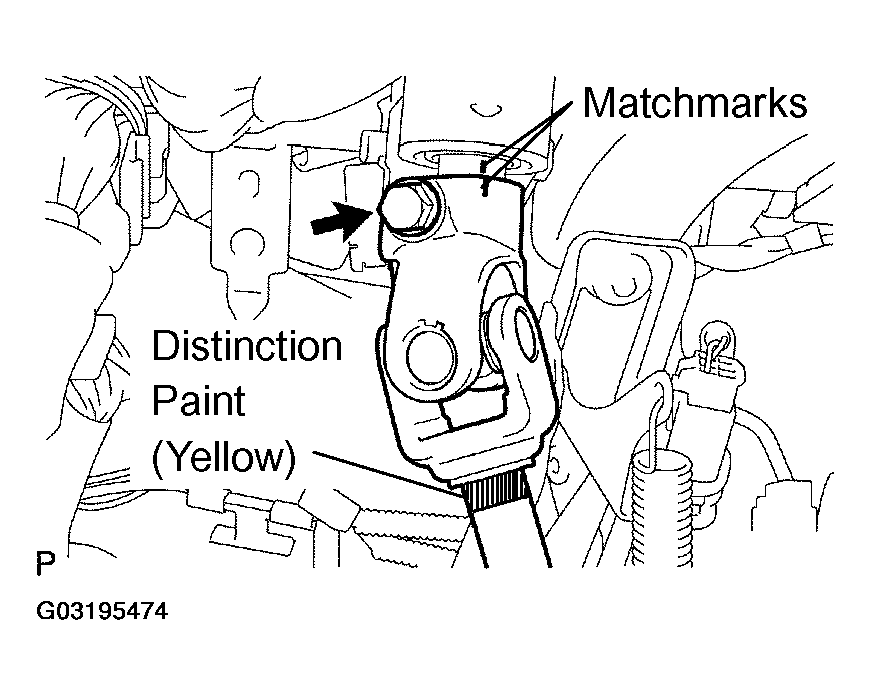

1. Align the matchmarks on the main shaft assy and steering intermediate shaft assy.
2. Install the steering intermediate shaft assy with the bolt.

   Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

   NOTE: Install the intermediate shaft assy with the distinction paint facing the steering column assy side.
   Fig 26: Installing Steering Intermediate Shaft Assy With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

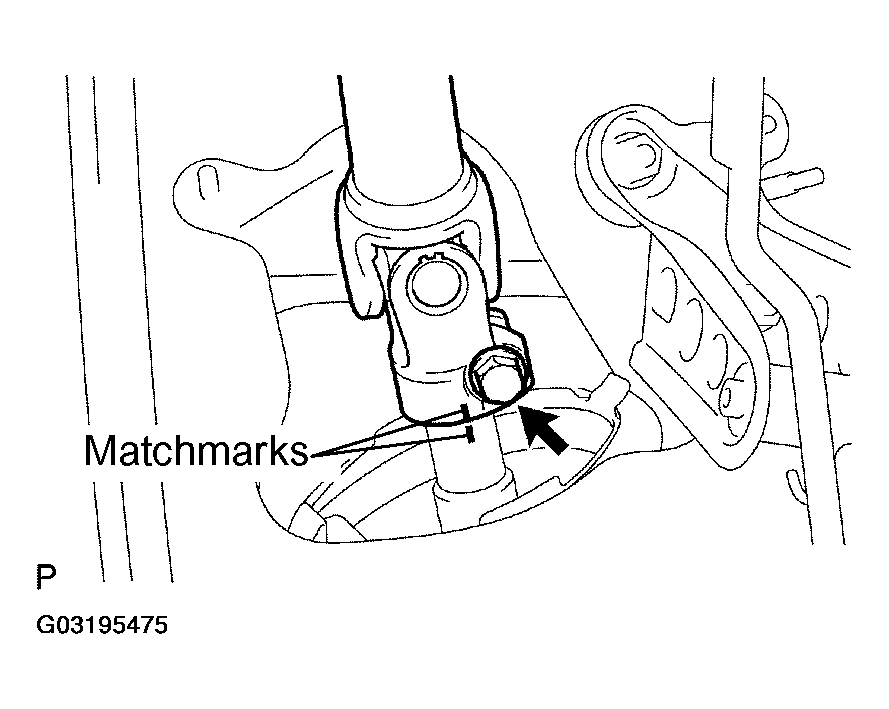

1. Align the matchmarks on the intermediate shaft and steering intermediate shaft assy.
2. Connect the steering intermediate shaft assy with the bolt.

   Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

   Fig 27: Aligning Matchmarks On Intermediate Shaft & Steering Intermediate Shaft Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the steering column hole cover plate with the clip.

1. Install the windshield wiper switch assy and connect the connector.

1. Install the headlamp dimmer switch assy and connect the connector.

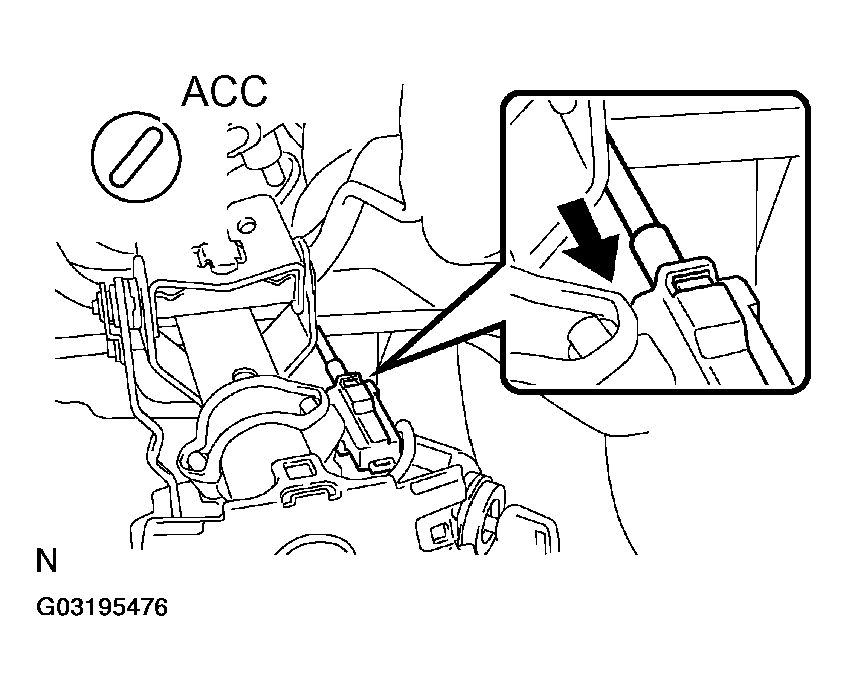

1. With the key in the ACC position, connect the floor shift parking lock cable.
   Fig 28: Connecting Floor Shift Parking Lock Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the steering column cover UPR.
2. Install the 2 bolts.

   Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

   Fig 29: Installing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

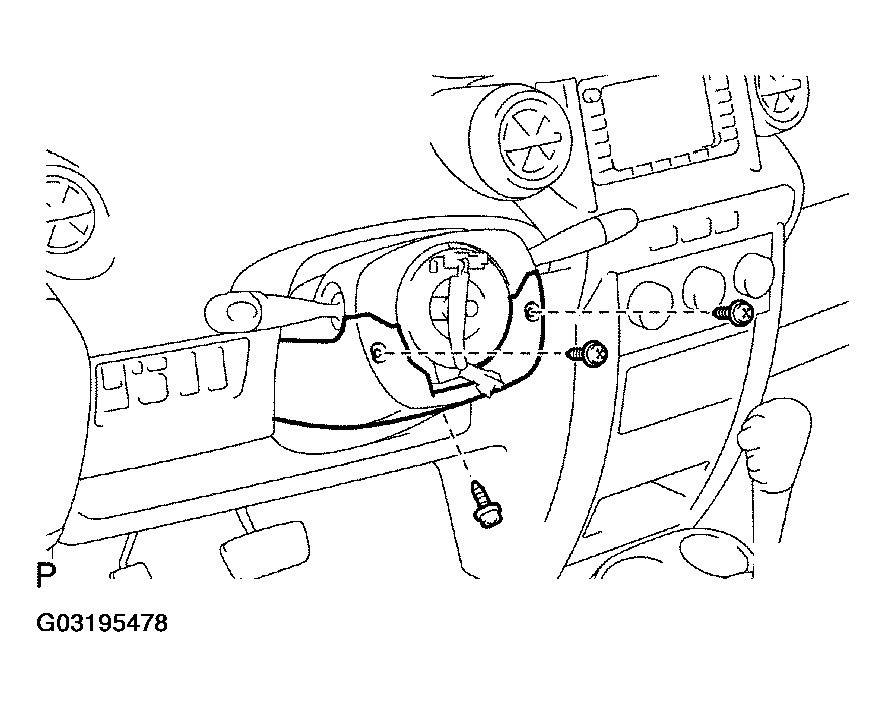

3. Install the steering column cover LWR with the 3 screws.
   Fig 30: Installing Steering Column Cover LWR With Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Align the matchmarks with the one on the steering wheel assy and steering main shaft assy.
2. Install the steering wheel assy with the set nut.

   Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

3. Connect the connector.
