On-Vehicle Inspection

CHECK WINDOW LOCK SWITCH
1. Check that power window operation (except the driver side power window) is disabled when the window lock switch of the power window master switch is pressed.
2. Check that the power windows can be operated when the window lock switch is pressed again.

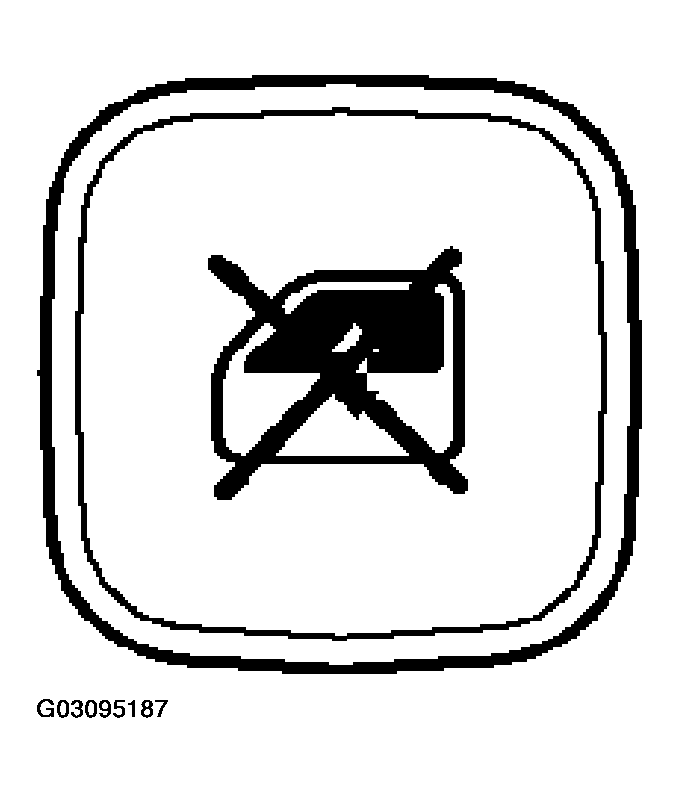

  Fig 1: Checking Window Lock Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK MANUAL UP/DOWN FUNCTION
1. Check that the AUTO switch of the master switch can operate the driver side power window as follows:
  Standard:

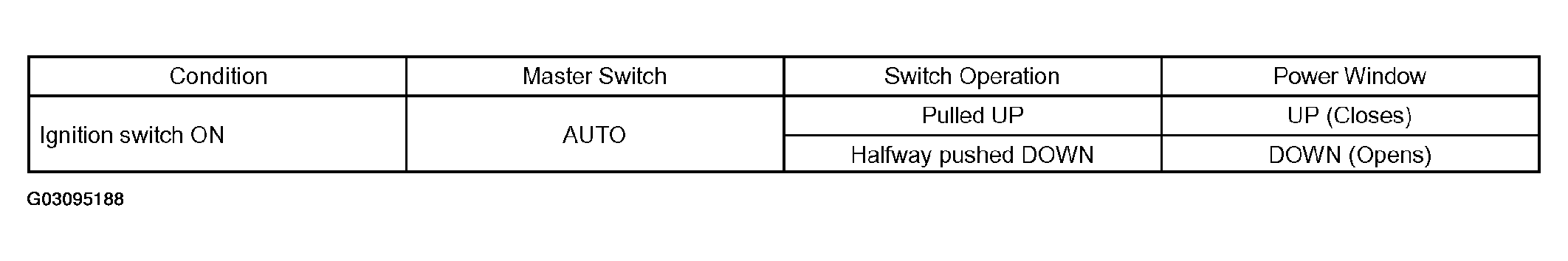

  Fig 2: Manual Up/Down Function Of Auto Switch Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that each power window switch can operate each power window as follows:
  Standard:

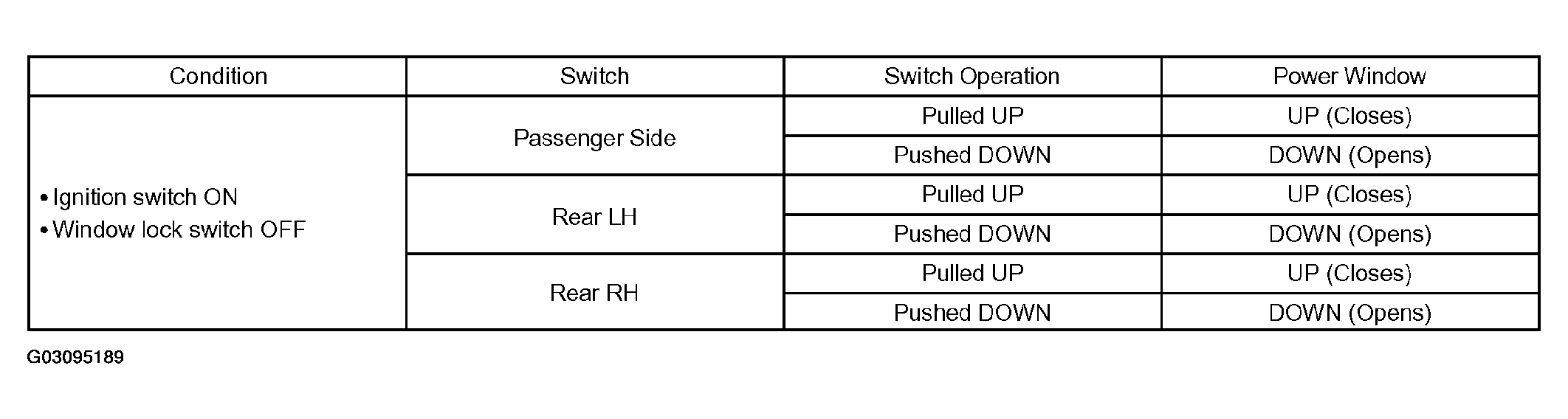

  Fig 3: Manual Up/Down Function Of Power Window Switch Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK AUTO DOWN FUNCTION

Check that the AUTO switch of the master switch can operate the driver side power window as follows:

Standard:

Auto Down Function Of Auto Switch

Condition	Master Switch	Switch Operation	Power Window
Ignition switch ON	AUTO	Fully pushed DOWN	AUTO DOWN (Fully opens)

CHECK REMOTE UP/DOWN FUNCTION
1. Check that the power window master switch can operate the power windows besides the driver side power window as follows:
  Standard:

  Fig 4: Remote Up/Down Function Of Power Window Master Switch Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
