Fuel Tank ASSY: Components

Fig 1: Identifying Fuel Tank Assy Components (1 Of 5)
G03097417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Tank Assy Components (2 Of 5)
G03097418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

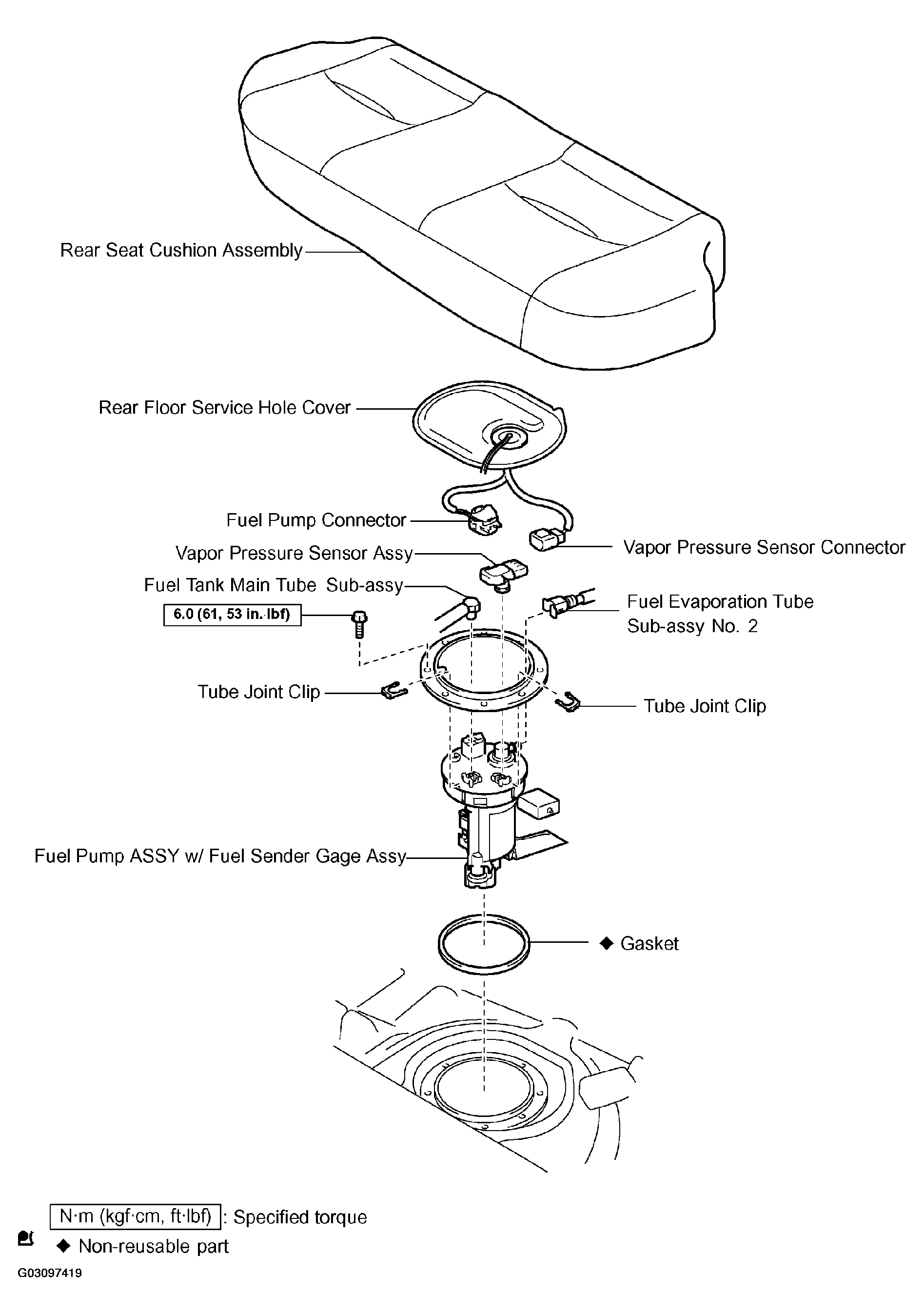

Fig 3: Identifying Fuel Tank Assy Components (3 Of 5)
G03097419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

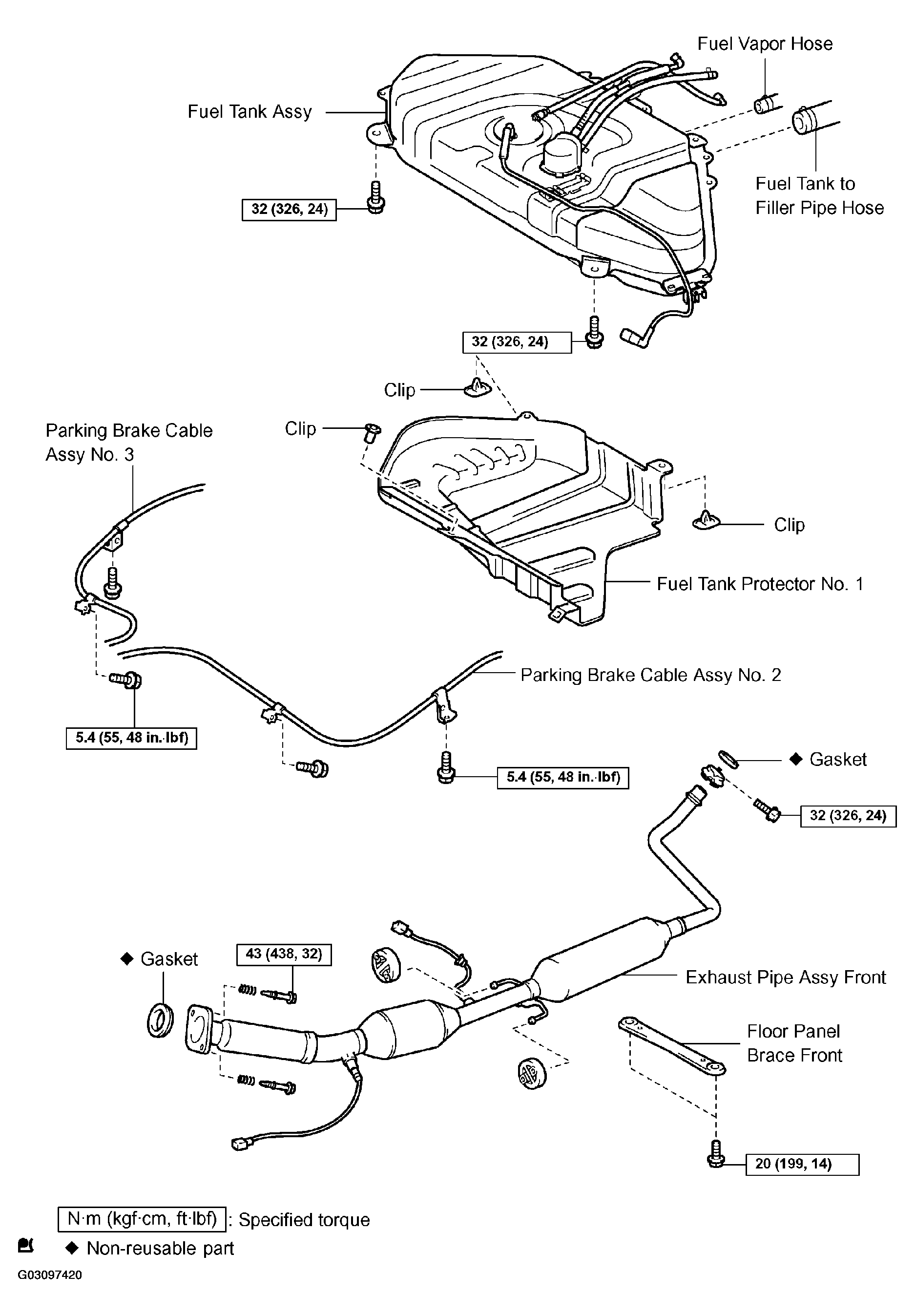

Fig 4: Identifying Fuel Tank Assy Components (4 Of 5)
G03097420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

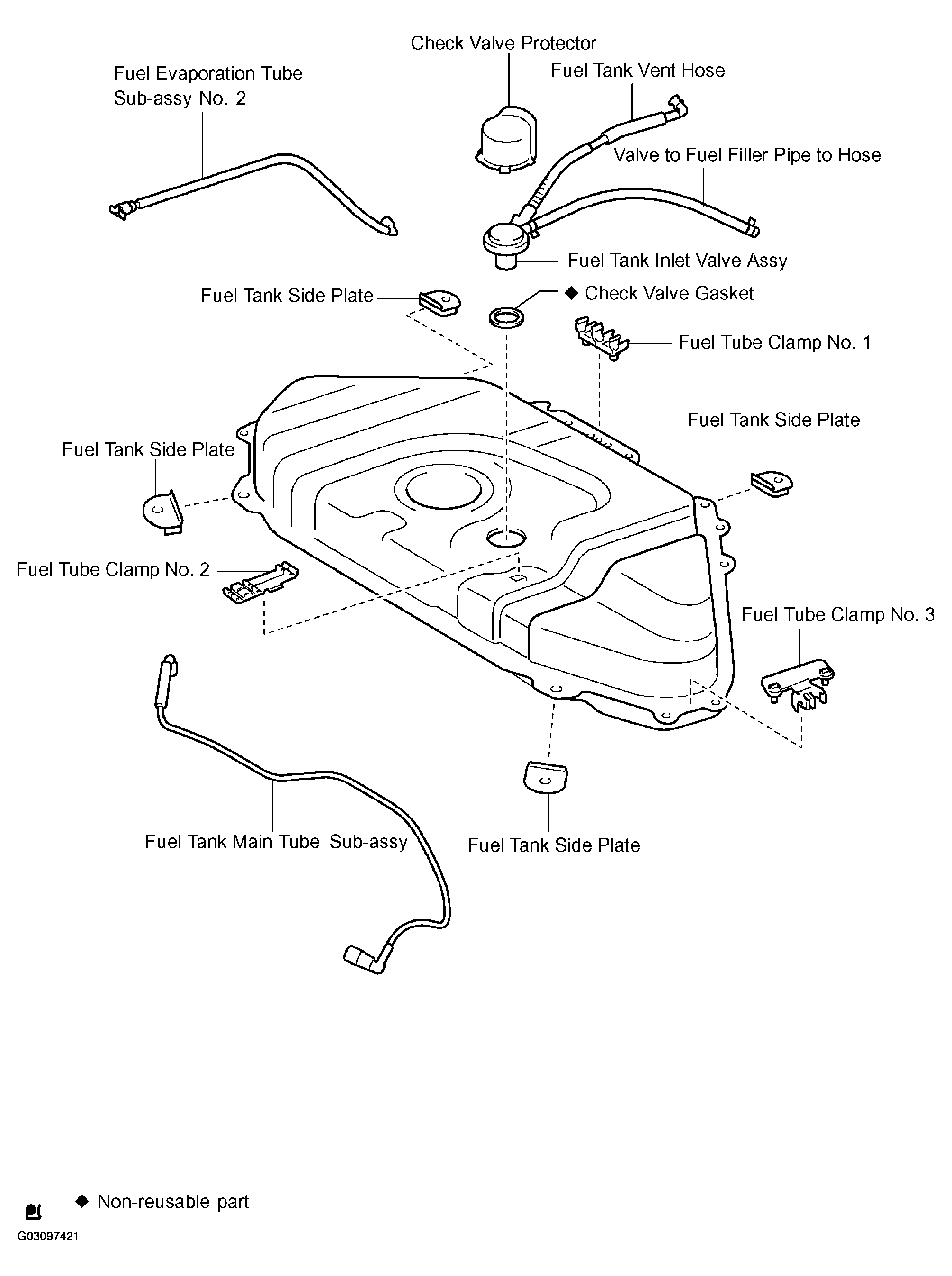

Fig 5: Identifying Fuel Tank Assy Components (5 Of 5)
G03097421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
