On-Vehicle Inspection

  1. CHECK STEERING WHEEL FREEPLAY
    1. Stop the vehicle and face the tires straight ahead.
    2. Move the steering wheel gently clockwise and counter clockwise by your hand, and check the steering wheel freeplay.

      Maximum freeplay: 30 mm (1.18 in.)

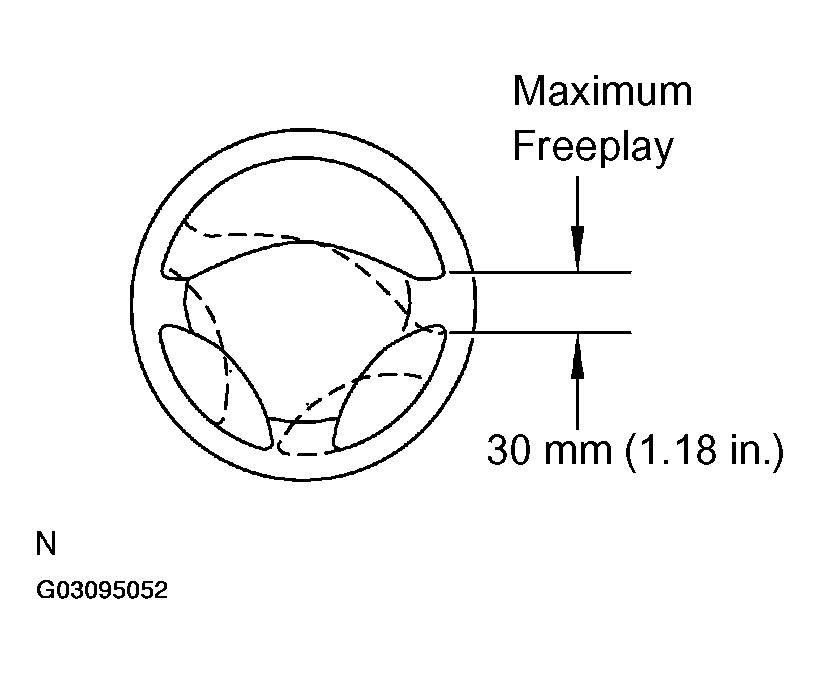

      Fig 1: Checking Steering Wheel Freeplay
      G03095052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
