Knock Sensor: Components

Fig 1: Identifying Knock Sensor Components (1 Of 3)
G03096762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Knock Sensor Components (2 Of 3)
G03096763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

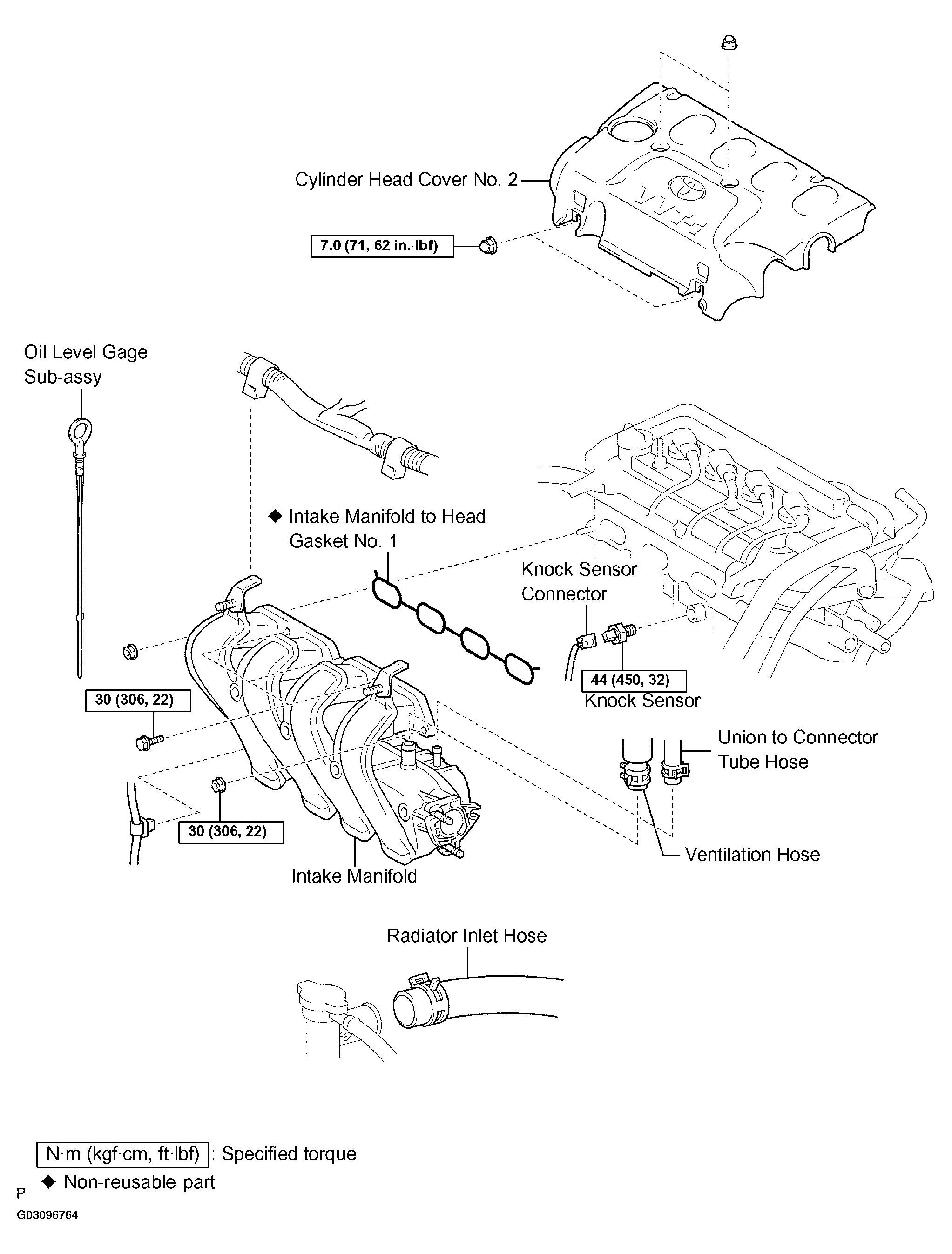

Fig 3: Identifying Knock Sensor Components (3 Of 3)
G03096764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
