List Of Disable A Monitor

HINT:

The table below shows the ECM monitoring status for the components listed at the top of the table when the DTCs on the left of the table are set.

"X" indicates that when the DTC on the left is stored, detection of the DTC in the upper column is not performed.

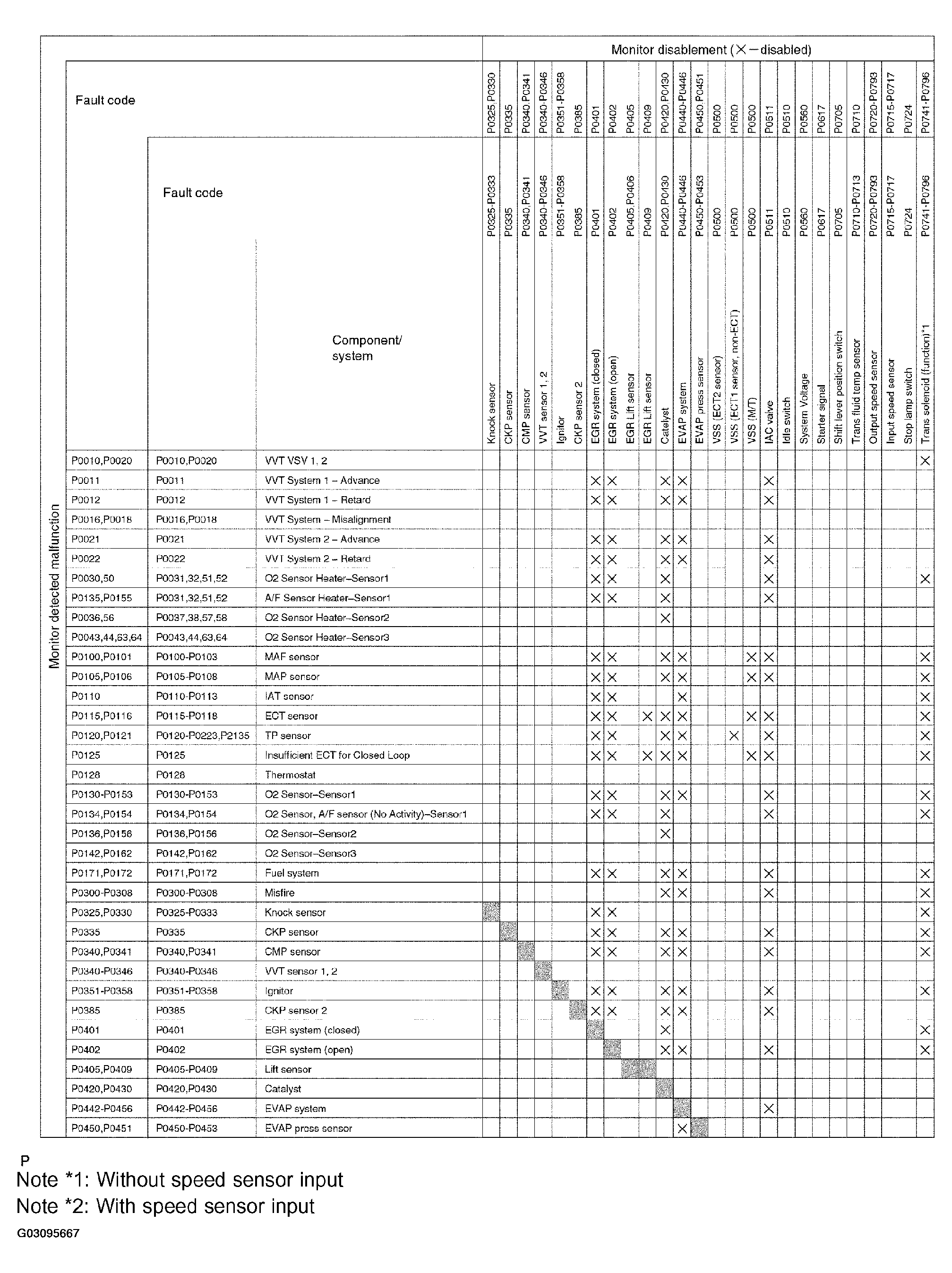

Fig 1: Disable Monitor List (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

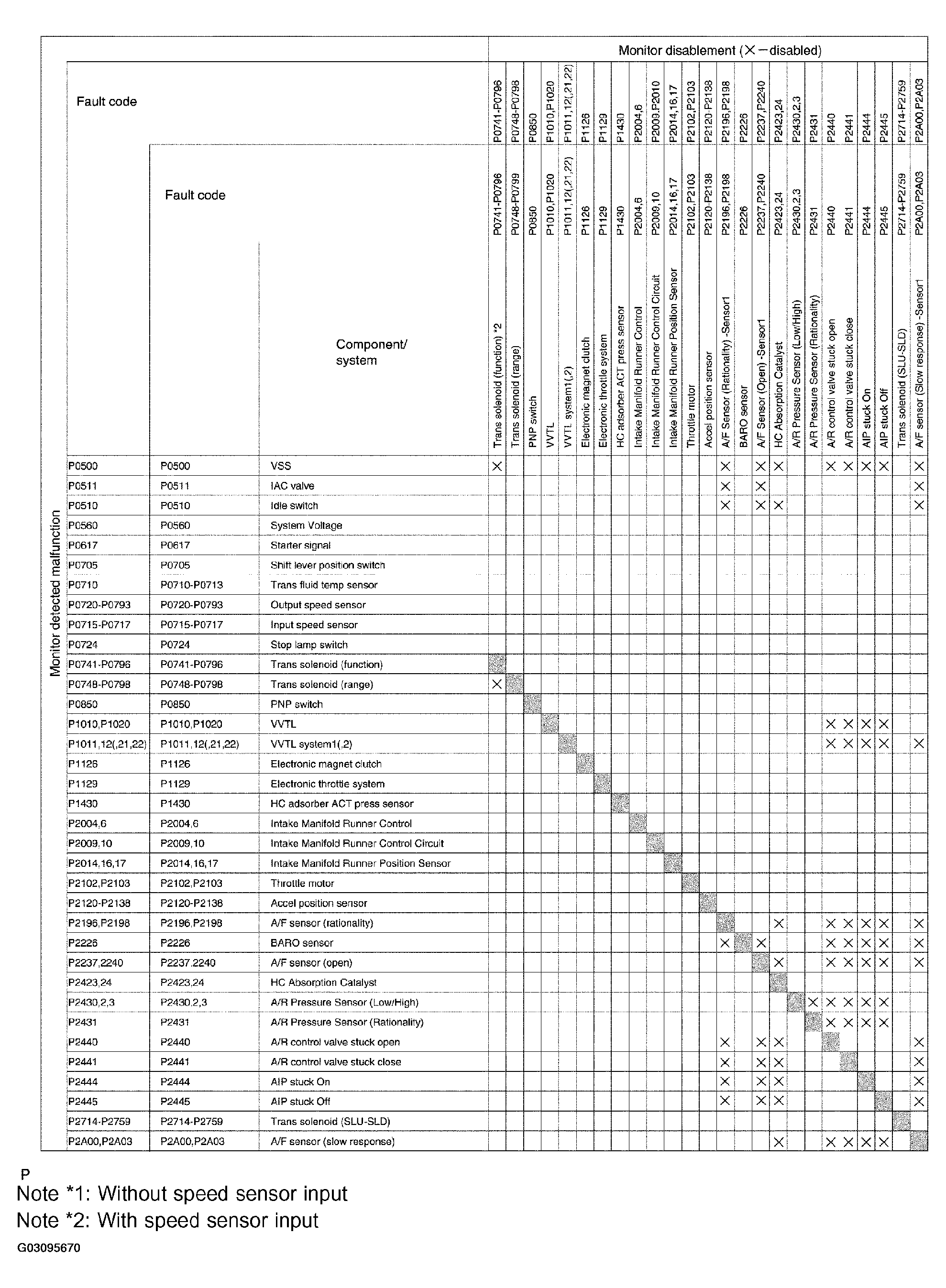

Fig 2: Disable Monitor List (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

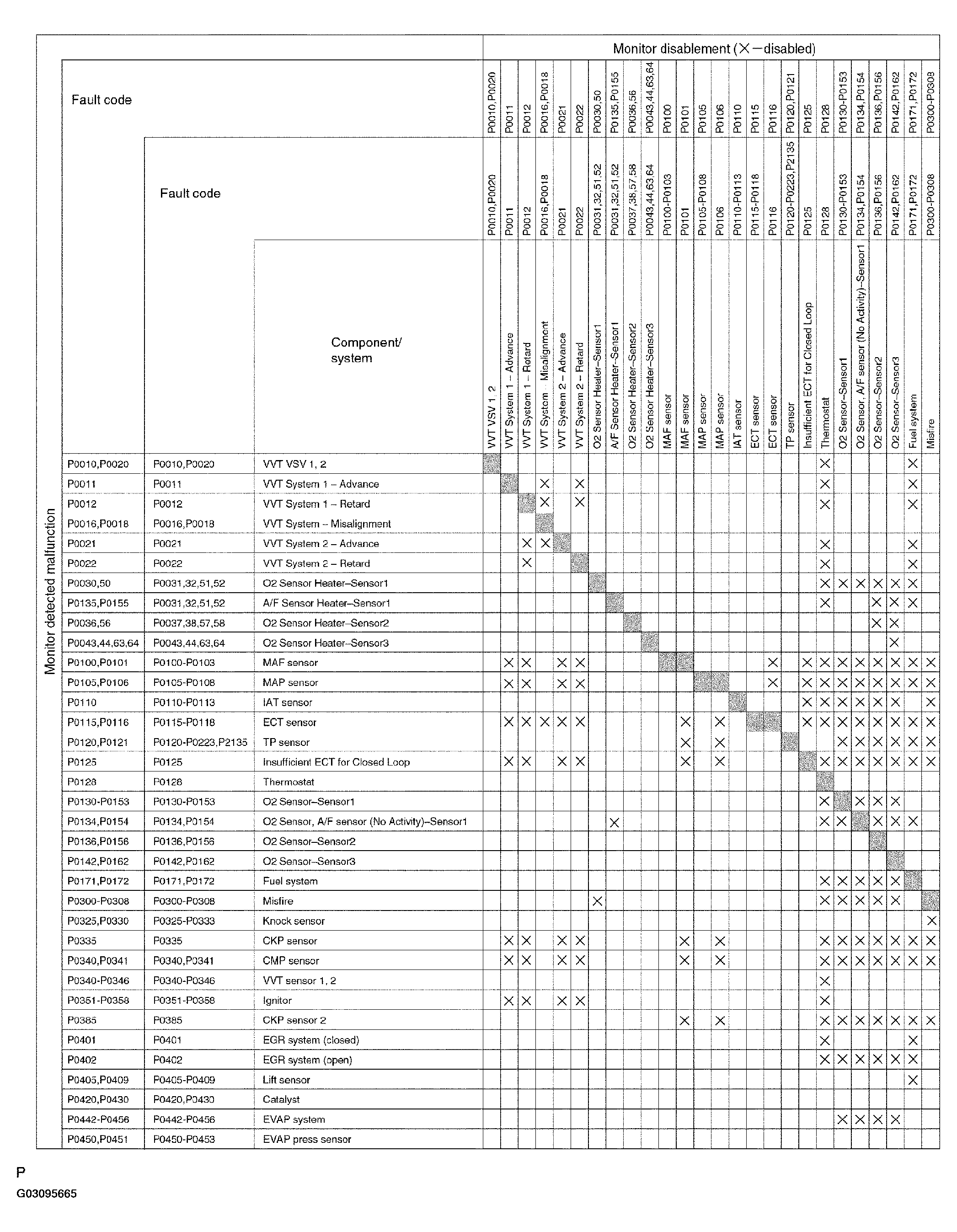

Fig 3: Disable Monitor List (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

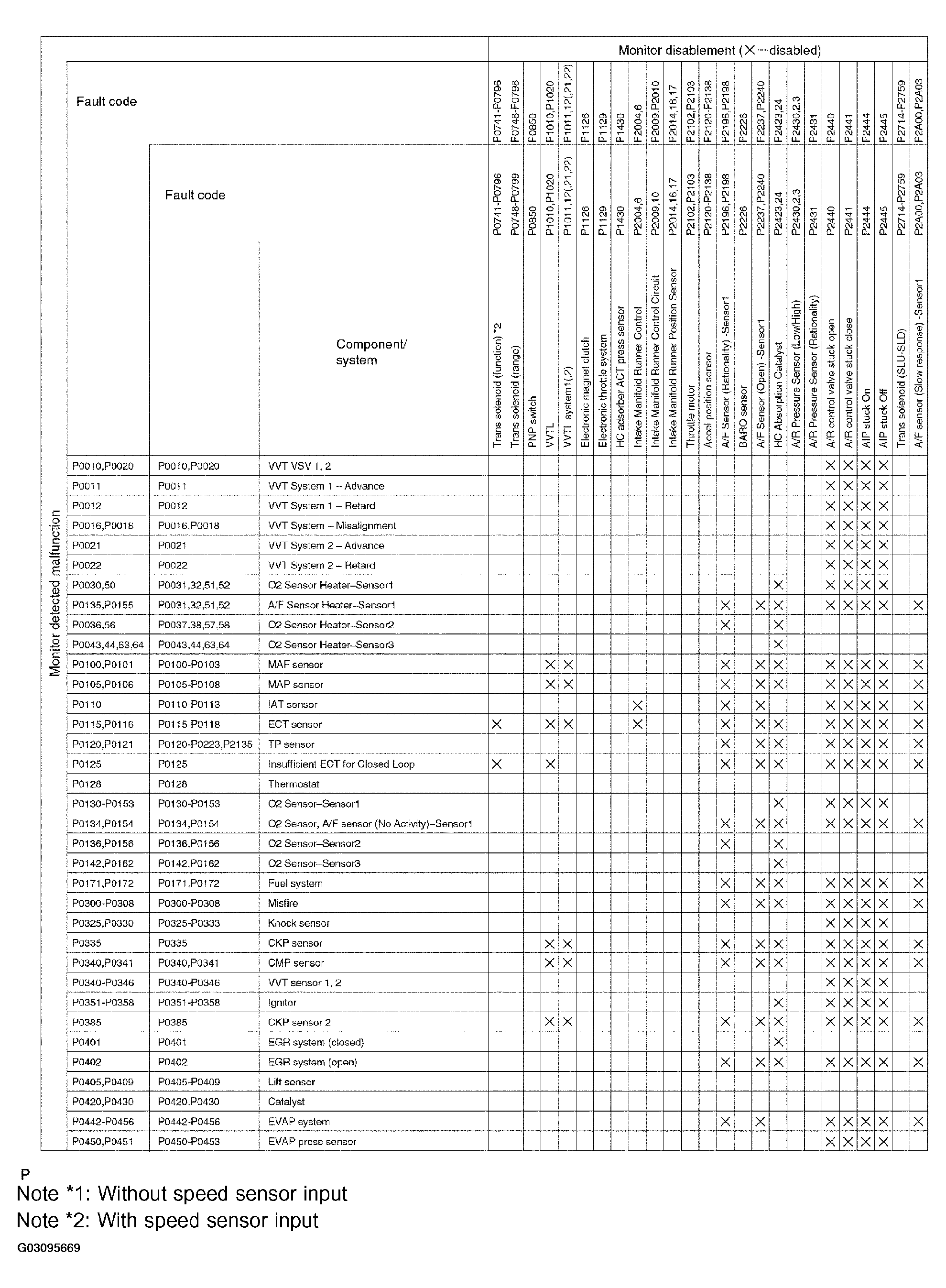

Fig 4: Disable Monitor List (4 Of 6)

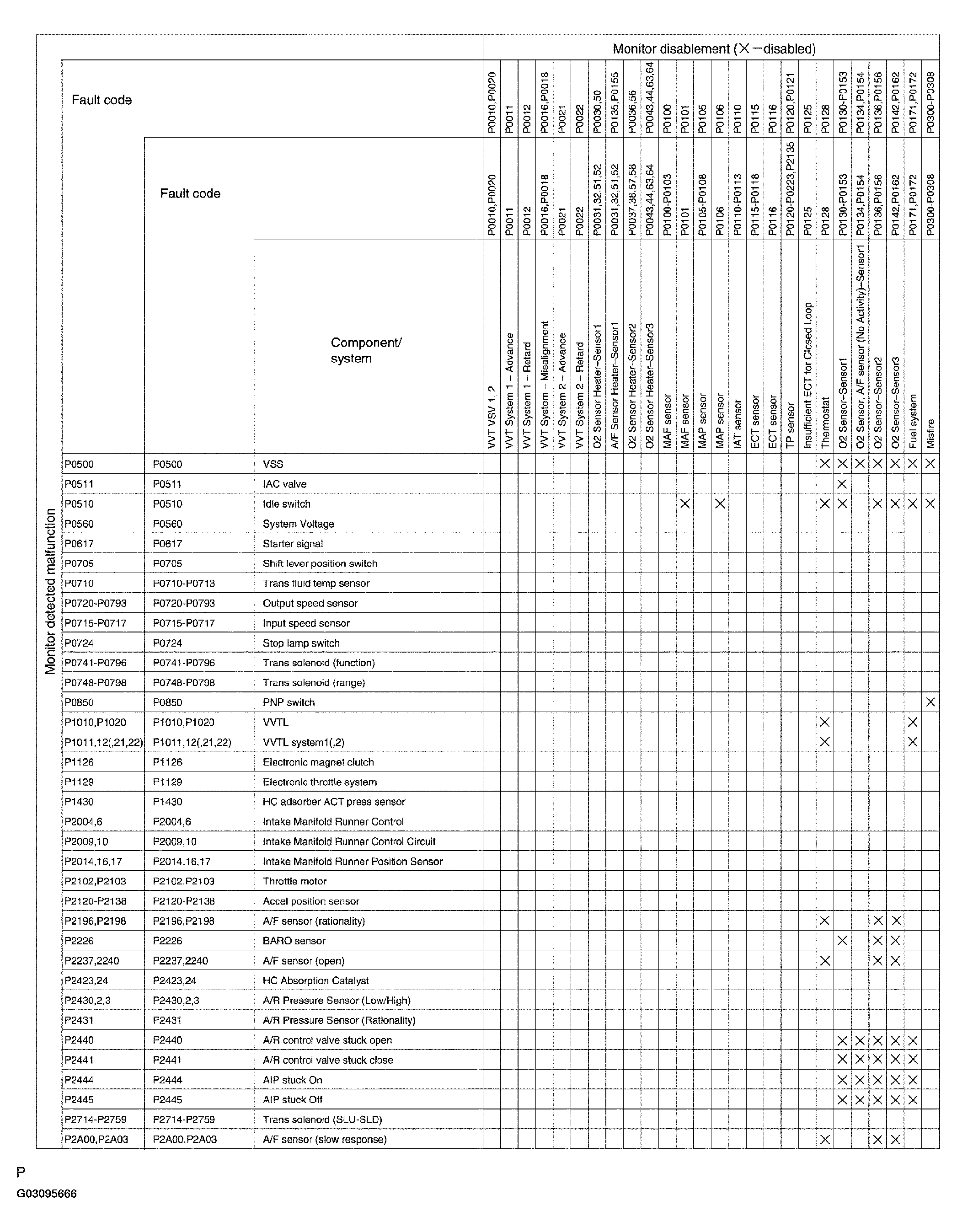

Fig 5: Disable Monitor List (5 Of 6)

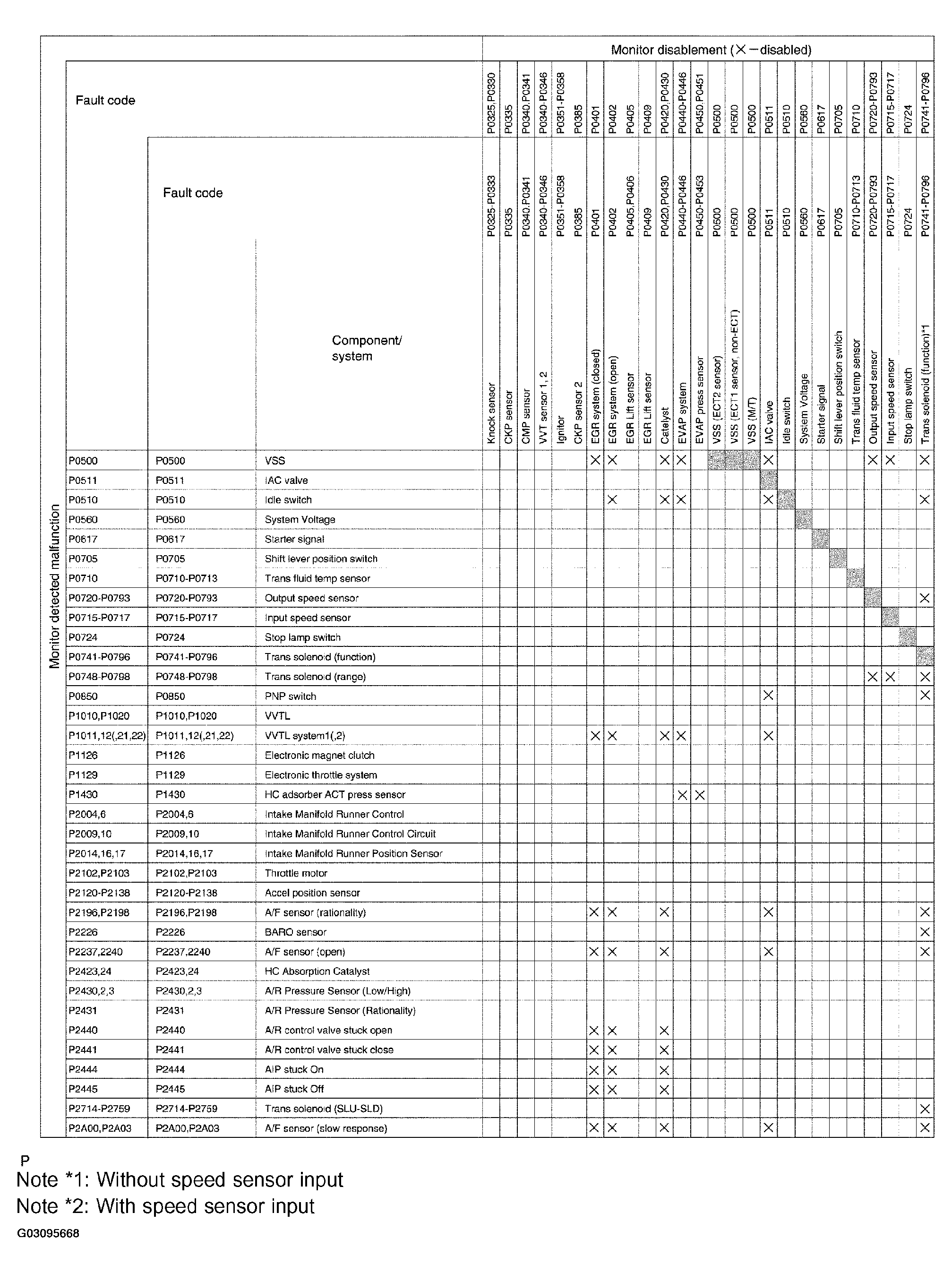

Fig 6: Disable Monitor List (6 Of 6)
