Steering Column ASSY: Overhaul

  1. (See  PRECAUTION  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  PRECAUTION  )
  3. INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE HORN BUTTON ASSY (See  REPLACEMENT  )
  5. REMOVE STEERING WHEEL ASSY
    1. Disconnect the connector.
    2. Remove the steering wheel assy set nut.
    3. Put matchmarks on the steering wheel assy and main shaft assy.
    4. Using SST, remove the steering wheel assy.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

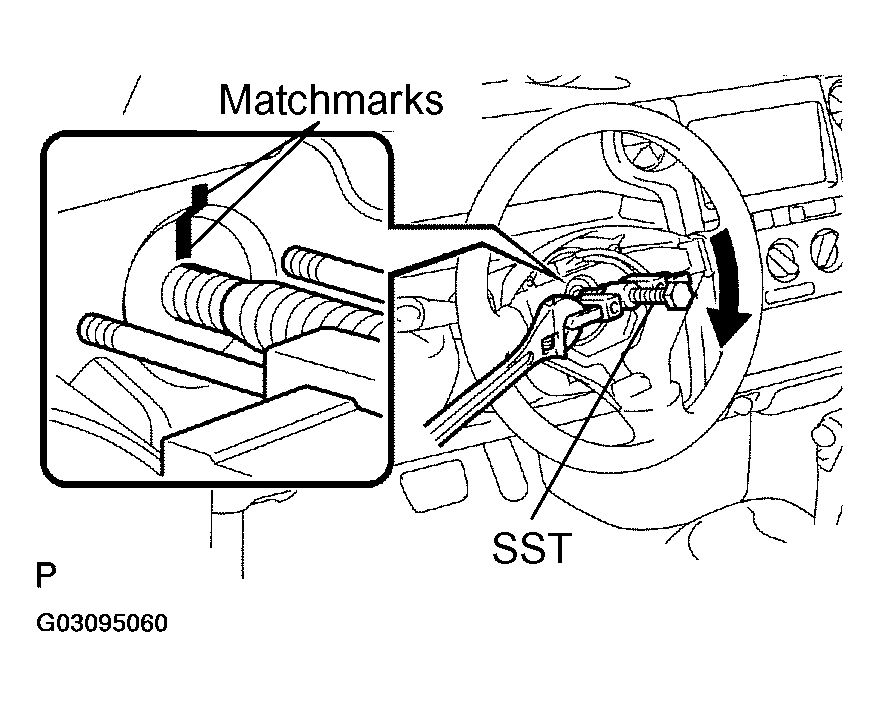

      Fig 1: Removing Steering Wheel Assy Using SST
      G03095060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STEERING COLUMN COVER
    1. Remove the 3 screws and steering column cover LWR.
      Fig 2: Removing Screws And Steering Column Cover LWR
      G03095061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and steering column cover UPR.

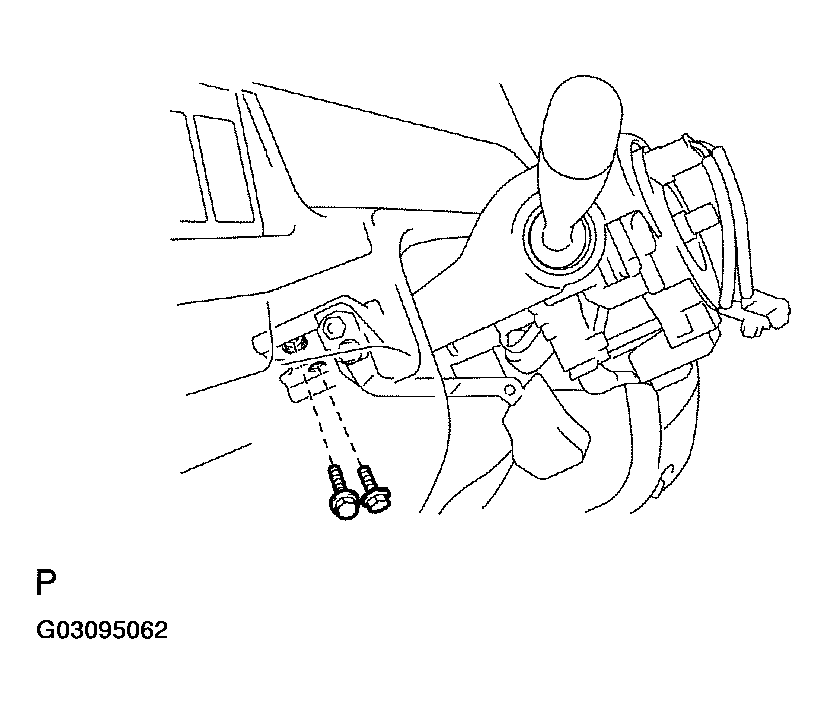

      Fig 3: Removing Bolts And Steering Column Cover UPR
      G03095062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY (A/T TRANSAXLE)
    1. With the key in the ACC position, disengage the claw and pull out the floor shift parking lock cable.

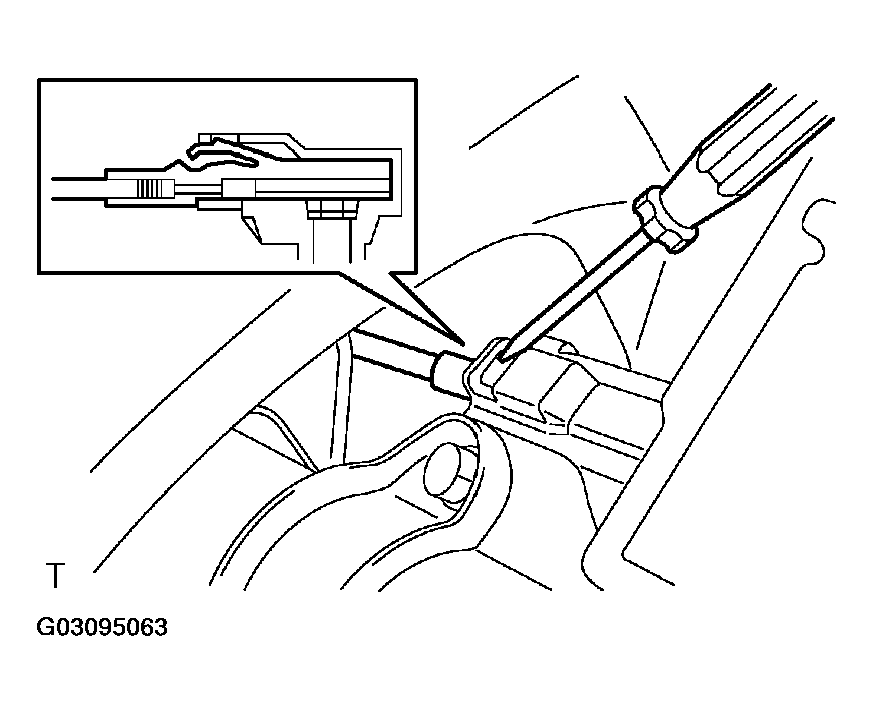

      Fig 4: Disengaging Claw And Pulling Out Floor Shift Parking Lock Cable
      G03095063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SPIRAL CABLE SUB-ASSY (See  REPLACEMENT  )
  9. REMOVE HEADLAMP DIMMER SWITCH ASSY
    1. Disconnect the connector and remove the headlamp dimmer switch assy.
  10. REMOVE WINDSHIELD WIPER SWITCH ASSY
    1. Disconnect the connector and remove the windshield wiper switch assy.
  11. REMOVE STEERING COLUMN HOLE COVER PLATE
  12. DISCONNECT STEERING INTERMEDIATE SHAFT ASSY
    1. Put matchmarks on the steering intermediate shaft assy and steering intermediate shaft.
    2. Remove the bolt, and then disconnect the steering intermediate shaft assy.

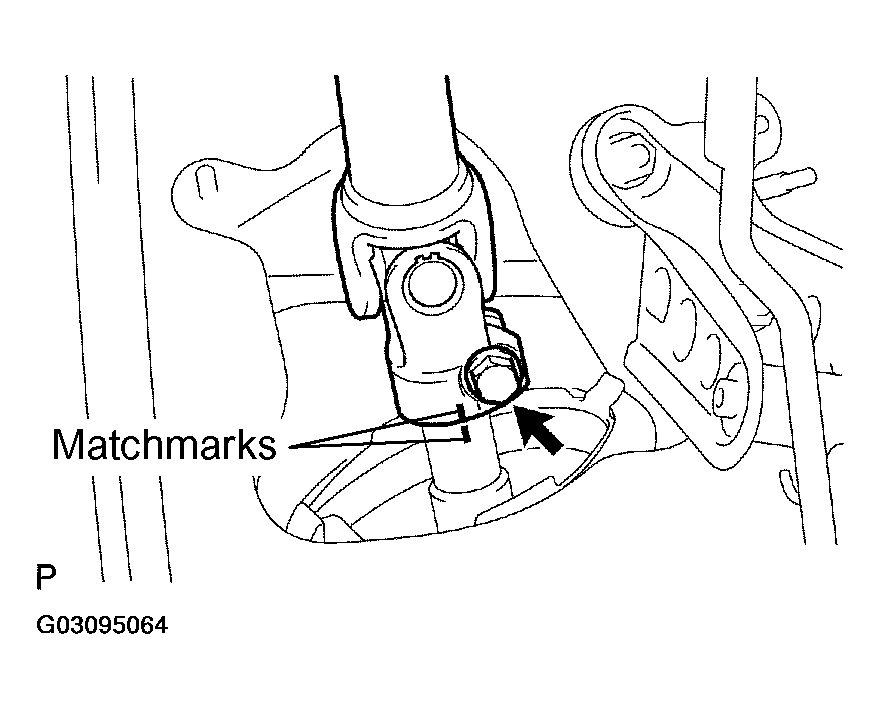

    Fig 5: Disconnecting Steering Intermediate Shaft Assy
    G03095064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE STEERING INTERMEDIATE SHAFT ASSY
    1. Put matchmarks on the steering intermediate shaft assy and main shaft assy.
    2. Remove the bolt and steering intermediate shaft assy.

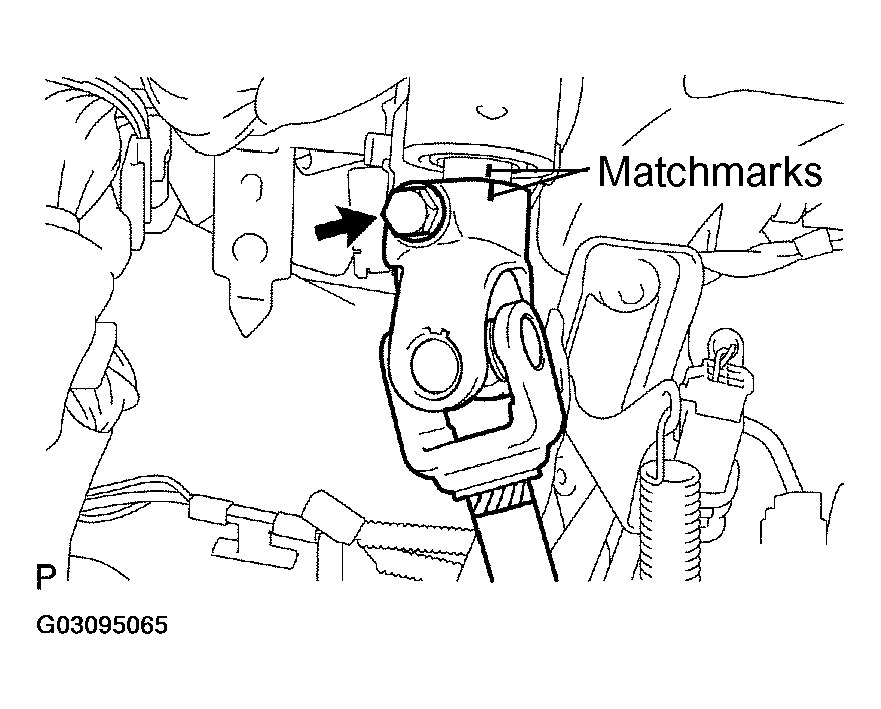

      Fig 6: Removing Steering Intermediate Shaft Assy
      G03095065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE STEERING COLUMN ASSY
    1. Disconnect the connectors and wire harness clamps from the steering column assy.
    2. Remove the bolt and steering column assy.
      Fig 7: Removing Steering Column Assy
      G03095066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE STEERING COLUMN UPPER W/SWITCH BRACKET ASSY
    1. Using a centering punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill into the 2 bolts.
    3. Using a screw extractor, remove the 2 bolts and steering column upper w/switch bracket assy.
      Fig 8: Removing Steering Column Upper W/Switch Bracket Assy
      G03095067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE STEERING COLUMN CLAMP UPPER
  17. REMOVE STEERING MAIN SHAFT BUSH
    1. Using a screw driver, remove the steering main shaft bush from the steering column assy.
  18. REMOVE STEERING MAIN SHAFT ASSY
    1. Using a snap ring expander, remove the steering main shaft snap ring (outer side).
      Fig 9: Removing Steering Main Shaft Snap Ring (Outer Side)
      G03095068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a brass bar and a hammer, remove the steering main shaft assy and steering main shaft bearing.
      NOTE: Be careful not to drop the steering main shaft assy.
      Fig 10: Removing Steering Main Shaft Assy And Steering Main Shaft Bearing
      G03095069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a snap ring expander, remove the steering main shaft snap ring (inner side).
      Fig 11: Removing Steering Main Shaft Snap Ring (Inner Side)
      G03095070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE IGNITION SWITCH LOCK CYLINDER ASSY
    1. Place the ignition switch lock cylinder assy in the ACC position.
    2. Push down the stop pin with a screwdriver, and pull out the cylinder assy.
      Fig 12: Pushing Down Stop Pin With Screwdriver And Pulling Out Cylinder Assy
      G03095071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE UNLOCK WARNING SWITCH ASSY
    1. Disconnect the unlock warning switch assy connector from the ignition or starter switch assy.
    2. Remove the unlock warning switch assy.

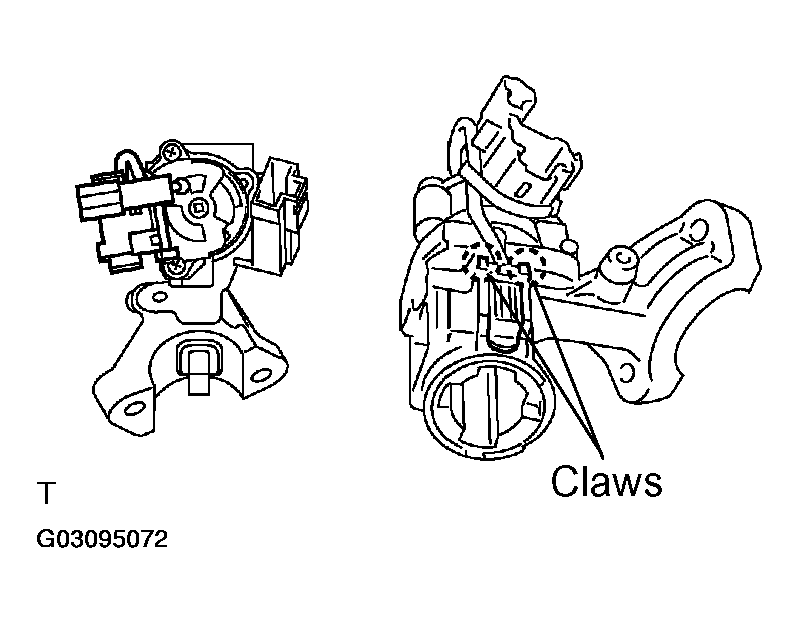

      Fig 13: Removing Unlock Warning Switch Assy
      G03095072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE IGNITION OR STARTER SWITCH ASSY
    1. Remove the 2 screws and ignition or starter switch assy from the steering column bracket assy.
  22. INSTALL IGNITION OR STARTER SWITCH ASSY
    1. Install the ignition or starter switch assy to the steering column bracket assy with the 2 screws.
  23. INSTALL UNLOCK WARNING SWITCH ASSY
    1. Install the unlock warning switch assy.
    2. Connect the unlock warning switch assy connector to the ignition or starter switch assy.
      Fig 14: Installing Unlock Warning Switch Assy
      G03095073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a new clamp, fix the wire harness of the unlock warning switch assy to the steering column bracket assy UPR as shown in Fig 15.
    NOTE: When fixing the wire harness, do not tighten the clamp too hard. It could damage inside the wire harness.

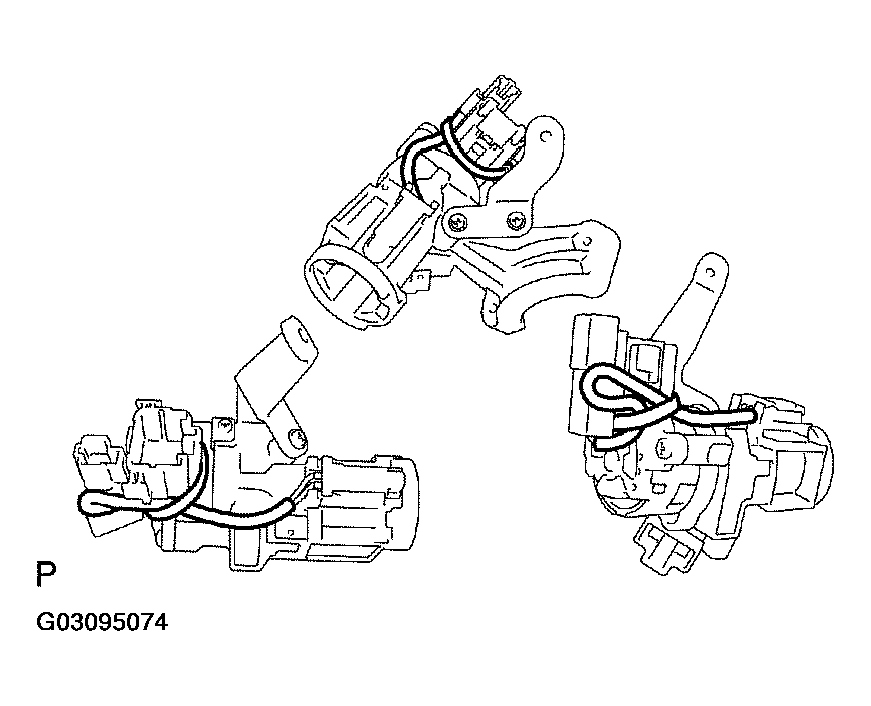

    Fig 15: Fixing Wire Harness Of Unlock Warning Switch Assy To Steering Column Bracket Assy UPR
    G03095074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL IGNITION SWITCH LOCK CYLINDER ASSY
    1. Make sure that the ignition switch lock cylinder assy is in the ACC position.
    2. Install the ignition switch lock cylinder assy.
  25. INSPECT STEERING LOCK OPERATION
    1. Check that the steering lock mechanism is activated when removing the key.
    2. Check that the steering lock mechanism is deactivated when inserting the key and turning it to the ACC position.
  26. INSPECT STEERING COLUMN TUBE SUB-ASSY
    1. Check the condition of the steering column tube bearing rotation and check for abnormal noise. If the bearing is worn or damaged, replace the steering column assy.
  27. INSTALL STEERING MAIN SHAFT ASSY
    1. Using a snap ring expander, install a new steering main shaft snap ring (inner side) to the steering main shaft assy.
    2. Install the steering main shaft assy to the steering column tube.

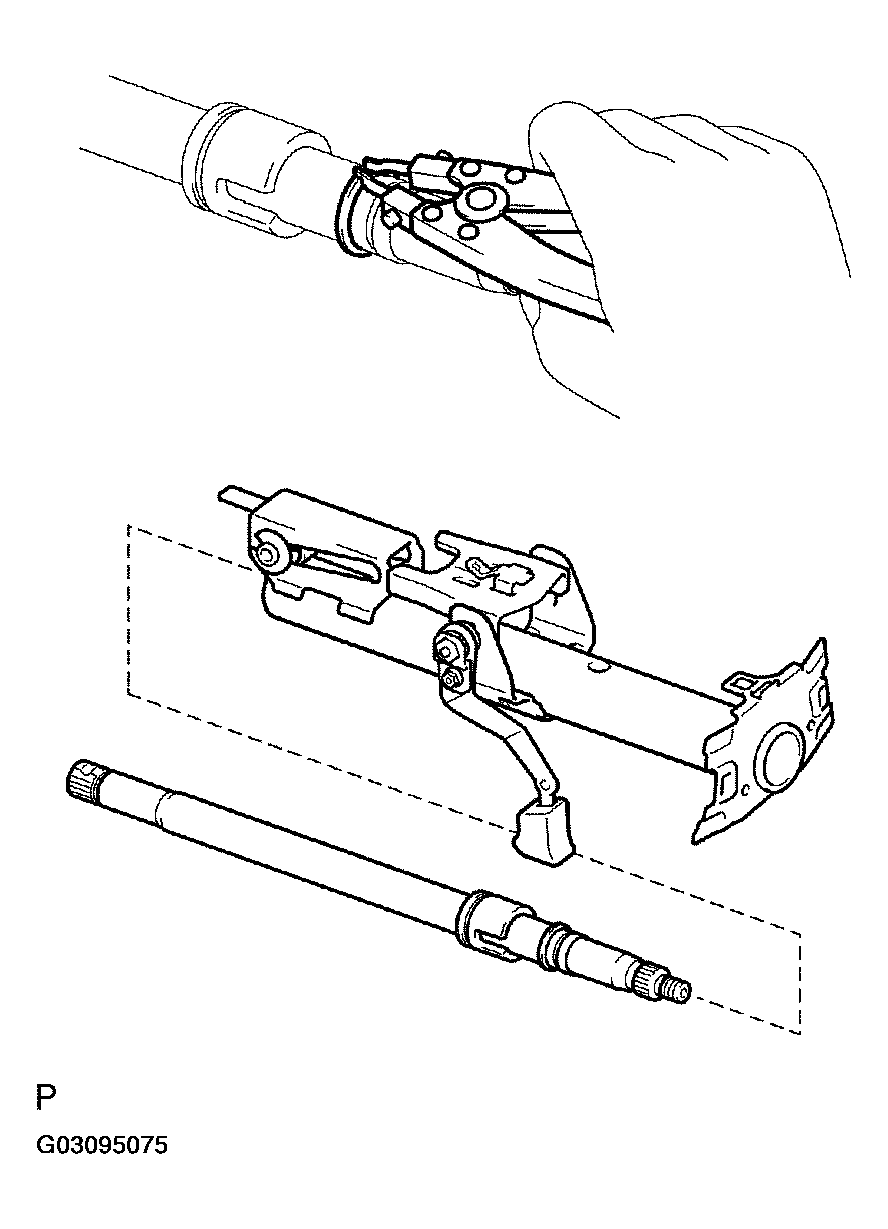

      Fig 16: Installing Steering Main Shaft Assy
      G03095075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a snap ring expander, install a new steering main shaft snap ring (outer side) to the steering main shaft assy.

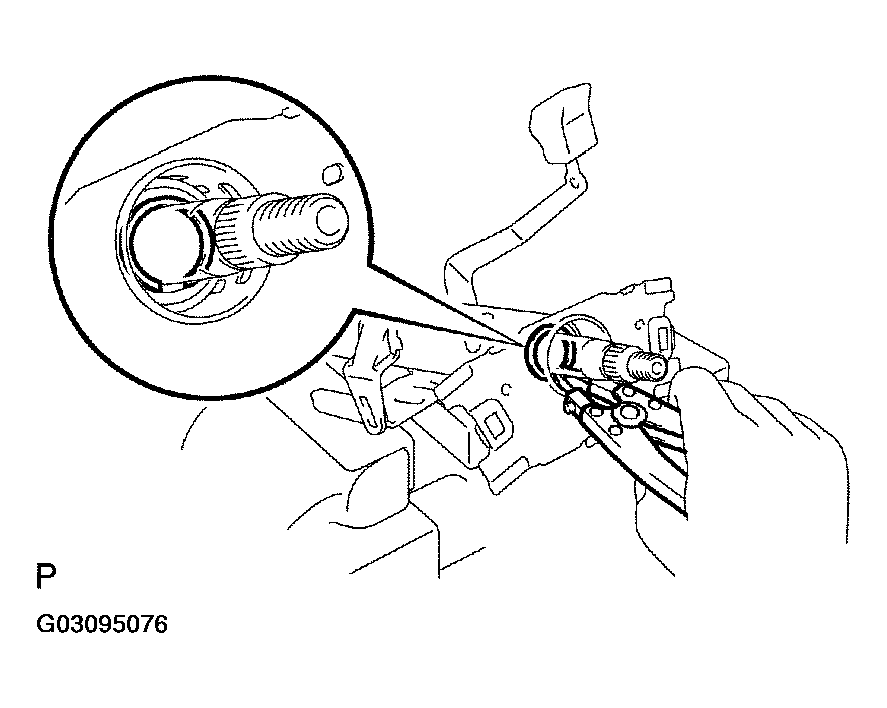

      Fig 17: Installing New Steering Main Shaft Snap Ring (Outer Side) To Steering Main Shaft Assy
      G03095076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL STEERING MAIN SHAFT BUSH
    1. Using SST and a hammer, install a new steering main shaft bearing.

      SST 09612-22011

      Fig 18: Installing New Steering Main Shaft Bearing Using SST
      G03095077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL STEERING COLUMN UPPER W/SWITCH BRACKET ASSY
    1. Temporarily install the steering column upper w/switch bracket assy and steering column upper clamp with 2 new tapered-head bolts.
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.

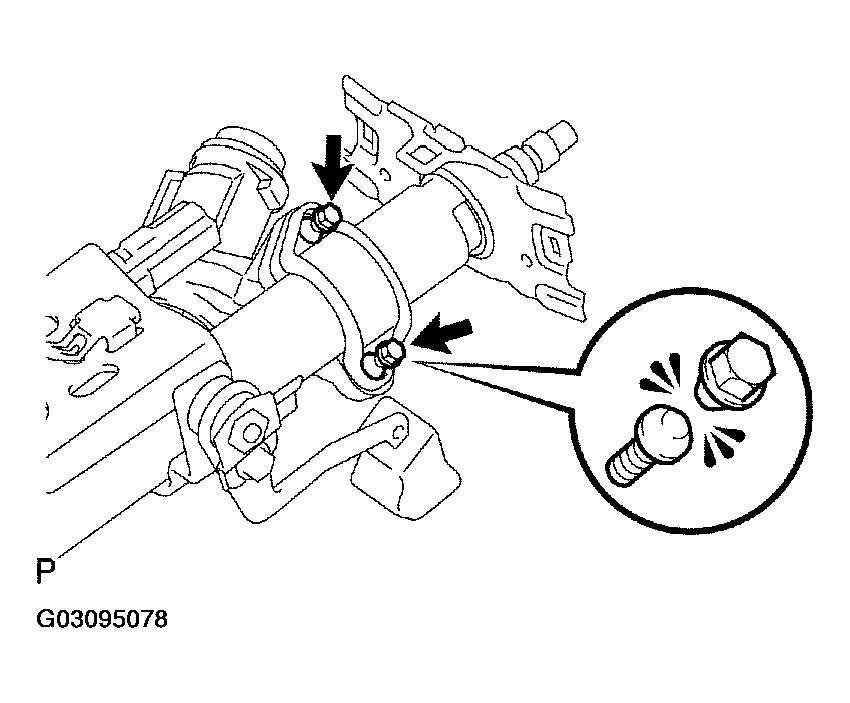

      Fig 19: Installing Steering Column Upper W/Switch Bracket Assy
      G03095078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL STEERING COLUMN ASSY
    1. Insert the steering column assy from the front side, and install the steering column clamp to the instrumental reinforcement assy.
    2. Install the steering column assy with the bolt.

      Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

    3. Connect the connectors and wire harness clamps.

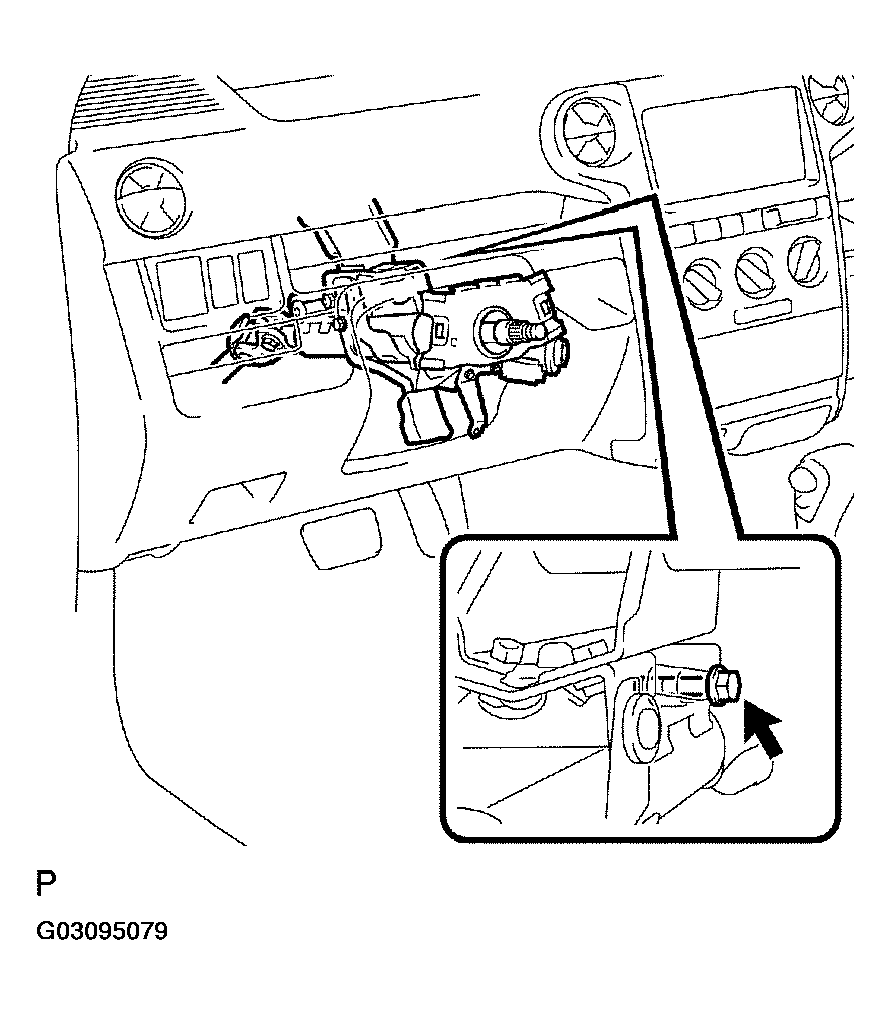

      Fig 20: Installing Steering Column Assy
      G03095079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL STEERING INTERMEDIATE SHAFT ASSY
    1. Align the matchmarks on the intermediate shaft assy and main shaft assy.
    2. Install the steering intermediate shaft assy with the bolt.

    Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

    NOTE: Install the intermediate shaft assy with the distinction paint facing the steering column assy side.

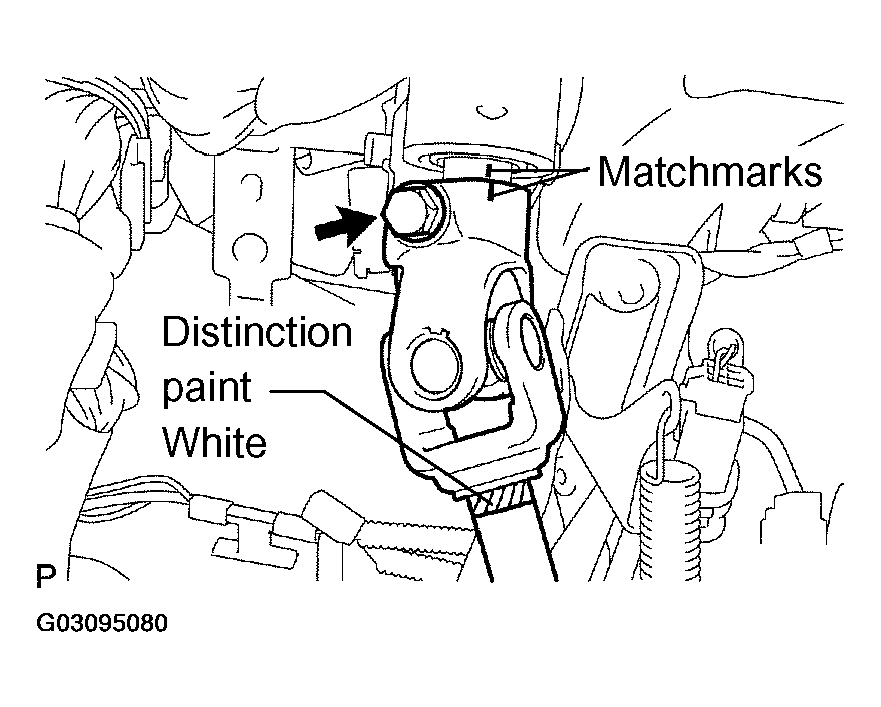

    Fig 21: Installing Steering Intermediate Shaft Assy
    G03095080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. CONNECT STEERING INTERMEDIATE SHAFT ASSY
    1. Align the matchmarks on the steering intermediate shaft assy and steering intermediate shaft.
    2. Connect the steering intermediate shaft assy with the bolt.

      Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

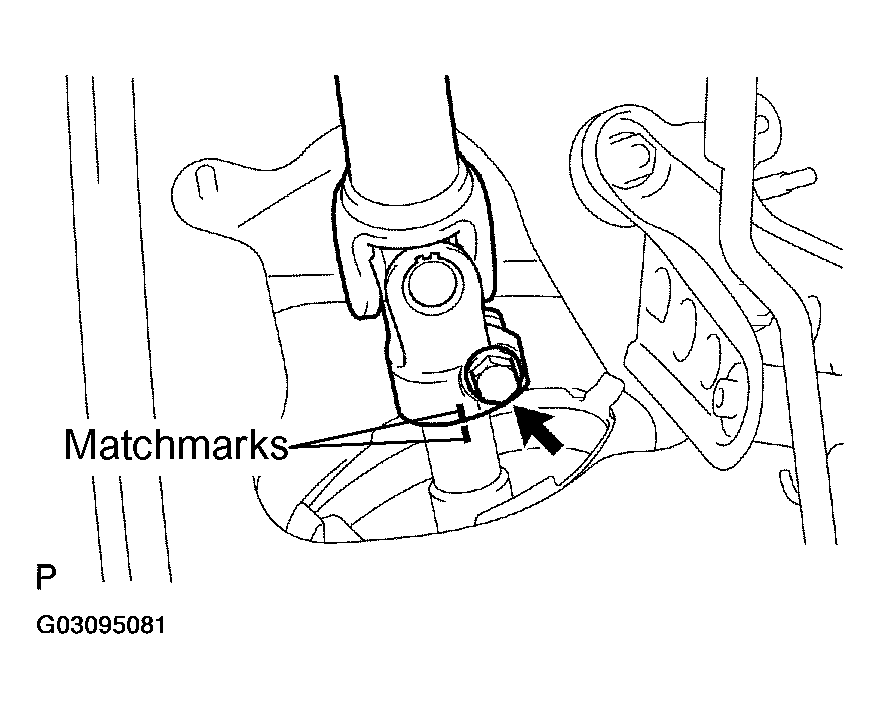

      Fig 22: Connecting Steering Intermediate Shaft Assy
      G03095081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL STEERING COLUMN HOLE COVER PLATE
  34. INSTALL WINDSHIELD WIPER SWITCH ASSY
    1. Install the windshield wiper switch assy and connect the connector.
  35. INSTALL HEADLAMP DIMMER SWITCH ASSY
    1. Install the headlamp dimmer switch assy and connect the connector.
  36. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  37. INSTALL SPIRAL CABLE SUB-ASSY (See  REPLACEMENT  )
  38. CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY (A/T TRANSAXLE) (See  REPLACEMENT  )
  39. CONNECT CHECK KEY INTERLOCK OPERATION
  40. INSTALL STEERING COLUMN COVER
    1. Install the steering column cover UPR with the 2 bolts.

      Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

      Fig 23: Installing Steering Column Cover UPR With Bolts
      G03095082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the steering column cover LWR with the 3 screws.

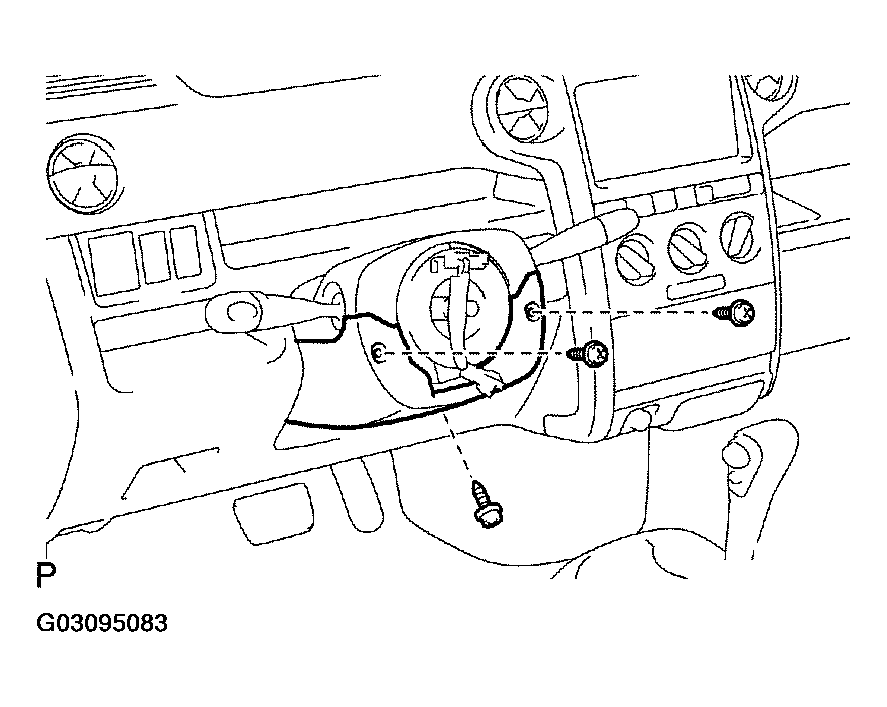

      Fig 24: Installing Steering Column Cover LWR With Screws
      G03095083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. ADJUST SPIRAL CABLE SUB-ASSY (See  REPLACEMENT  )
  42. INSTALL STEERING WHEEL ASSY
    1. Align the matchmark with the one on the steering wheel assy and steering main shaft assy.
    2. Install the steering wheel assy with the set nut.

      Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

    3. Connect the connector.
  43. INSPECT HORN BUTTON ASSY (See  REPLACEMENT  )
  44. INSTALL HORN BUTTON ASSY (See  REPLACEMENT  )
  45. STEERING WHEEL CENTER POINT
  46. PERFORM VSC SYSTEM CALIBRATION (See  CALIBRATION  )
  47. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
