Inspection Procedure

1. Check that the power window manual UP/DOWN function operates normally.

NG : OTHER PROBLEM

OK: Go To Next Step

1. Turn the ignition switch ON.
2. Operate the driver side switch on the master switch.
3. Check the blinking pattern of the AUTO light as shown in the illustration.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Pattern (1) or (3) is displayed	A
   Pattern (2) is displayed	B
   Normal pattern is displayed	C

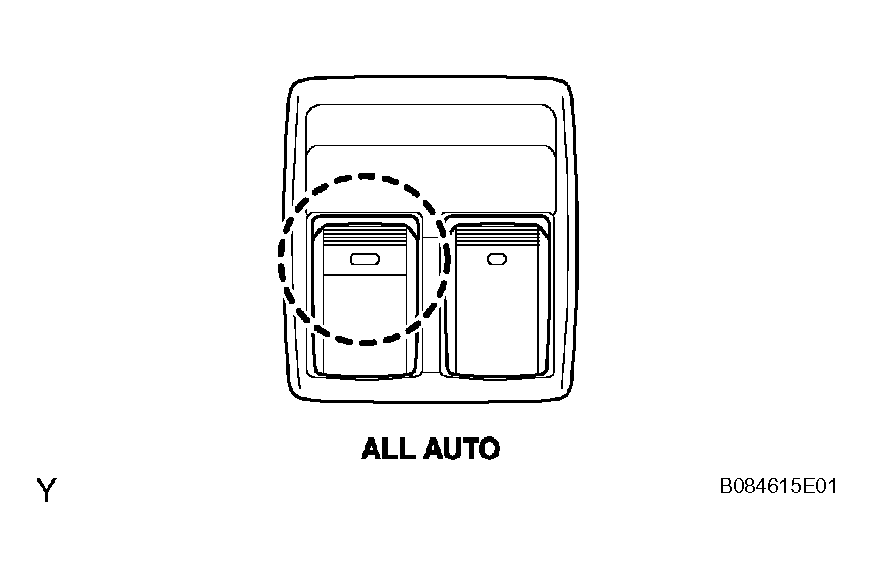

   Fig 1: Identifying Operate Driver Side Switch On Master Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

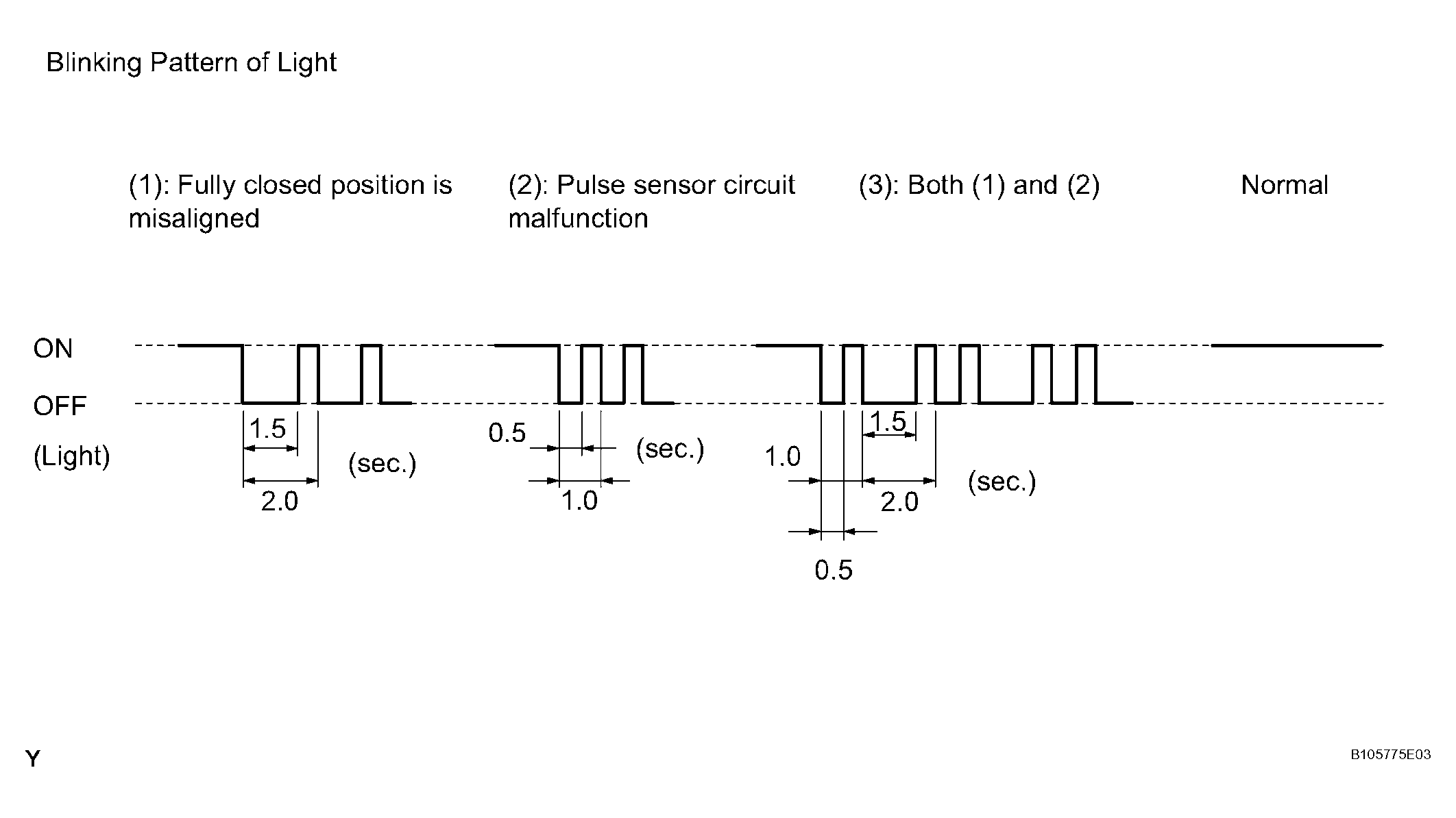

   Fig 2: Identifying Blinking Pattern Of Auto Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

B : Go to step   4

C : REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DRIVER SIDE)

A : Go to Next Step

OK : END

NG: Go To Next Step

1. Disconnect the P9 master switch connector.
2. Disconnect the P10 motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE



   Tester Connection	Specified Condition
   P9-19 (VCC) - P10-4 (SSRB)	Below 1 Ω
   P9-5 (PLS - P10-5 (PLS)	Below 1 Ω
   P9-15 (PLS2) - O10-3 (PLS2)	Below 1 Ω
   P9-12 (SGND) - P10-6 (E)	Below 1 Ω
   P9-19 (VCC) - Body ground	10 kΩor higher
   P9-5 (PLS) - Body ground	10 kΩor higher
   P9-15 (PLS2) - Body ground	10 kΩor higher

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

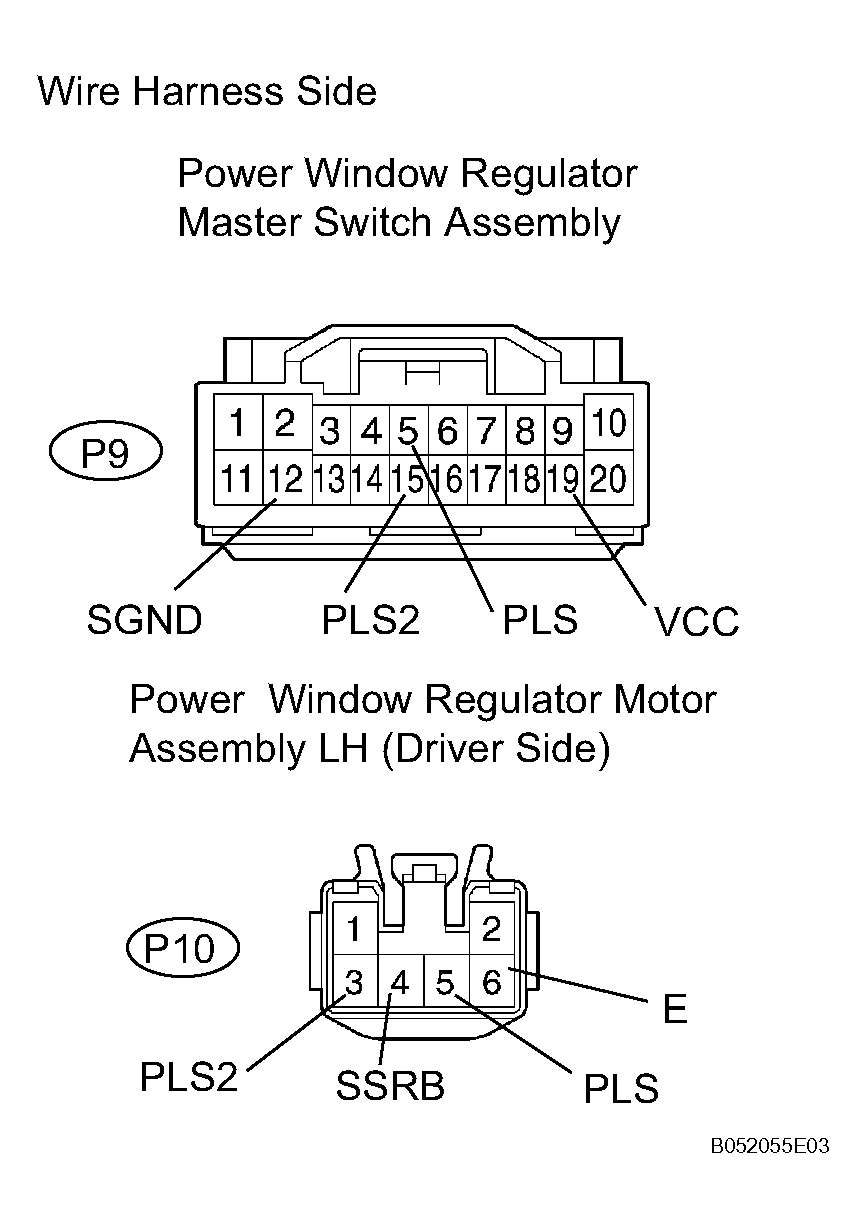

Fig 3: Disconnecting P10 Motor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (DRIVER SIDE)
