Accelerator Pedal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and accelerator pedal.

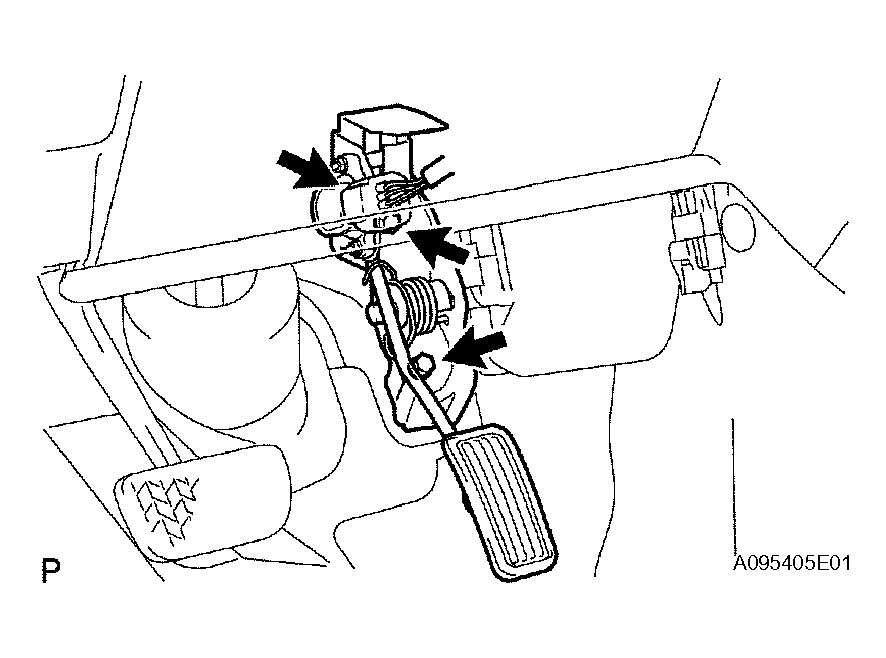

Fig 1: Removing Bolts And Accelerator Pedal
G04221423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
