Camshaft Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ENGINE COVER (see  ON-VEHICLE INSPECTION  )
  3. REMOVE AIR CLEANER CAP (see  REMOVAL  )
  4. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

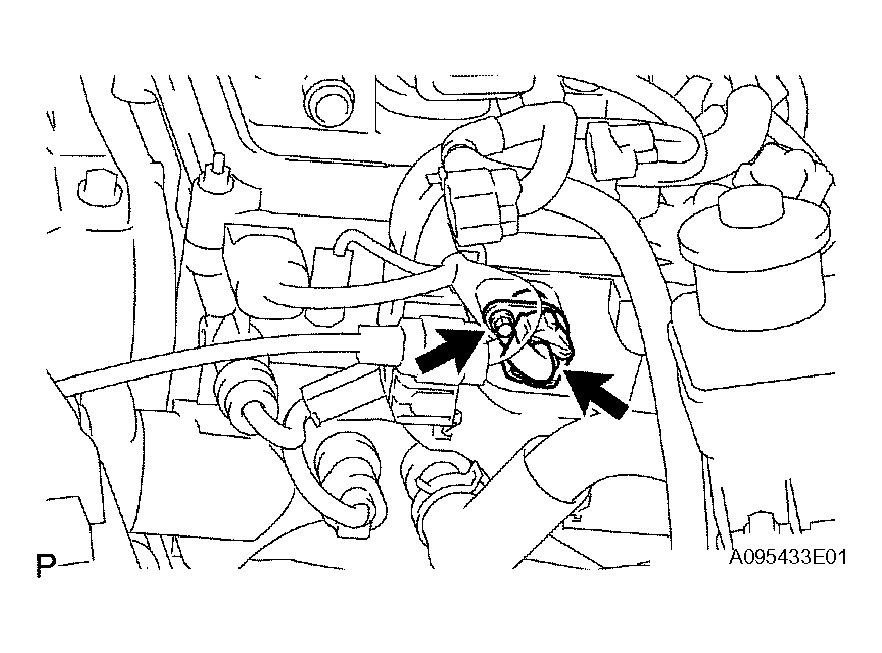

Fig 1: Removing Bolt And Sensor
G04221333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
