Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Apply a light coat of engine oil to the O-ring of the oil control valve.

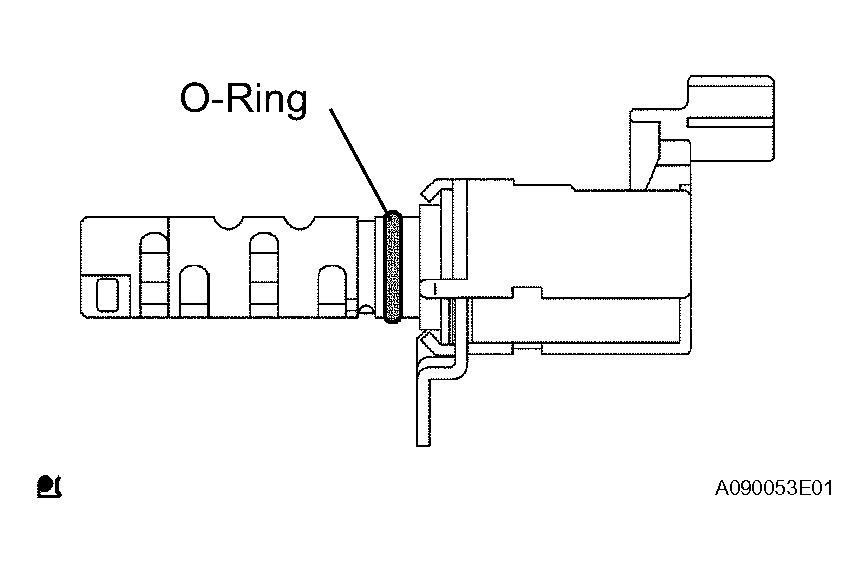

  Fig 1: Applying Light Coat Of Engine Oil To O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  NOTE: Make sure that the O-ring is not cracked or jammed.
3. Connect the oil control valve connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR ENGINE OIL LEAKS
1. Start the engine, and check that there are no oil leaks.
INSTALL ENGINE COVER (see INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

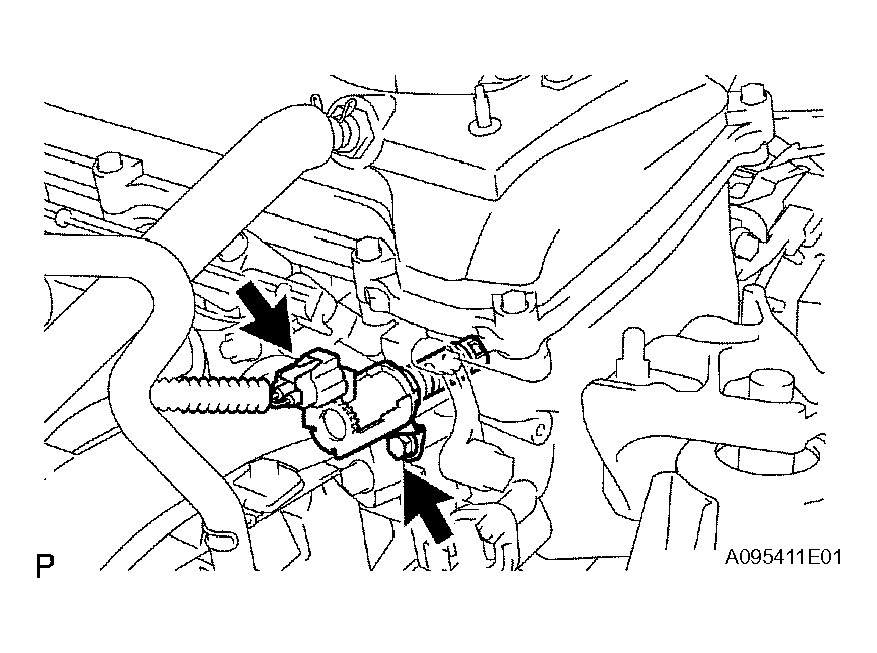

Fig 2: Installing Oil Control Valve With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
