On-Vehicle Inspection
- REMOVE EFI RELAY (Marking: EFI)
- Remove the engine room relay block cover.
- Remove the EFI relay from the engine room relay block.

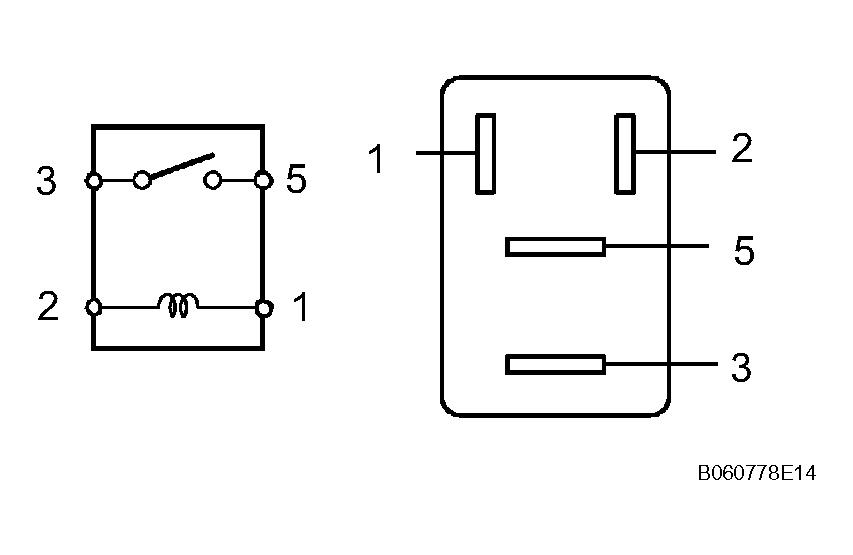

- INSPECT EFI RELAY
- Measure the EFI relay resistance.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2) If the result is not as specified, replace the relay.
- INSTALL EFI RELAY
