System Diagram

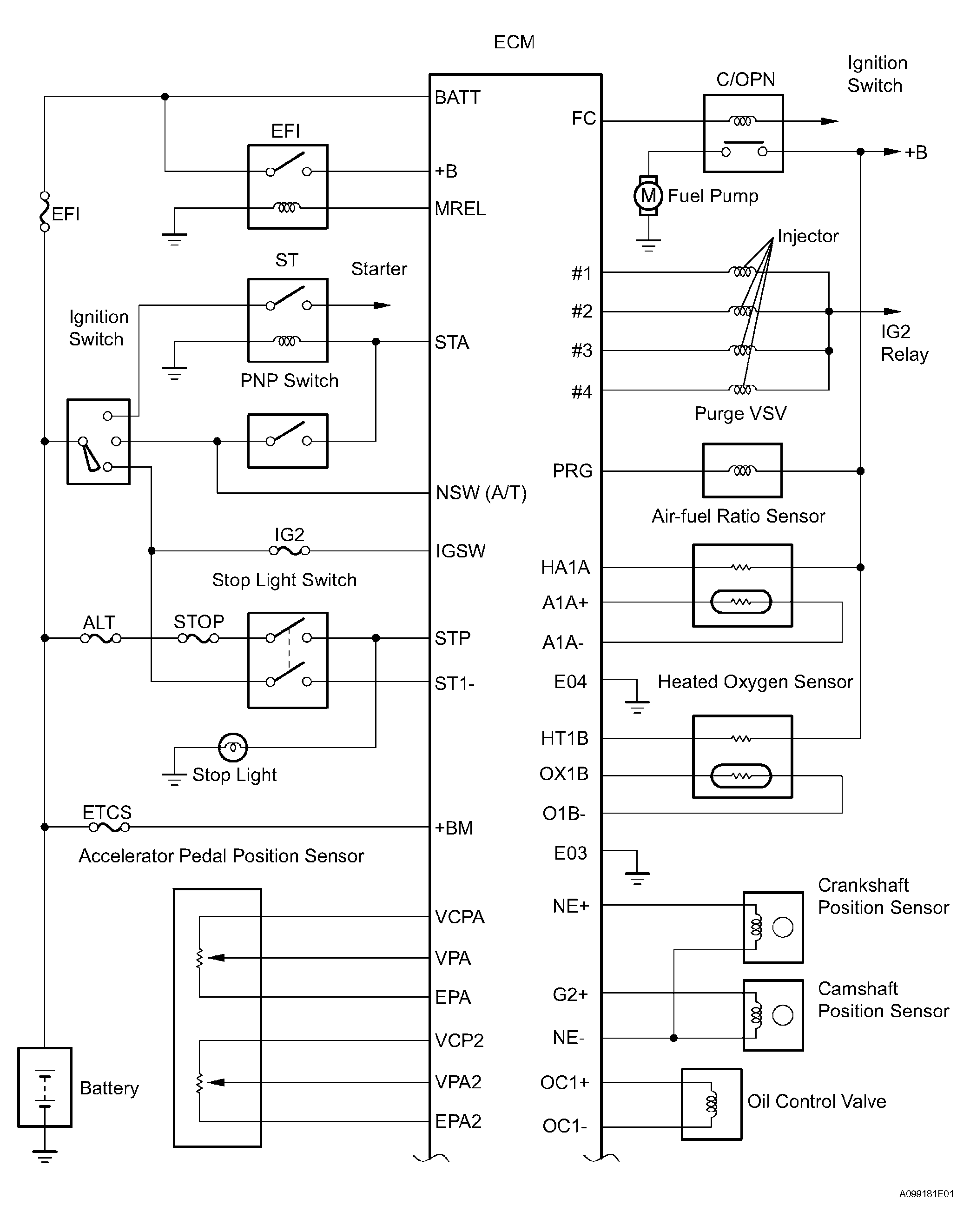

Fig 1: 2AZ-FE Engine Control System Diagram - SFI System (1 Of 2)
G04220970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

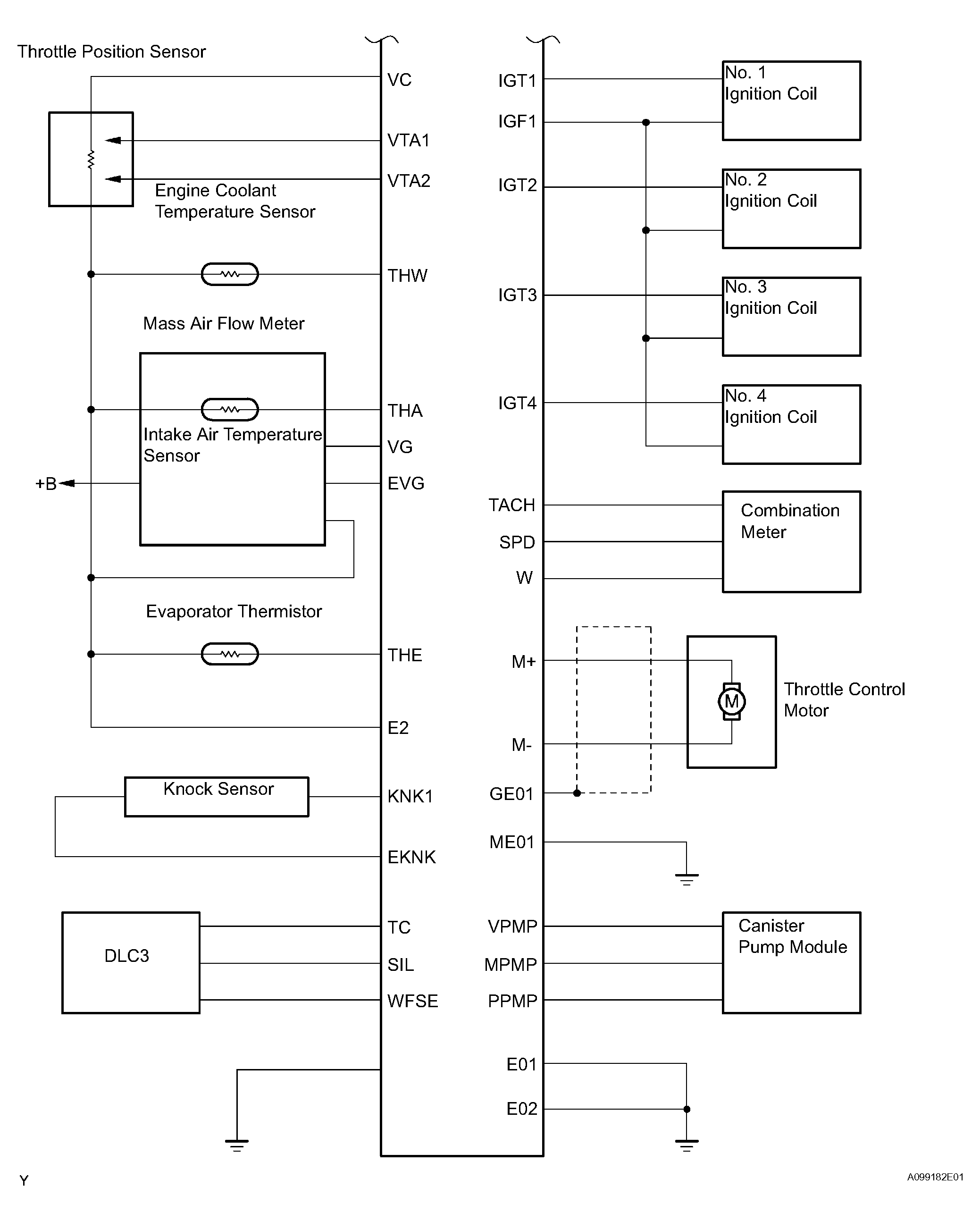

Fig 2: 2AZ-FE Engine Control System Diagram - SFI System (2 Of 2)
G04220971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
