Engine Coolant Temperature Sensor: Removal

DRAIN ENGINE COOLANT (See ON-VEHICLE INSPECTION )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE ENGINE COOLANT TEMPERATURE SENSOR
1. Disconnect the sensor connector.
2. Using SST, remove the sensor and gasket.
SST 09817-33190

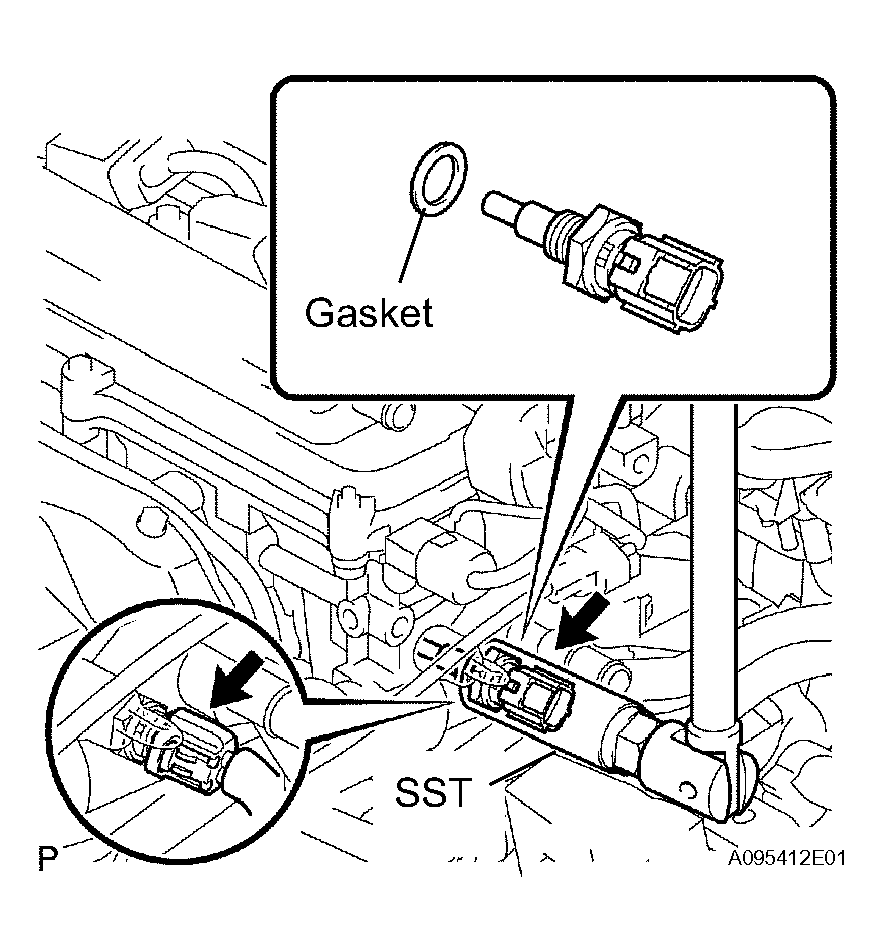

Fig 1: Removing Sensor And Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
