Knock Sensor: Components — 2006 Scion tC Standard Service Manual ~ LEMON Manuals

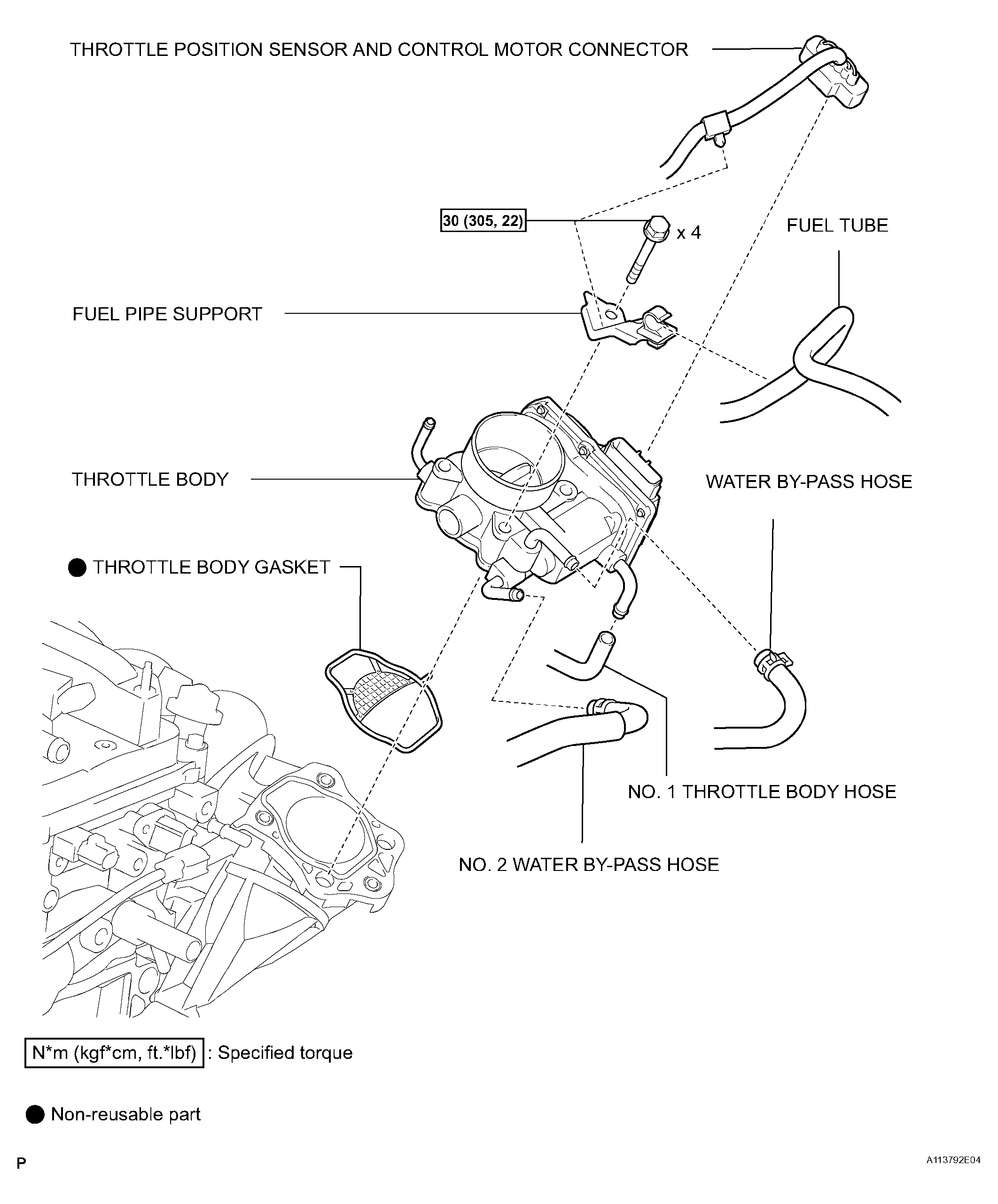

Fig 1: Identifying Knock Sensor Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

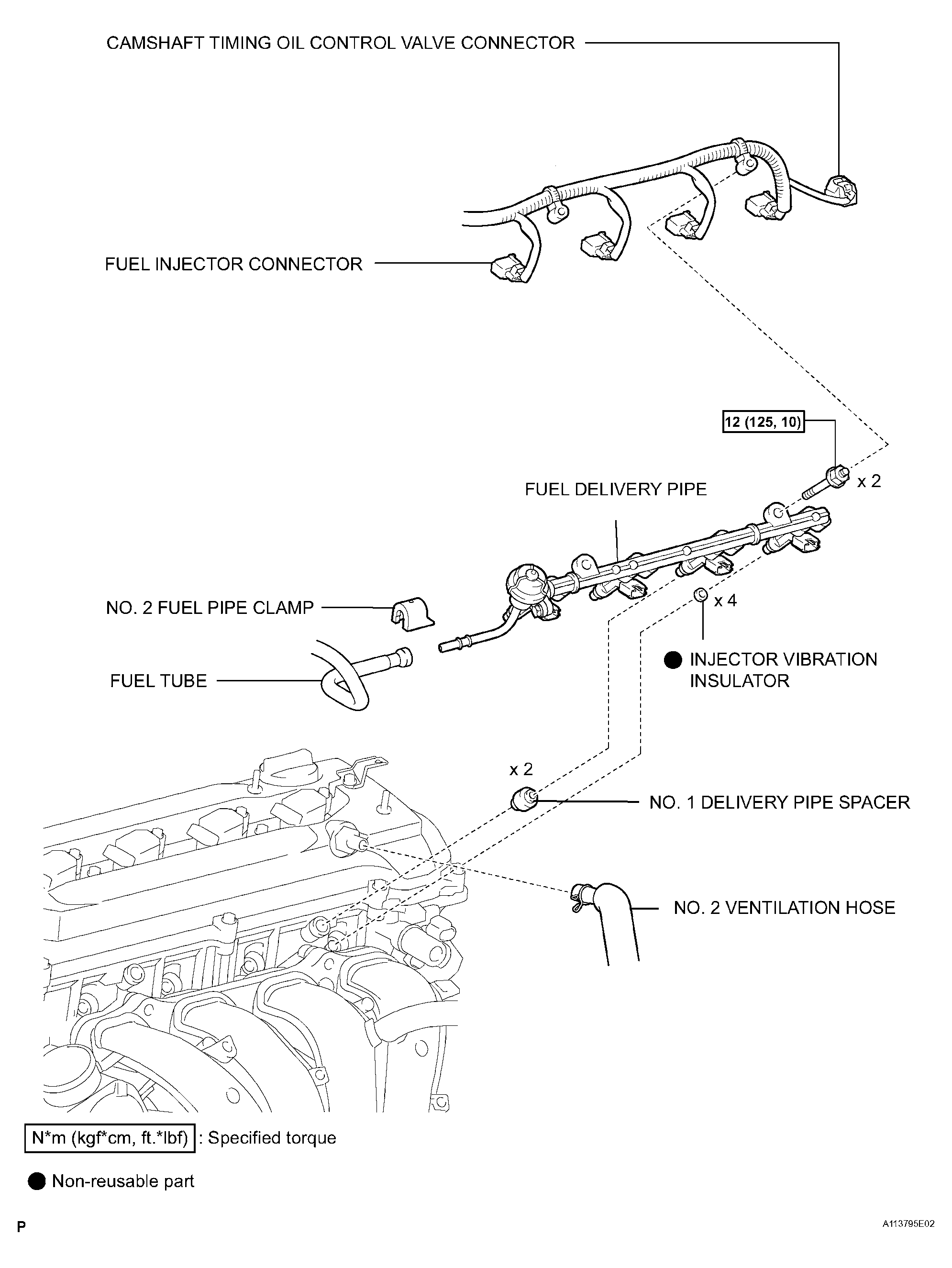

Fig 2: Identifying Knock Sensor Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

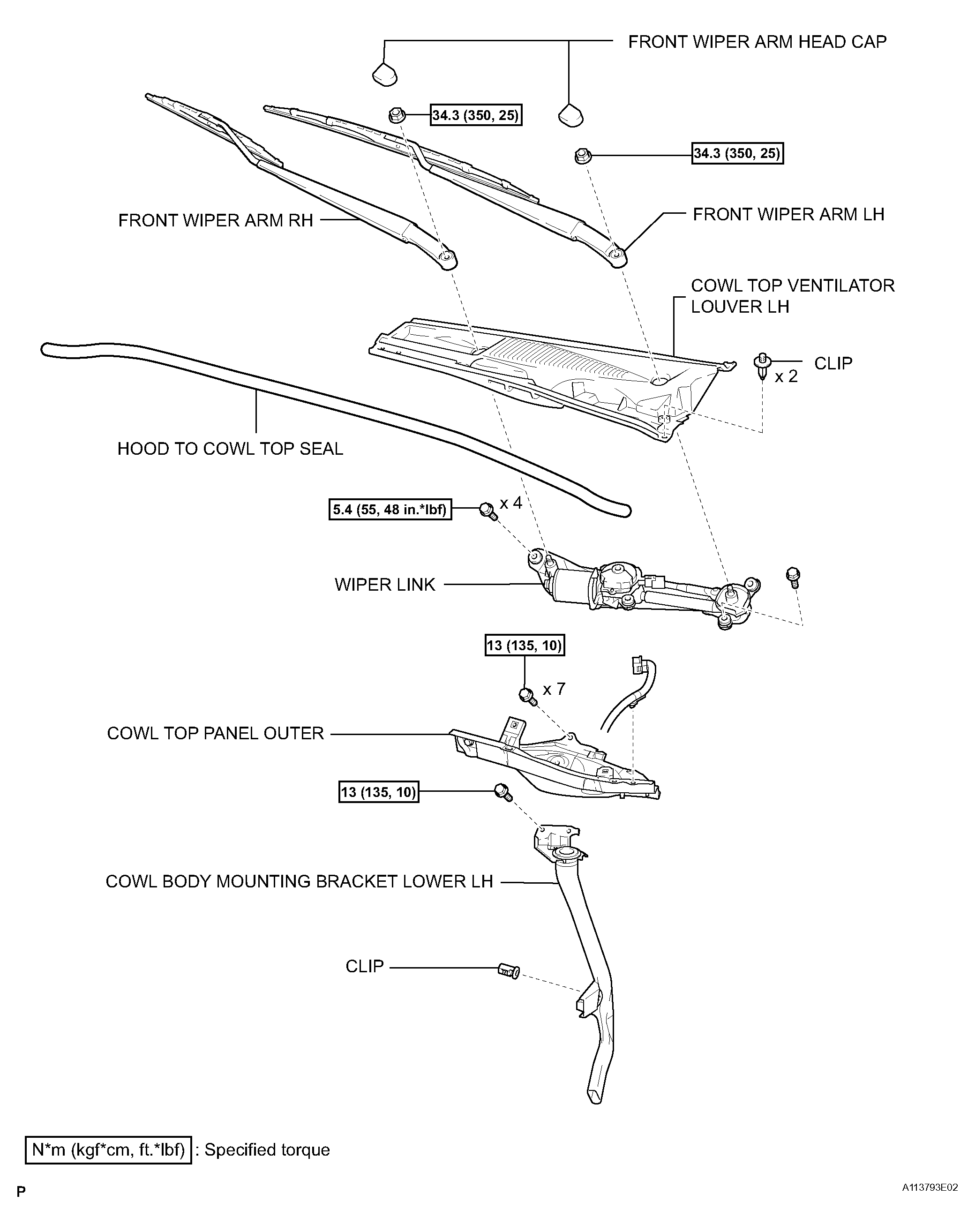

Fig 3: Identifying Knock Sensor Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

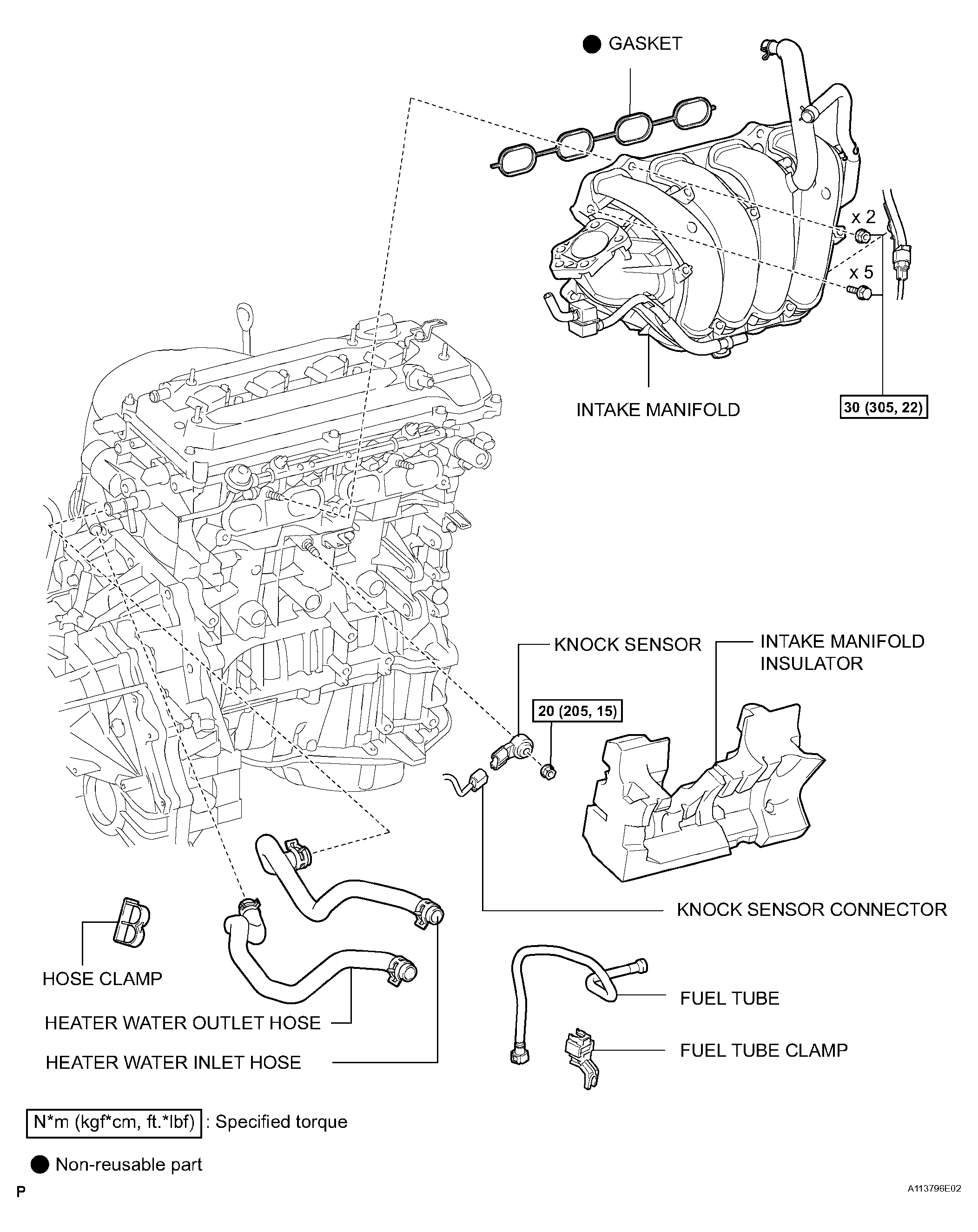

Fig 4: Identifying Knock Sensor Components (4 Of 5)

Fig 5: Identifying Knock Sensor Components (5 Of 5)
