Throttle Body: Inspection

  1. INSPECT THROTTLE BODY
    1. Measure the resistance of the throttle control motor.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    1 (M-) - 2 (M+) 0.3 to 100 Ω at 20°C (68°F)

    If the result is not as specified, replace the throttle body.

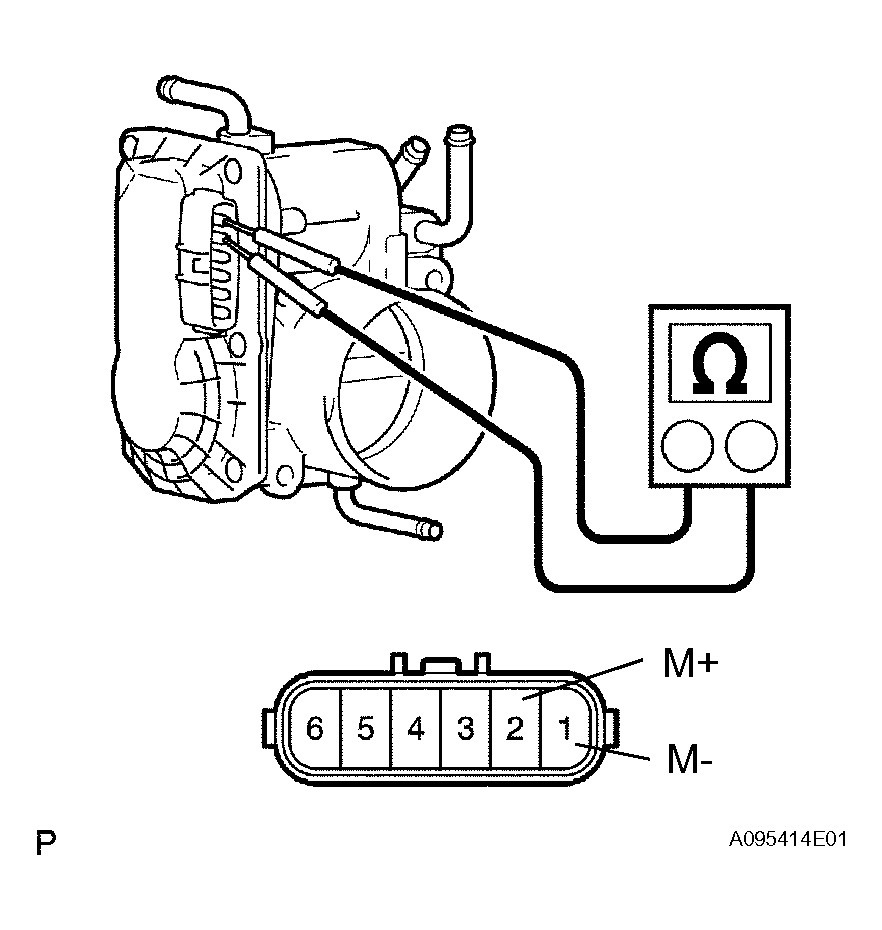

Fig 1: Measuring Resistance Of Throttle Control Motor
G04221363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
