Throttle Body: Installation

INSTALL THROTTLE BODY

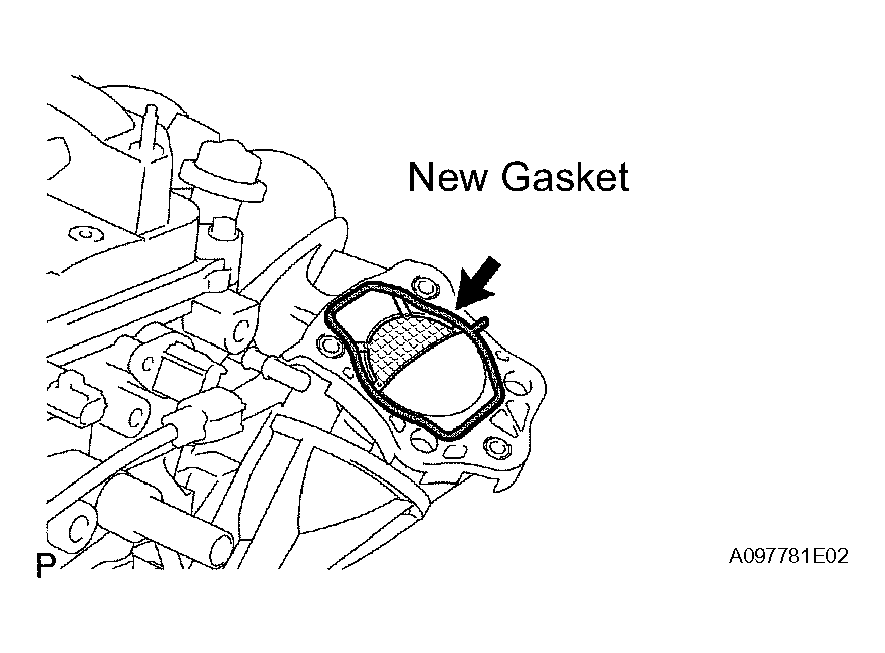

1. Install a new gasket onto the intake manifold.

  Fig 1: Installing Gasket Onto Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

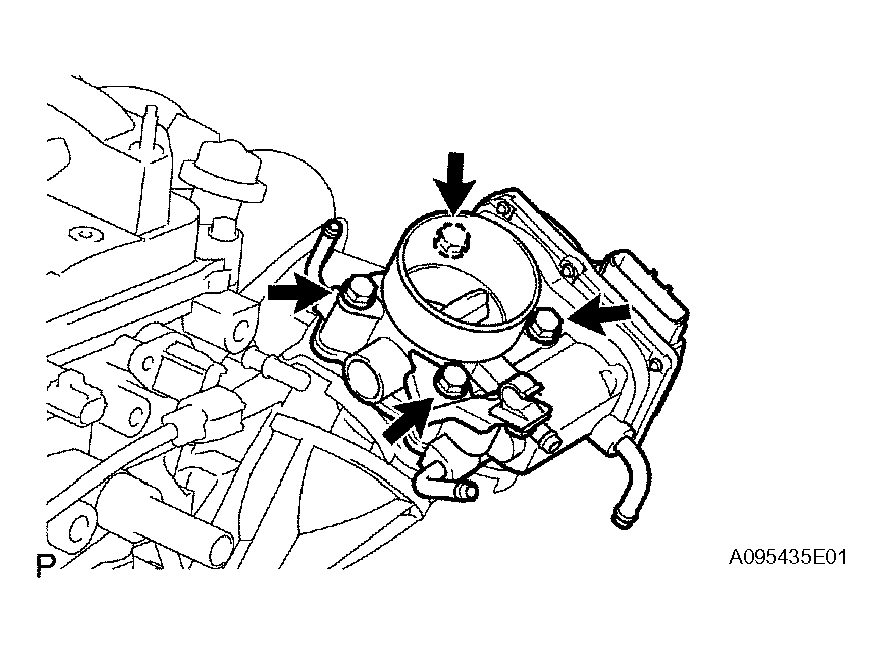

2. Install the throttle body and fuel pipe clamp with the 4 bolts.
  Torque: 30 N*m (305 kgf*cm, 22 in.*lbf)

  Fig 2: Installing Throttle Body And Fuel Pipe Clamp With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Fit the fuel tube into the clamp.

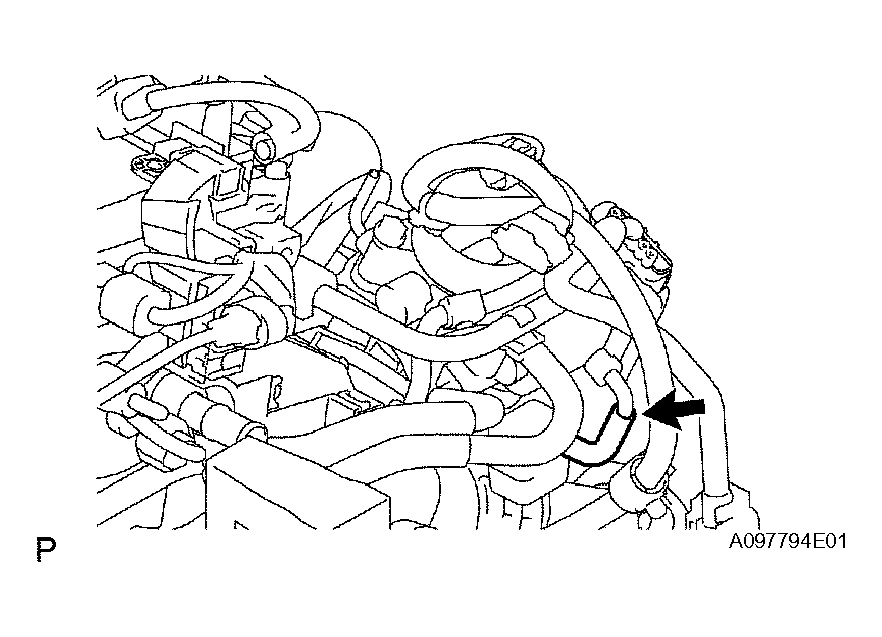

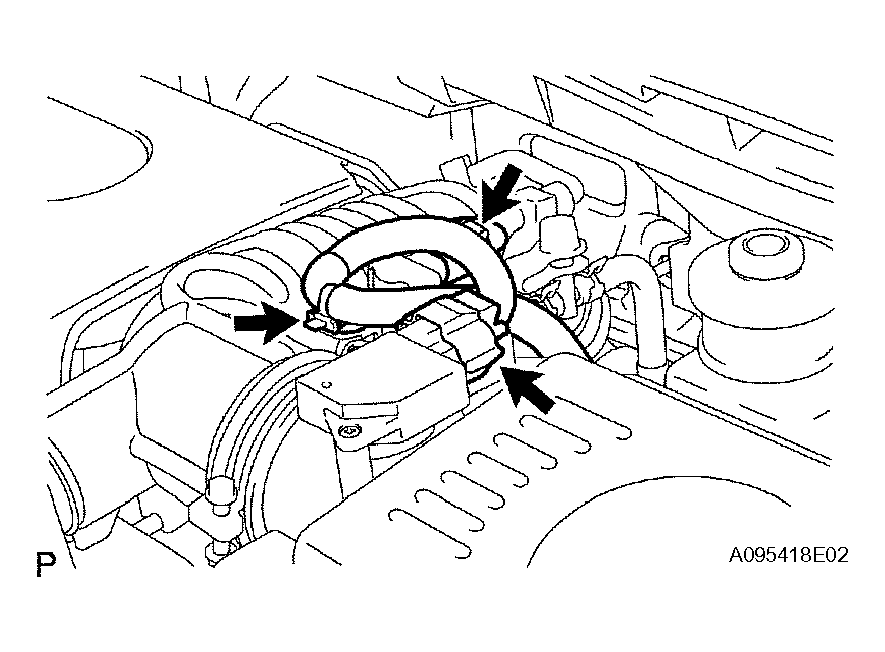

4. Install the wire harness clamp.
5. Connect the throttle position sensor and control motor connector.

  Fig 3: Installing Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the No. 1 throttle body hose to the throttle body.

  Fig 4: Connecting No. 1 Throttle Body Hose To Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

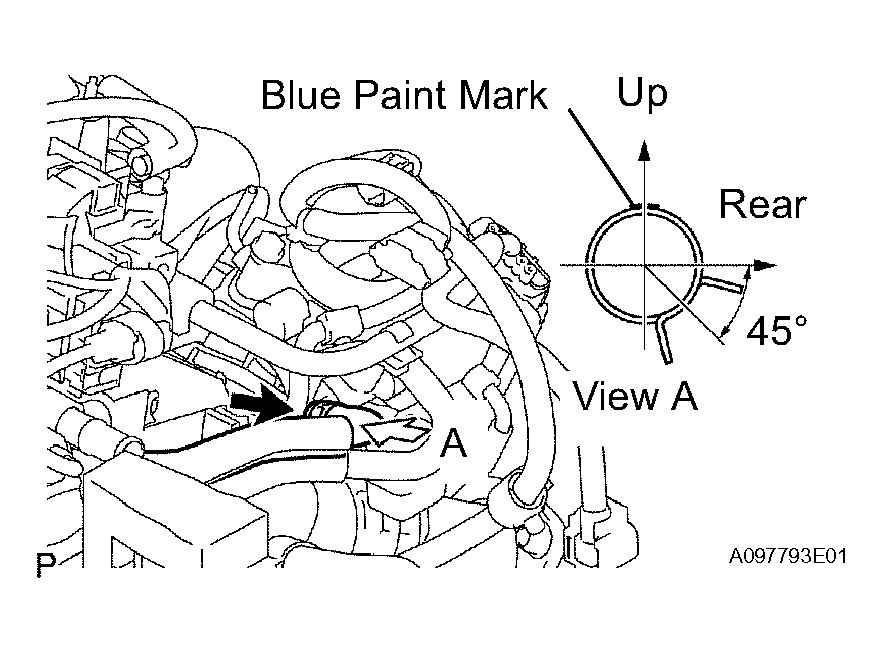

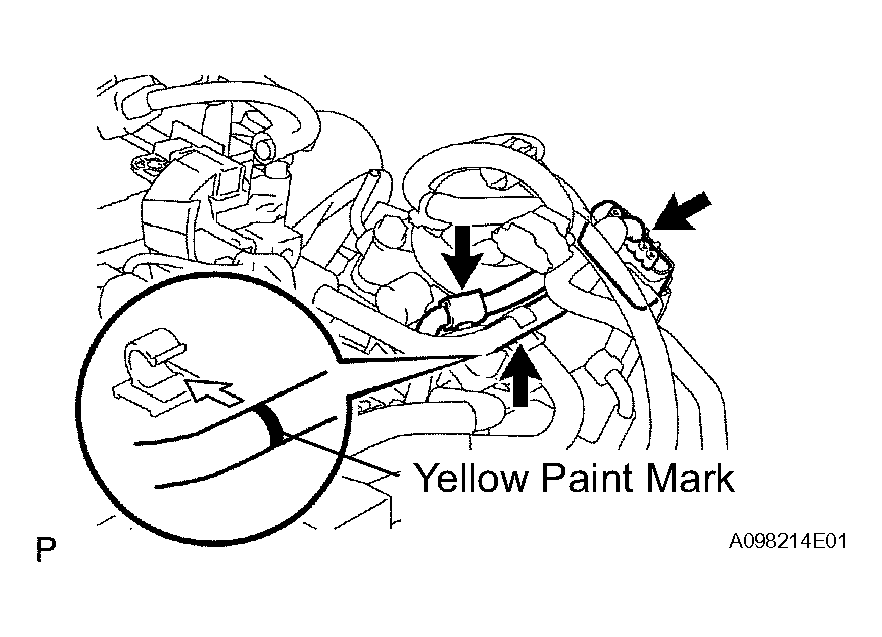

7. Connect the No. 2 water by-pass hose to the throttle body.
  NOTE: Make sure that the paint mark and hose clamp are at the correct angle.

  Fig 5: Connecting No. 2 Water By-Pass Hose To Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

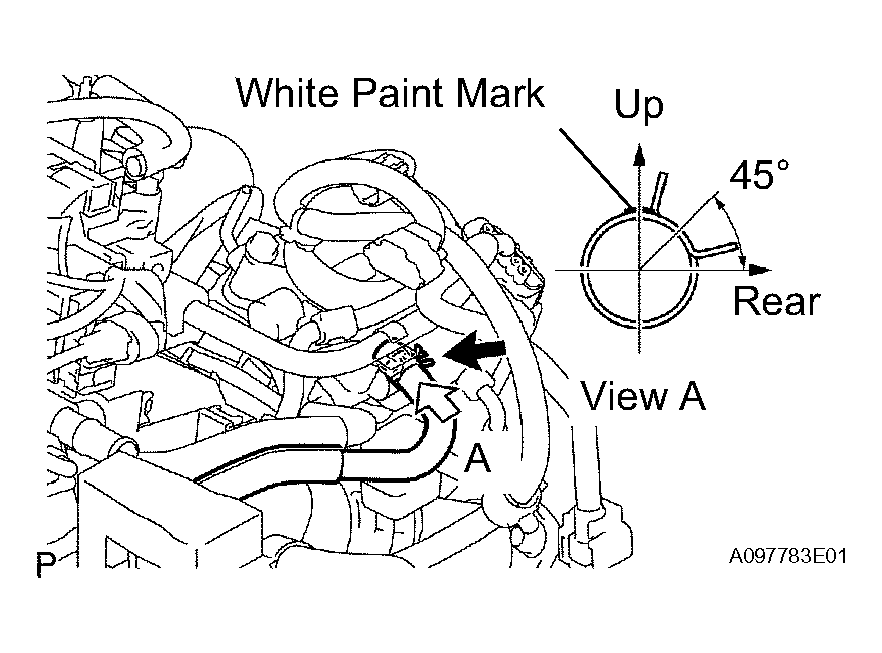

8. Connect the water by-pass hose to the throttle body.
  NOTE: Make sure that the paint mark and hose clamp are at the correct angle.
Fig 6: Connecting Water By-Pass Hose To Throttle Body
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP

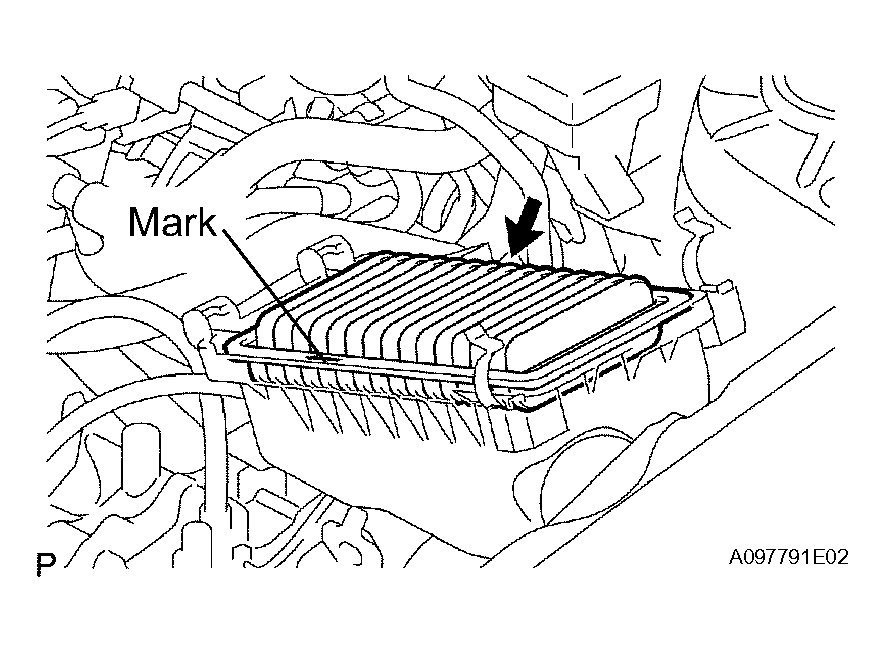

1. Install the air cleaner filter element onto the air cleaner case.
  NOTE: Make sure that the air cleaner filter element is in the correct direction when installing.

  Fig 7: Installing Air Cleaner Filter Element Onto Air Cleaner Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

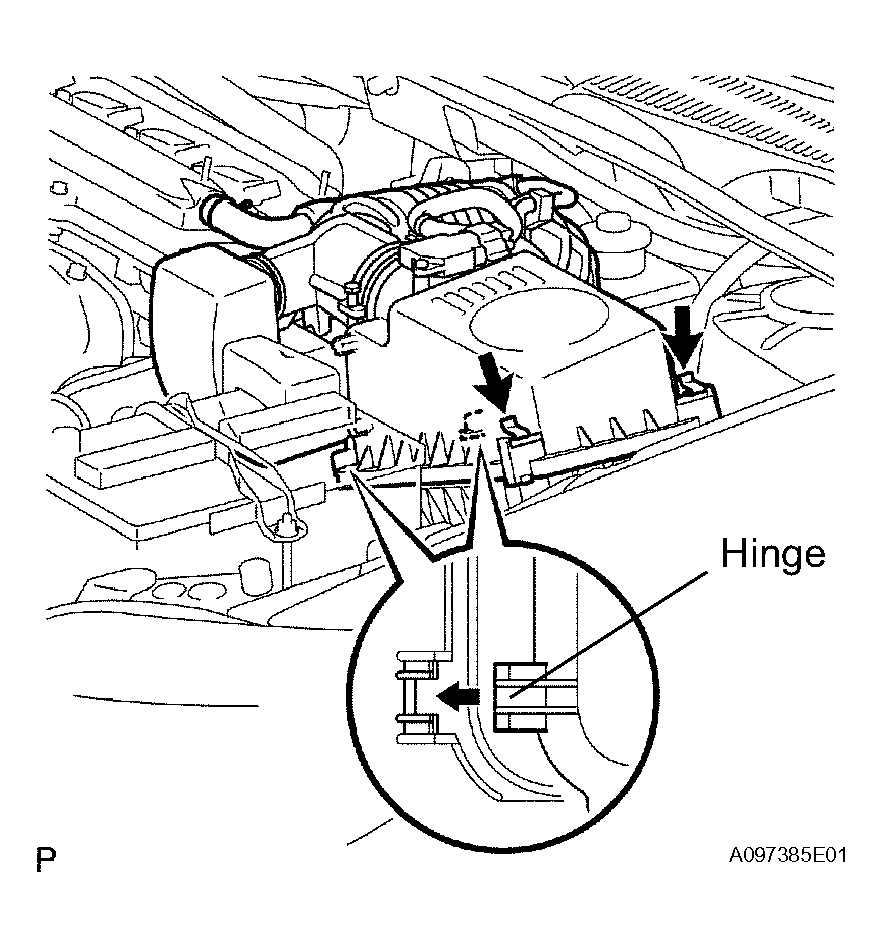

2. Insert the hinge part of the air cleaner cap into the air cleaner case, then hang the 2 hook clamps.

  Fig 8: Inserting Hinge Part Of Air Cleaner Cap Into Air Cleaner Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

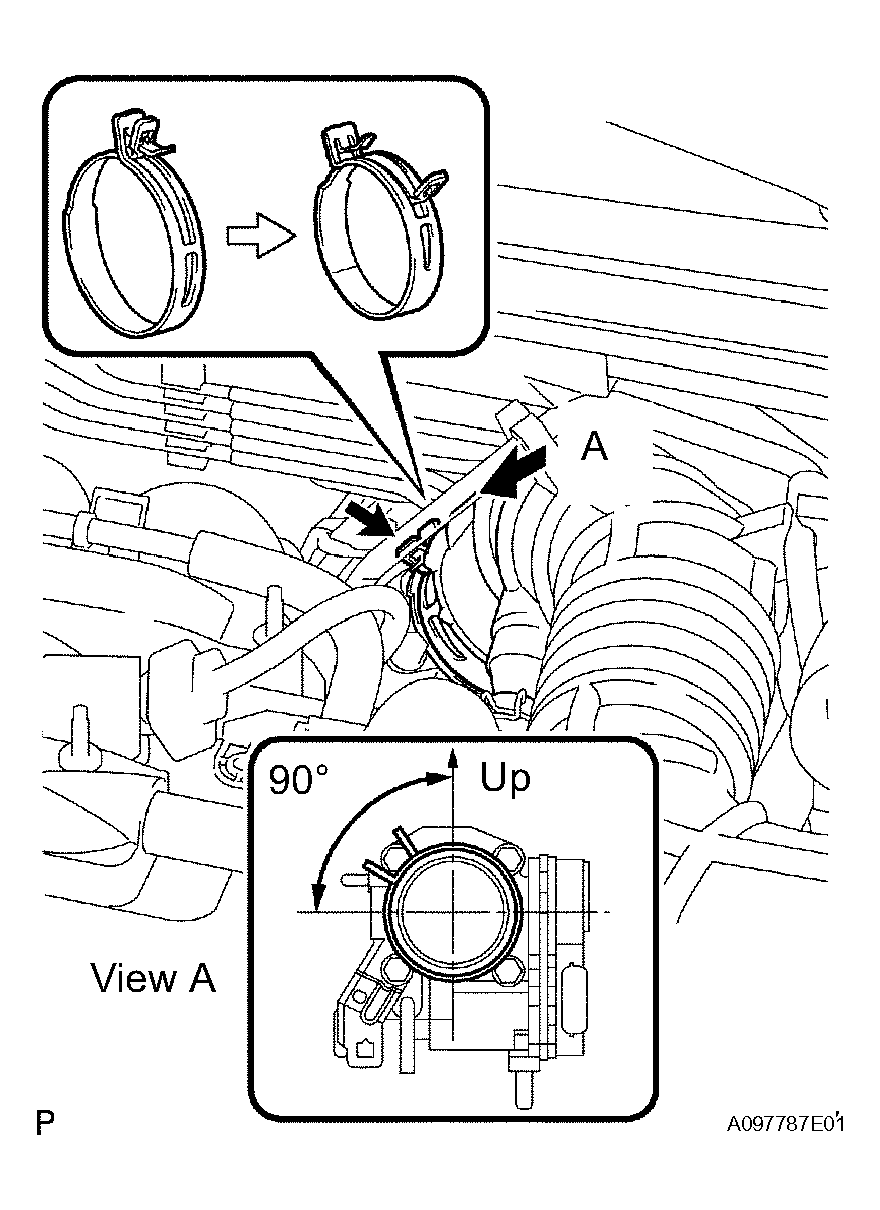

3. Align the matchmarks of the No. 1 air cleaner hose and throttle body, and then connect the air cleaner hose No. 1 to the throttle body and unfasten the No. 1 air cleaner hose clamp.
  NOTE: Make sure that the hose clamp is at the correct angle.

  Fig 9: Removing No. 1 Air Cleaner Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

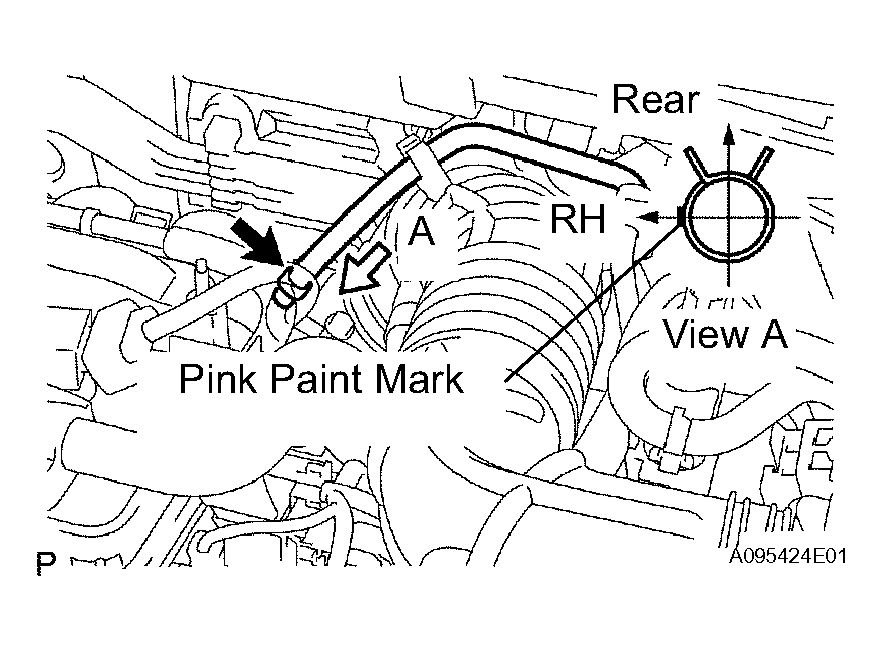

4. Connect the purge line hose to the throttle body.
  NOTE: Make sure that the paint mark and hose clamp are at the correct angle.

  Fig 10: Connecting Purge Line Hose To Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

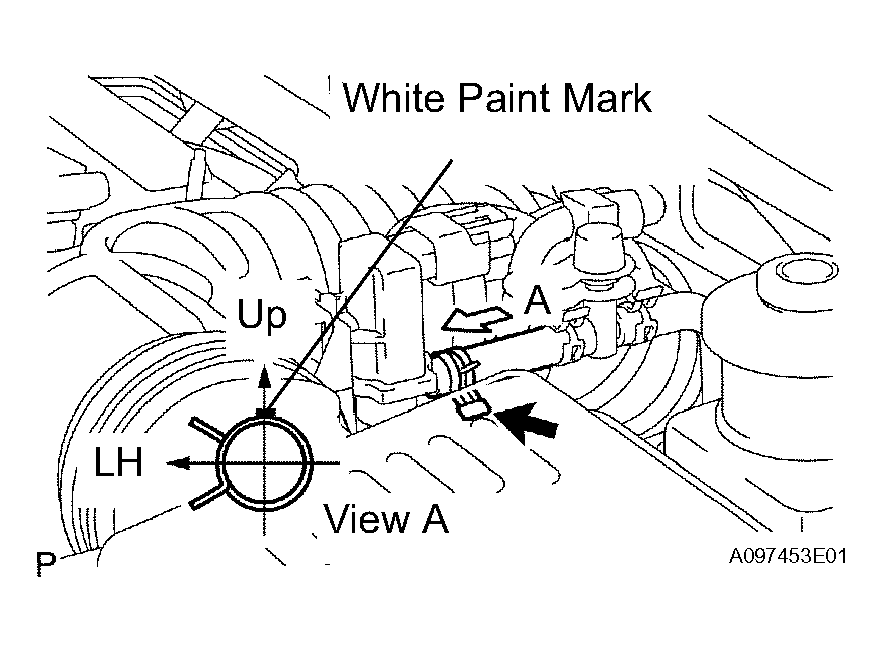

5. Connect the purge line hose to the purge VSV.
  NOTE: Make sure that the paint mark and hose clamp are at the correct angle.

  Fig 11: Connecting Purge Line Hose To Purge VSV
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

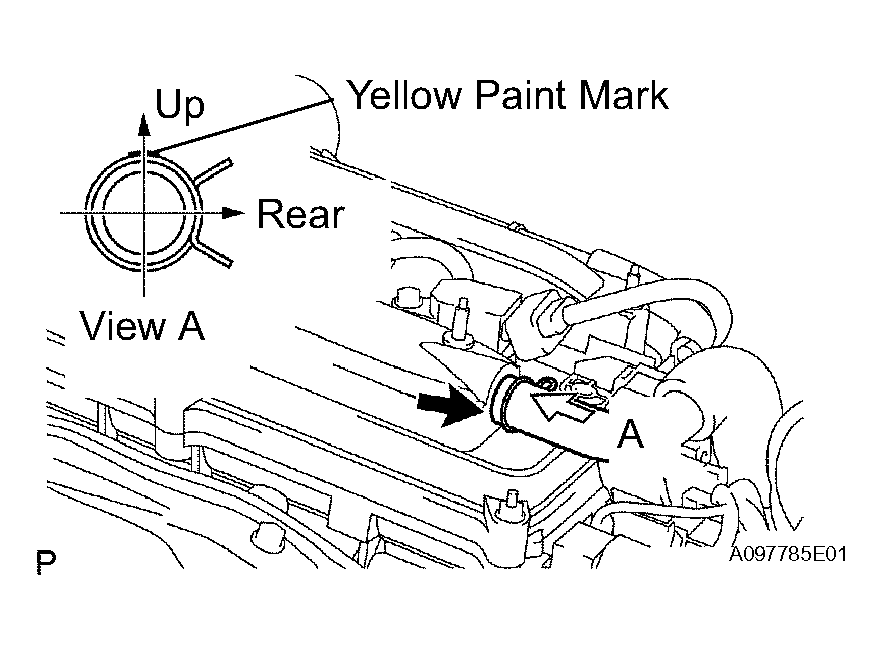

6. Connect the No. 2 ventilation hose to the cylinder head cover.
  NOTE: Make sure that the paint mark and hose clamp are at the correct angle.

  Fig 12: Connecting No. 2 Ventilation Hose To Cylinder Head Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the wire harness clamp.
8. Connect the purge VSV connector.
9. Connect the mass air flow meter connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKAGE (See ON-VEHICLE INSPECTION )

Fig 13: Connecting Purge VSV Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE COVER

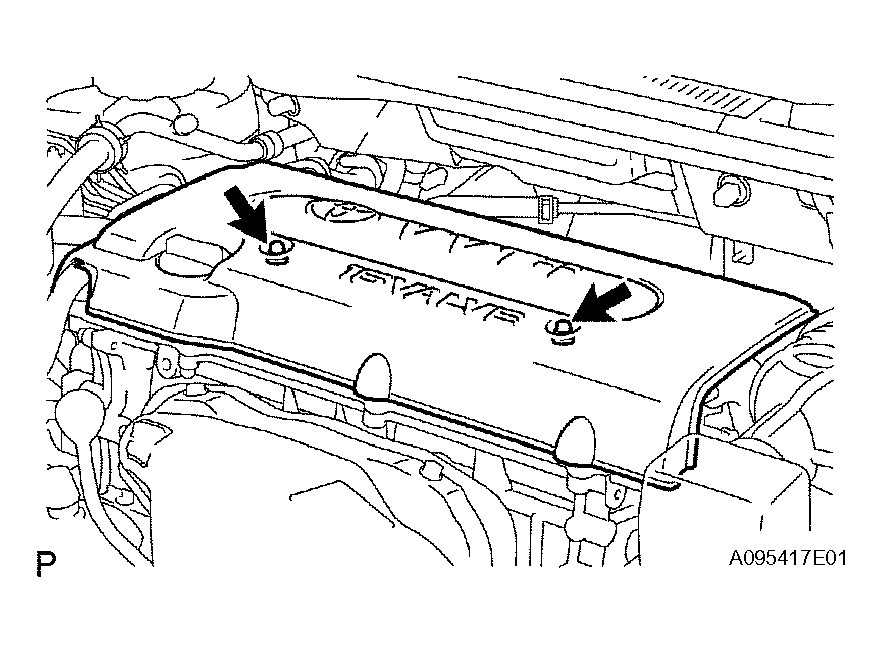

1. Install the cover with the 2 nuts.
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

Fig 14: Installing Cover With 2 Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
