On-Vehicle Inspection

1. Check that operation of the power windows except the driver side power window is disabled when the window lock switch of the power window regulator master switch is pressed.
2. Check that the power windows can operate when the window lock switch is pressed again.

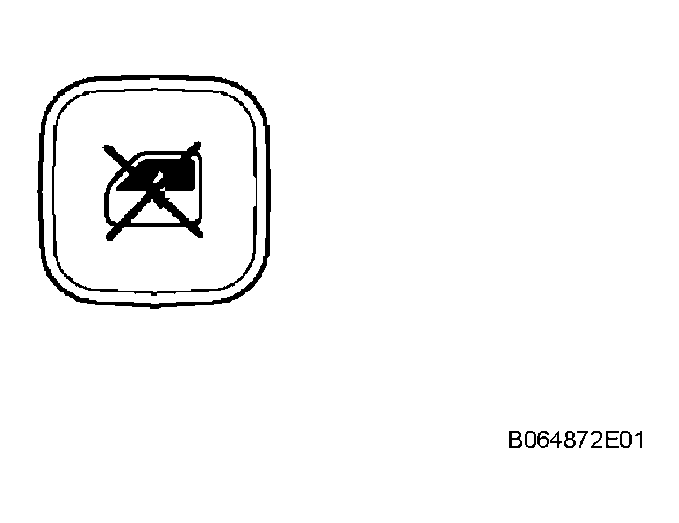

   Fig 1: Identifying Power Window Regulator Master Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the AUTO switch of the master switch can operate the driver side power window as follows:

   OK:

   MASTER SWITCH OPERATION DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Pulled up	UP (closes)
   Ignition switch ON	Driver side	Pushed halfway down	DOWN (opens)

2. Check that each regulator switch can operate each power window as follows:

   OK:

   REGULATOR SWITCH OPERATION DESCRIPTION



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Passenger side	Pulled up	UP (closes)
   Ignition switch ON Window lock switch OFF	Passenger side	Pushed down	DOWN (opens)
   Ignition switch ON Window lock switch OFF	Rear LH	Pulled up	UP (closes)
   Ignition switch ON Window lock switch OFF	Rear LH	Pushed down	DOWN (opens)
   Ignition switch ON Window lock switch OFF	Rear RH	Pulled up	UP (closes)
   Ignition switch ON Window lock switch OFF	Rear RH	Pushed down	DOWN (opens)

1. Check that the AUTO switch of the master switch can operate the driver side power window as follows:

   OK:

   MASTER SWITCH OPERATION DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Fully pushed down	AUTO DOWN (fully opens)

1. Check that the power window regulator master switch can operate the power windows besides the driver side power window as follows:

   OK:

   MASTER SWITCH OPERATION DESCRIPTION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch OFF	Passenger side	Pulled up	UP (closes)
   Ignition switch ON Window lock switch OFF	Passenger side	Pushed down	DOWN (opens)
   Ignition switch ON Window lock switch OFF	Rear LH	Pulled up	UP (closes)
   Ignition switch ON Window lock switch OFF	Rear LH	Pushed down	DOWN (opens)
   Ignition switch ON Window lock switch OFF	Rear RH	Pulled up	UP (closes)
   Ignition switch ON Window lock switch OFF	Rear RH	Pushed down	DOWN (opens)

HINT:

PTC operation is a function that prevents overloading of the power window regulator by stopping the motor. PTC operation activates when the power window regulator switch is operated for a predetermined amount of time.

1. Pull up and hold the power window regulator switch for more than 90 seconds. Then release the switch.
2. Check that pressing the switch does not move the window.
3. Wait until 60 seconds have passed since the switch was released in the first step. Check that pressing the switch results in normal window movement.
