Camshaft Position Sensor: Components

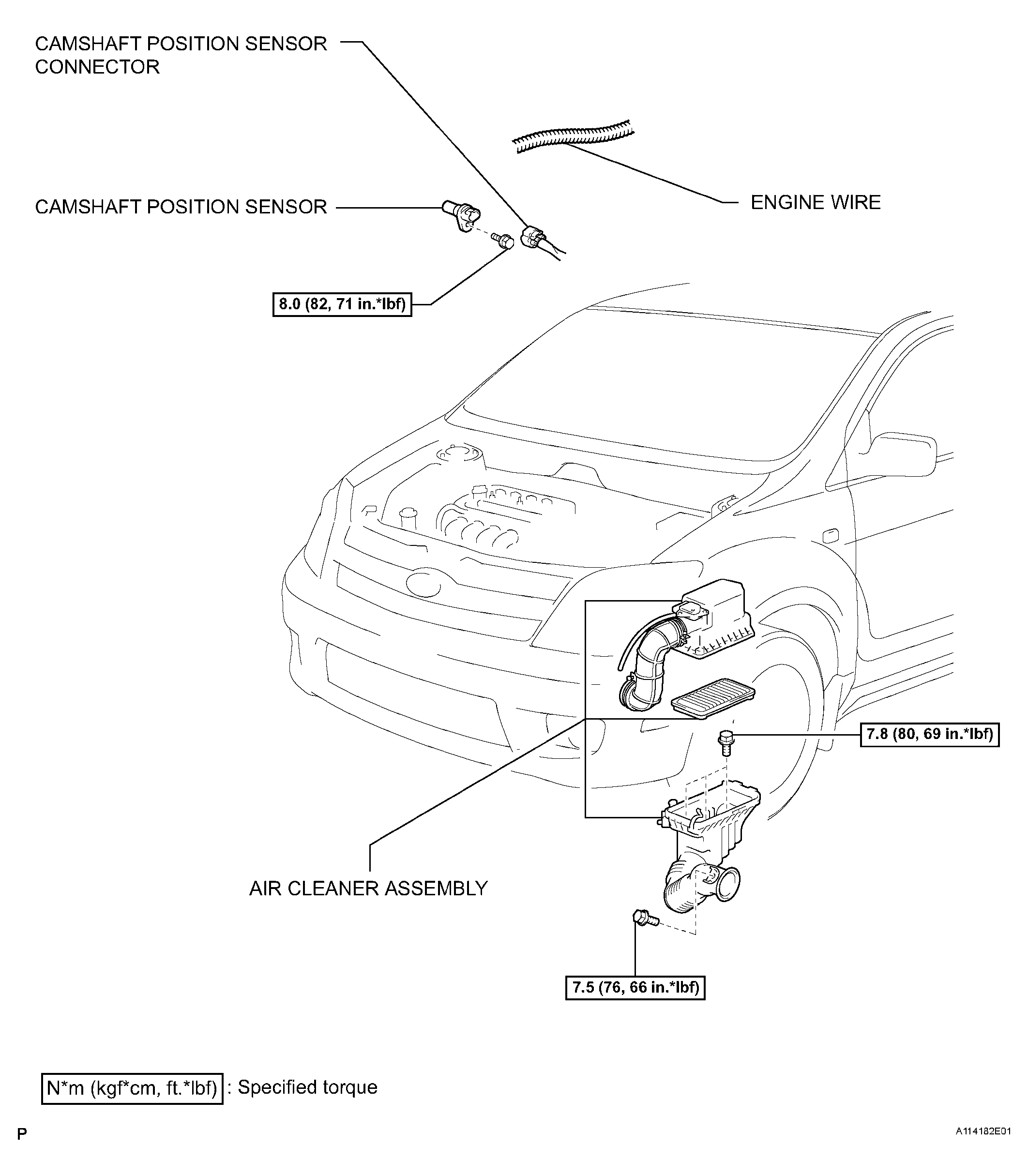

Fig 1: Identifying Camshaft Position Sensor Components
G04153181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
